Square D

8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil

Category NEMA Control Relays & Accessories

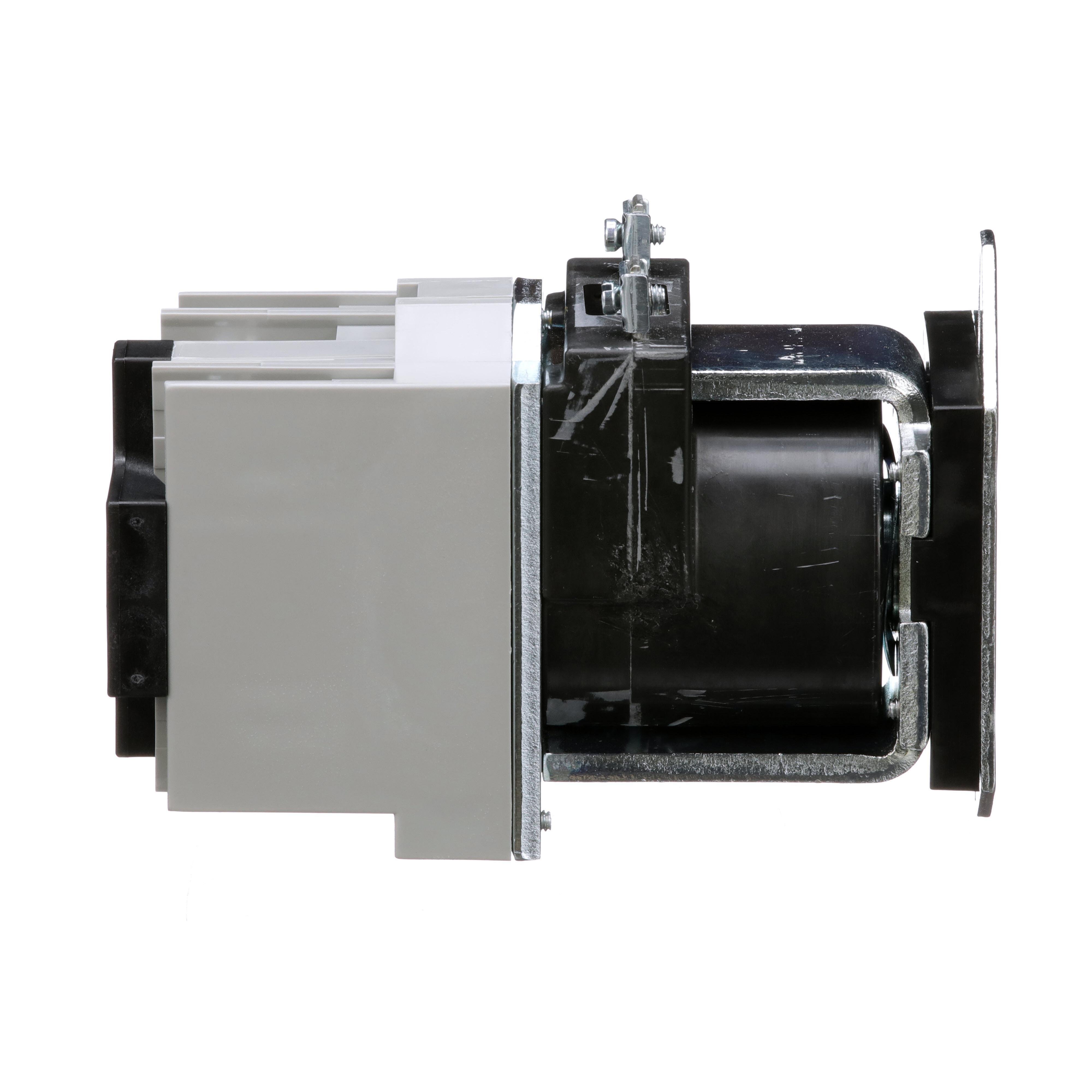

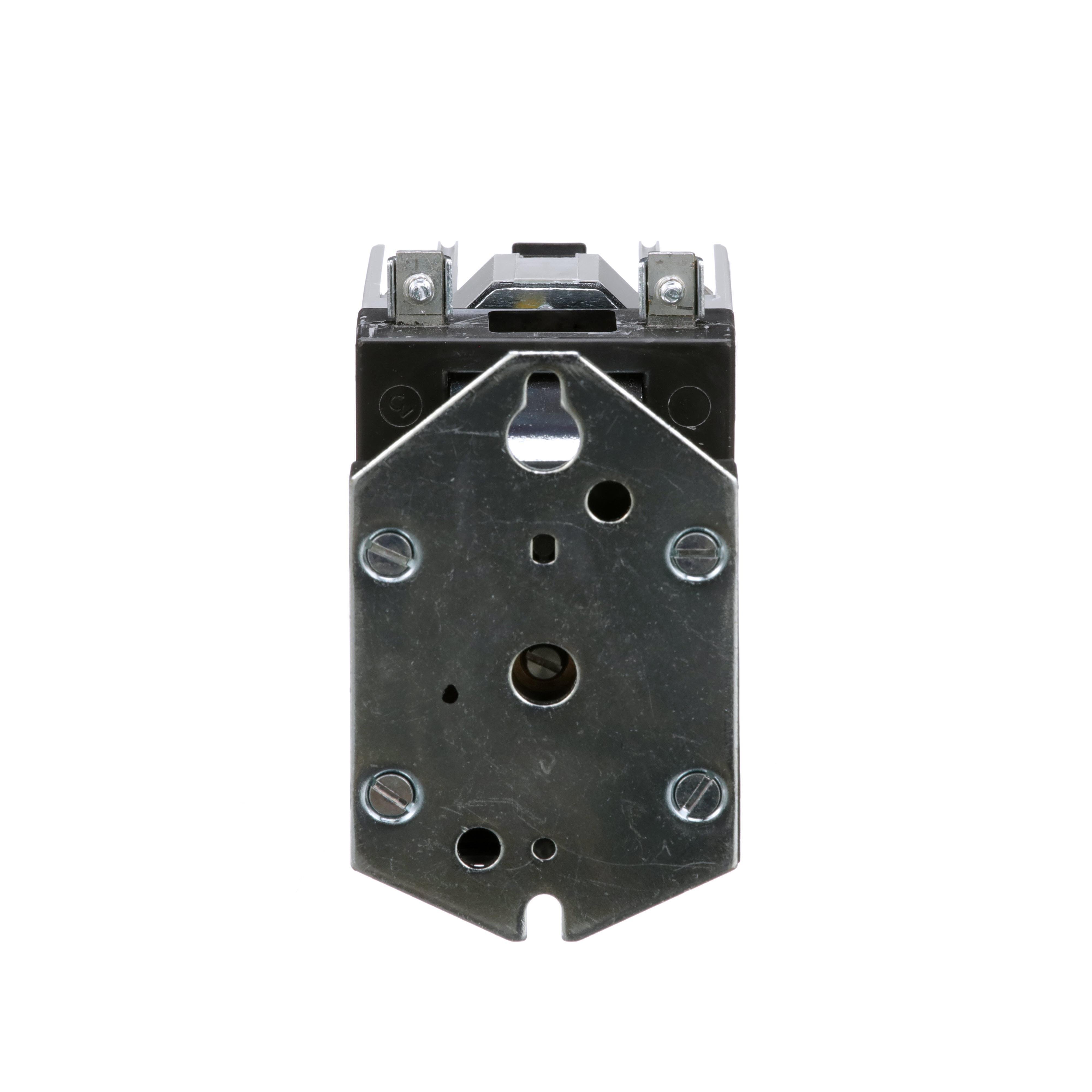

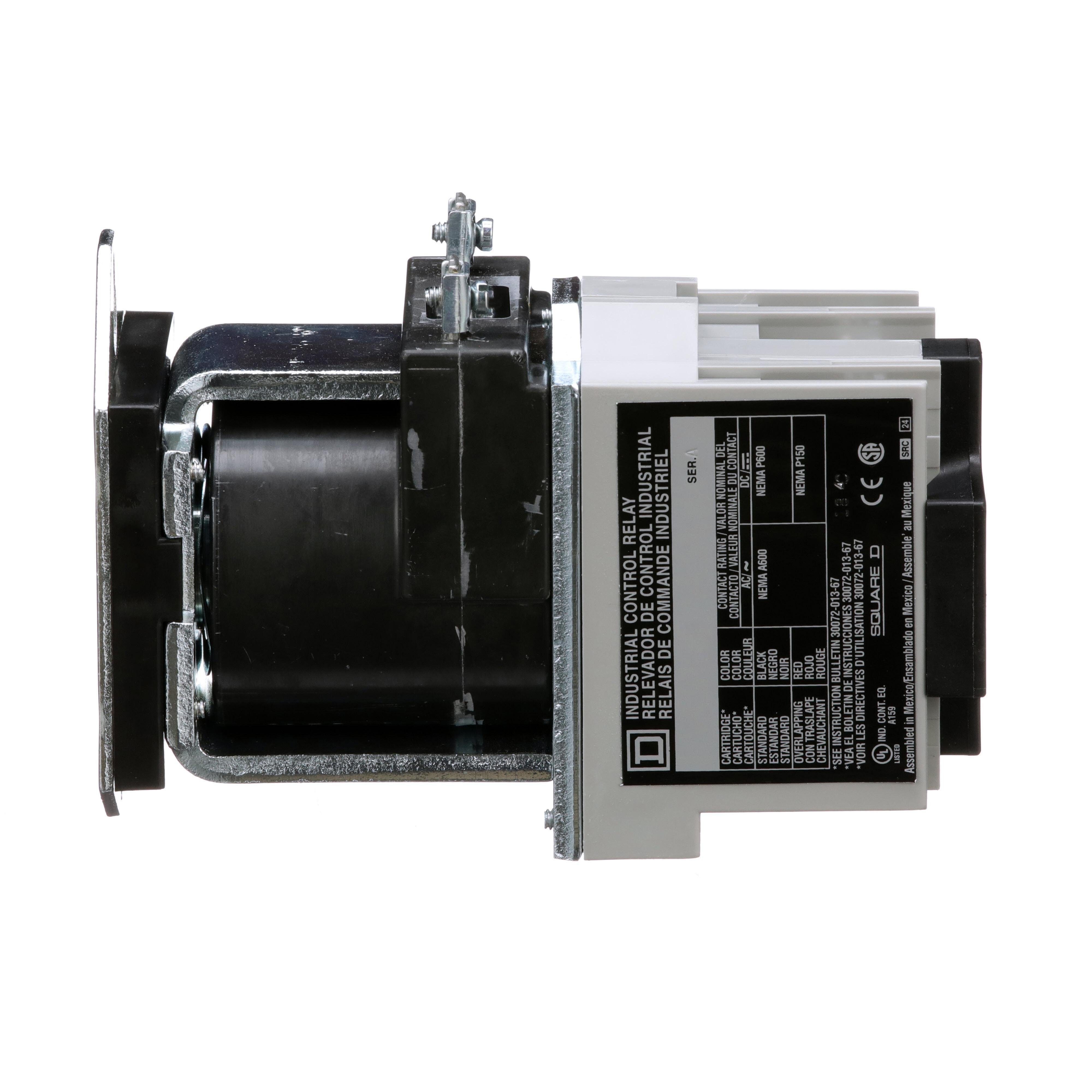

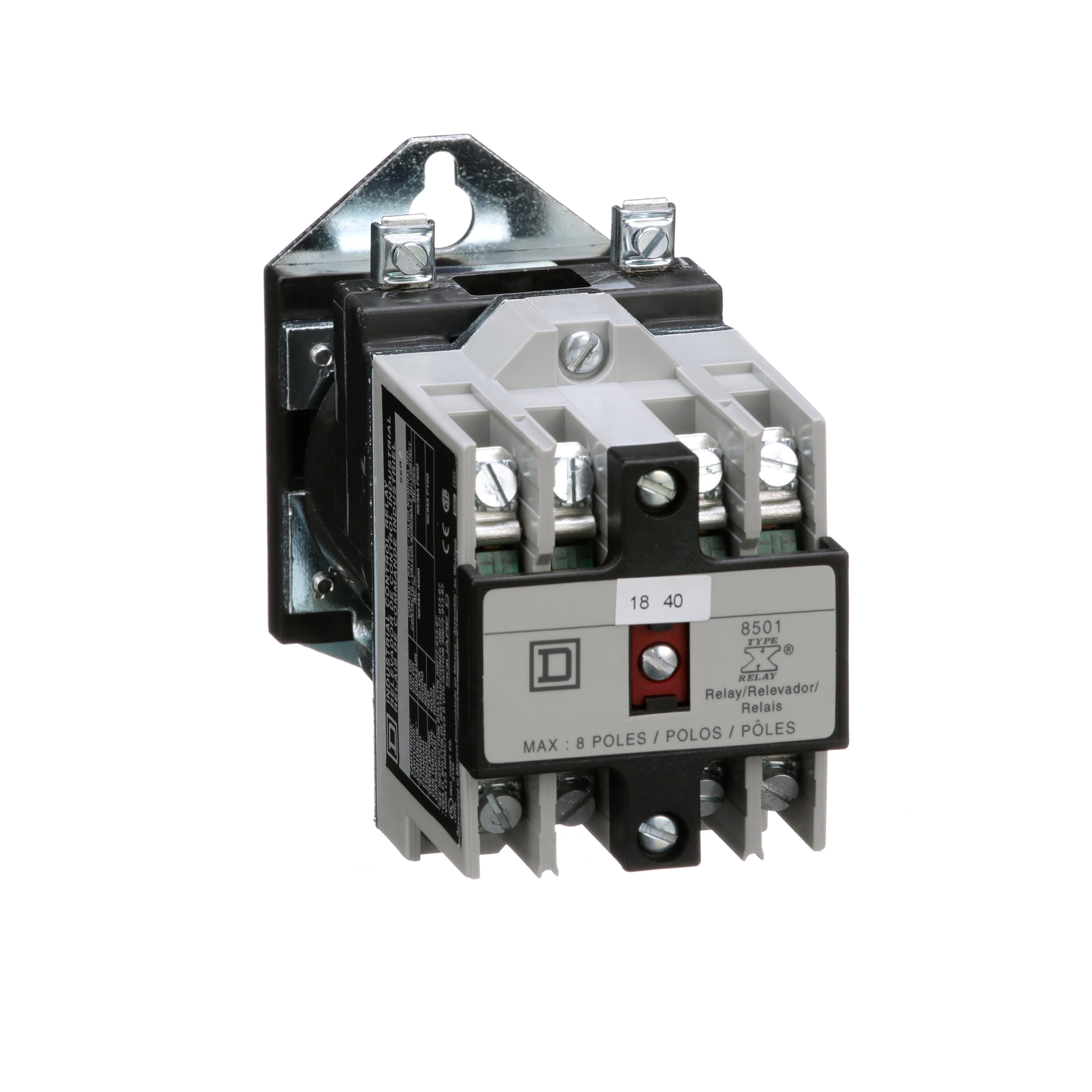

Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil
Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil
Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil
Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil
Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil Picture of 8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil
Square D

8501XDO40V56 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil

Item Code: 991090
Category NEMA Control Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501XDO40V56

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Specifications

Weight

2.99

Width

3.47

Length

22.37

AD All Features

8501 Type X relays combine a rugged, heavy-duty design with modular construction for great flexibility

AD Application

Distribution, Construction, Bottling, Car Washes, Automotive, Food and Beverage, Industrial Markets, Oil and Gas, Crane and Hoist

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY CTRL 10 A AC/5 A DC 4NO 48VDC 4

AD Item Features 01

8501 Type X relays combine a rugged, heavy-duty design with modular construction for great flexibility

AD Item Features 02

Replaceable, convertible, color coded contacts

AD Item Features 03

Basic 4 pole relay can be expanded to 6 or 8 poles by installing an adder deck

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

22.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.9900

AD Package Weight UOM

LB

AD Package Width

3.4700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/C4x62XLnW3g

Brand

Square D

Category

NEMA CONTROL RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute Value

10 A AC/5 A DC

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 to 160

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw clamp

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type X

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

48

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

4NO 4 Form A

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.23 in W x 5.17 in D x 3.56 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

4

Spec 8 Attribute

Power Rating

Spec 8 Attribute Value

18 W Inrush/Hold-In

Spec 9 Attribute

Series

Spec 9 Attribute Value

8501
