Square D

8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil

Category NEMA Control Relays & Accessories

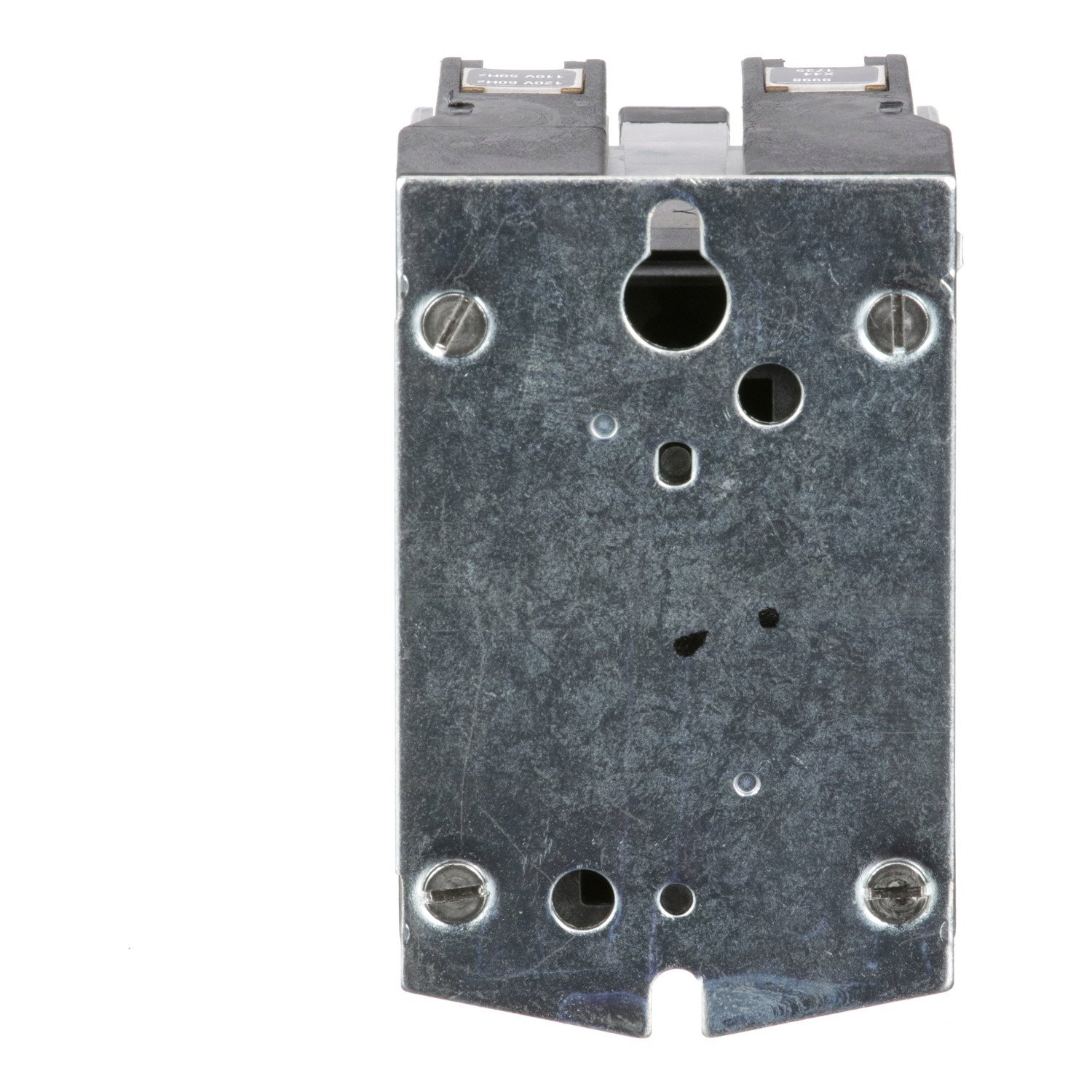

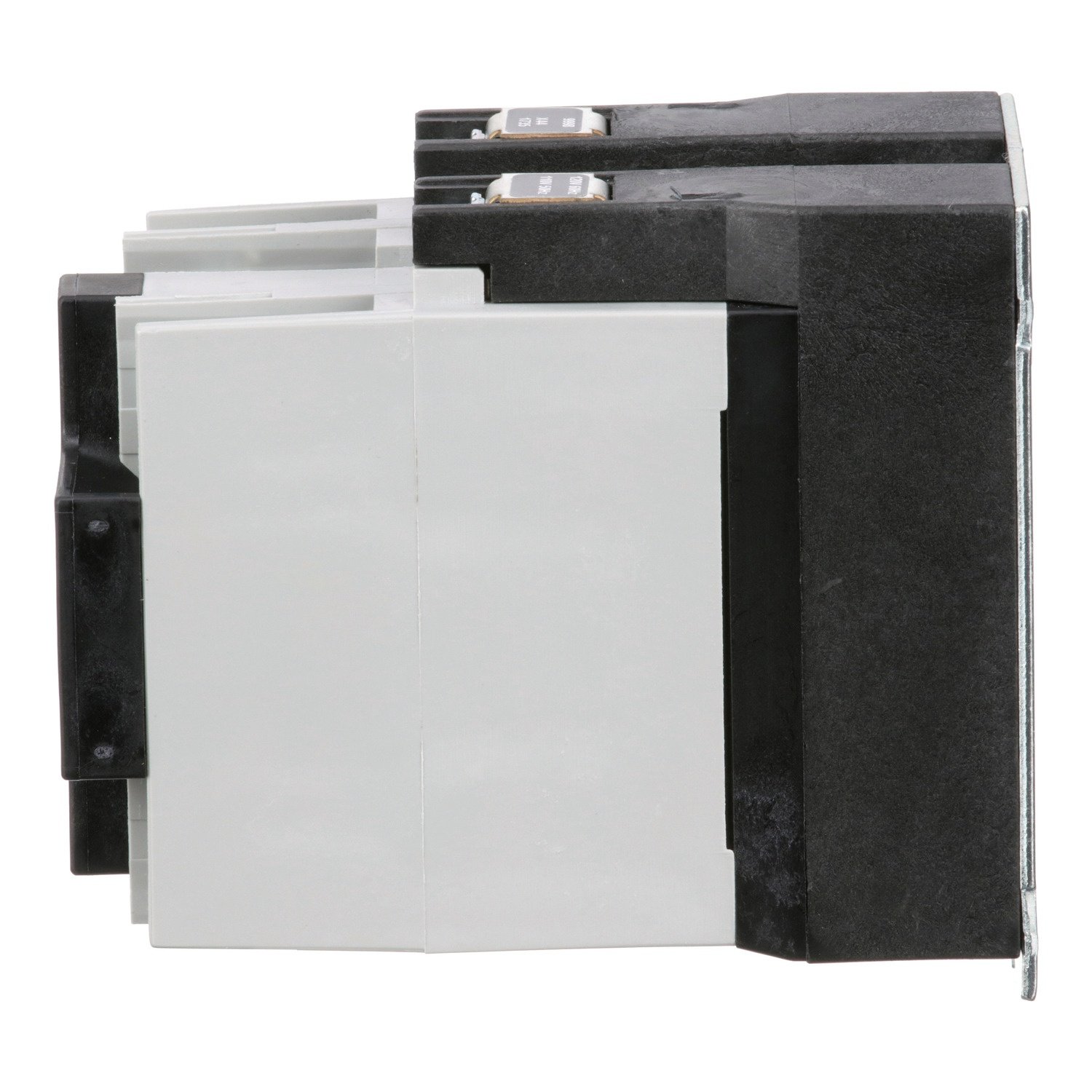

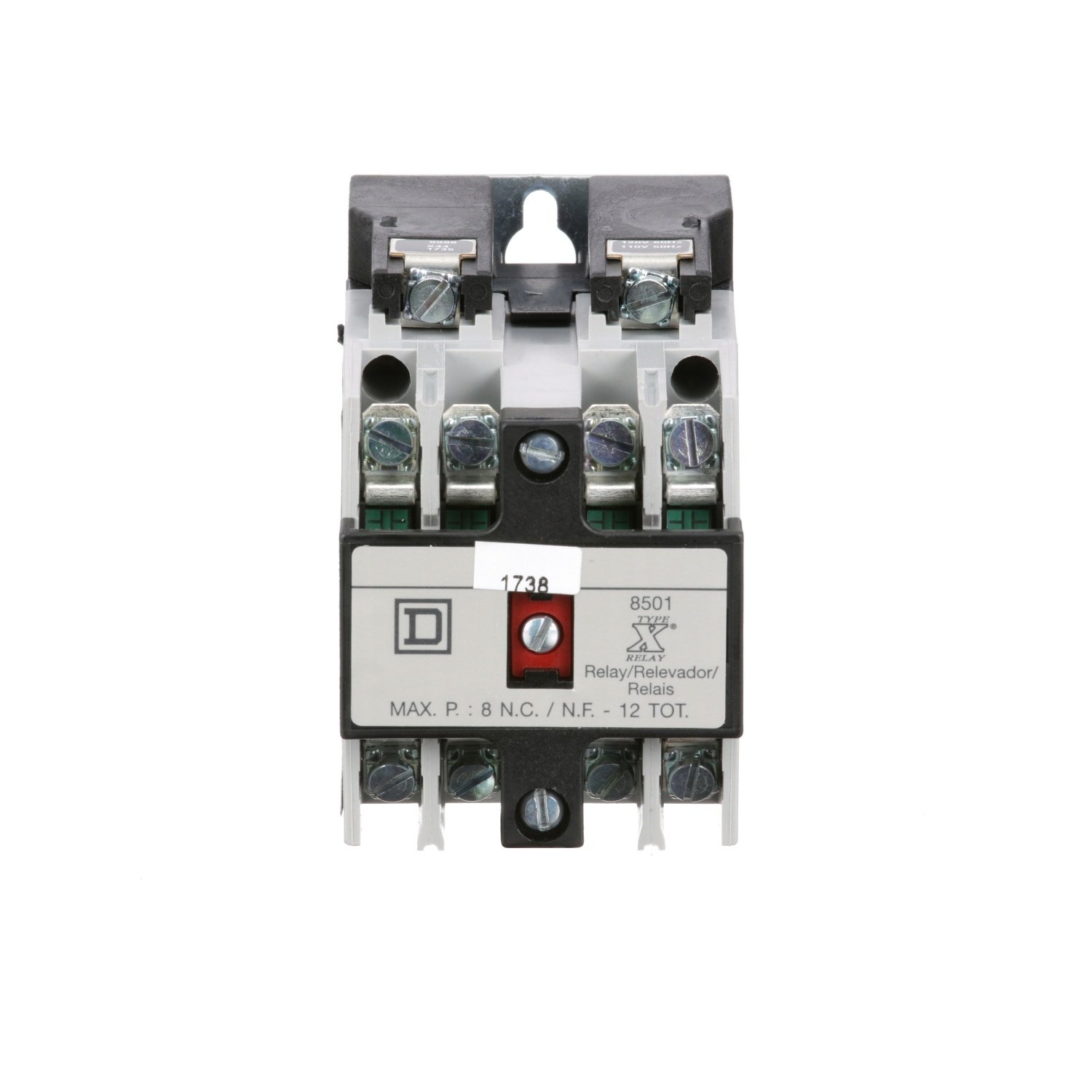

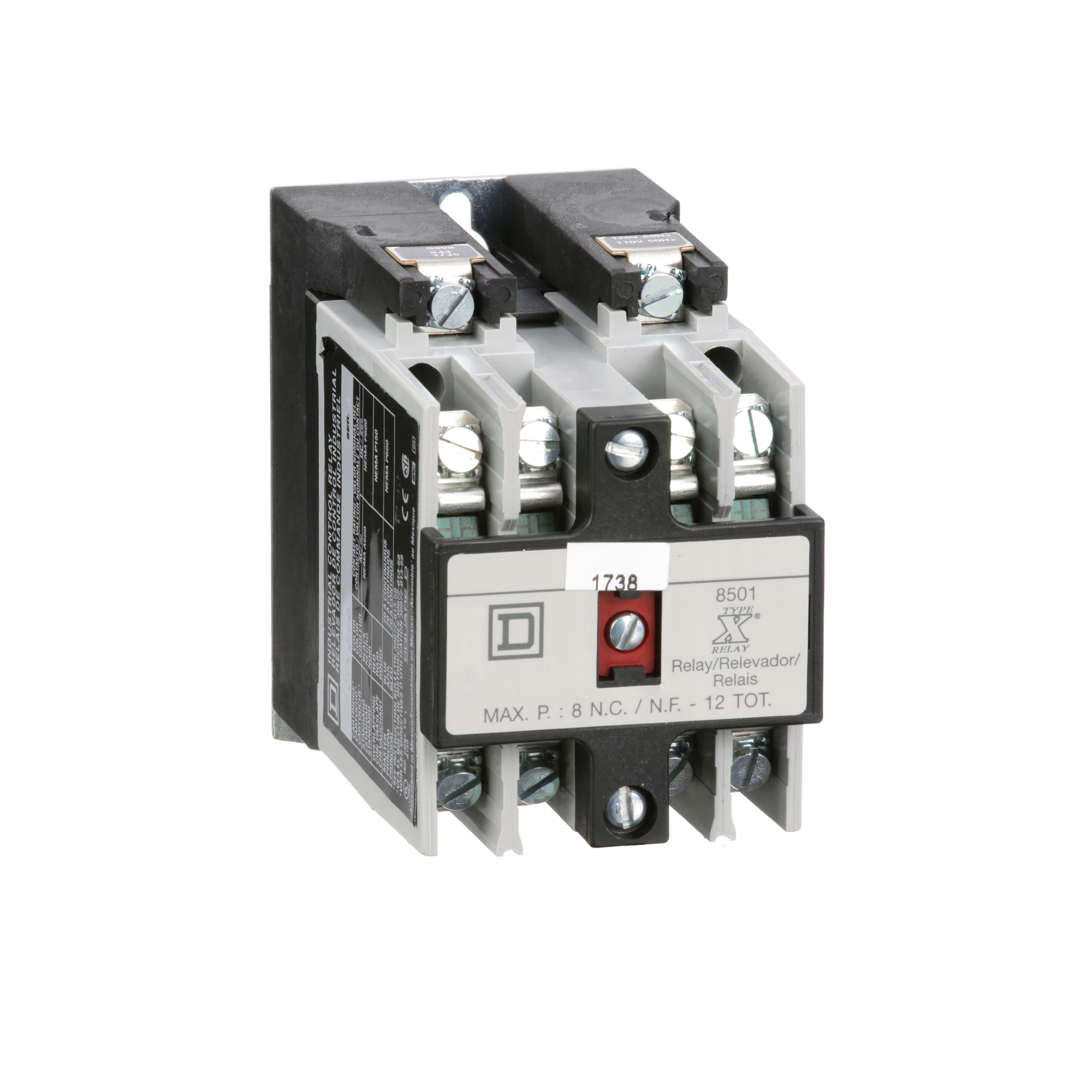

Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil Picture of 8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Square D

8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil

Item Code: 32459
Category NEMA Control Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501XO40V02

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Specifications

Weight

2.16lb

Height

3.5mm

Width

4.8mm

Length

6.3mm

Depth

3.95mm

AD All Features

Rugged, heavy duty design

AD Application

Distribution, Construction, Bottling, Car Washes, Automotive, Food and Beverage, Industrial Markets, Oil and Gas, Crane and Hoist Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY CTRL NEMA 5/10A 50/60HZ 110/120VAC

AD Item Features 01

Rugged, heavy duty design

AD Item Features 02

Modular construction for greater design flexibility

AD Item Features 03

Long Life

AD Item Features 04

High reliability and ease of maintenance

AD Item Features 05

Wide range of operating temperature from -40 deg F to 160 deg F

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

6.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

105.8400

AD Package Volume UOM

cu-in

AD Package Weight

2.1600

AD Package Weight UOM

LB

AD Package Width

4.8000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/DQ5NrwpQMD8

Brand

Square D

Category

NEMA CONTROL RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10-May

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 to 160

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw clamp

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type X

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

4NO 4 Form A

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.23 in W x 3.95 in D x 3.5 in H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

4

Spec 9 Attribute

Series

Spec 9 Attribute Value

8501
