Square D

8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]

Category NEMA Contactors

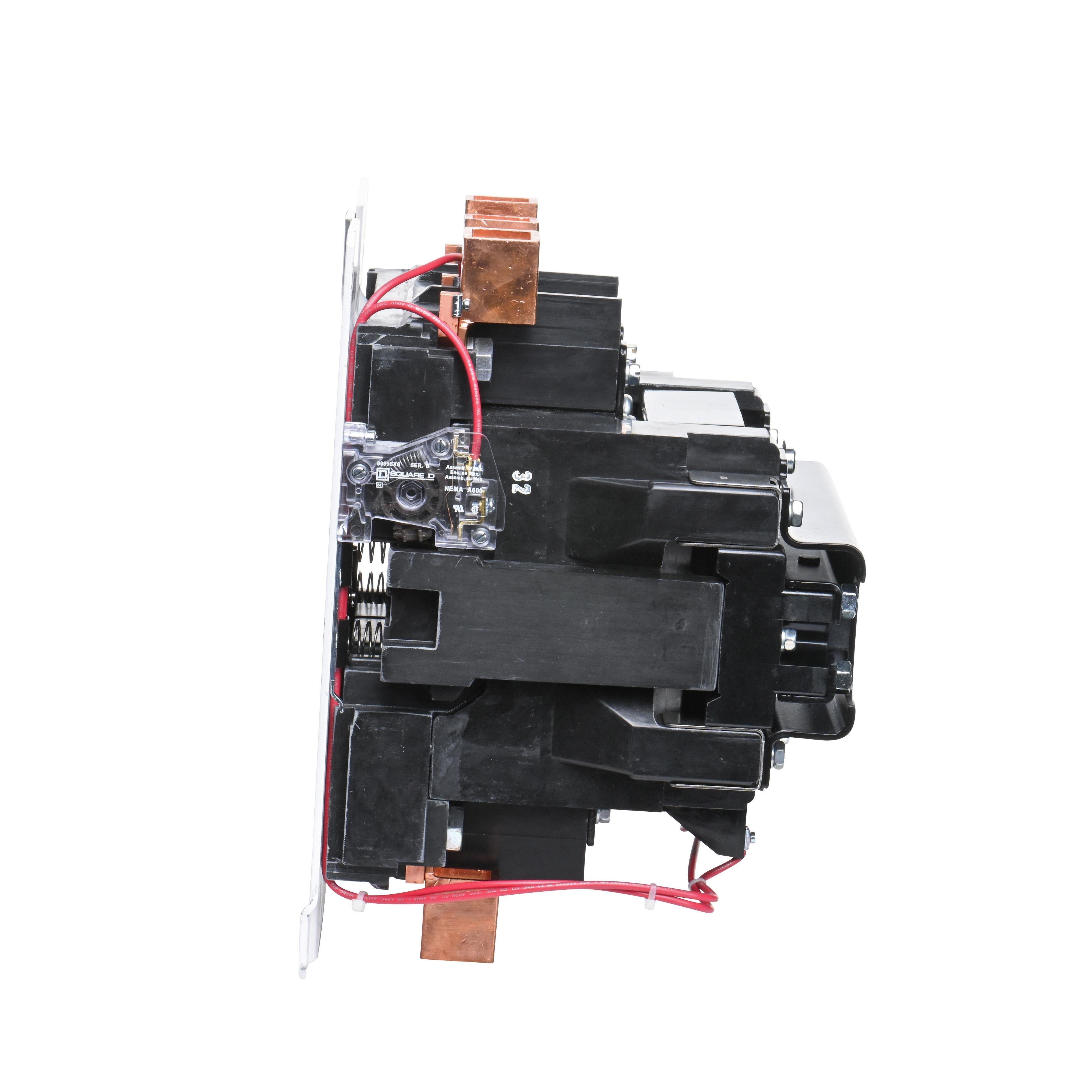

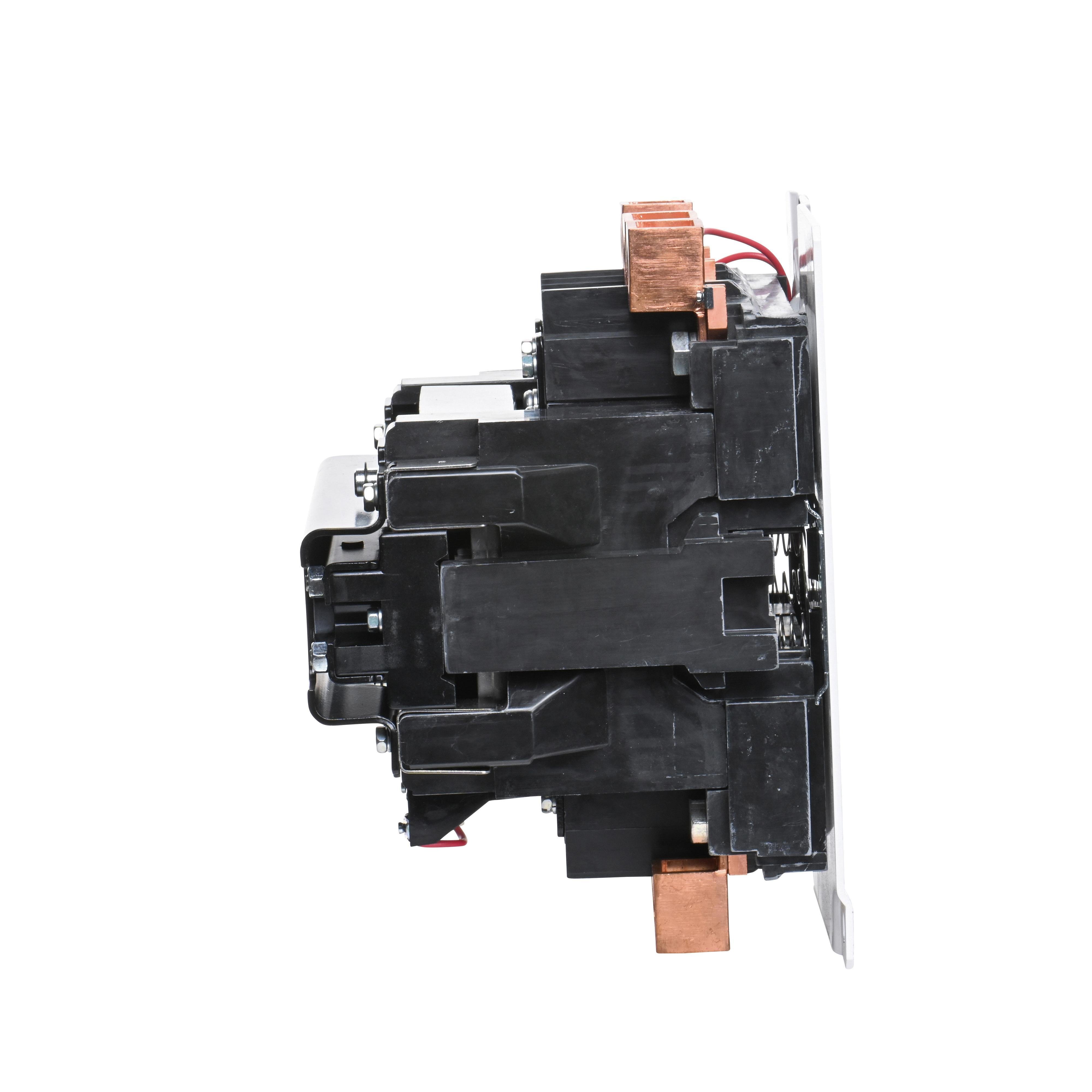

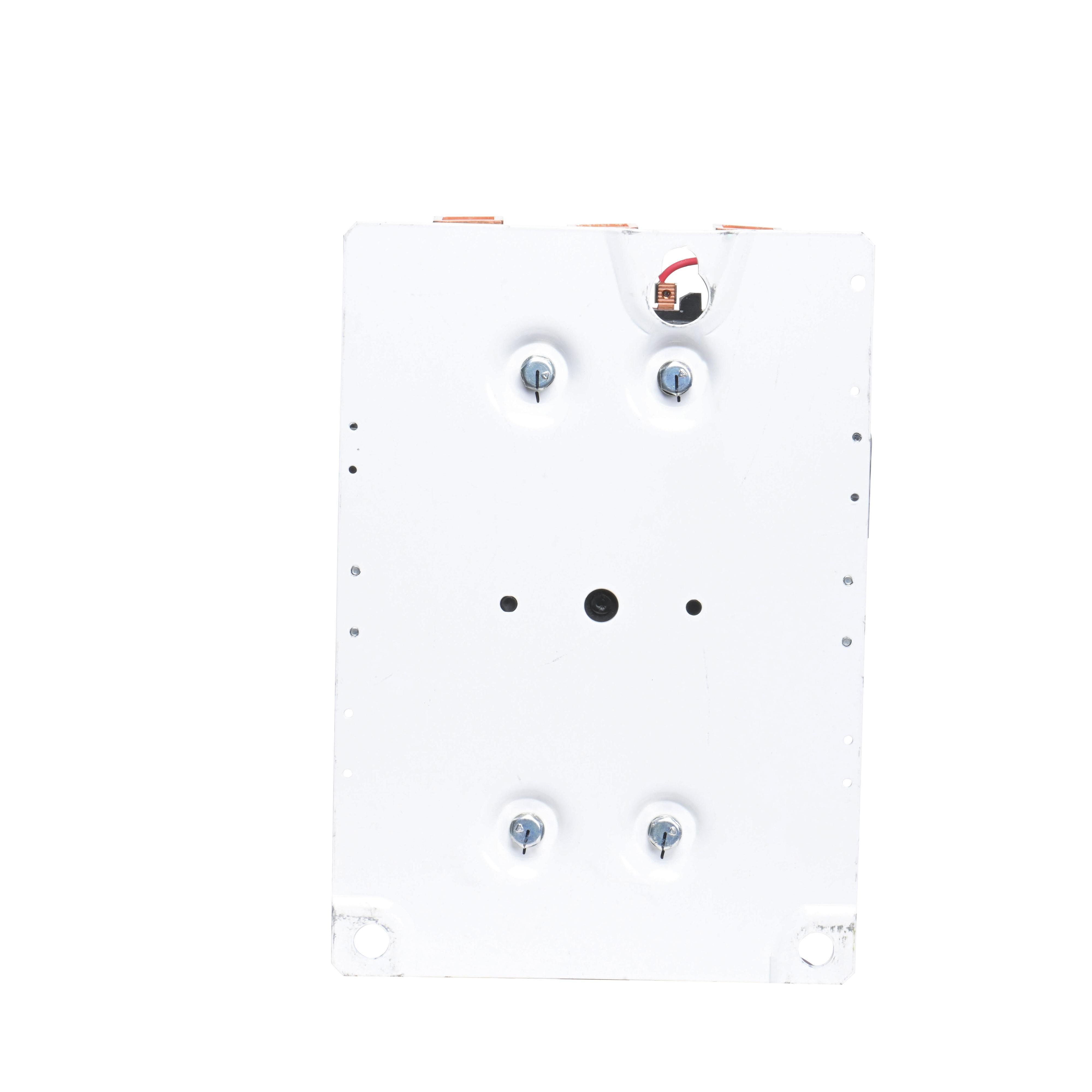

Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA] Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]
Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA] Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]
Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA] Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]
Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA] Picture of 8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]
Square D

8502SGO2V06 - NEMA Contactor, Type S, nonreversing, Size 5, 270A, 200HP at 575VAC, 3 phase, up to 100kA, 3 pole, 480VAC coil, open [TAA]

Item Code: 675758
Category NEMA Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8502SGO2V06

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing contactor has a 270 ampere rating. Three phase NEMA Size 5 contactors have 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 12.31 inches tall, 8.67 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Weight

46.44

Height

10.3

Width

11

Length

13.69

AD All Features

Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided

AD Application

Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONTACTOR 3 50/60HZ 270A 5 SCR CLAMP

AD Item Features 01

Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided

AD Item Features 02

Robust design and reliable build for long mechanical life and electrical endurance

AD Item Features 03

Serviceable by replacing contacts and coils

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.3000

AD Package Height UOM

IN

AD Package Length

13.6900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1574.8700

AD Package Volume UOM

cu-in

AD Package Weight

46.4400

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

Brand

Square D

Category

NEMA Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

0 To 40

Spec 11 Attribute

Series

Spec 11 Attribute Value

8502

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 13 Attribute

Type

Spec 13 Attribute Value

Non-Reversing Type S

Spec 14 Attribute

Wattage

Spec 14 Attribute Value

55 kW at 200 V/75 kW at 230 V/150 kW at 460/575 V

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

440 V AC at 50 Hz to 480 V AC at 60 Hz

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

5

Spec 4 Attribute

Contact Rating

Spec 4 Attribute UOM

A

Spec 4 Attribute Value

270

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

220 mm W x 222 mm D x 313 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Operating Cycles

Spec 9 Attribute UOM

CPM

Spec 9 Attribute Value

2
