Square D

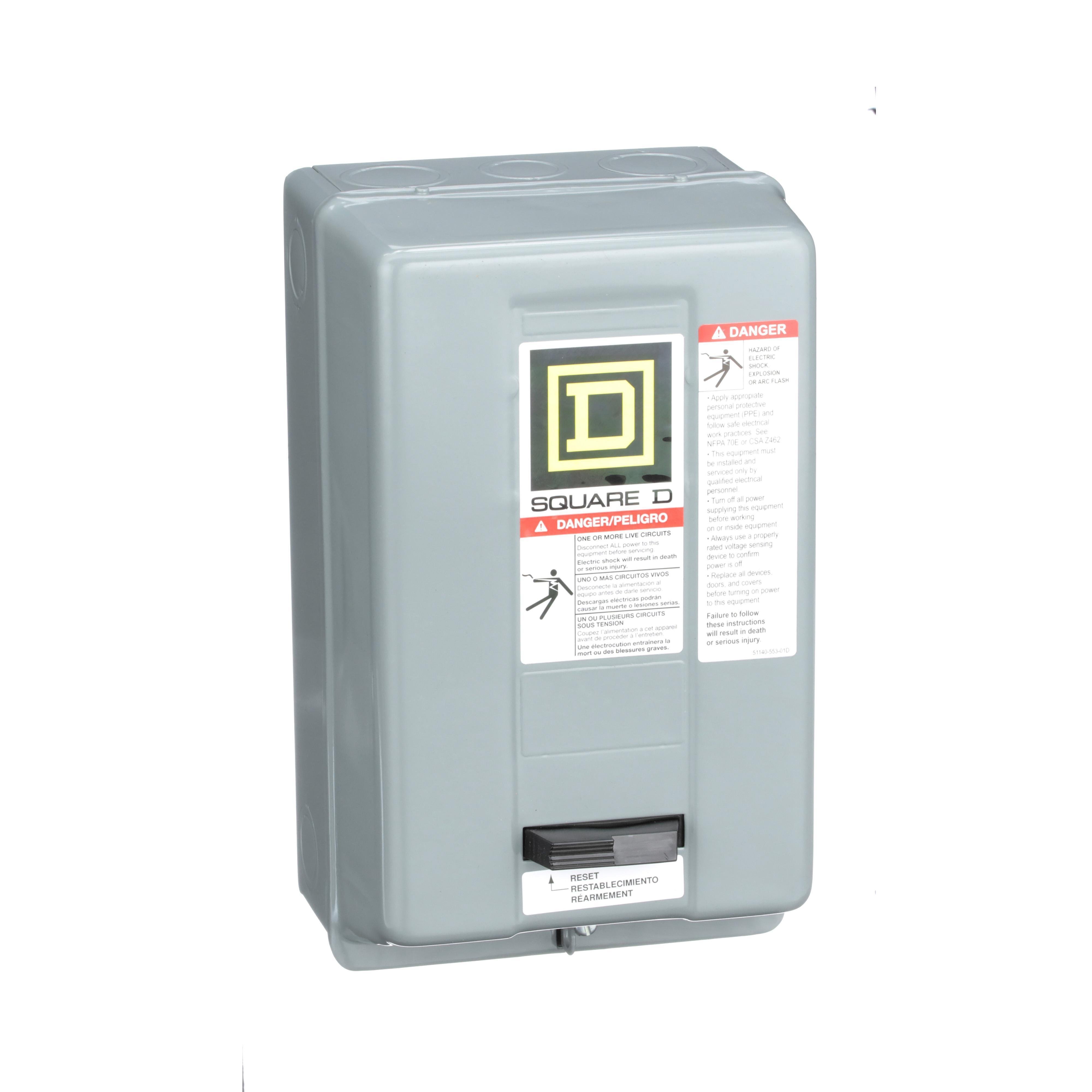

8536SBG1V02S - NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]

Picture of 8536SBG1V02S - NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]
Square D

8536SBG1V02S - NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]

Item Code: 32469
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SBG1V02S

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

7.22lb

Height

6.4mm

Width

6.36mm

Length

11.31mm

Depth

141mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8536SAG11V02/8536SAG11V02.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8009087

AD Application

For full voltage starting, stopping of AC squirrel cage motor and indoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD Document Caption 4

Technical Bulletin

AD EAN

0785901080312

AD Gtin

00785901080312

AD IDEA Index ID

8009087

AD Invoice Description

STARTER MAG NEMA TYPE S GP NON-REVERSING

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8536SBG1V02S Type S General Purpose Non-Reversing NEMA Magnetic Starter, 110/120 VAC V Coil, Non-Reversing Action, 2 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8536SBG1V02S ; 8536SBG1V02S ; 7.85901E+11 ; NEMA Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.4000

AD Package Height UOM

IN

AD Package Length

11.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

447.7400

AD Package Volume UOM

cu-in

AD Package Weight

7.2200

AD Package Weight UOM

LB

AD Package Width

6.3600

AD Package Width UOM

IN

AD Part Number Keywords

8536SBG1V02S ; 8009087 ; 785901080312 ; 78590108031 ; 00785901080312 ; 0785901080312

AD Video Links

https://www.youtube.com/embed/W3jC7ckgcBo

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

2

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Thermal Melting Alloy 1

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

1

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

(1) Thermal Melting Alloy

Spec 14 Attribute

Starting Modes

Spec 14 Attribute Value

Magnetic

Spec 15 Attribute

Type

Spec 15 Attribute Value

General Purpose Type S

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

18

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.98 in W x 5.55 in D x 10 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Material

Spec 8 Attribute Value

Sheet Steel

Spec 9 Attribute

motor power

Spec 9 Attribute Value

1-1/2 hp/2 hp
