Square D

8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Category NEMA Non-Combination Starters

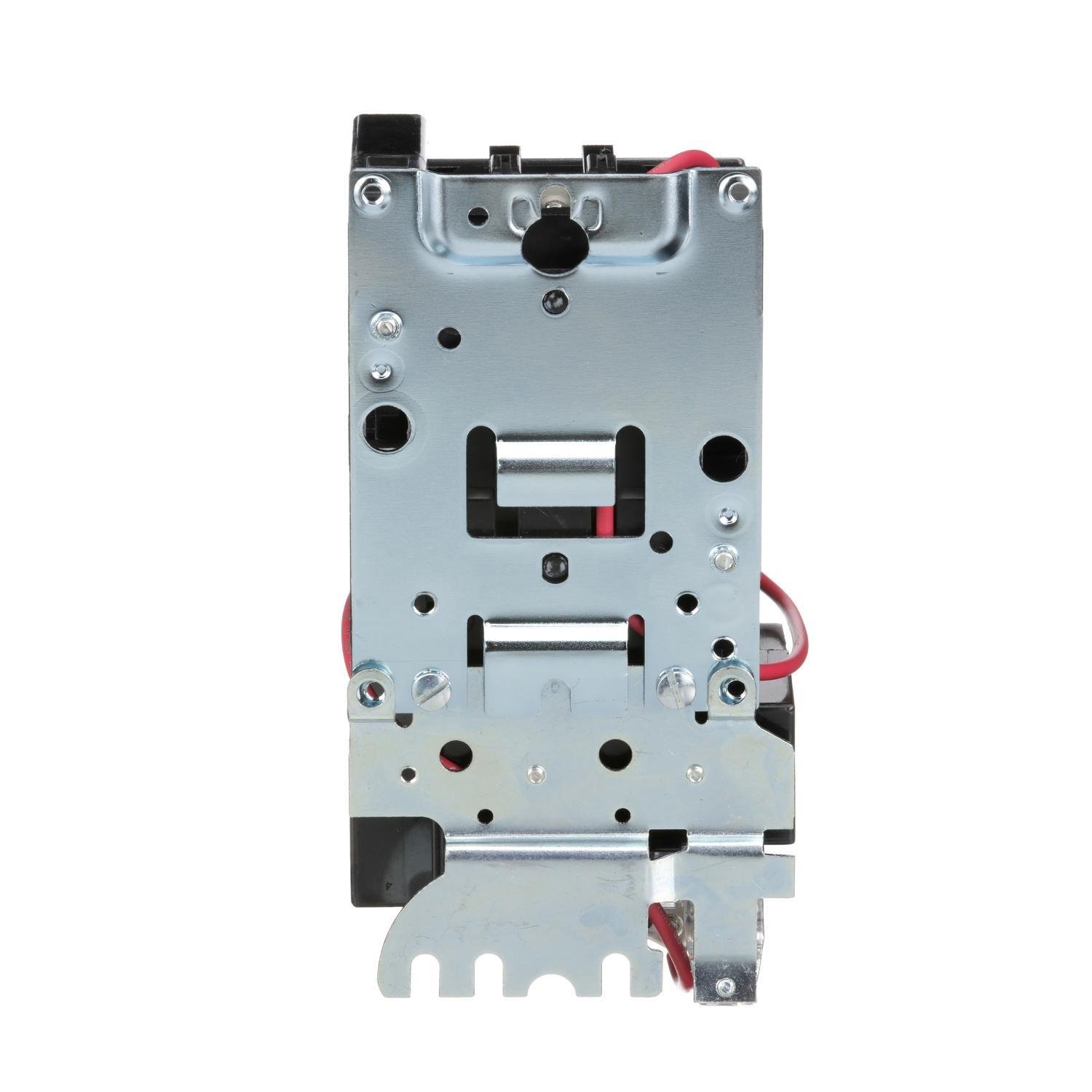

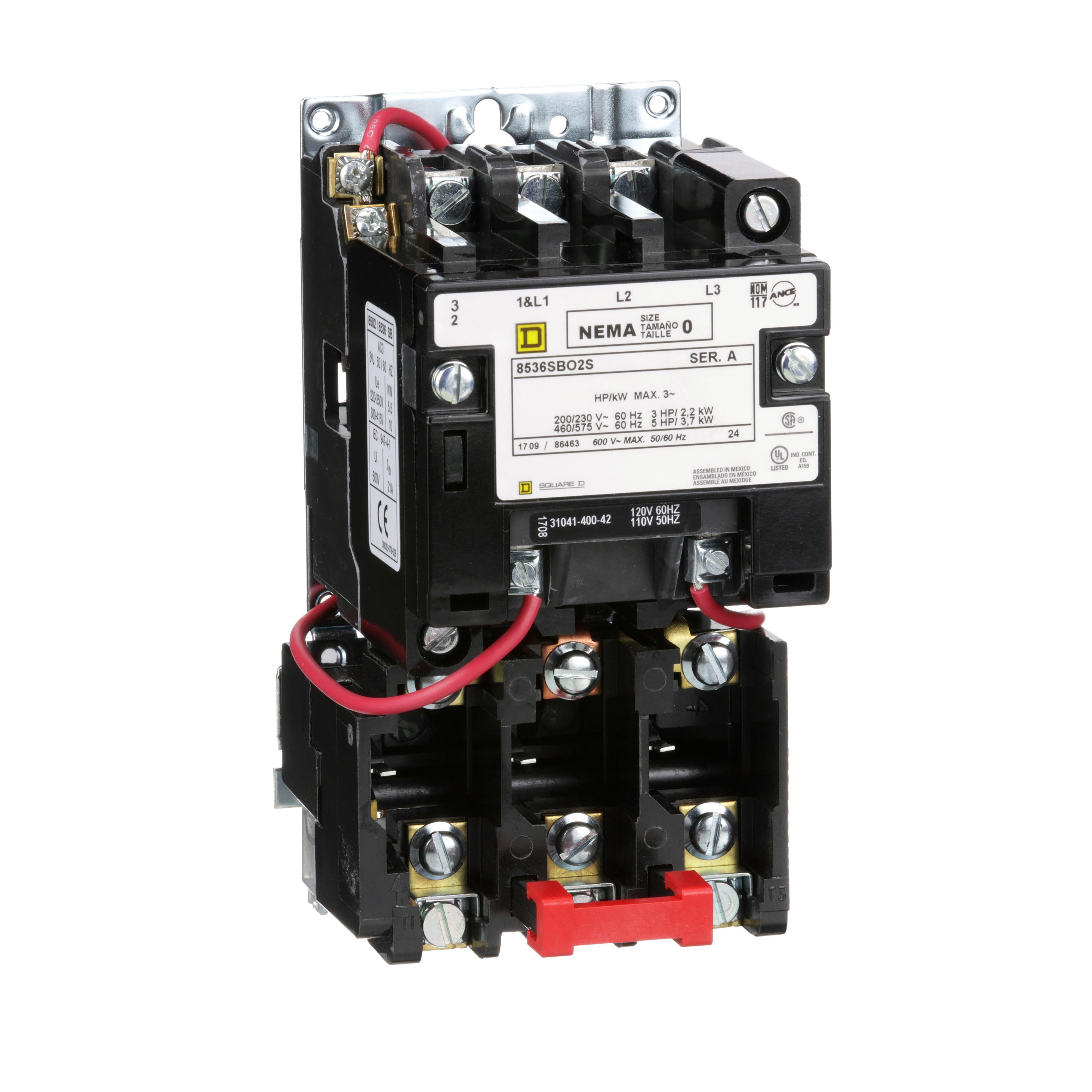

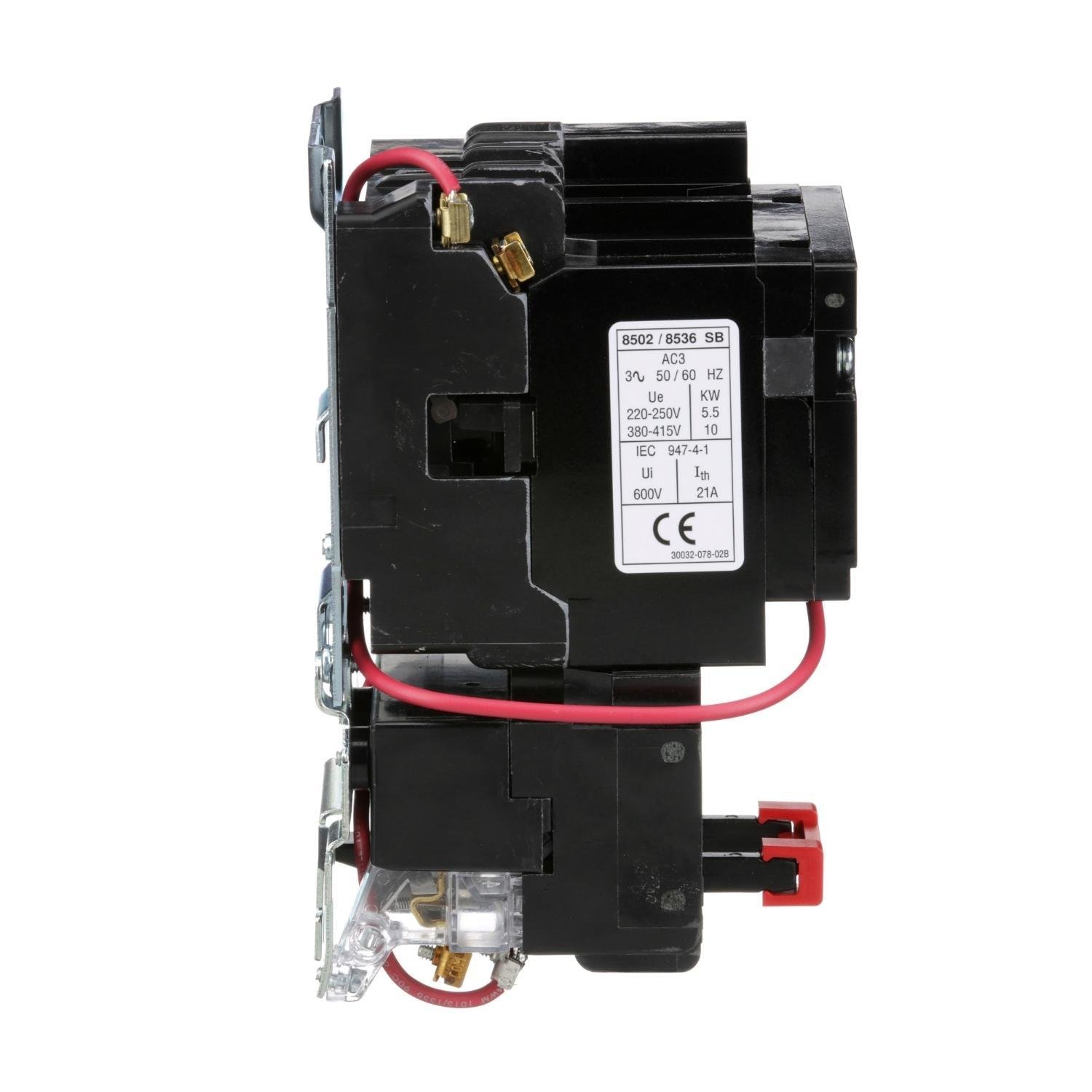

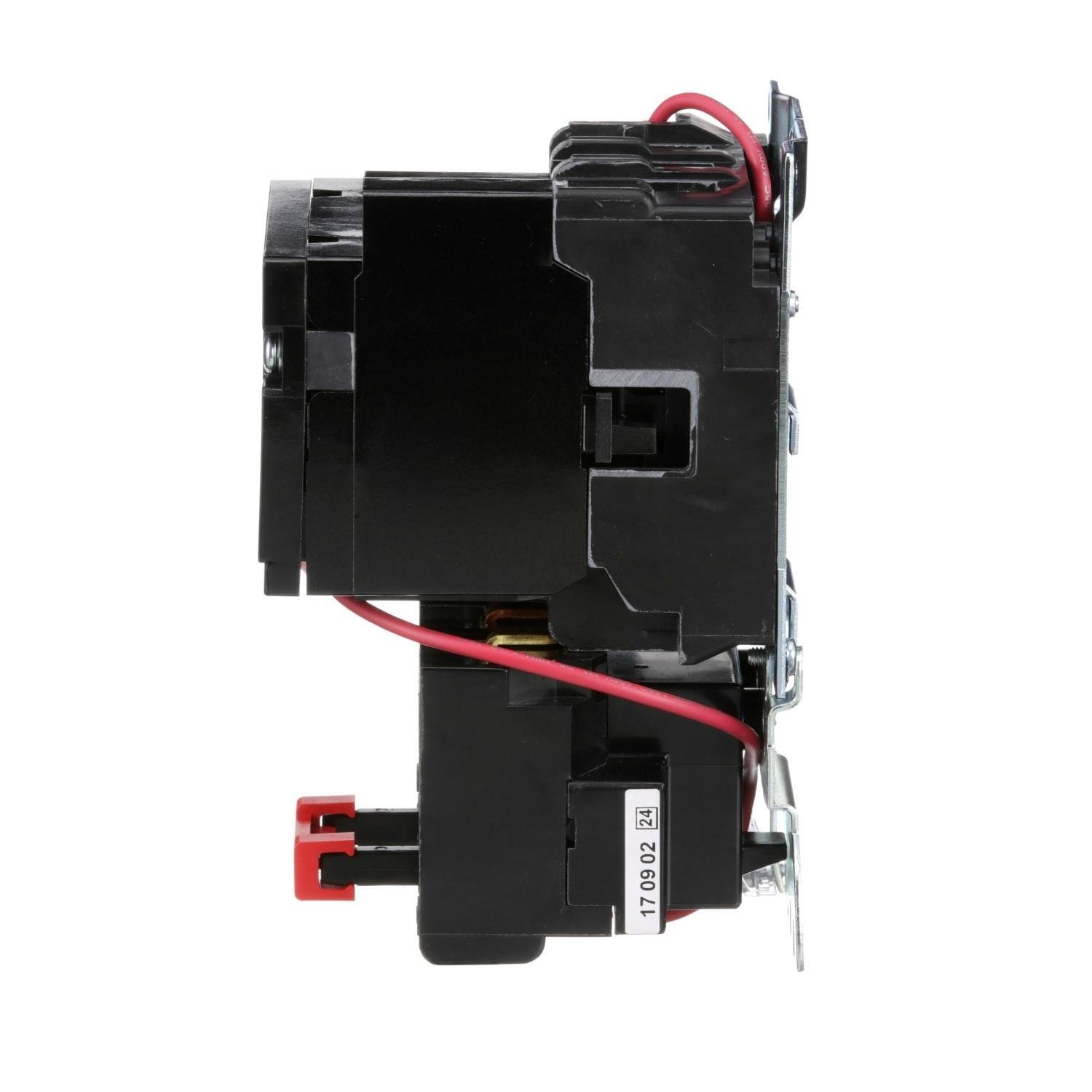

Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Square D

8536SBO2V02S - [TAA] NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Item Code: 17206
Category NEMA Non-Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SBO2V02S

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/220 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

3.99lb

Height

4.8mm

Width

5.75mm

Length

7.92mm

Depth

107mm

AD All Features

Flexible with four overload relays types

AD Application

For full voltage starting and stopping of AC squirrel cage motors applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STARTER NEMA TYPE S NON-REVERSING 3 18A

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.8000

AD Package Height UOM

IN

AD Package Length

7.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

222.7200

AD Package Volume UOM

cu-in

AD Package Weight

3.9900

AD Package Weight UOM

LB

AD Package Width

5.7500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/px9WH8Biy0o

Brand

Square D

Category

NEMA NON-COMBINATION STARTERS

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Overload Relay

Spec 10 Attribute Value

Thermal Melting Alloy

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Reset Type

Spec 12 Attribute Value

(3) Thermal Melting Alloy

Spec 13 Attribute

Starting Modes

Spec 13 Attribute Value

Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type S

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

18

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3.5 in W x 4.21 in D x 6.77 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

motor power

Spec 8 Attribute Value

3 hp/5 hp

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
