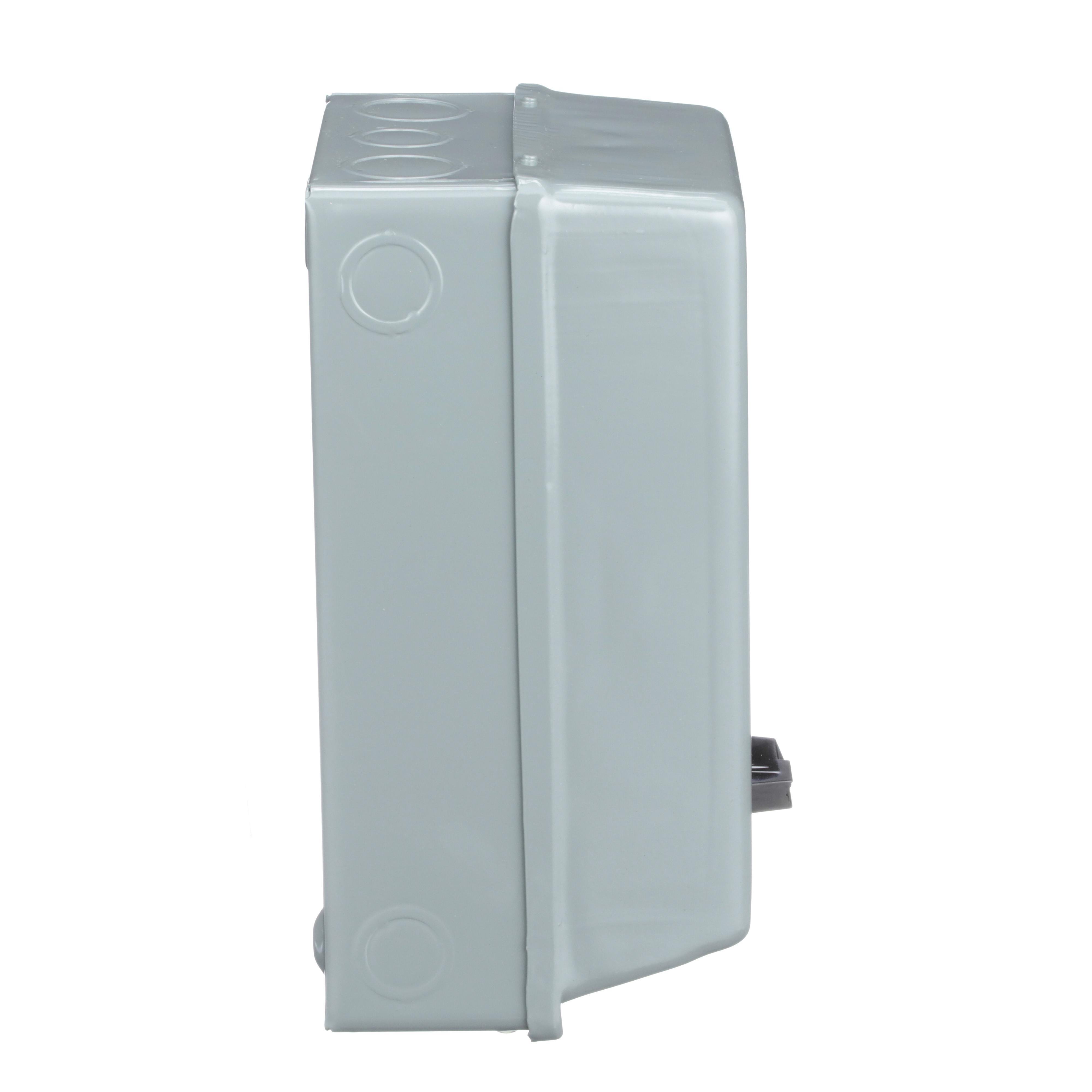

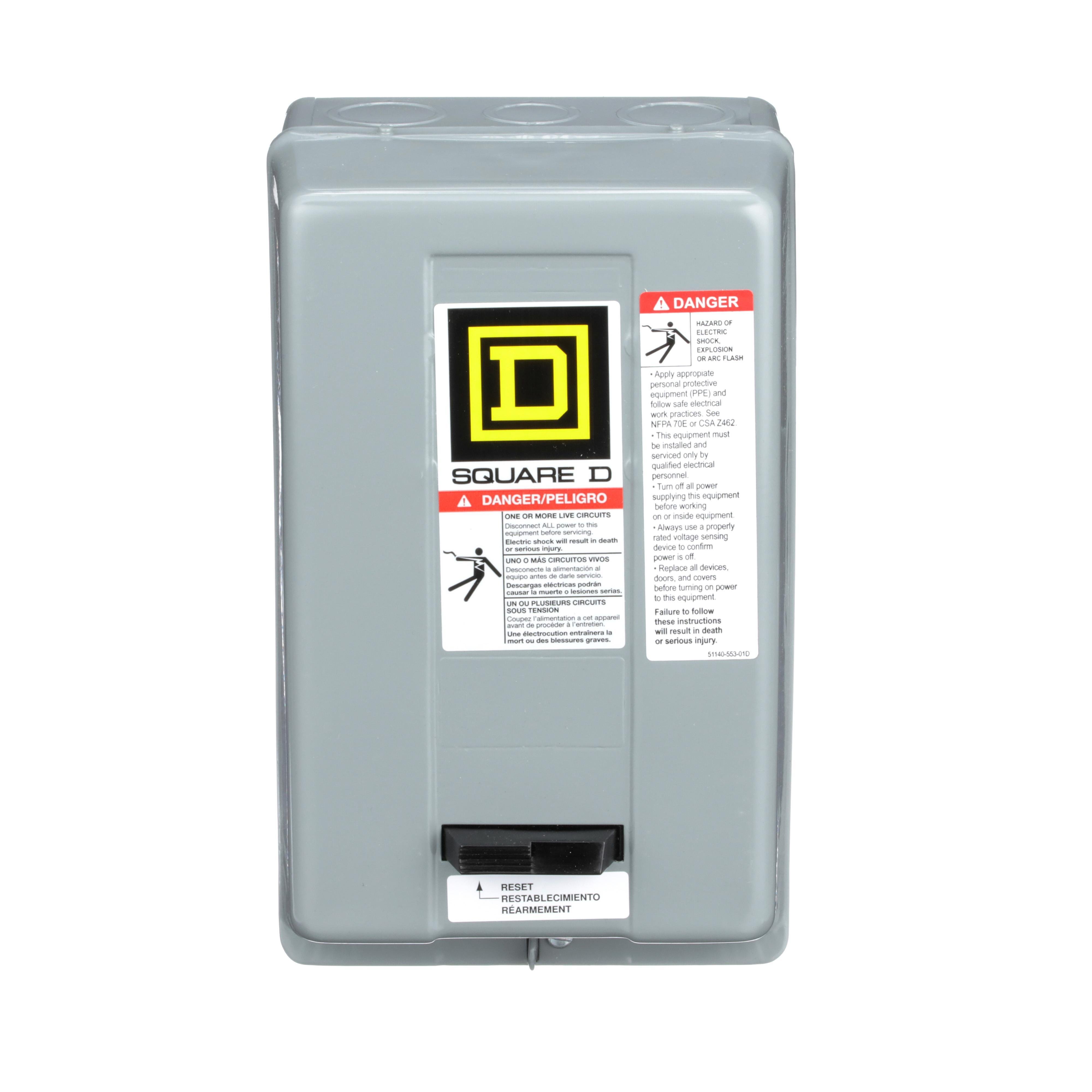

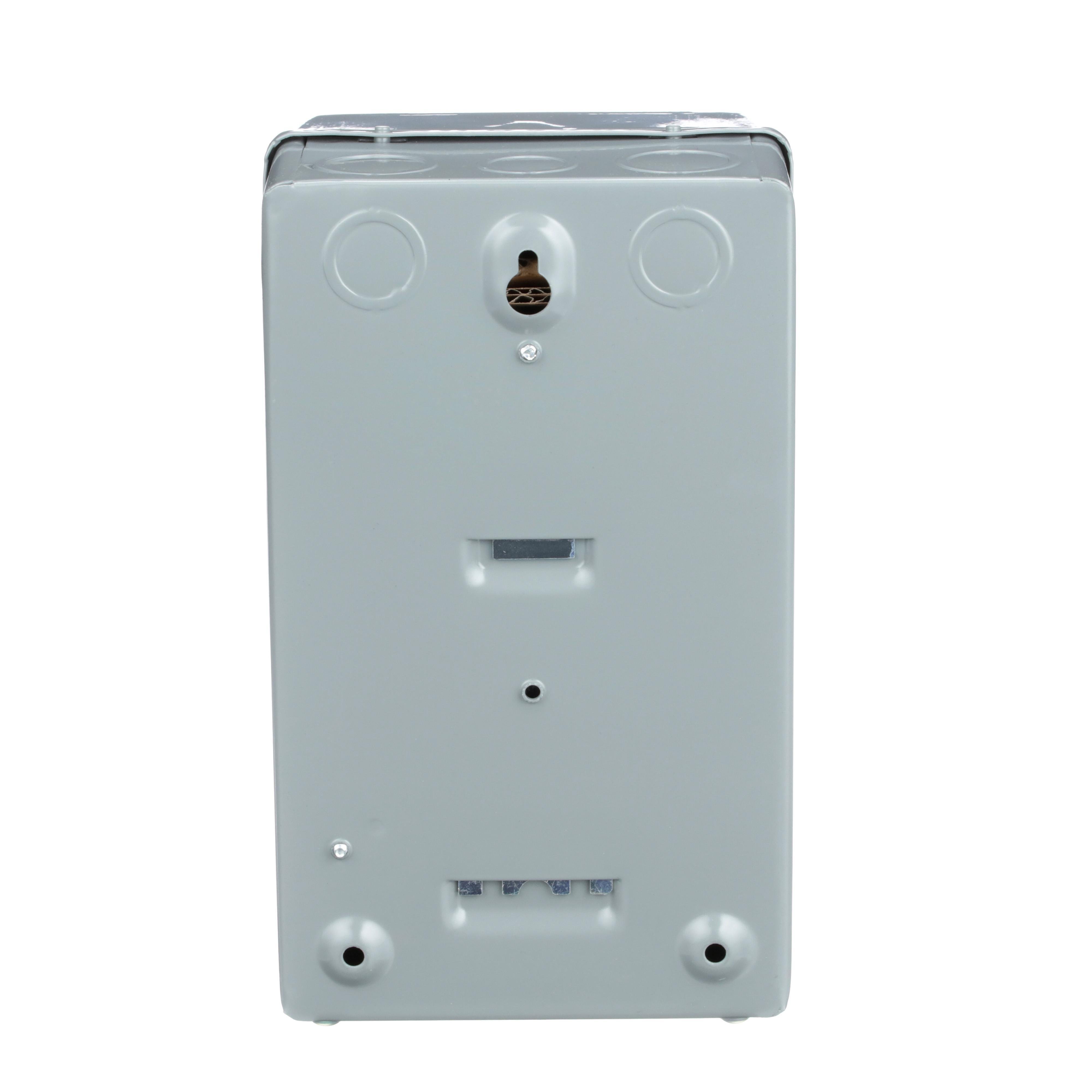

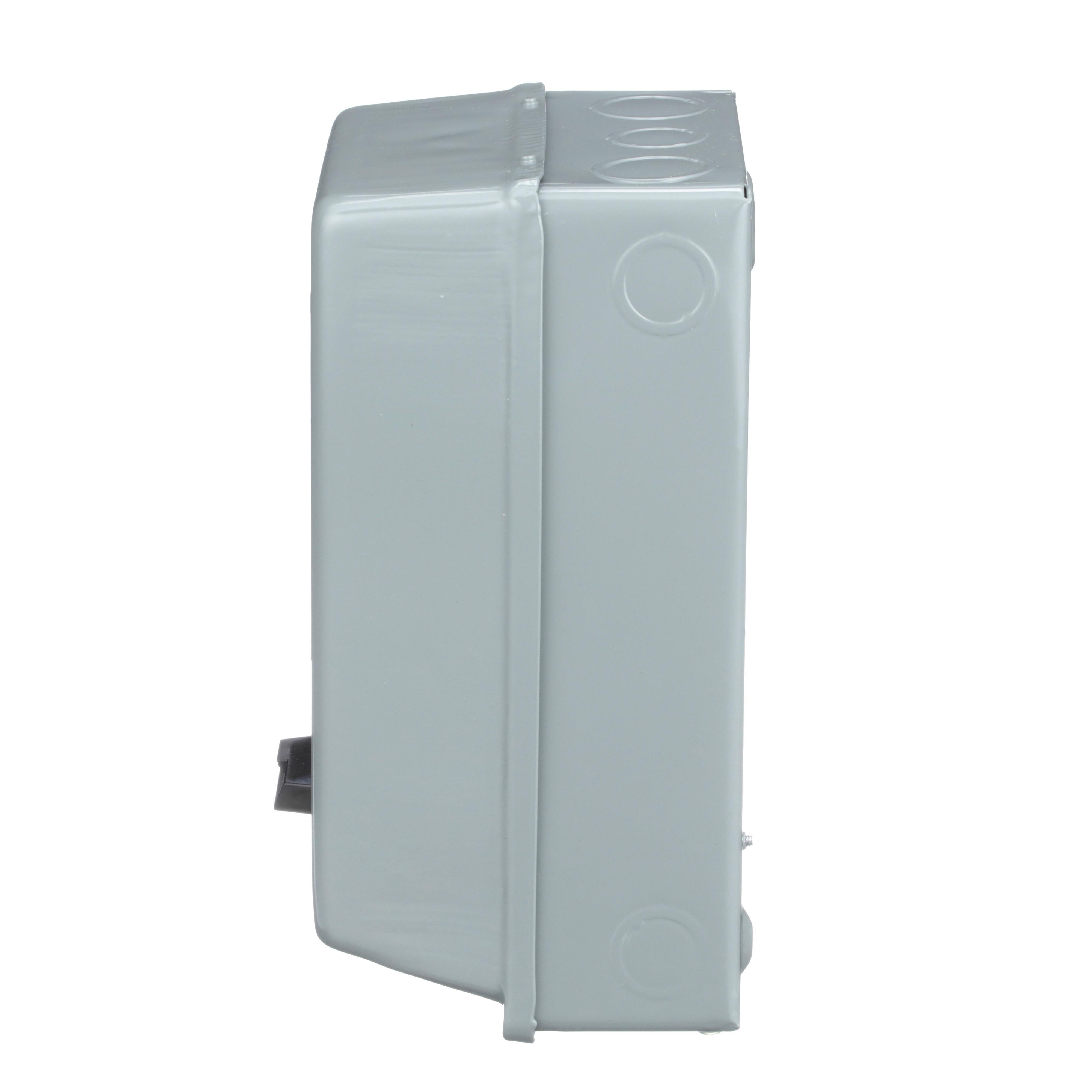

Picture of 8536SCG3V06H30 - NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 480 VAC coil, NEMA 1 [TAA]

8536SCG3V06H30 - NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 480 VAC coil, NEMA 1 [TAA]

Item Code: 1138119

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 8536SCG3V06H30

Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

7.55

Width

13.27

Length

14.46

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8536SBG2V01S/8536SBG2V01S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8042477

AD Application

Starting and Stopping of AC Squirrel Cage Motors, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Technical Bulletin

AD EAN

0785901807322

AD Gtin

00785901807322

AD IDEA Index ID

8042477

AD Invoice Description

STARTER MAG 3 NEMA 1 600VAC 27A 50/60HZ

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8536SCG3V06H30 Type S Starter, 440/480 VAC V Coil, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8536SCG3V06H30 ; 8536SCG3V06H30 ; 785901807322 ; NEMA Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

14.4600

AD Package Length UOM

AD Package Quantity

AD Package Weight

7.5500

AD Package Weight UOM

AD Package Width

13.2700

AD Package Width UOM

AD Part Number Keywords

8536SCG3V06H30 ; 8042477 ; 785901807322 ; 78590180732 ; 00785901807322 ; 0785901807322

AD Video Links

https://www.youtube.com/embed/MsloUt8sPL0

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Overload Relay

Spec 12 Attribute Value

Motor Logic™ Solid State

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

Spec 14 Attribute

Reset Type

Spec 14 Attribute Value

Motor Logic™ Solid State

Spec 15 Attribute

Series

Spec 15 Attribute Value

8536

Spec 16 Attribute

Starting Modes

Spec 16 Attribute Value

Magnetic

Spec 17 Attribute

Type

Spec 17 Attribute Value

Type S

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC

Spec 18 Attribute Value

600

Spec 19 Attribute

Wattage

Spec 19 Attribute Value

5.5 kW at 200/230 V AC/7.5 kW at 460/575 V AC

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

440/480

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.98 in W x 5.55 in D x 10 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute Value

7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
