Square D

8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open

Category NEMA Non-Combination Starters

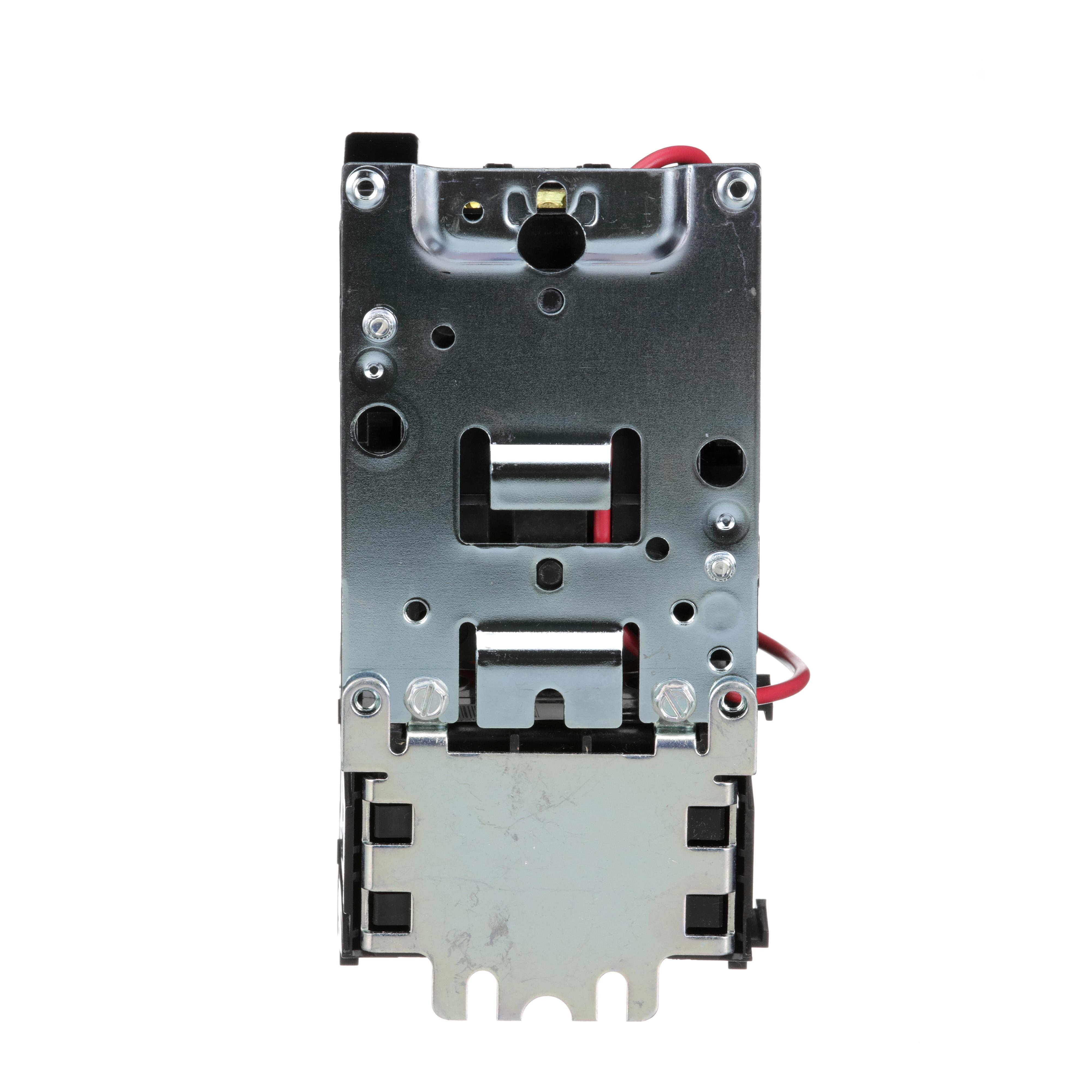

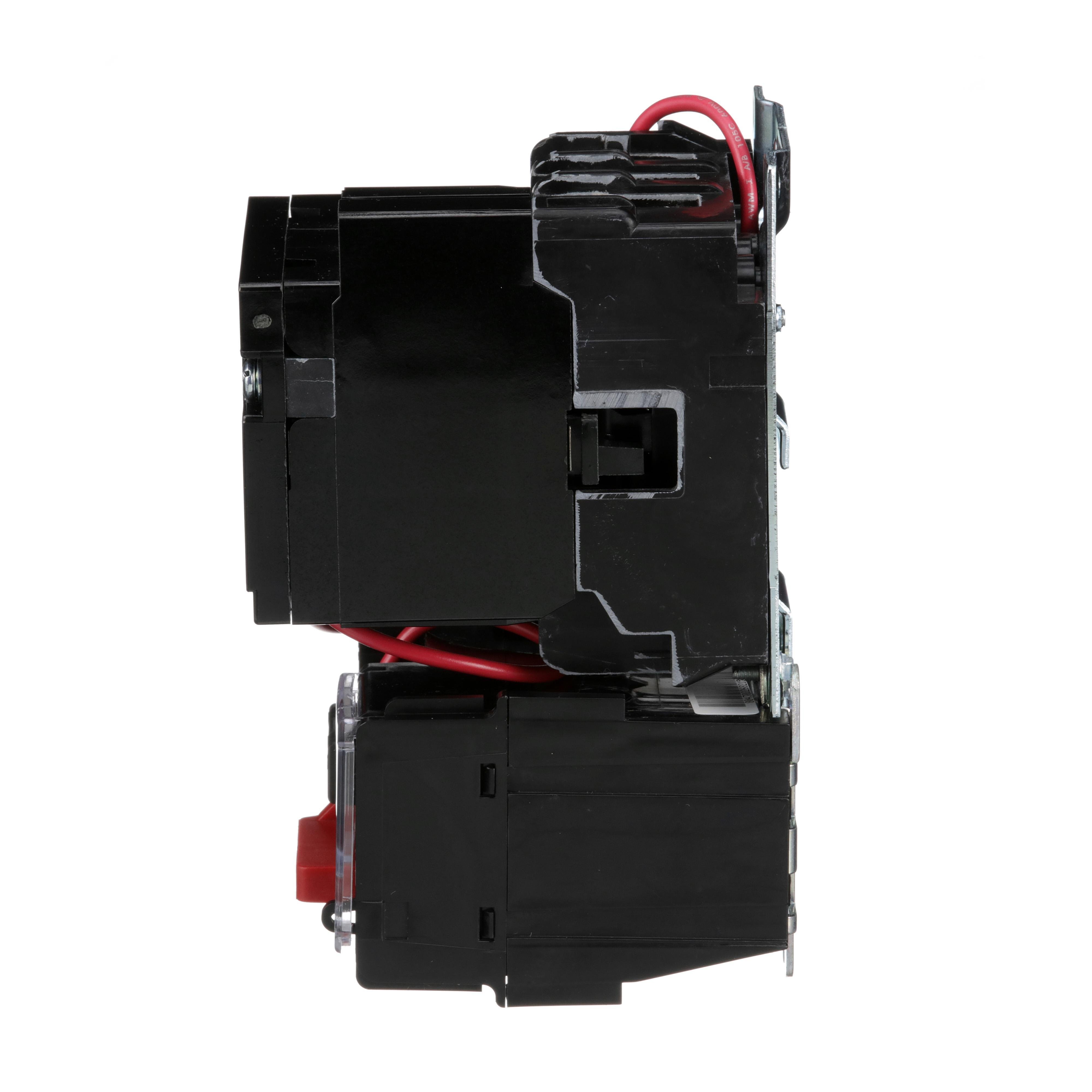

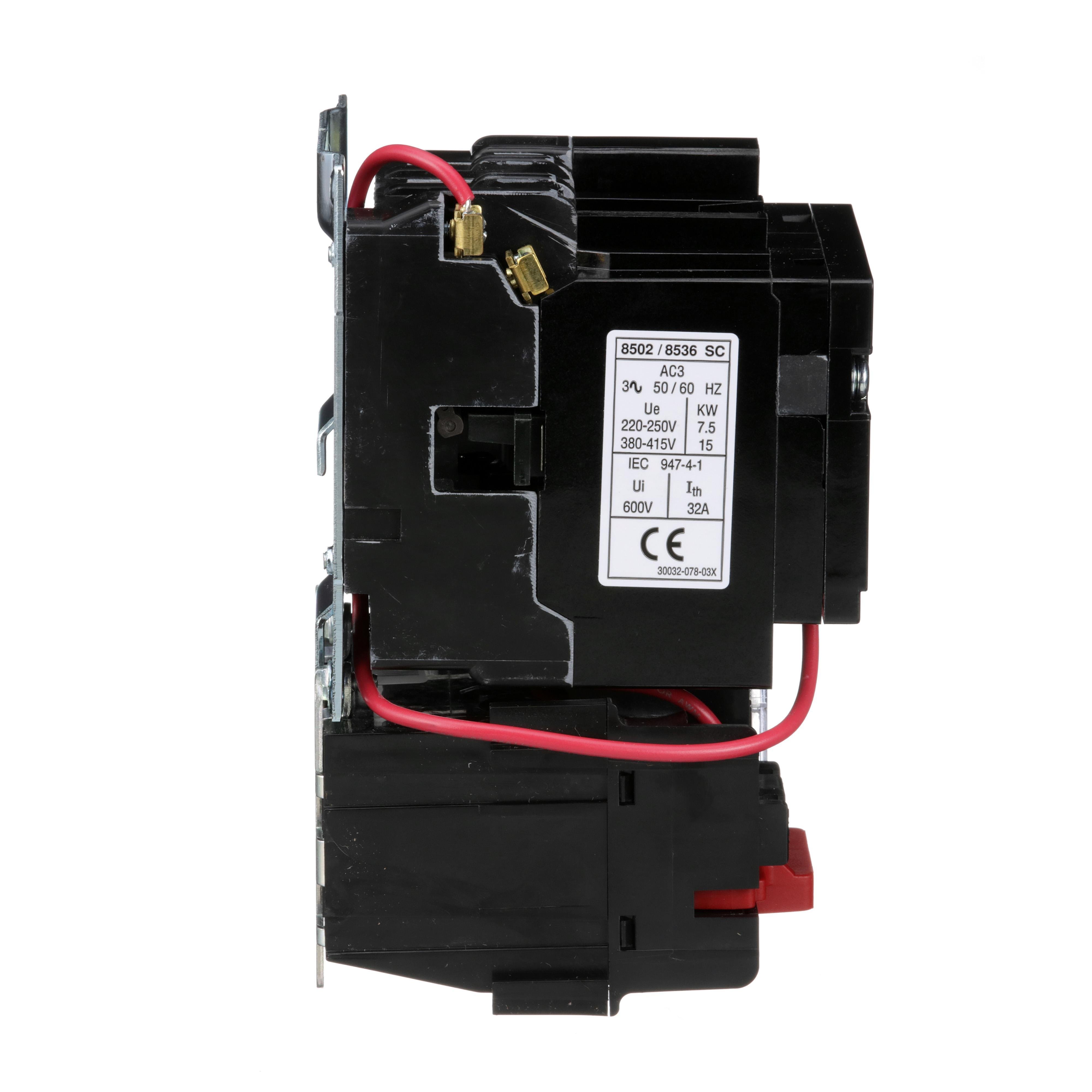

Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open
Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open
Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open
Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open Picture of 8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open
Square D

8536SCO3V02H30S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open

Item Code: 881403
Category NEMA Non-Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SCO3V02H30S

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

4

Height

5.8

Width

5.74

Length

8.02

AD Application

For full voltage starting, stopping of AC squirrel cage motor and indoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STARTER NEMA 110/120VAC 3 NEMA 1/OPEN

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Item Features 05

Ideal for use in construction, industrial markets, building automation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.8000

AD Package Height UOM

IN

AD Package Length

8.0200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

216.1100

AD Package Volume UOM

cu-in

AD Package Weight

4.0000

AD Package Weight UOM

LB

AD Package Width

5.7400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=HH4qt8sWnGI&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Category

NEMA NON-COMBINATION STARTERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

27

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Motor Logic™ Solid-State

Spec 12 Attribute

Starting Modes

Spec 12 Attribute Value

Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type S Non-Reversing

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.5 in W x 4.21 in D x 6.77 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

motor power

Spec 7 Attribute Value

7-1/2 hp/10 hp

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Overload Relay

Spec 9 Attribute Value

Motor Logic™ Class 10/20 Solid State

Square D
