Square D

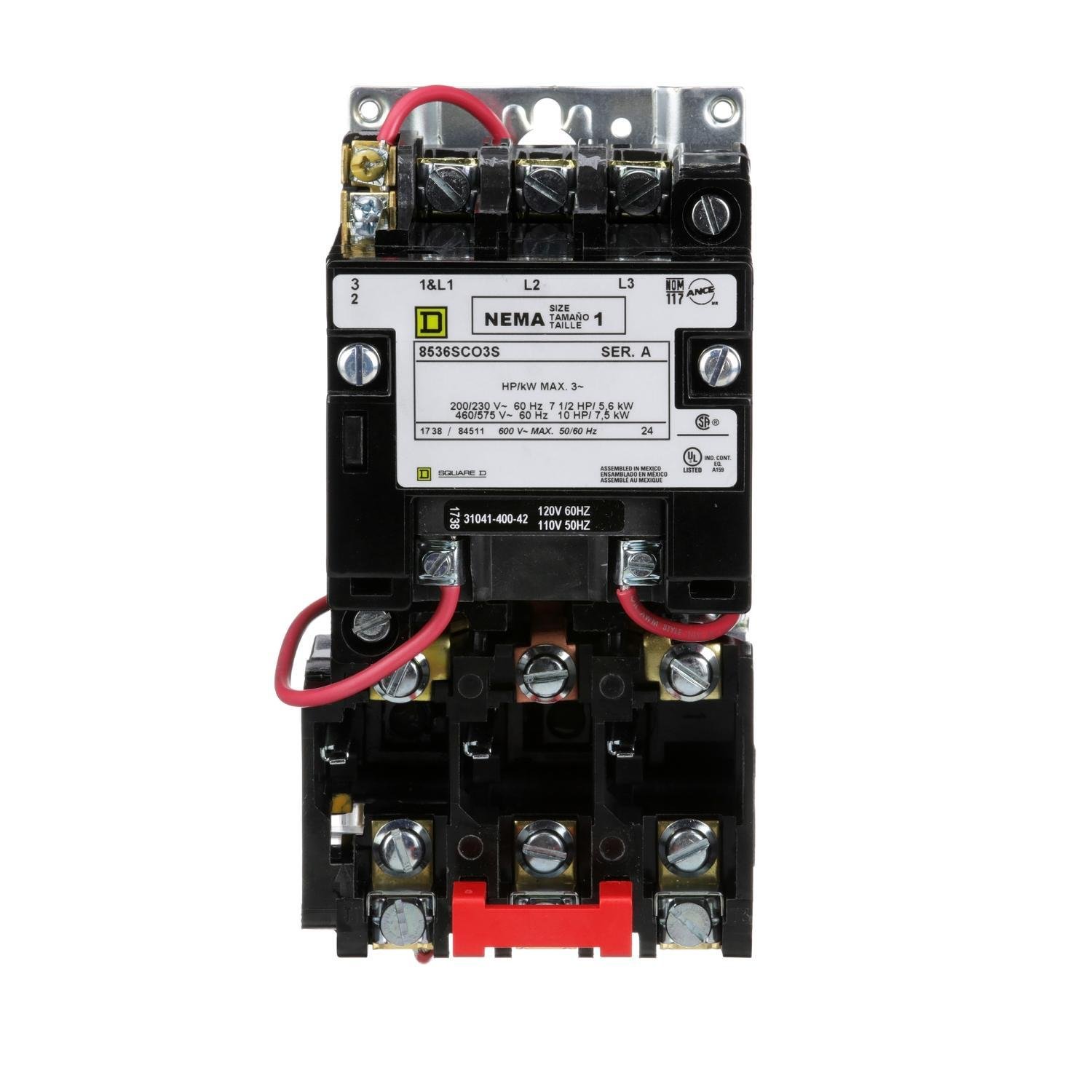

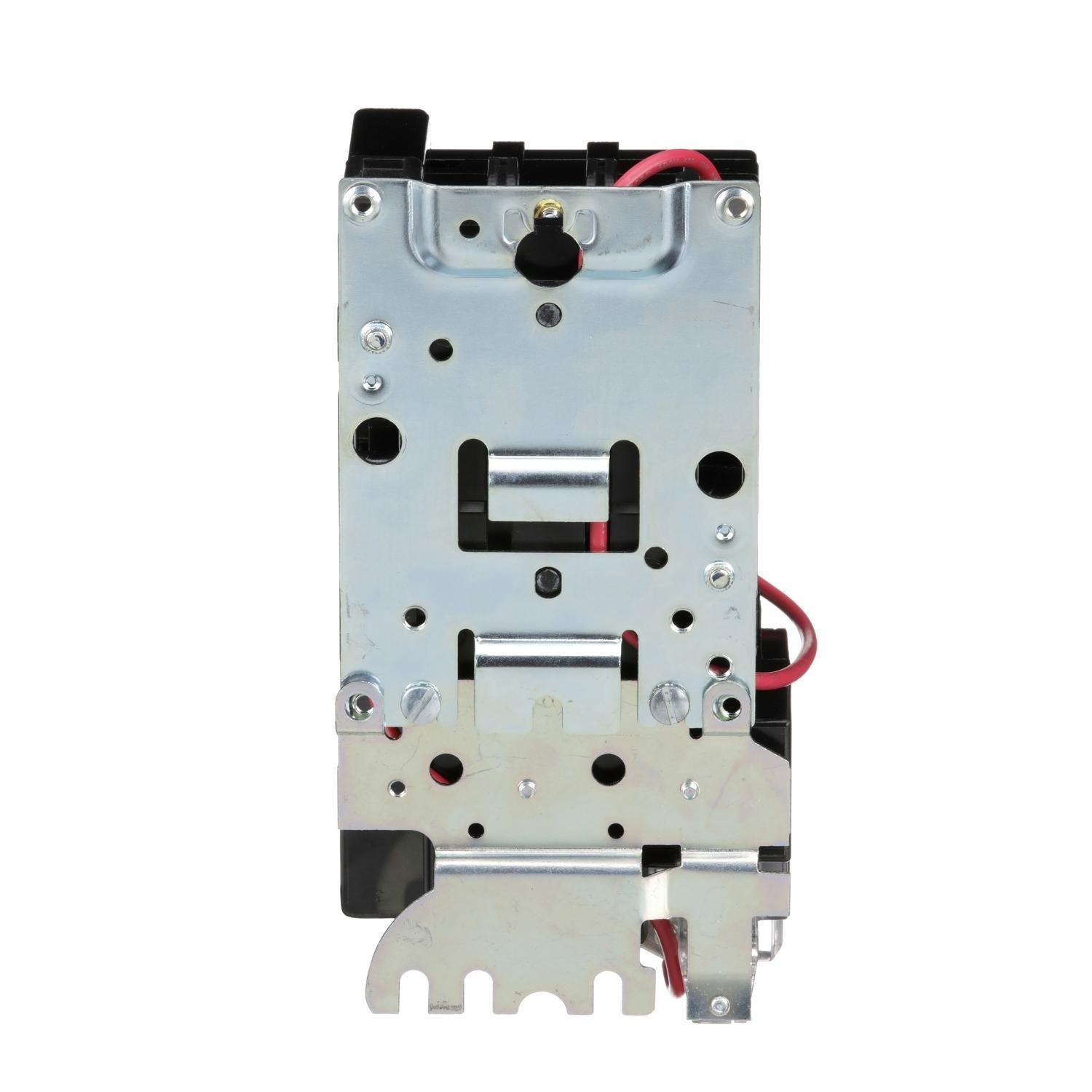

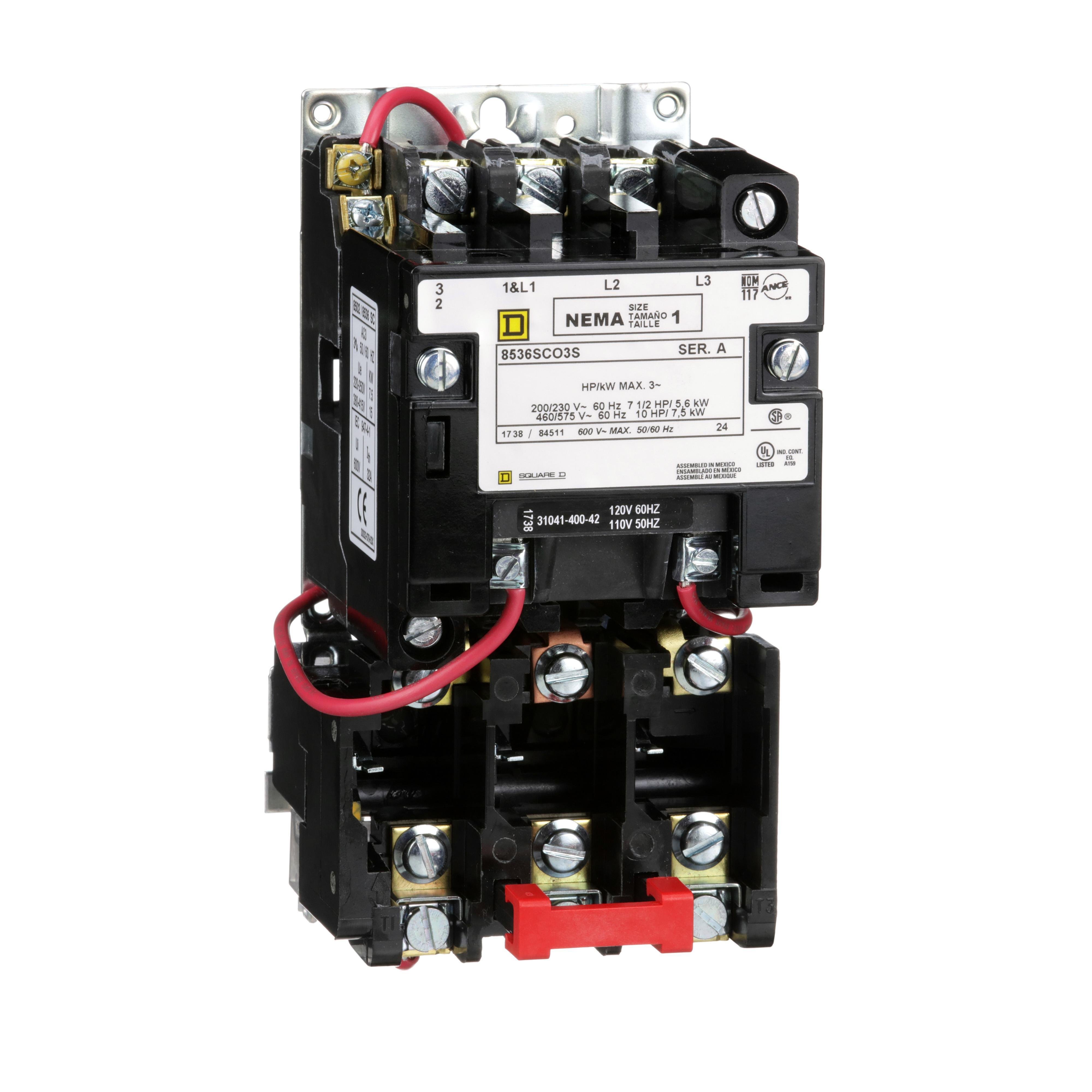

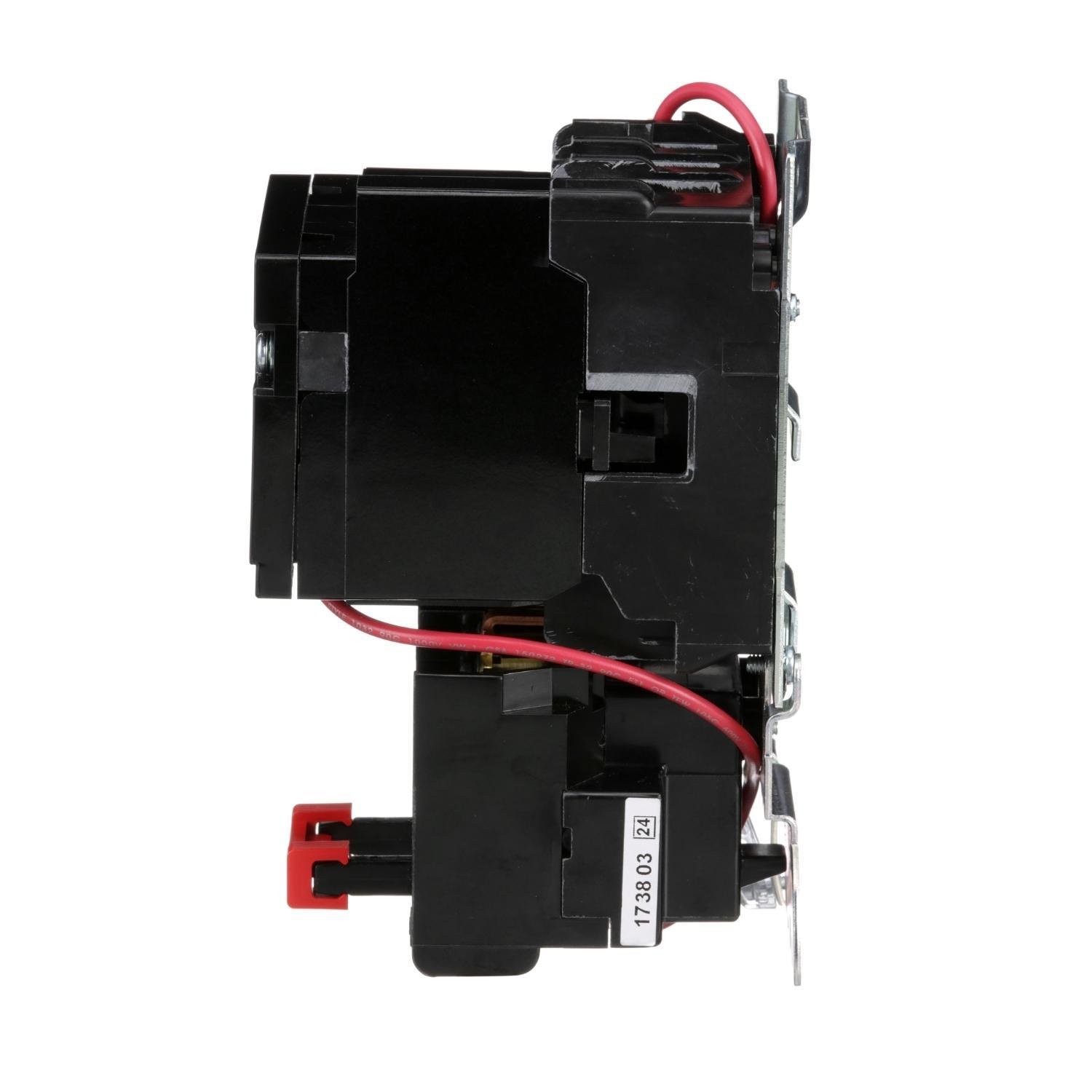

8536SCO3V02S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Category NEMA Non-Combination Starters
Picture of 8536SCO3V02S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Square D

8536SCO3V02S - NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Item Code: 17216
Category NEMA Non-Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SCO3V02S

Full Engineering Drawing
Owners User Manual
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

4.01lb

Height

4.6mm

Width

4.46mm

Length

8.02mm

Depth

107mm

Action

Non-reversing

Amperage Rating

27 A

Brand

Square D

Category

NEMA NON-COMBINATION STARTERS

Coil Voltage

110/120 V AC

Connection Type

Screw clamp

Dimensions

4.53 in W x 4.22 in D x 6.77 in H

Enclosure Type

Open

Frequency Rating

50/60 Hz

Motor Power

7-1/2 hp/10 hp

Number Of Poles

3

Overload Relay

Thermal Melting Alloy

Phase

3

Reset Type

(3) Thermal Melting Alloy

Series

8536S

Starting Modes

Magnetic

Type

Type S

Voltage Rating

600 V AC
