Square D

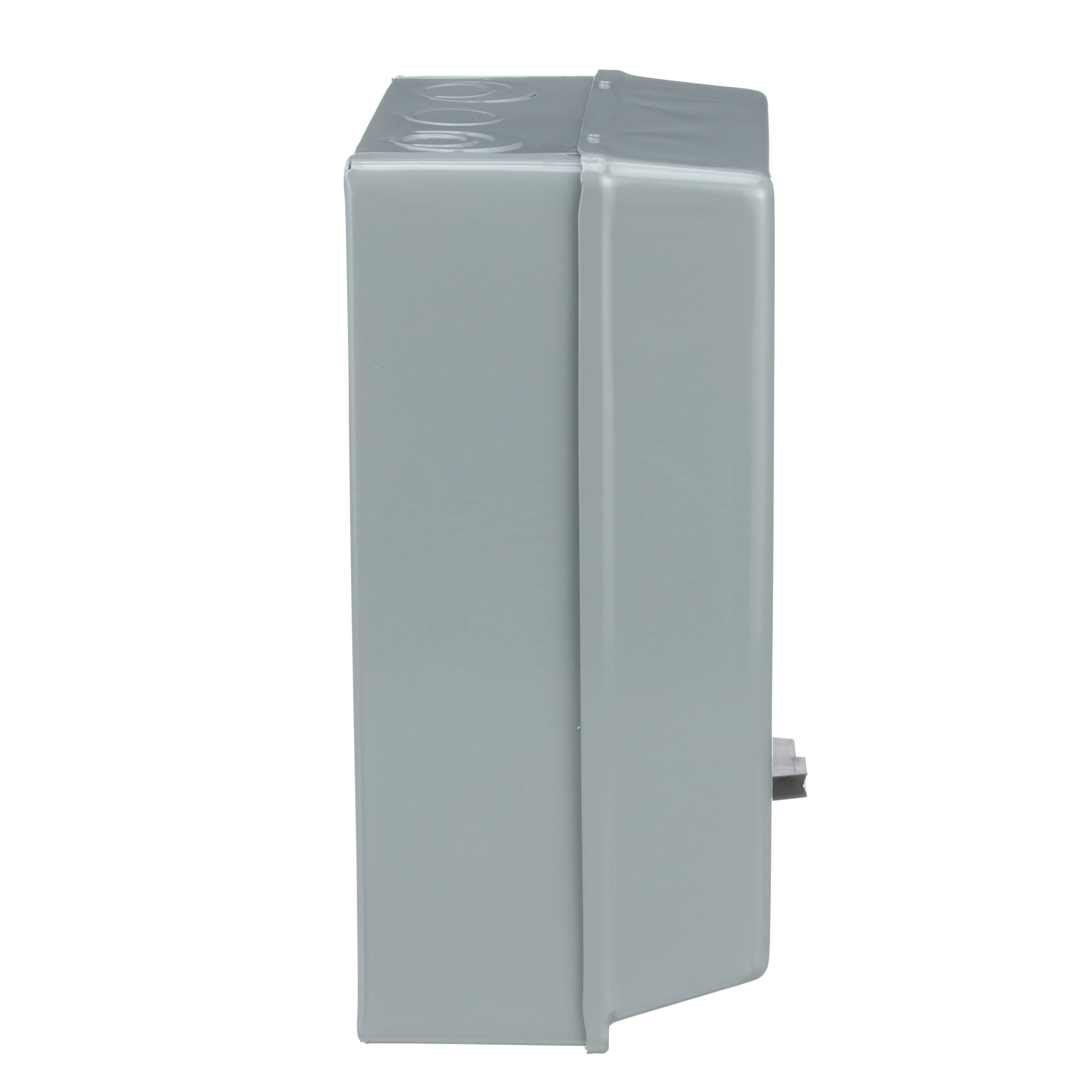

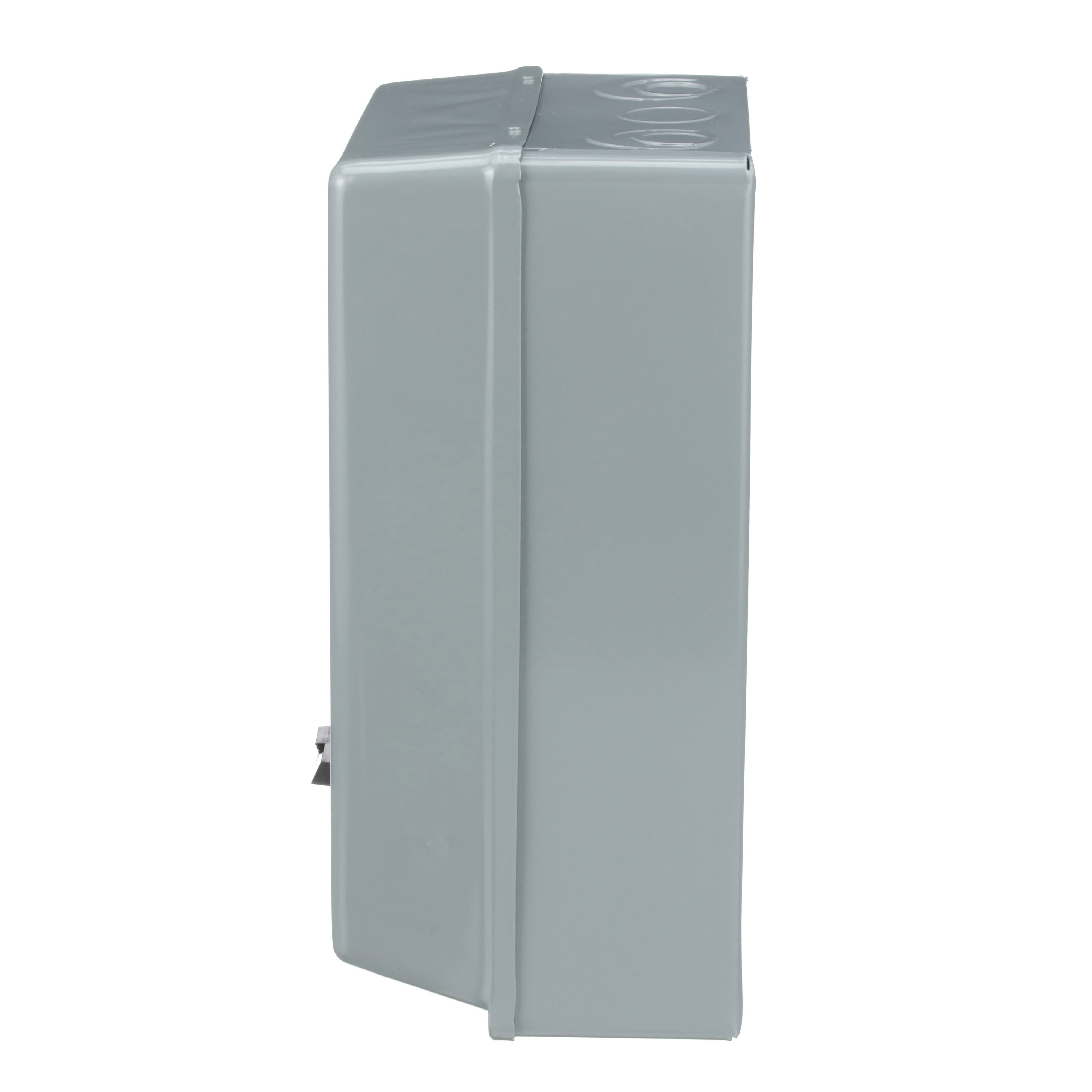

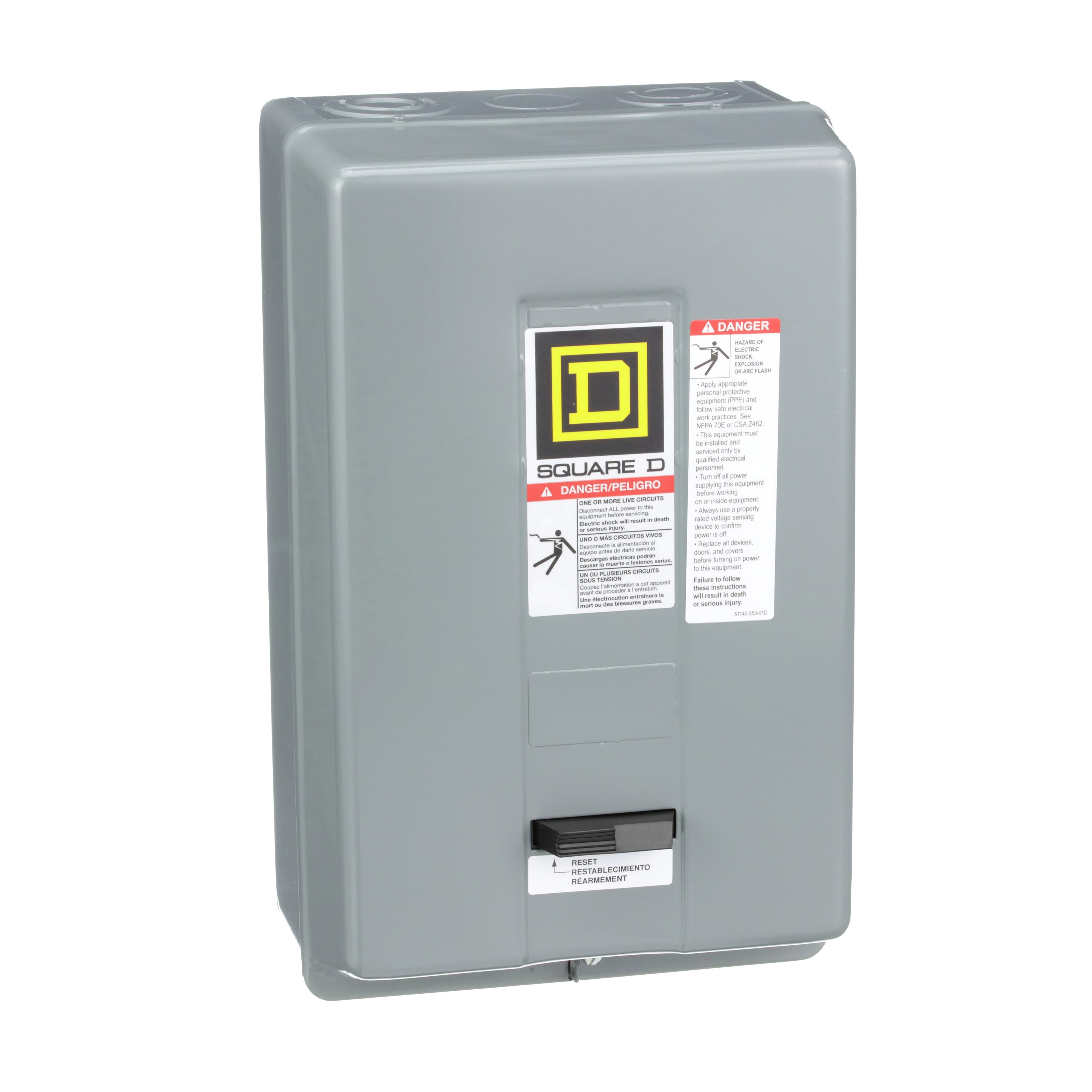

8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1

Category NEMA Non-Combination Starters
Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1 Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1
Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1 Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1
Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1 Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1
Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1 Picture of 8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1
Square D

8536SDG1V03 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 240VAC coil, NEMA 1

Item Code: 17218
Category NEMA Non-Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SDG1V03

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

13.03lb

Height

7.4mm

Width

8.12mm

Length

14.26mm

Depth

160mm

AD All Features

Flexible with four overload relays types

AD Application

For full voltage starting, stopping of AC squirrel cage motor and indoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STARTER MAG NEMA TYPE S GP NON-REVERSING

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.4000

AD Package Height UOM

IN

AD Package Length

14.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

873.7900

AD Package Volume UOM

cu-in

AD Package Weight

13.0300

AD Package Weight UOM

LB

AD Package Width

8.1200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/HH4qt8sWnGI

Brand

Square D

Category

NEMA NON-COMBINATION STARTERS

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Thermal Melting Alloy 3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

(3) Thermal Melting Alloy

Spec 14 Attribute

Starting Modes

Spec 14 Attribute Value

Magnetic

Spec 15 Attribute

Type

Spec 15 Attribute Value

General Purpose Type S

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

45

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

220/240

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

7-13/16 in W x 6-5/16 in D x 12-11/16 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 12

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Material

Spec 8 Attribute Value

Sheet Steel

Spec 9 Attribute

motor power

Spec 9 Attribute Value

10 hp/25 hp
