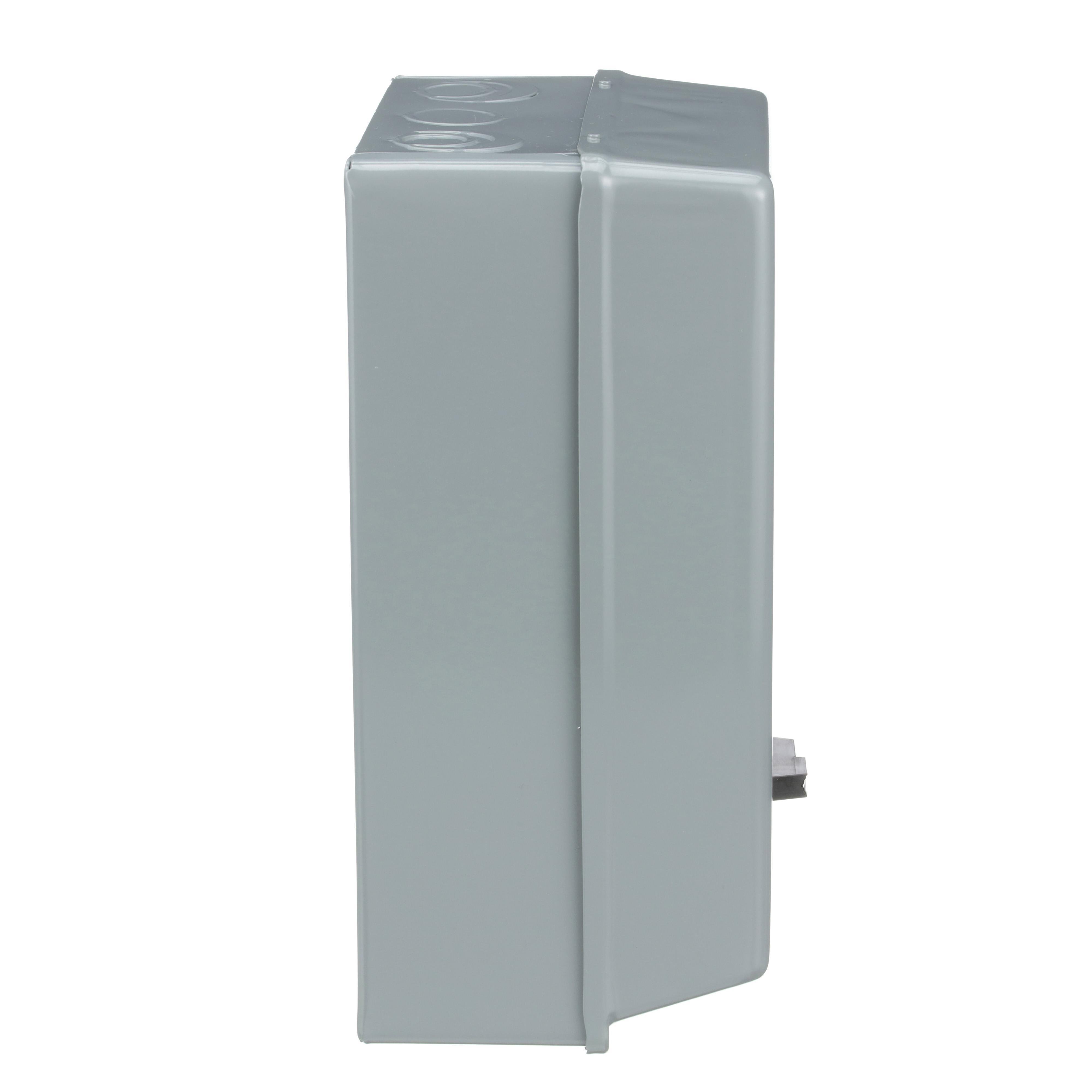

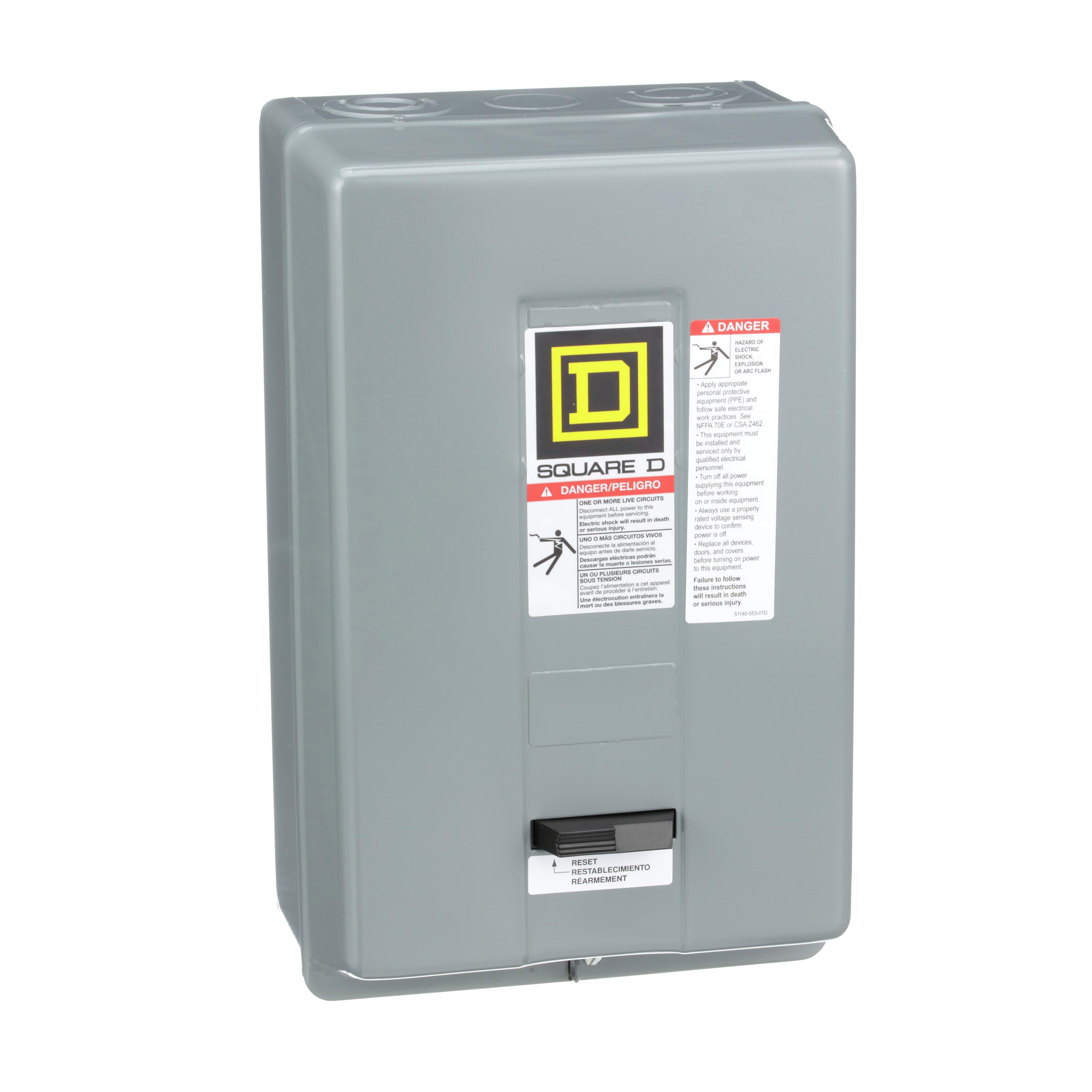

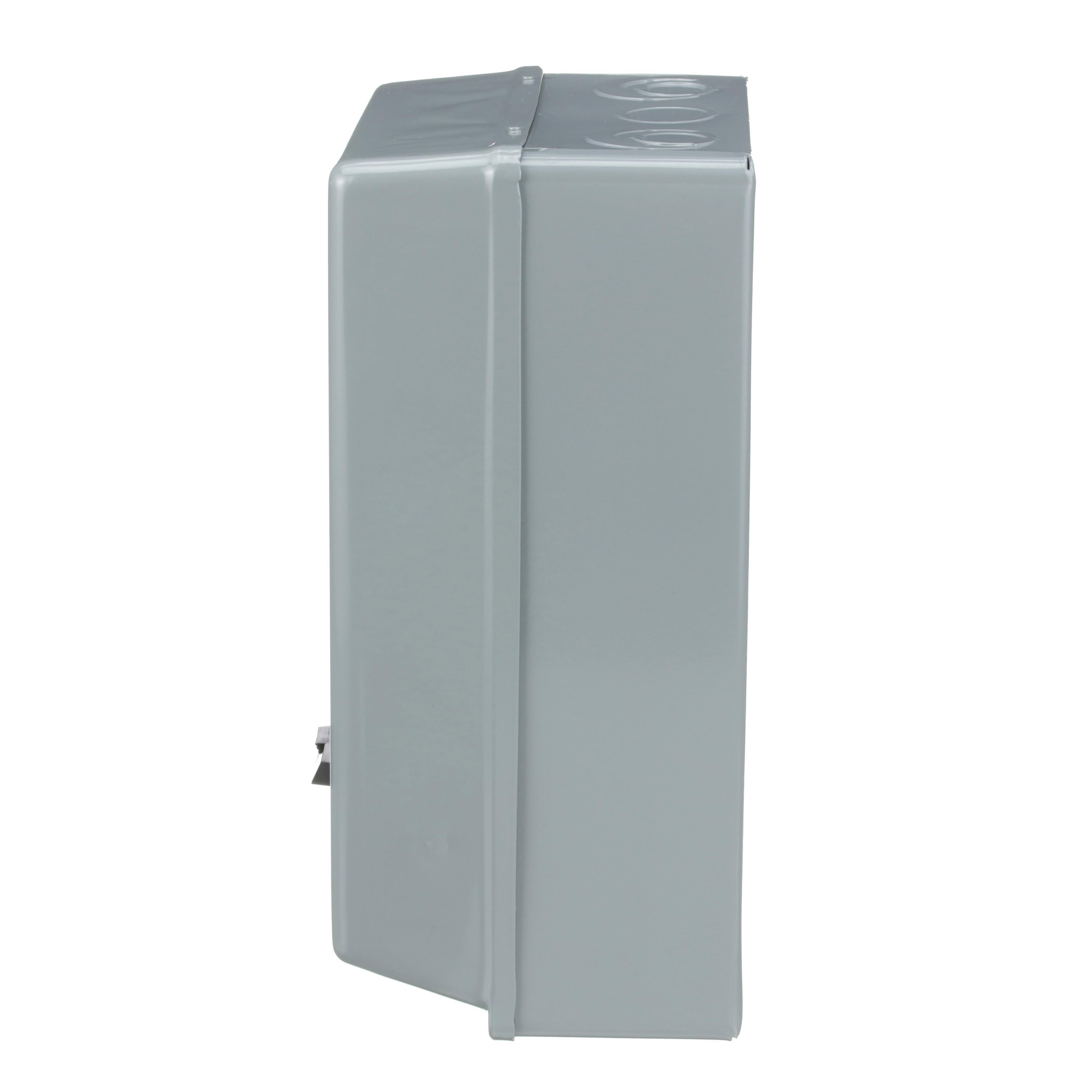

Picture of 8536SDG1V03H30 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 240VAC coil, NEMA 1 [TAA]

Square D™

8536SDG1V03H30 - NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 240VAC coil, NEMA 1 [TAA]

Item Code: 1034364

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 8536SDG1V03H30

Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

13.17

Width

13.27

Length

14.46

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8536SDG1V02H30S/8536SDG1V02H30S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8042388

AD Application

Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901807070

AD Gtin

00785901807070

AD IDEA Index ID

8042388

AD Invoice Description

STARTER MAG 3 NEMA 1 600VAC 45A 50/60HZ

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8536SDG1V03H30 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8536SDG1V03H30 ; 8536SDG1V03H30 ; 785901807070 ; NEMA Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

14.4600

AD Package Length UOM

AD Package Quantity

AD Package Weight

13.1700

AD Package Weight UOM

AD Package Width

13.2700

AD Package Width UOM

AD Part Number Keywords

8536SDG1V03H30 ; 8042388 ; 785901807070 ; 78590180707 ; 00785901807070 ; 0785901807070

AD Video Links

https://www.youtube.com/embed/W3jC7ckgcBo

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute Value

0 to 40 deg C Ambient

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

Motor Logic™ Solid-State

Spec 14 Attribute

Series

Spec 14 Attribute Value

8536

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type S

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 17 Attribute

Wattage

Spec 17 Attribute Value

7.5 kW at 200 V AC/11 kW at 230 V AC/18.5 kW at 460 V AC/18.5 kW at 575 V AC

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

220 V AC at 50 Hz/240 V AC at 60 Hz

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Box Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

7.8 in W x 6.3 in D x 12.68 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute Value

10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
