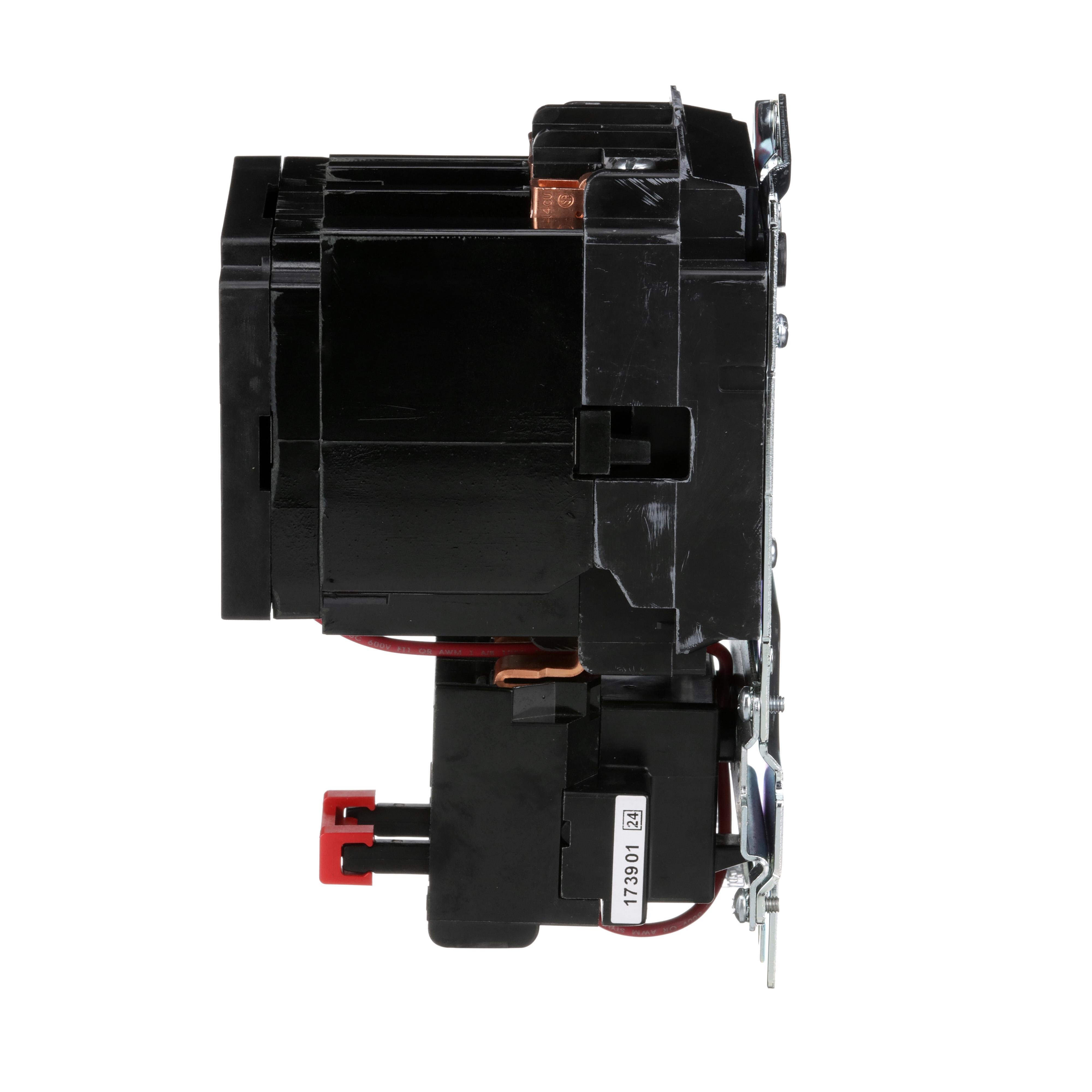

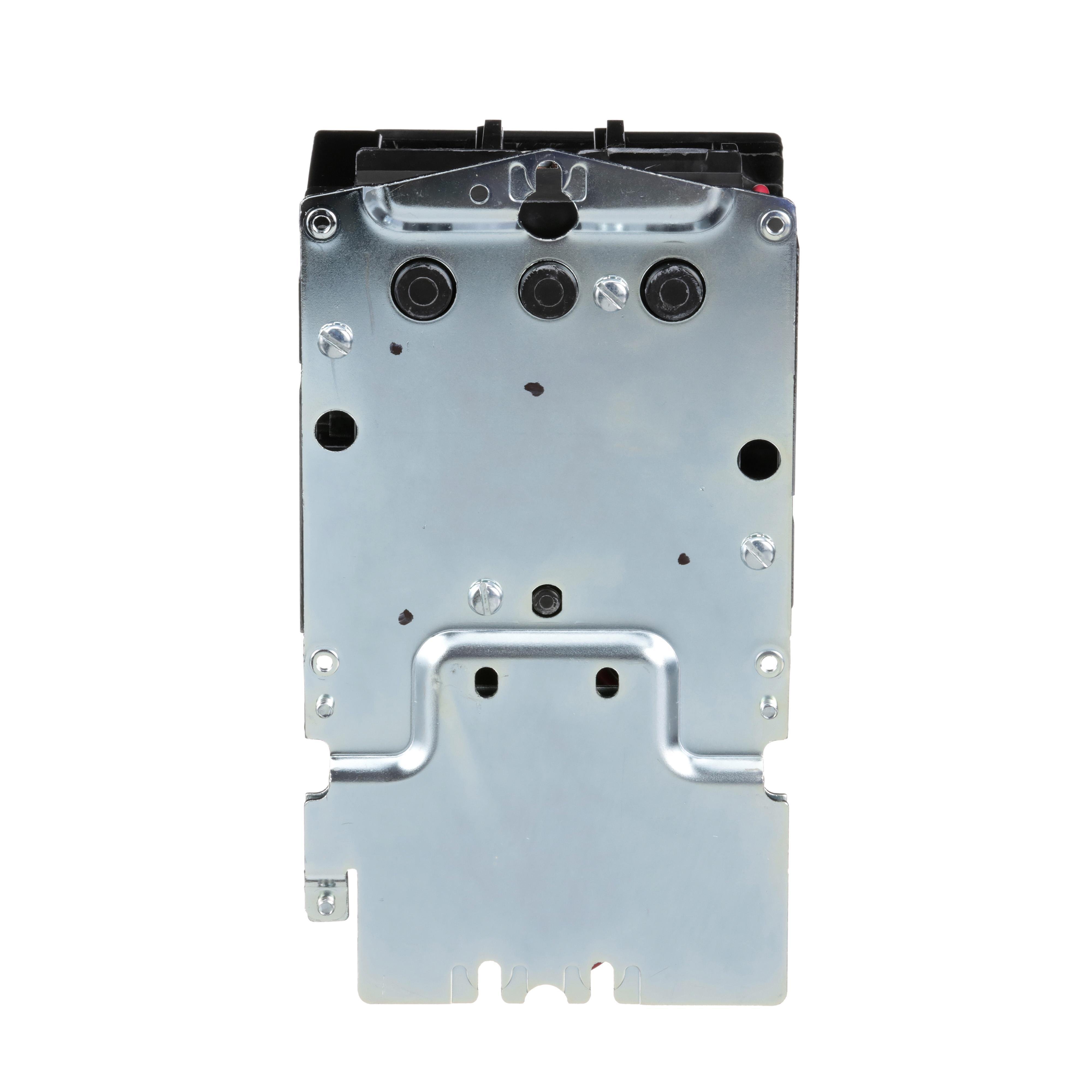

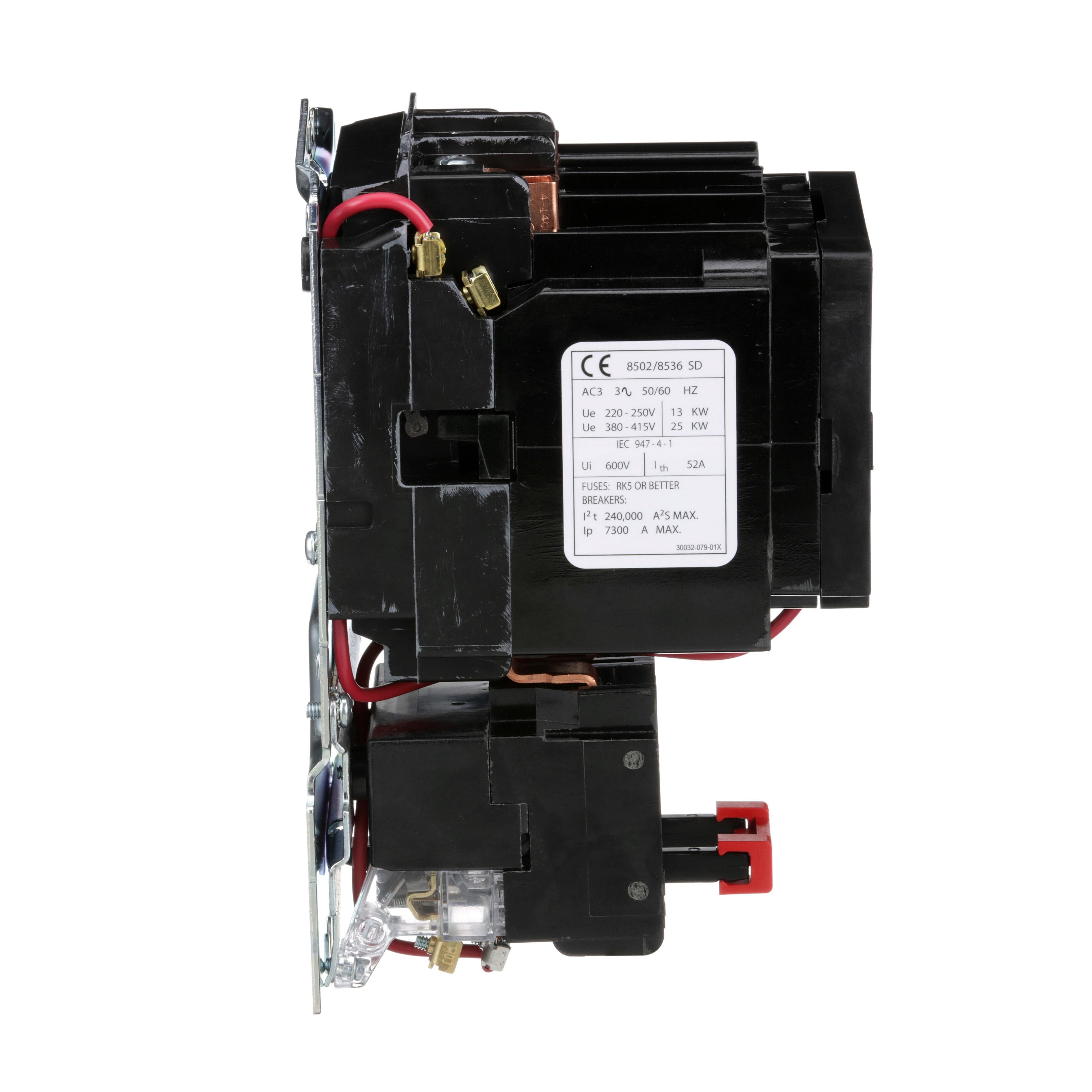

Picture of 8536SDO1V01S - NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, open [TAA]

8536SDO1V01S - NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, open [TAA]

Item Code: 1120233

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 8536SDO1V01S

Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 7.81 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

6.79

Width

6.44

Length

9.11

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8536SDO1V01S/8536SDO1V01S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8077941

AD Application

Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901515159

AD Gtin

00785901515159

AD IDEA Index ID

8077941

AD Includes

Separate Control Circuit

AD Invoice Description

STARTER MAG TYPE S NON-REVERSING 3 OPEN

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8536SDO1V01S Type S Starter, 24 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure ; Schneider Electric ; Square D ; 8536SDO1V01S ; 8536SDO1V01S ; 785901515159 ; NEMA Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

9.1100

AD Package Length UOM

AD Package Quantity

AD Package Weight

6.7900

AD Package Weight UOM

AD Package Width

6.4400

AD Package Width UOM

AD Part Number Keywords

8536SDO1V01S ; 8077941 ; 785901515159 ; 78590151515 ; 00785901515159 ; 0785901515159

AD Video Links

https://www.youtube.com/embed/MsloUt8sPL0

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

0 To 40

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Thermal Melting Alloy

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

(3) Thermal Melting Alloy

Spec 14 Attribute

Series

Spec 14 Attribute Value

8536

Spec 15 Attribute

Starting Modes

Spec 15 Attribute Value

Magnetic

Spec 16 Attribute

Type

Spec 16 Attribute Value

Type S

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

600

Spec 18 Attribute

Wattage

Spec 18 Attribute Value

7.5 kW at 200 V AC/11 kW at 230 V AC/18.5 kW at 460 V AC/18.5 kW at 575 V AC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

4.29 in W x 4.92 in D x 7.8 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

Spec 7 Attribute Value

50/60

Spec 8 Attribute

motor power

Spec 8 Attribute Value

10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
