Square D

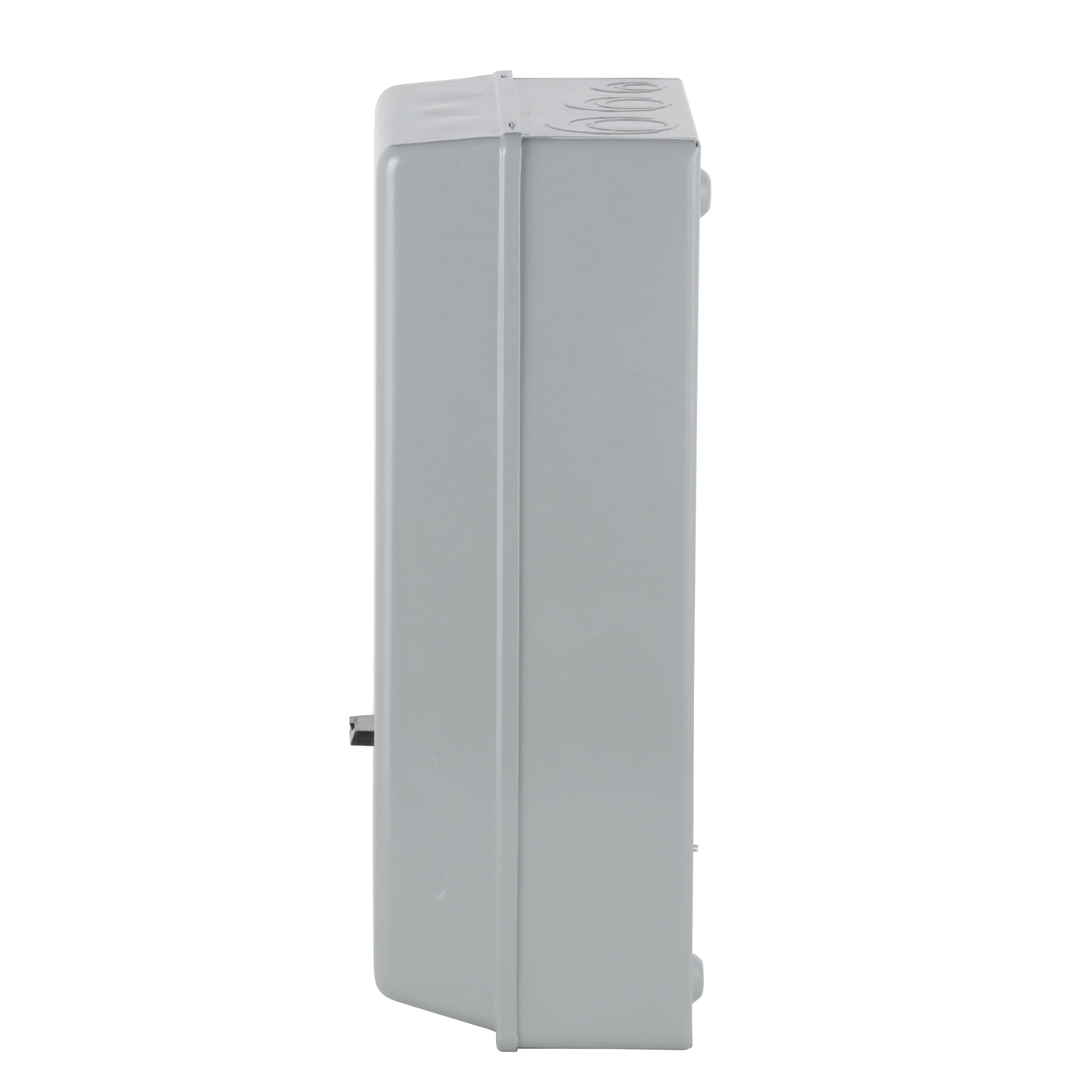

8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1

Category NEMA Non-Combination Starters
Picture of 8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1 Picture of 8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1
Picture of 8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1 Picture of 8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1
Square D

8536SEG1V02H30S - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1

Item Code: 856654
Category NEMA Non-Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SEG1V02H30S

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 30A to 90A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 21.81 inches tall, 11.44 inches wide and 8.38 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

35.75lb

Height

554mm

Width

11.89mm

Length

22.29mm

Depth

291mm

AD All Features

Flexible with four overload relays types

AD Application

Constructions, Infrastructure, Industrial Markets, Commercial Office Buildings, Building Automation, Starting and Stopping Of AC Squirrel Cage Motors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Separate Control Circuit

AD Invoice Description

STARTER MAG TYPE S NON-REVERSING 208VAC

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

22.2900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

35.7500

AD Package Weight UOM

LB

AD Package Width

11.8900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/W3jC7ckgcBo

Brand

Square D

Category

NEMA NON-COMBINATION STARTERS

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

Motor Logic™ Solid State

Spec 14 Attribute

Series

Spec 14 Attribute Value

8536

Spec 15 Attribute

Starting Modes

Spec 15 Attribute Value

Magnetic

Spec 16 Attribute

Type

Spec 16 Attribute Value

Type S

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

90

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

291 mm W x 213 mm D x 554 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Material

Spec 8 Attribute Value

Sheet Steel

Spec 9 Attribute

motor power

Spec 9 Attribute Value

25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC
