Square D

8536SEO1V08 - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, open [TAA]

Category Miscellaneous

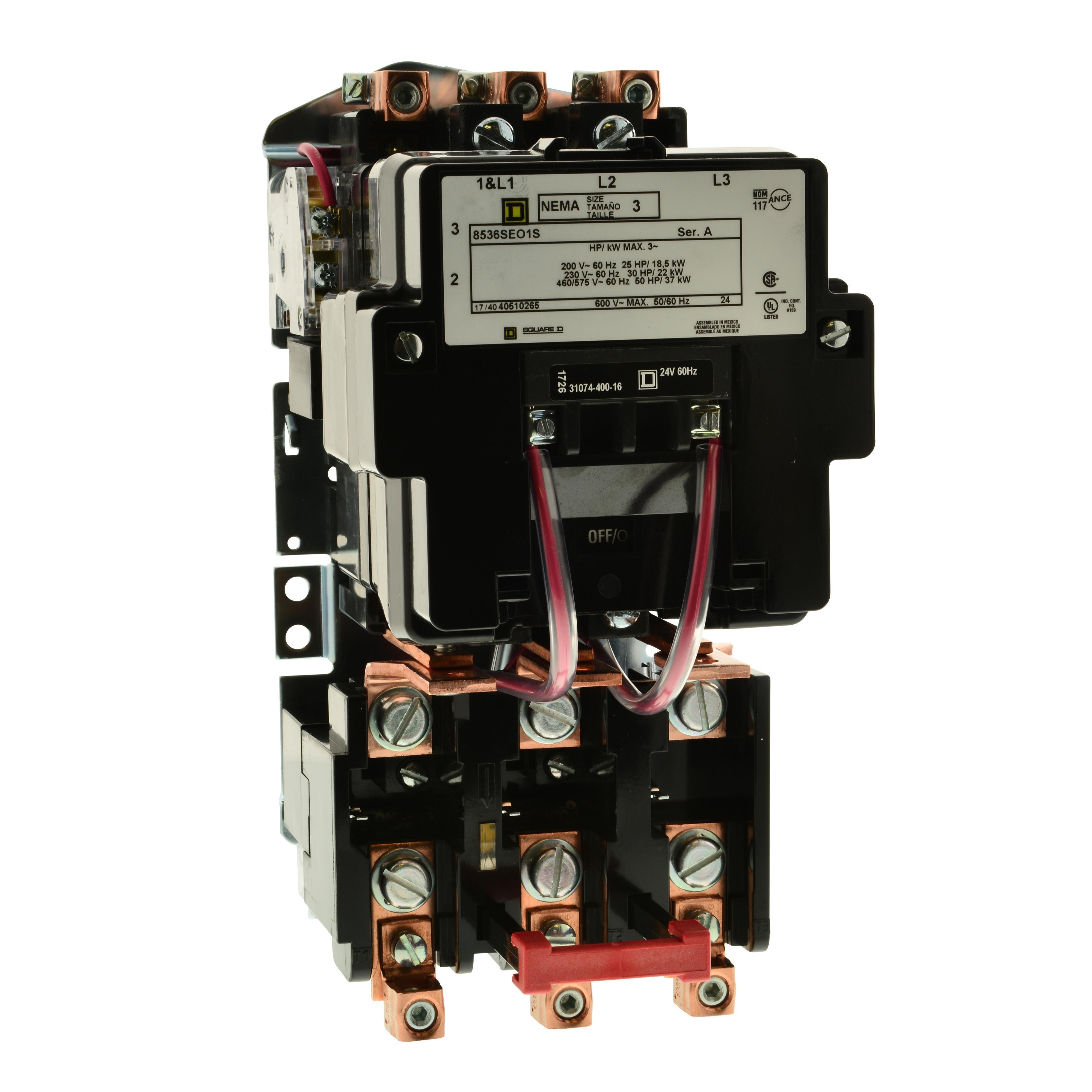

Picture of 8536SEO1V08 - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, open [TAA]
Square D

8536SEO1V08 - NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, open [TAA]

Item Code: 533075
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8536SEO1V08

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 11.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Weight

15.59

Height

7.2

Width

8.92

Length

14.07

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8031963

AD Application

Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD Document Caption 3

Owners/User Manual

AD EAN

0785901788331

AD Gtin

00785901788331

AD IDEA Index ID

8031963

AD Invoice Description

STARTER MAG 208 VAC AT 60 HZ 3 OPEN 90A

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8536SEO1V08 Type S Magnetic Starter, 208 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, Open Enclosure ; Schneider Electric ; Square D ; 8536SEO1V08 ; 8536SEO1V08 ; 785901788331 ; NEMA Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.2000

AD Package Height UOM

IN

AD Package Length

14.0700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

920.1600

AD Package Volume UOM

cu-in

AD Package Weight

15.5900

AD Package Weight UOM

LB

AD Package Width

8.9200

AD Package Width UOM

IN

AD Part Number Keywords

8536SEO1V08 ; 8031963 ; 785901788331 ; 78590178833 ; 00785901788331 ; 0785901788331

AD Video Links

https://www.youtube.com/embed/Gy1KrKzer3o

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

0 To 40

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Thermal Melting Alloy

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

(3) Thermal Melting Alloy

Spec 14 Attribute

Series

Spec 14 Attribute Value

8536

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type S

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 17 Attribute

Wattage

Spec 17 Attribute Value

18.5 kW at 200 V AC/22 kW at 230 V AC/37 kW at 460/575 V AC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

90

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute Value

208 V AC at 60 Hz

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.47 in W x 6.5 in D x 11.1 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

motor power

Spec 8 Attribute Value

25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
