Square D

8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]

Category Miscellaneous

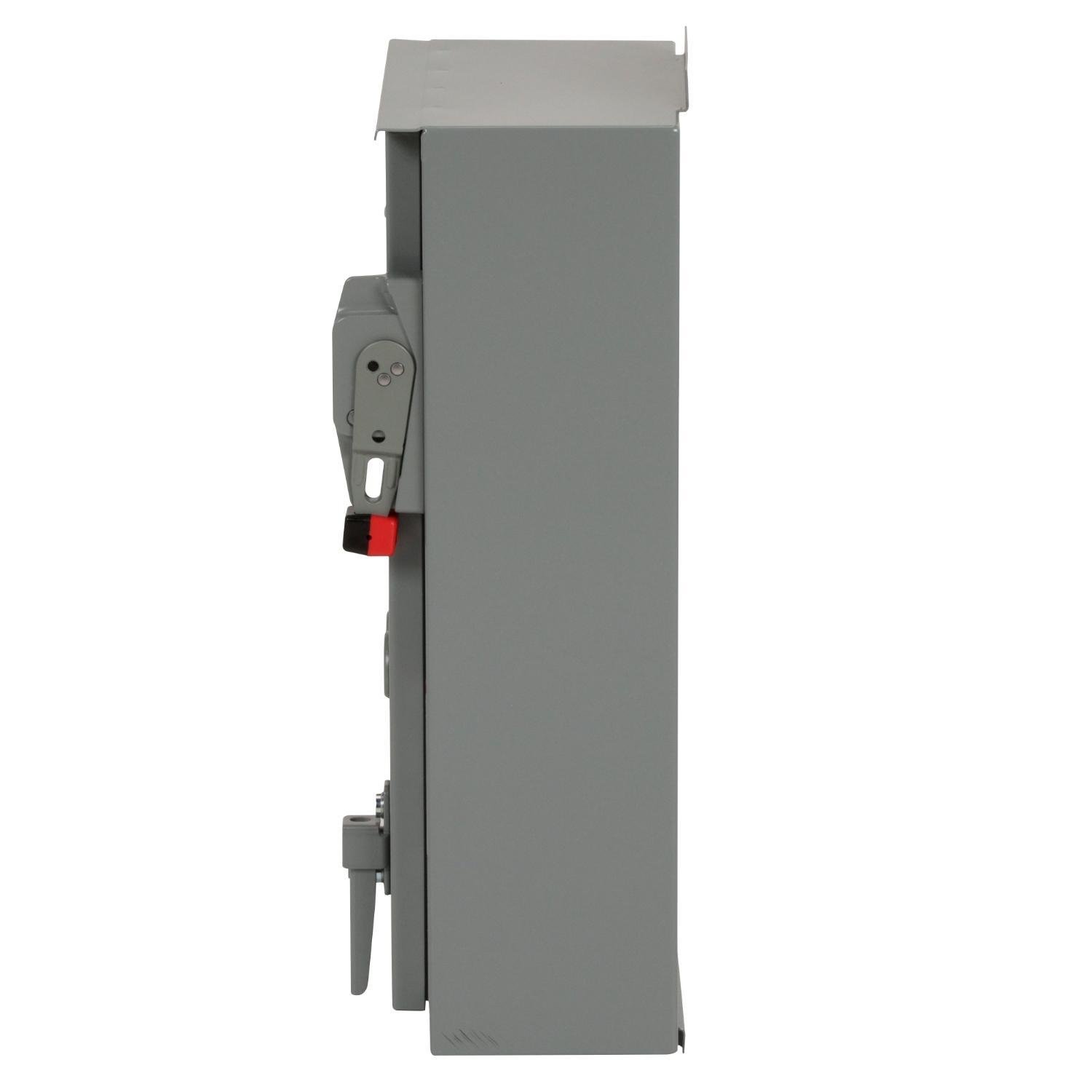

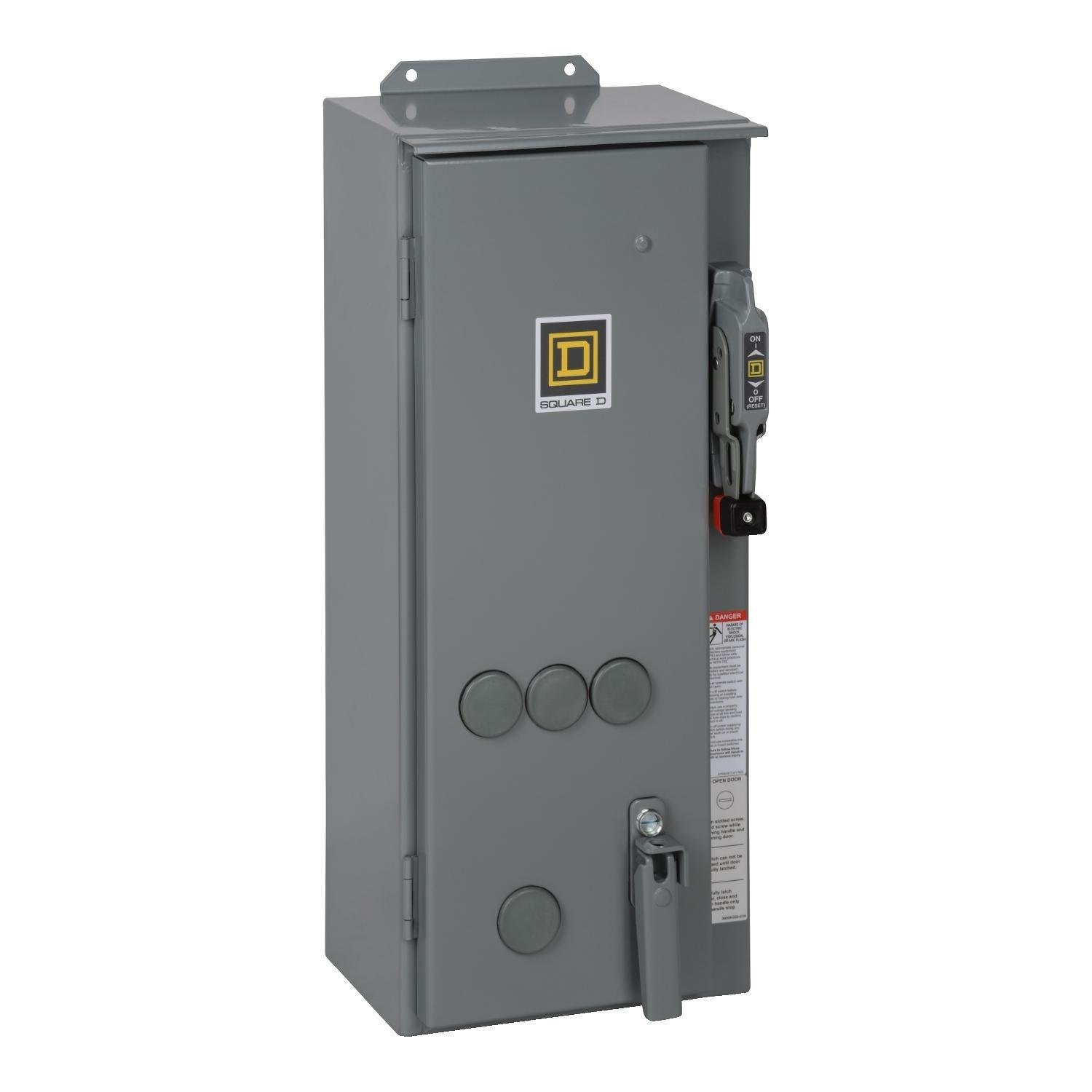

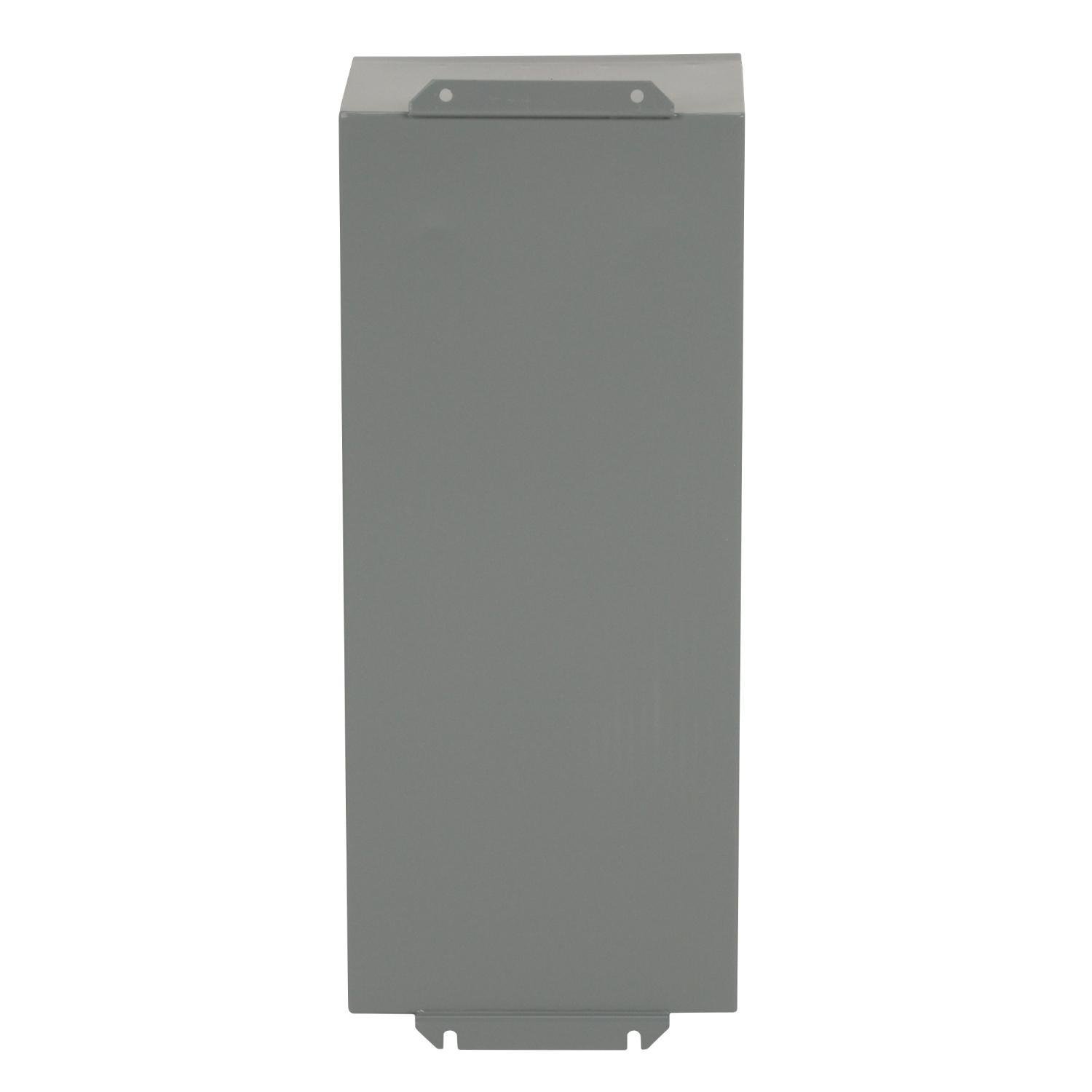

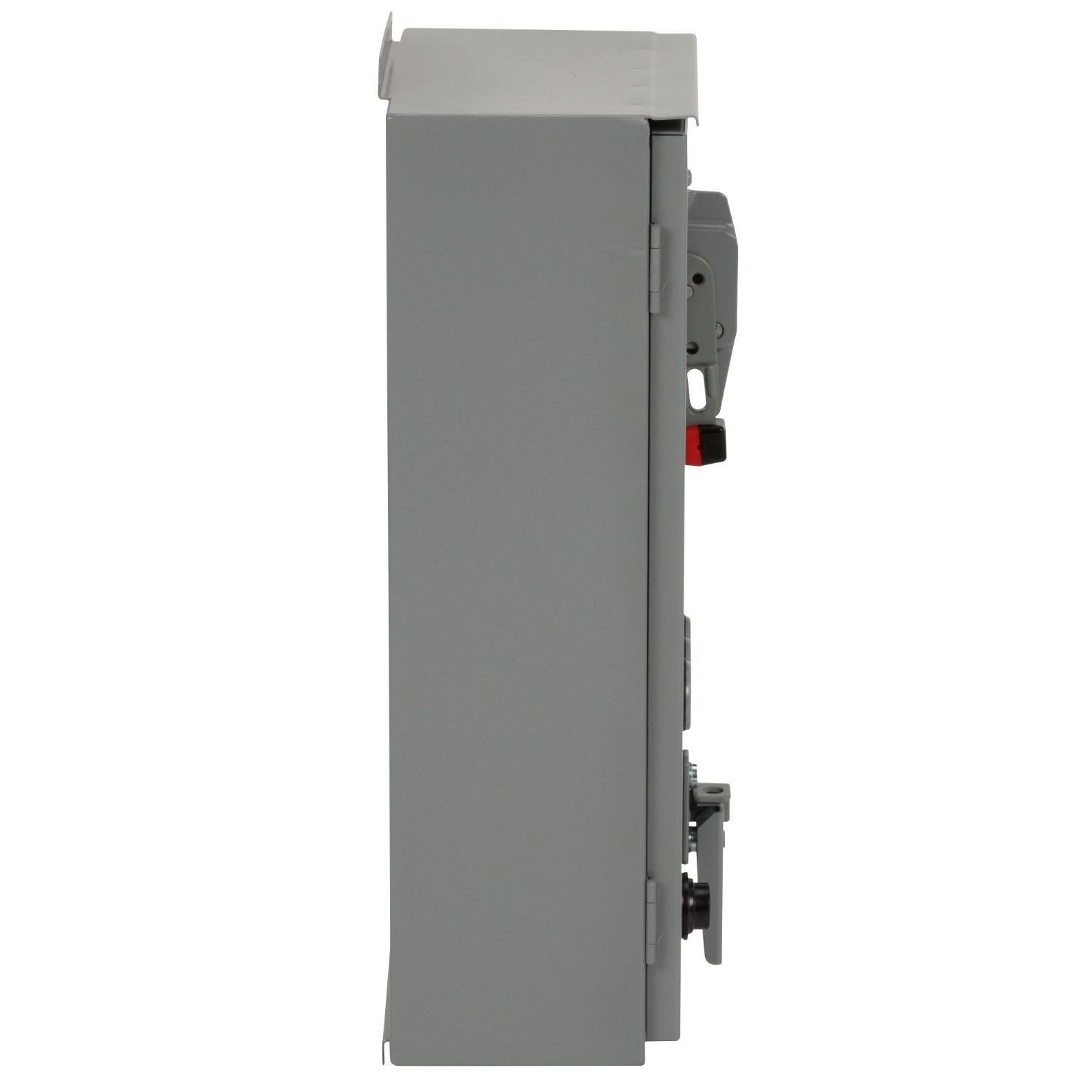

Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA] Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]
Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA] Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]
Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA] Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]
Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA] Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]
Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA] Picture of 8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]
Square D

8538SBA23V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 12 [TAA]

Item Code: 17228
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8538SBA23V02S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This fusible combination starter has 30 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control.  This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Enclosure is 24.00 inches tall, 9.50 inches wide and 8.34 inches deep. Type S combination starters are UL listed and CSA certified.

Specifications

Weight

37.46

Width

12.68

Length

28.53

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8538SBA23V02S/8538SBA23V02S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8153805

AD Application

Indoor, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901743965

AD Gtin

00785901743965

AD IDEA Index ID

8153805

AD Includes

External Reset, Separate Control Circuit and 30 A Type H Fuse

AD Invoice Description

STARTER MAG COMBINATION NEMA TYPE S

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

28.5300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.4600

AD Package Weight UOM

LB

AD Package Width

12.6800

AD Package Width UOM

IN

AD Part Number Keywords

8538SBA23V02S ; 8153805 ; 785901743965 ; 78590174396 ; 00785901743965 ; 0785901743965

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

32 To 104

Spec 12 Attribute

Overload Relay

Spec 12 Attribute Value

Thermal Melting Alloy 3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3

Spec 14 Attribute

Reset Type

Spec 14 Attribute Value

(3) Thermal Melting Alloy

Spec 15 Attribute

Series

Spec 15 Attribute Value

8538

Spec 16 Attribute

Type

Spec 16 Attribute Value

Type S

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

600

Spec 18 Attribute

Wattage

Spec 18 Attribute Value

3.75 kW at 480/600 V AC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

18

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute Value

110 V AC at 50 Hz, 120 V AC at 60 Hz

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Pressure Wire Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

9.5 in W x 8.34 in D x 24 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 12

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Material

Spec 8 Attribute Value

Sheet Steel

Spec 9 Attribute

motor power

Spec 9 Attribute Value

5 hp at 460/575 VAC
