Square D

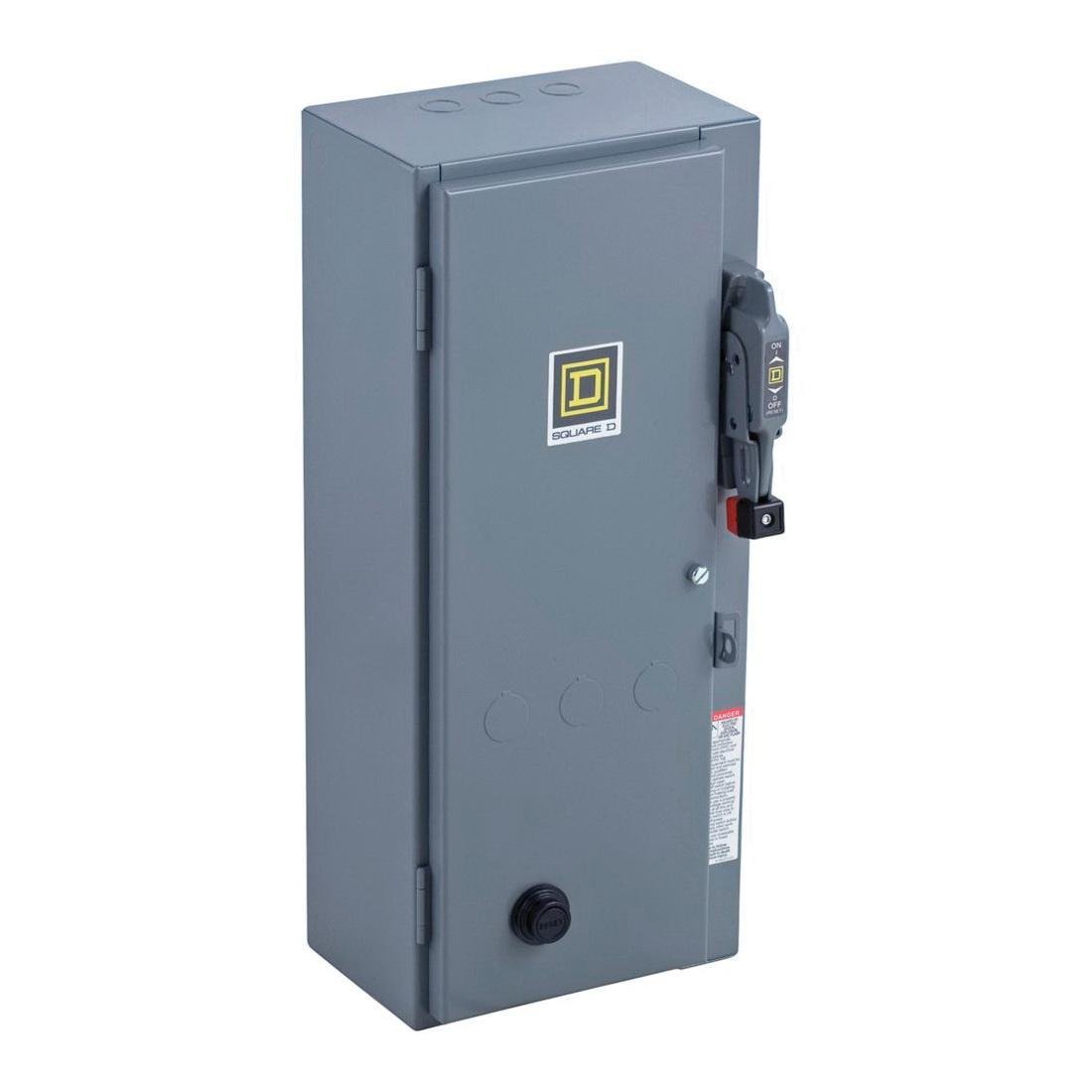

8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Category Miscellaneous
Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA] Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]
Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA] Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]
Square D

8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Item Code: 17230
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8538SBG13V02S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This fusible combination starter has 30 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control.  This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Enclosure is 22.50 inches tall, 9.50 inches wide and 8.34 inches deep. Type S combination starters are UL listed and CSA certified.

Specifications

Weight

34.25

Height

10.8

Width

12.79

Length

28.74

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8538SBG11V02S/8538SBG11V02S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8156379

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901748243

AD Gtin

00785901748243

AD IDEA Index ID

8156379

AD Invoice Description

STARTER COMBINATION 110/120VAC 3 NEMA

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8538SBG13V02S Combination Starter With External Reset, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8538SBG13V02S ; 8538SBG13V02S ; 785901748243 ; Combination Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.8000

AD Package Height UOM

IN

AD Package Length

28.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4071.6000

AD Package Volume UOM

cu-in

AD Package Weight

34.2500

AD Package Weight UOM

LB

AD Package Width

12.7900

AD Package Width UOM

IN

AD Part Number Keywords

8538SBG13V02S ; 8156379 ; 785901748243 ; 78590174824 ; 00785901748243 ; 0785901748243

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

8538S

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Material

Spec 6 Attribute Value

Sheet Steel

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

5

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Overload Relay

Spec 9 Attribute Value

Thermal Melting Alloy 3

Square D

8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Category Miscellaneous
Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA] Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]
Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA] Picture of 8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]
Square D

8538SBG13V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Item Code: 17230
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8538SBG13V02S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This fusible combination starter has 30 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control.  This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Enclosure is 22.50 inches tall, 9.50 inches wide and 8.34 inches deep. Type S combination starters are UL listed and CSA certified.

Specifications

Weight

34.25

Height

10.8

Width

12.79

Length

28.74

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8538SBG11V02S/8538SBG11V02S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8156379

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901748243

AD Gtin

00785901748243

AD IDEA Index ID

8156379

AD Invoice Description

STARTER COMBINATION 110/120VAC 3 NEMA

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8538SBG13V02S Combination Starter With External Reset, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8538SBG13V02S ; 8538SBG13V02S ; 785901748243 ; Combination Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.8000

AD Package Height UOM

IN

AD Package Length

28.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4071.6000

AD Package Volume UOM

cu-in

AD Package Weight

34.2500

AD Package Weight UOM

LB

AD Package Width

12.7900

AD Package Width UOM

IN

AD Part Number Keywords

8538SBG13V02S ; 8156379 ; 785901748243 ; 78590174824 ; 00785901748243 ; 0785901748243

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

8538S

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Material

Spec 6 Attribute Value

Sheet Steel

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

5

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Overload Relay

Spec 9 Attribute Value

Thermal Melting Alloy 3
