Square D

8538SCG12V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, 5HP at 240VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Category Miscellaneous

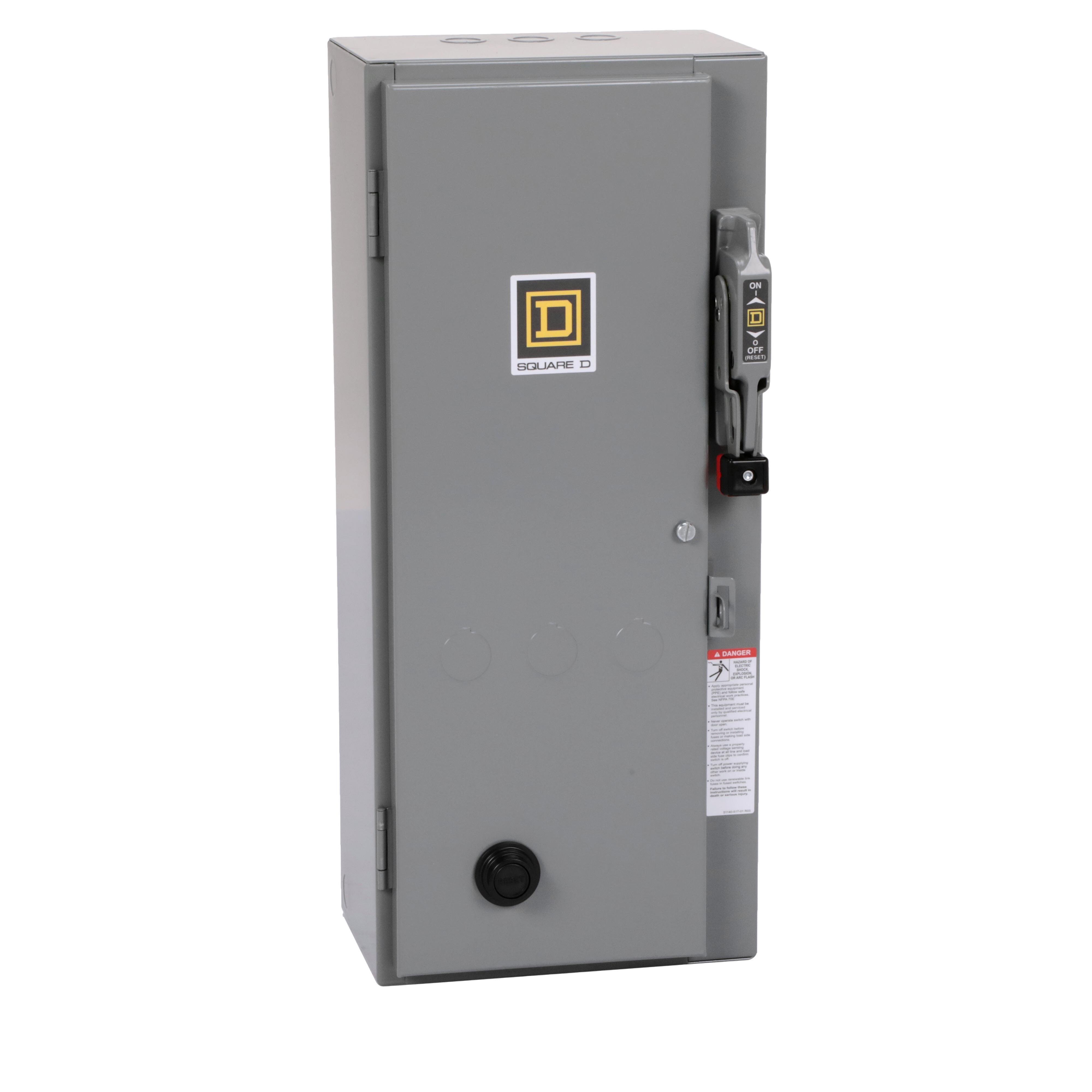

Picture of 8538SCG12V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, 5HP at 240VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]
Square D

8538SCG12V02S - NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, 5HP at 240VAC, 3 phase, 3 pole, 120VAC coil, NEMA 1 [TAA]

Item Code: 32489
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8538SCG12V02S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. These thermal units will trip in 20 seconds or less on overload conditions. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.

Specifications

Weight

35.13

Height

11

Width

12.98

Length

28.73

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8538SBG11V02S/8538SBG11V02S.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8156395

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901748298

AD Gtin

00785901748298

AD IDEA Index ID

8156395

AD Invoice Description

STARTER COMBINATION 110/120VAC 3 NEMA

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Keywords

8538SCG12V02S Combination Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8538SCG12V02S ; 8538SCG12V02S ; 785901748298 ; Combination Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.0000

AD Package Height UOM

IN

AD Package Length

28.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4178.9000

AD Package Volume UOM

cu-in

AD Package Weight

35.1300

AD Package Weight UOM

LB

AD Package Width

12.9800

AD Package Width UOM

IN

AD Part Number Keywords

8538SCG12V02S ; 8156395 ; 785901748298 ; 78590174829 ; 00785901748298 ; 0785901748298

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Overload Relay

Spec 10 Attribute Value

Thermal Melting Alloy

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

8538S

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

27

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute UOM

HP

Spec 8 Attribute Value

5

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
