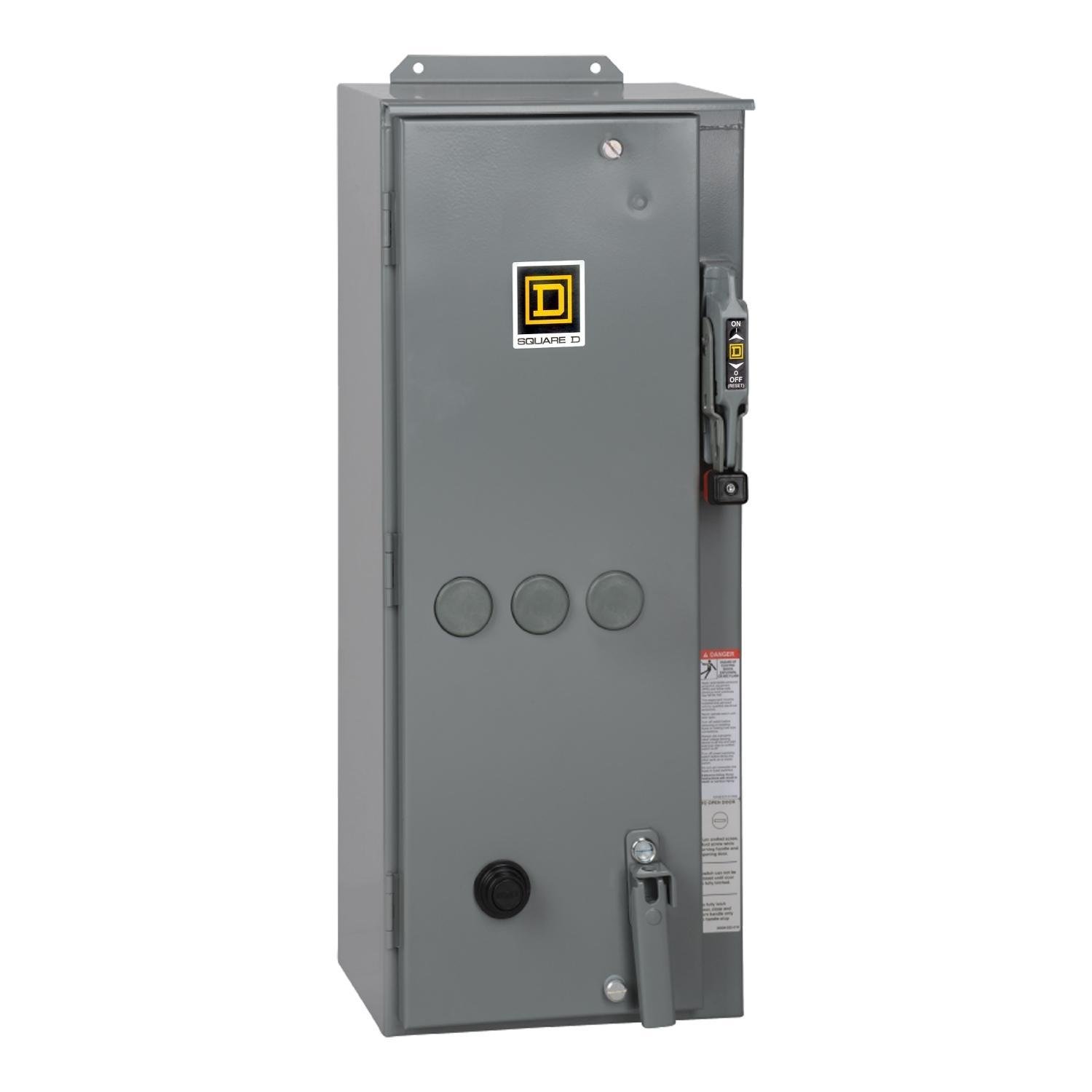

Picture of 8538SDA24V02S - NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 12 [TAA]

Square D™

8538SDA24V02S - NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 12 [TAA]

Item Code: 32494

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 8538SDA24V02S

Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC three phase. Combination starter has 60 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.

Specifications

Weight

47.23

Height

12.3

Width

13.87

Length

32.19

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

8078083

AD Application

Starting and Stopping of AC Squirrel Cage Motors, Indoor, General Purpose, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901515395

AD Gtin

00785901515395

AD IDEA Index ID

8078083

AD Includes

External Reset, Separate Control Circuit and 60 A Type H Fuse

AD Invoice Description

STARTER MAG COMBINATION NEMA TYPE S

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height

12.3000

AD Package Height UOM

AD Package Length

32.1900

AD Package Length UOM

AD Package Quantity

AD Package Volume

5596.5000

AD Package Volume UOM

cu-in

AD Package Weight

47.2300

AD Package Weight UOM

AD Package Width

13.8700

AD Package Width UOM

AD Part Number Keywords

8538SDA24V02S ; 8078083 ; 785901515395 ; 78590151539 ; 00785901515395 ; 0785901515395

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

32 To 104

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Thermal Melting Alloy

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

(3) Thermal Melting Alloy

Spec 14 Attribute

Series

Spec 14 Attribute Value

8538

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type S

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 17 Attribute

Wattage

Spec 17 Attribute Value

18.5 kW at 480/600 V AC

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Box Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

10.5 in W x 9.59 in D x 27.75 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 12

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute Value

25 hp at 460/575 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

Square D™
