Square D

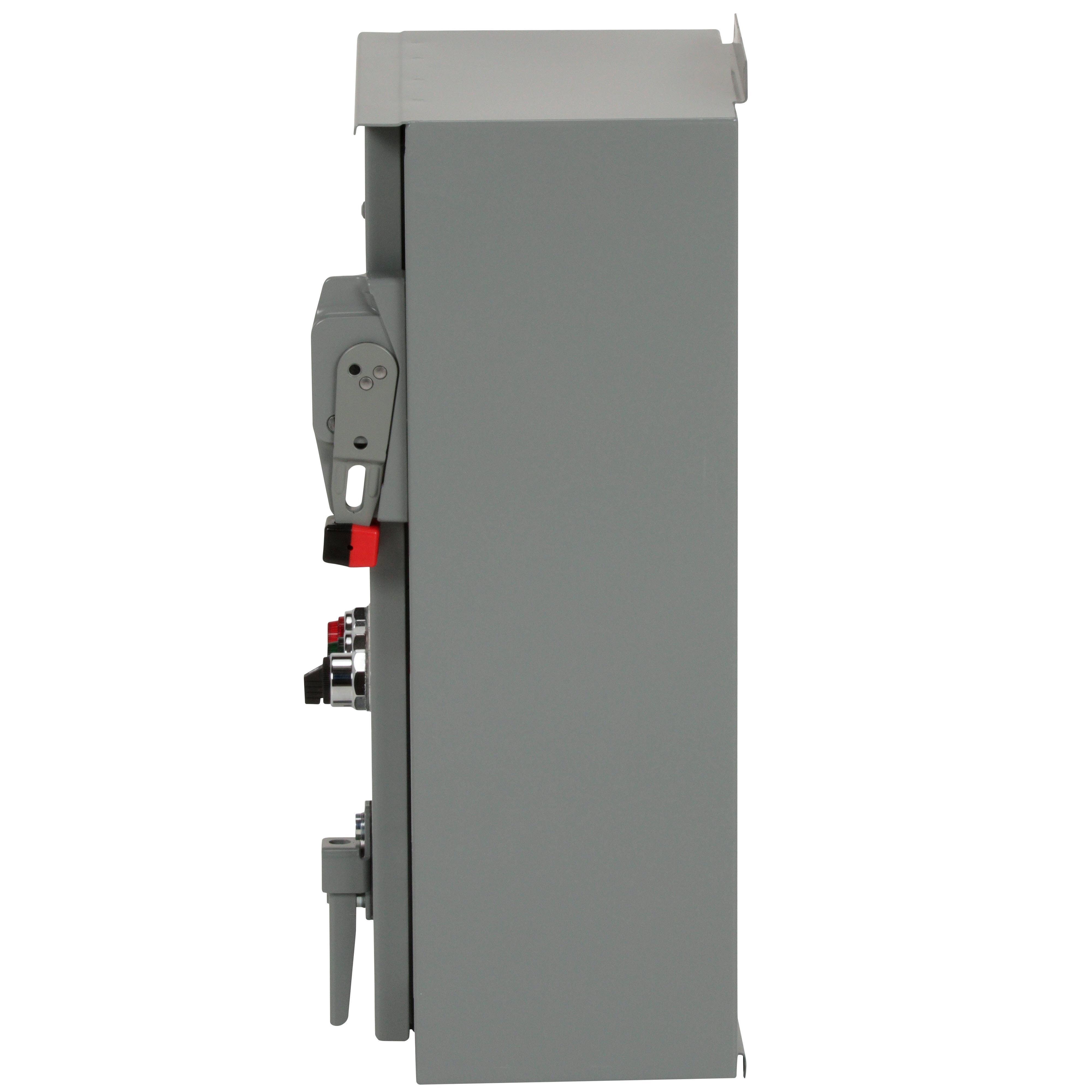

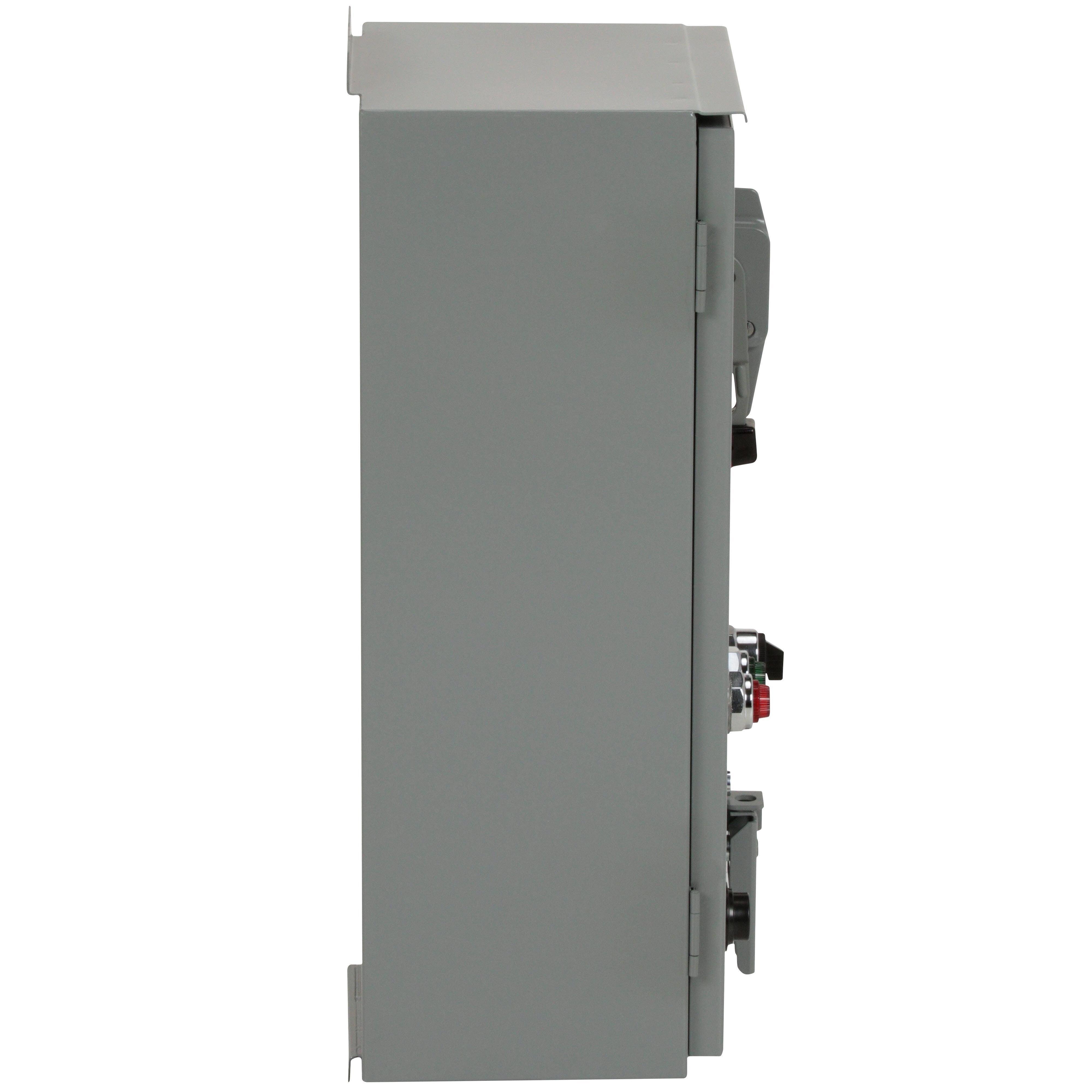

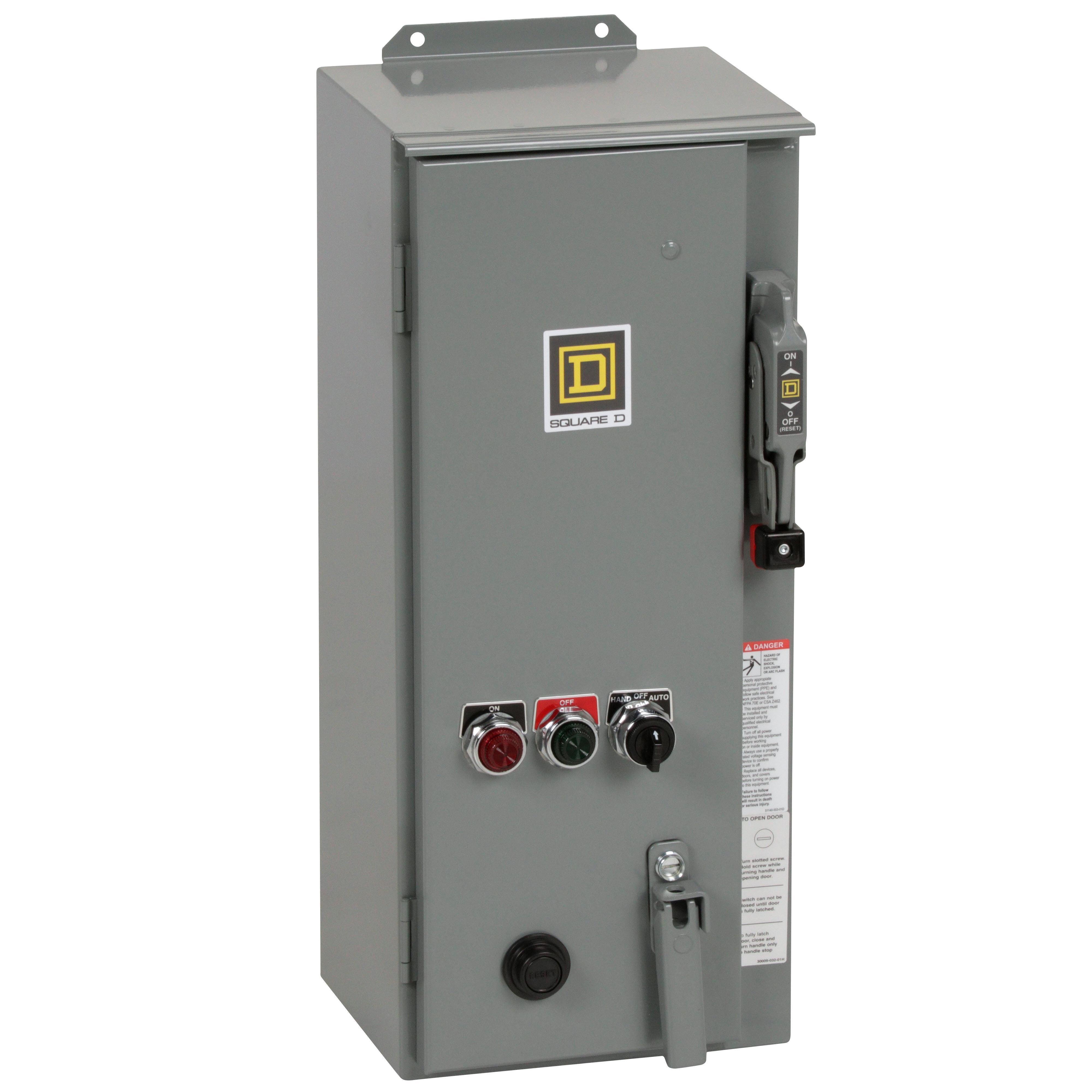

8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]

Category Miscellaneous
Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA] Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]
Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA] Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]
Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA] Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]
Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA] Picture of 8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]
Square D

8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12 [TAA]

Item Code: 1161625
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8539SCASP6

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 5 HP at 208, 7.5 HP at 240 VAC and 10 HP at 460 and 575 VAC poly phase. Combination starter has an HLL36030M71 circuit breaker. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 9.50 inches wide and 8.34 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.

Specifications

Weight

44.2

Width

13.88

Length

32.21

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8539SCASP3/8539SCASP3.spin

AD All Features

Flexible with four overload relays types

AD Alternative Part Number

11752373

AD Application

Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Full Engineering Drawing

AD EAN

0785901955764

AD Gtin

00785901955764

AD IDEA Index ID

11752373

AD Includes

External Reset and Separate Control Circuit

AD Invoice Description

STARTER MAG COMBINATION NON-REVERSING 3

AD Item Features 01

Flexible with four overload relays types

AD Item Features 02

Customizable with hundreds of combinations

AD Item Features 03

Streamline installation, wiring, maintenance and field modifications

AD Item Features 04

Reliable build for long mechanical life and electrical endurance

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

32.2100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

44.2000

AD Package Weight UOM

LB

AD Package Width

13.8800

AD Package Width UOM

IN

AD Part Number Keywords

8539SCASP6 ; 11752373 ; 785901955764 ; 78590195576 ; 00785901955764 ; 0785901955764

AD Video Links

https://www.youtube.com/embed/RTyhiDcl_fA

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Material

Spec 10 Attribute Value

Sheet Steel

Spec 11 Attribute

motor power

Spec 11 Attribute Value

0.25 to 5 hp at 200 VAC/0.25 to 7.5 hp at 230 VAC/0.25 to 10 hp at 460/575 VAC

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Operating Temperature

Spec 13 Attribute Value

32 to 104 deg F Ambient

Spec 14 Attribute

PHASE

Spec 14 Attribute Value

3

Spec 15 Attribute

Reset Type

Spec 15 Attribute Value

Motor Logic™ Solid-State

Spec 16 Attribute

Series

Spec 16 Attribute Value

8539

Spec 17 Attribute

Type

Spec 17 Attribute Value

Type S

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC

Spec 18 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

27

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute Value

110 V AC at 50 Hz/120 V AC at 60 Hz

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Pressure Wire Lug

Spec 5 Attribute

Control Type

Spec 5 Attribute Value

HAND/OFF/AUTO Selector Switch

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

9.62 in W x 9.84 in D x 24.24 in H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

NEMA 12

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Full Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

3 to 9
