Square D

8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA]

Category Miscellaneous

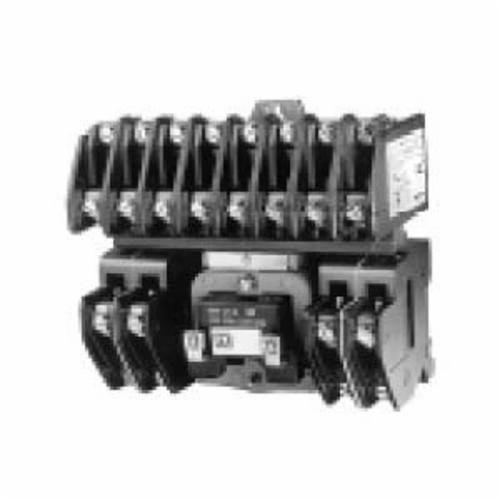

Picture of 8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA] Picture of 8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA]
Picture of 8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA] Picture of 8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA]
Square D

8903LG60V02C - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA]

Item Code: 580703
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LG60V02C

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 6 pole device has 6 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. This lighting contactor is supplied with a HAND/OFF/AUTO selector switch. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

10.38

Height

7.6

Width

8.12

Length

12.88

AD All Features

Rugged design

AD Alternative Part Number

8083858

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901536284

AD Gtin

00785901536284

AD IDEA Index ID

8083858

AD Invoice Description

CONTACTOR LTG 110/120VAC 30A 6NO 6 30VA

AD Item Features 01

Rugged Design

AD Item Features 02

Field Convertible

AD Item Features 03

Silent Operation

AD Keywords

8903LG60V02C Type L Electrically Held Multi-Pole Lighting Contactor, 110/120 V AC V Coil, 30 A, 6NO Contact, 6 Poles ; Schneider Electric ; Square D ; 8903LG60V02C ; 8903LG60V02C ; 785901536284 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.6000

AD Package Height UOM

IN

AD Package Length

12.8800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

810.1600

AD Package Volume UOM

cu-in

AD Package Weight

10.3800

AD Package Weight UOM

LB

AD Package Width

8.1200

AD Package Width UOM

IN

AD Part Number Keywords

8903LG60V02C ; 8083858 ; 785901536284 ; 78590153628 ; 00785901536284 ; 0785901536284

AD Video Links

https://www.youtube.com/embed/cPMJNL-eQdk

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

30

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

6

Spec 11 Attribute

Series

Spec 11 Attribute Value

8903L

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type L Electrically Held Multi-Pole

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

6NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

600 V AC, 30 A

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Maximum Load Current

Spec 8 Attribute UOM

A

Spec 8 Attribute Value

30

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
