Square D

8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]

Category Miscellaneous

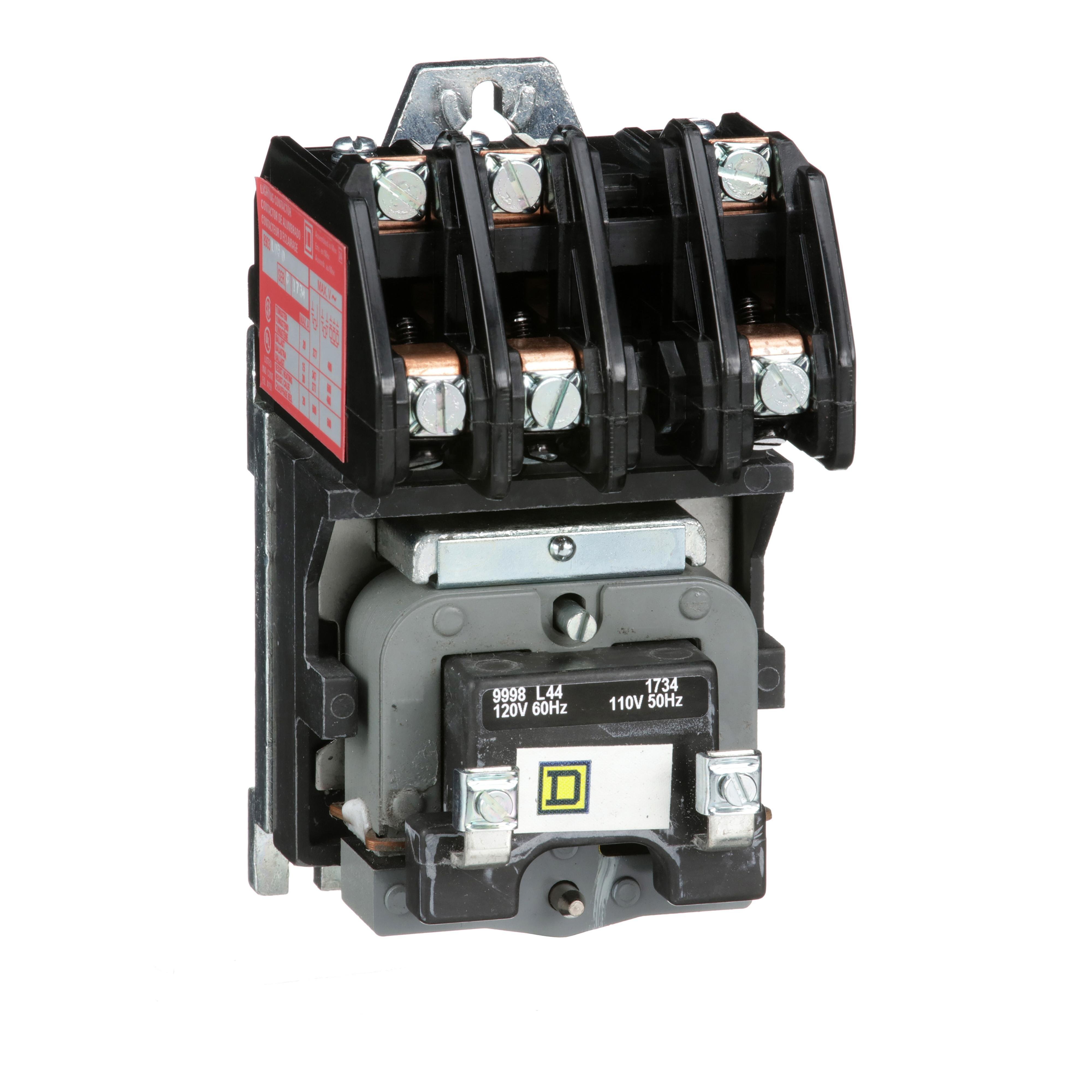

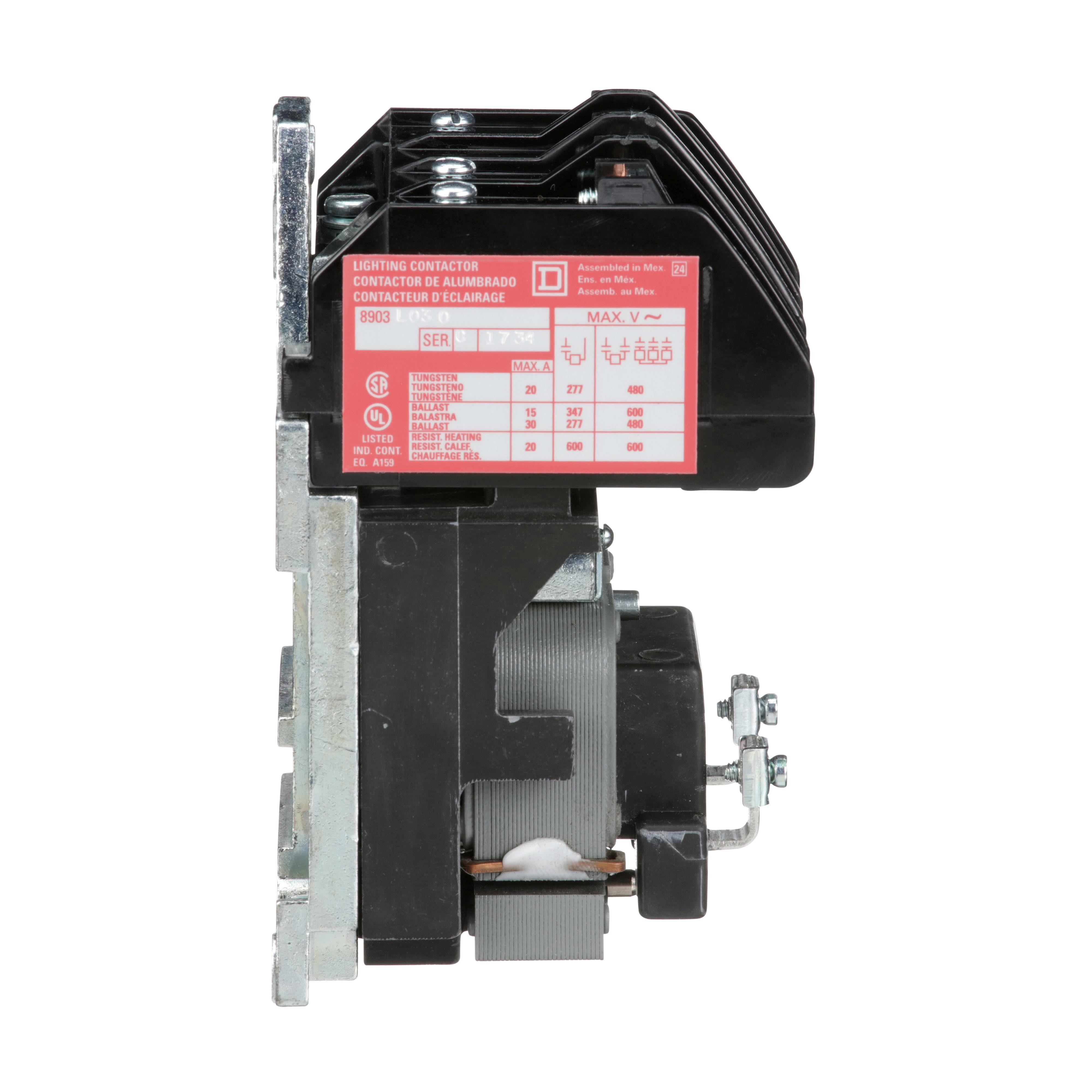

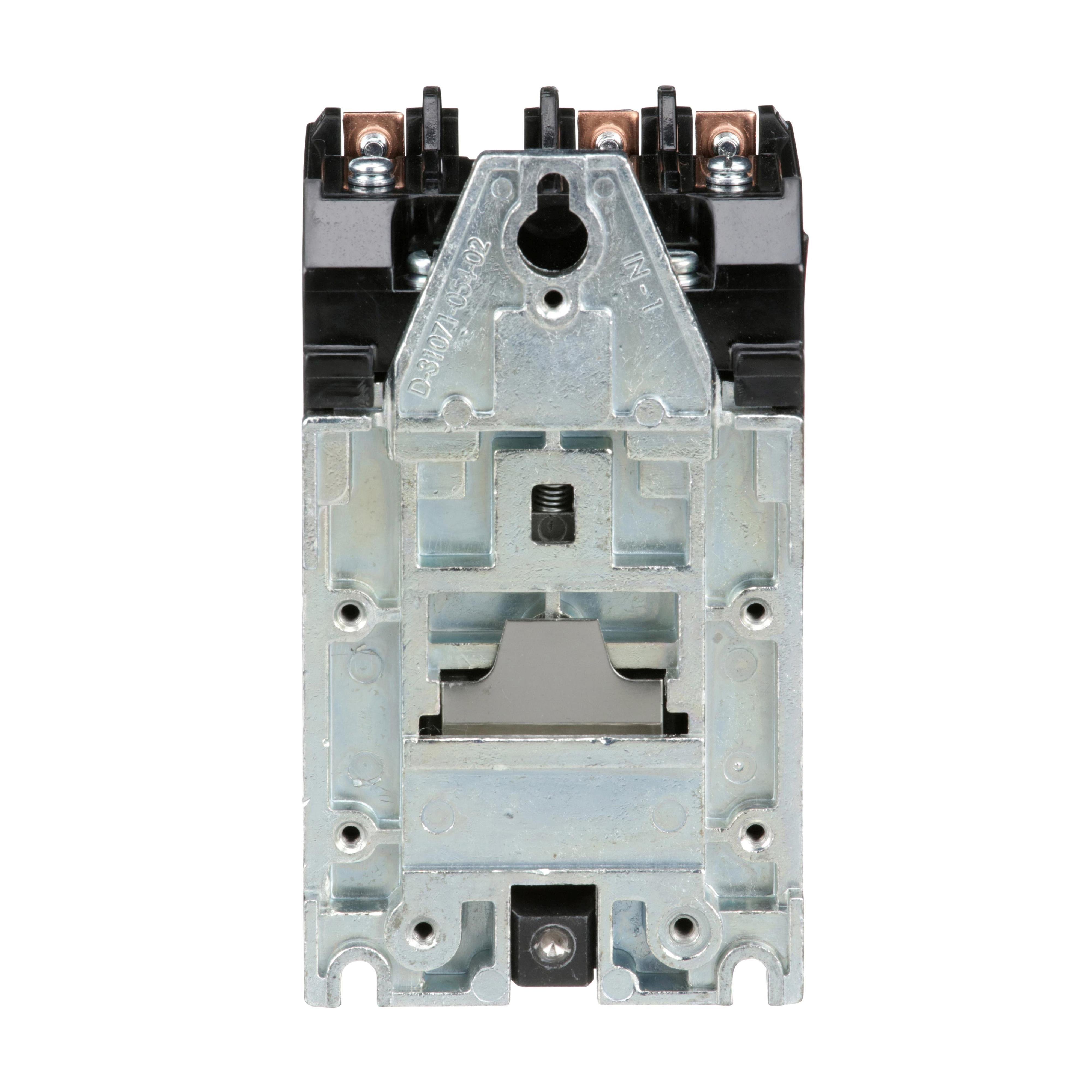

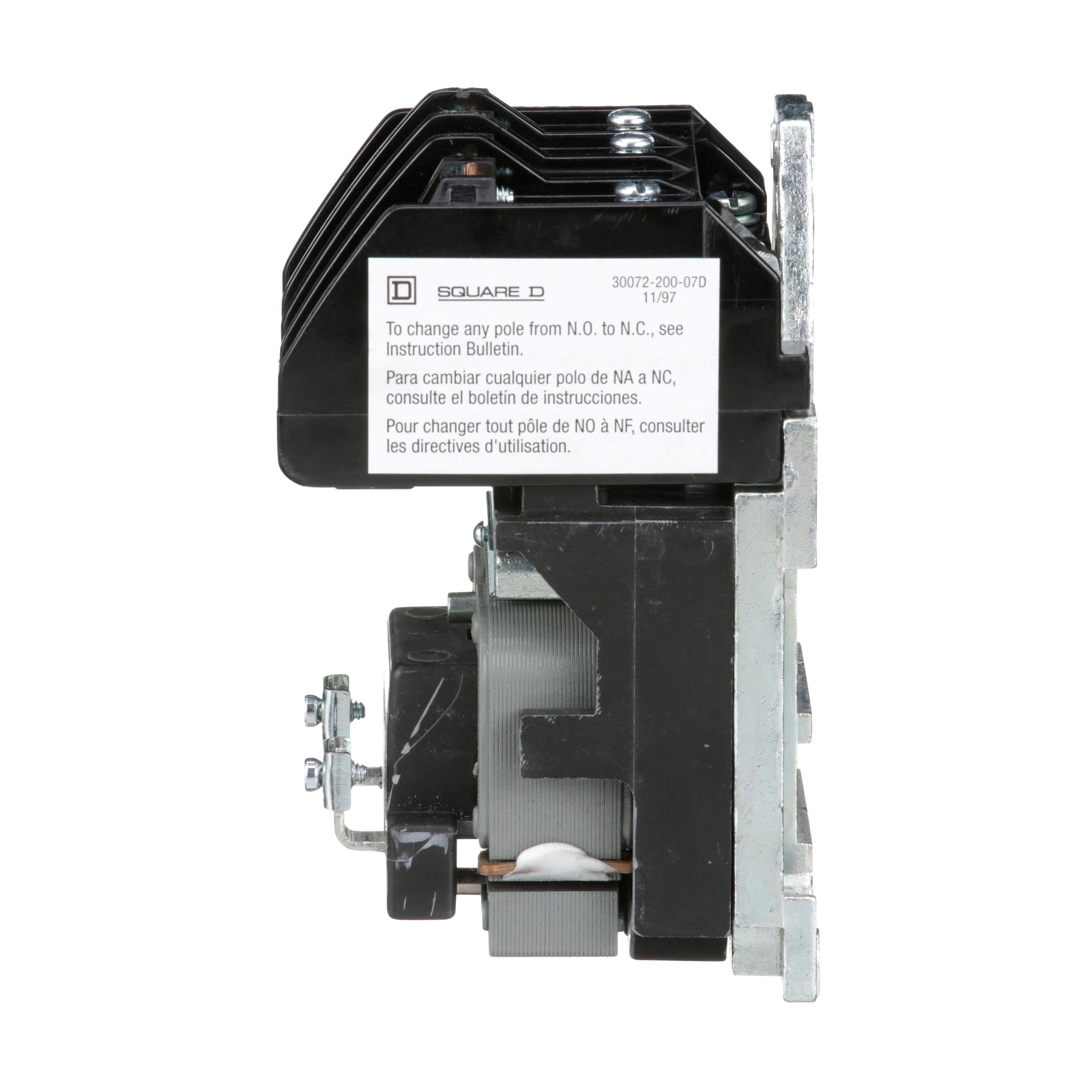

Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]
Square D

8903LO30V02 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, open style [TAA]

Item Code: 558516
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LO30V02

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

2.84

Height

4.5

Width

6.04

Length

6.75

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903LO30V02/8903LO30V02.spin

AD All Features

Rugged design

AD Alternative Part Number

8059027

AD Application

For electrically held applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901851707

AD Gtin

00785901851707

AD IDEA Index ID

8059027

AD Invoice Description

CONTACTOR LTG 110/120VAC 30A 3NO 3 OPEN

AD Item Features 01

Rugged Design

AD Item Features 02

Field Convertible

AD Item Features 03

Silent Operation

AD Keywords

8903LO30V02 8903L Type L Electrically Held Multi-Pole Contactor, 110/120 V AC V Coil, 30 A, 3NO Contact, 3 Poles ; Square D ; 8903LO30V02 ; 8059027 ; 785901851707 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

6.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.8400

AD Package Weight UOM

LB

AD Package Width

6.0400

AD Package Width UOM

IN

AD Part Number Keywords

8903LO30V02 ; 8059027 ; 785901851707 ; 78590185170 ; 00785901851707 ; 0785901851707

AD Video Links

https://www.youtube.com/watch?v=7miLIVFYBgA

Brand

Square D

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Series

Spec 10 Attribute Value

8903L

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type L Electrically Held Multi-Pole

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

3NO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.88 in W x 3.12 in D x 5 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Maximum Load Current

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

30

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
