Square D

8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Category Miscellaneous

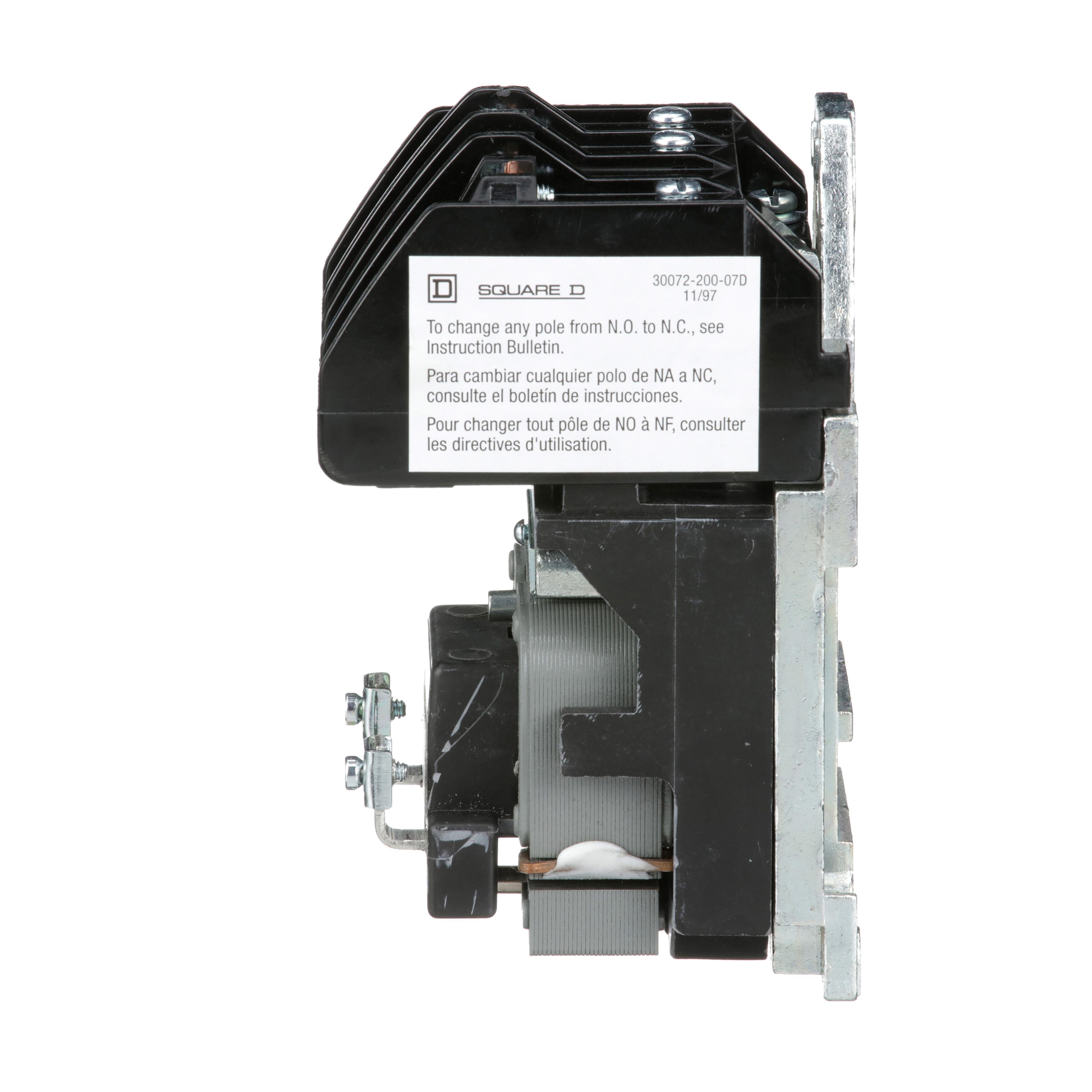

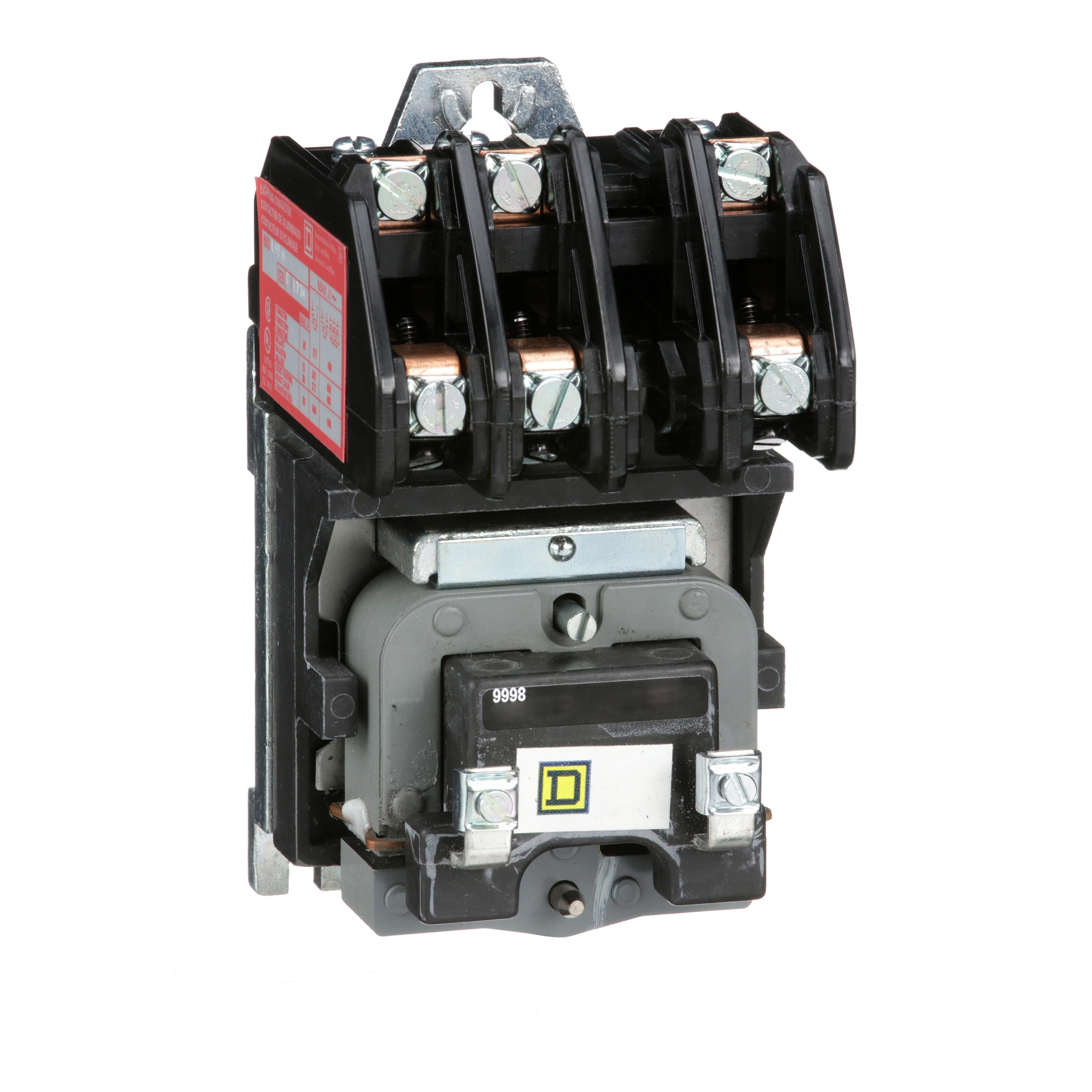

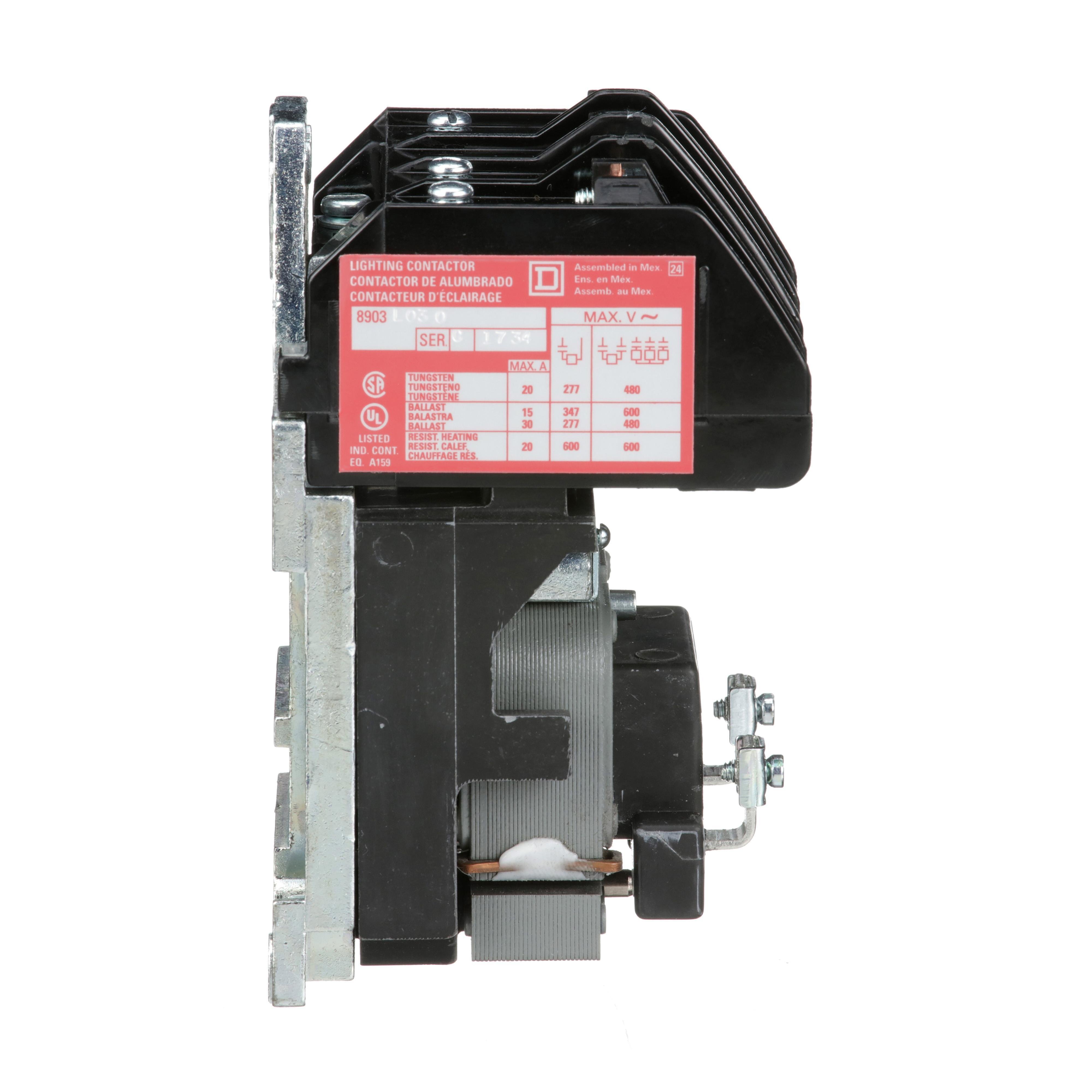

Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Square D

8903LO30V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Item Code: 560568
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LO30V04

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 3 pole device has 3 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

2.79

Height

4.4

Width

6.14

Length

6.74

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903LO30V03/8903LO30V03.spin

AD All Features

Rugged design

AD Alternative Part Number

8055136

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Instruction/Installation Manual

AD Document Caption 4

Owners/User Manual

AD EAN

0785901459231

AD Gtin

00785901459231

AD IDEA Index ID

8055136

AD Invoice Description

CONTACTOR LTG 277VAC 30A 3NO 3 60HZ OPEN

AD Item Features 01

Rugged Design

AD Item Features 02

Field Convertible

AD Item Features 03

Silent Operation

AD Keywords

8903LO30V04 Type L Electrically Held Multi-Pole Lighting Contactor, 277 V AC V Coil, 30 A, 3NO Contact, 3 Poles ; Schneider Electric ; Square D ; 8903LO30V04 ; 8903LO30V04 ; 785901459231 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.4000

AD Package Height UOM

IN

AD Package Length

6.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

185.5000

AD Package Volume UOM

cu-in

AD Package Weight

2.7900

AD Package Weight UOM

LB

AD Package Width

6.1400

AD Package Width UOM

IN

AD Part Number Keywords

8903LO30V04 ; 8055136 ; 785901459231 ; 78590145923 ; 00785901459231 ; 0785901459231

AD Video Links

https://www.youtube.com/embed/cPMJNL-eQdk

Brand

Square D

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

277

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

8903L

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type L Electrically Held Multi-Pole

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

3NO

Spec 4 Attribute

Contact Rating

Spec 4 Attribute UOM

V AC

Spec 4 Attribute Value

600

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.88 in W x 3.12 in D x 5 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

60

Spec 8 Attribute

Maximum Load Current

Spec 8 Attribute UOM

A

Spec 8 Attribute Value

30

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
