Square D

8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Category Miscellaneous

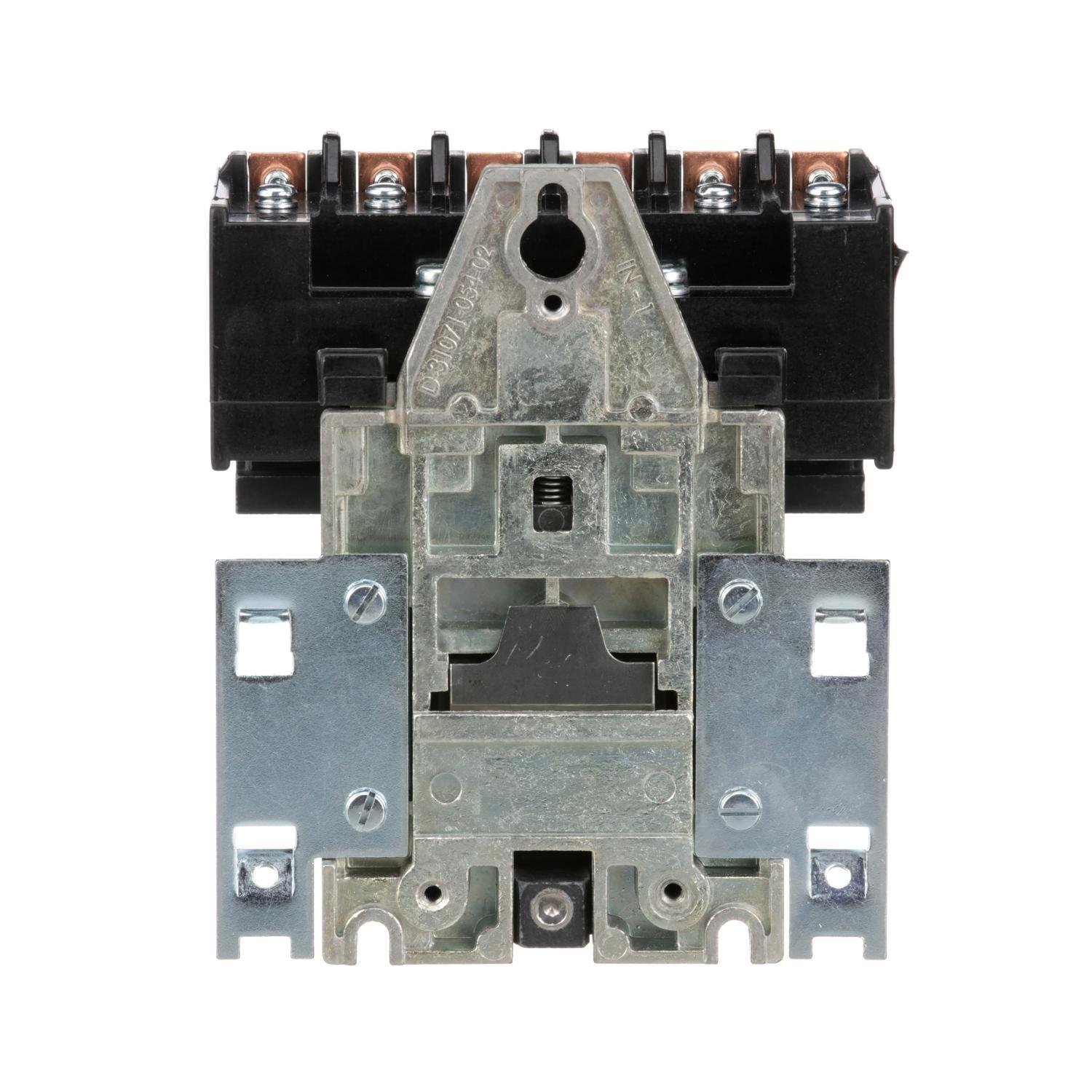

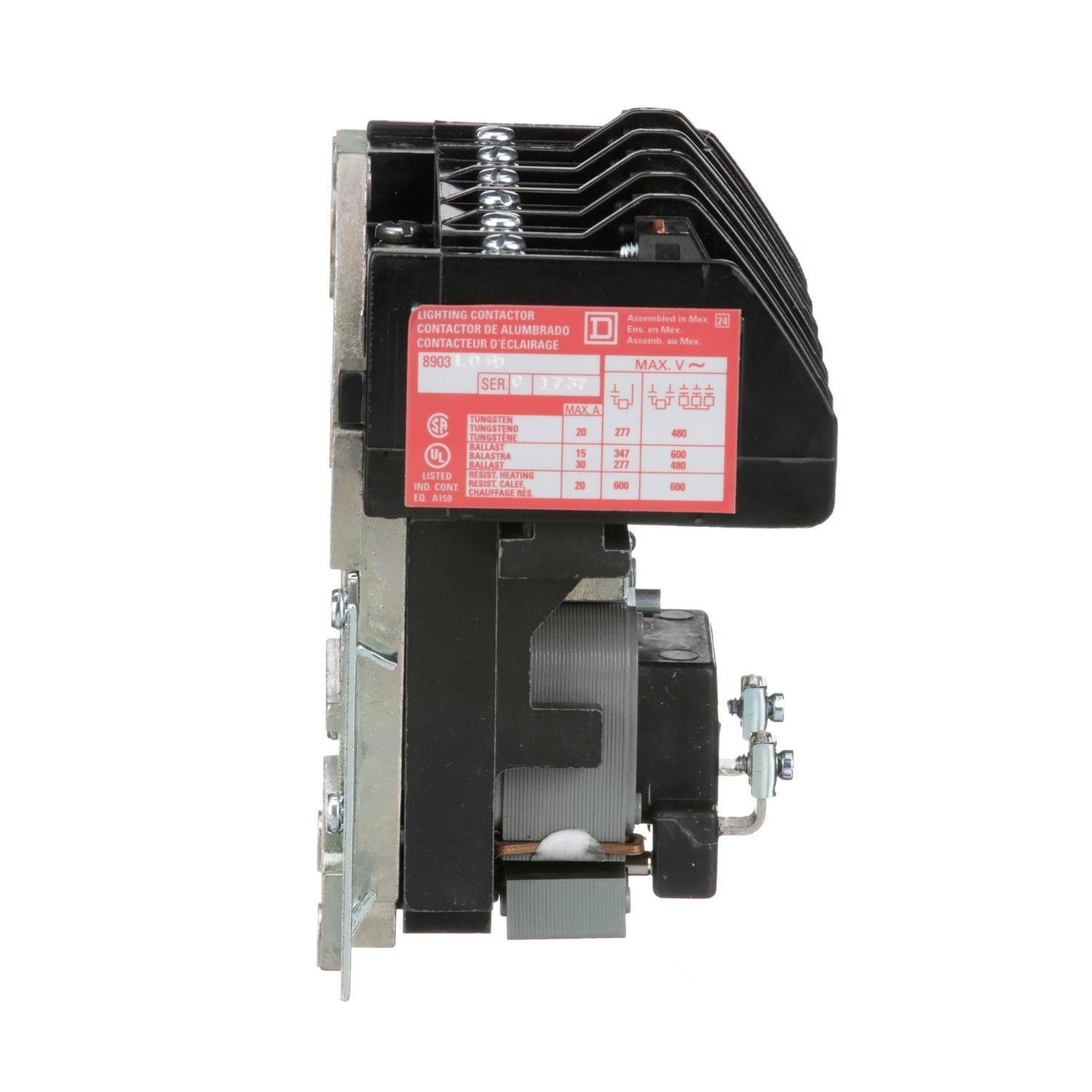

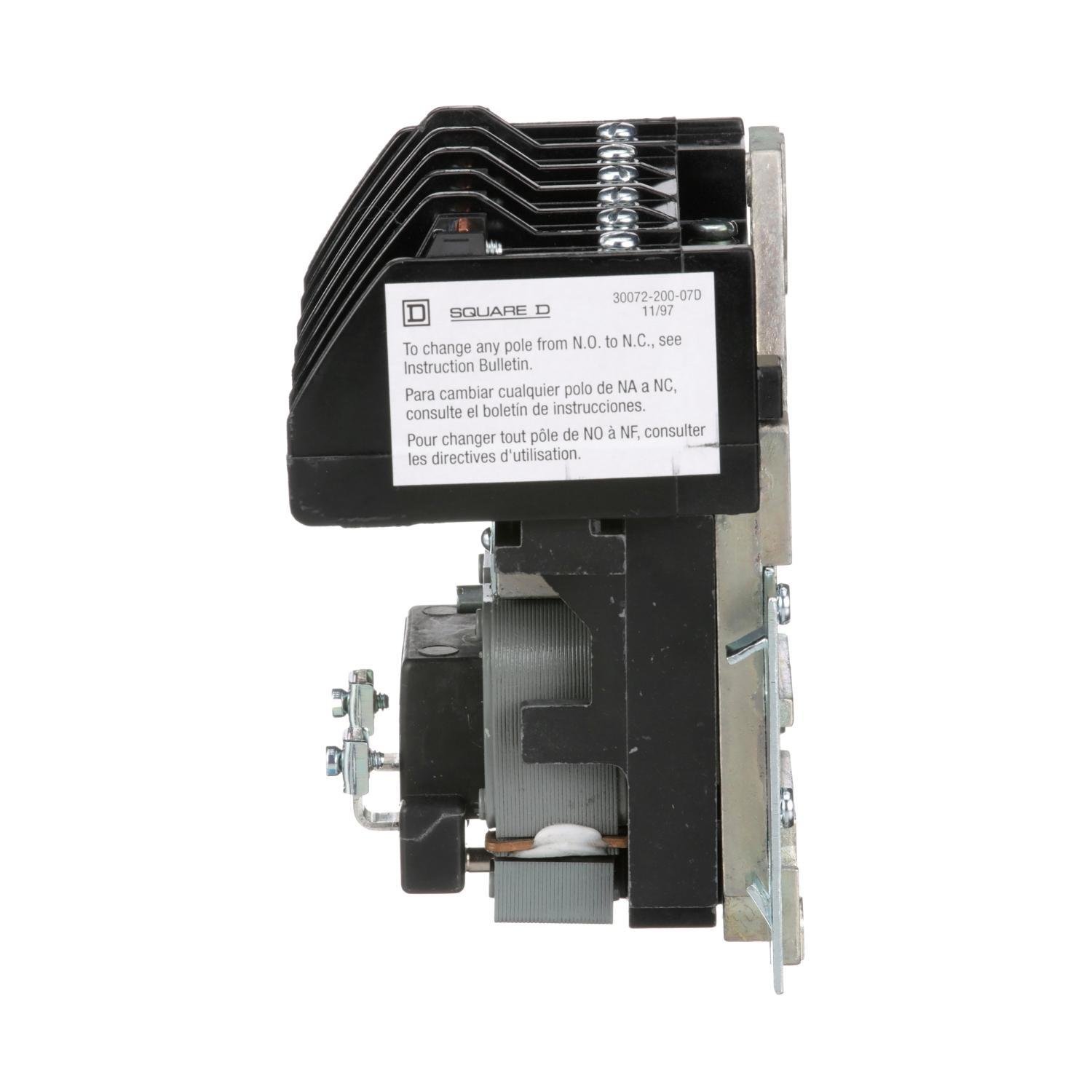

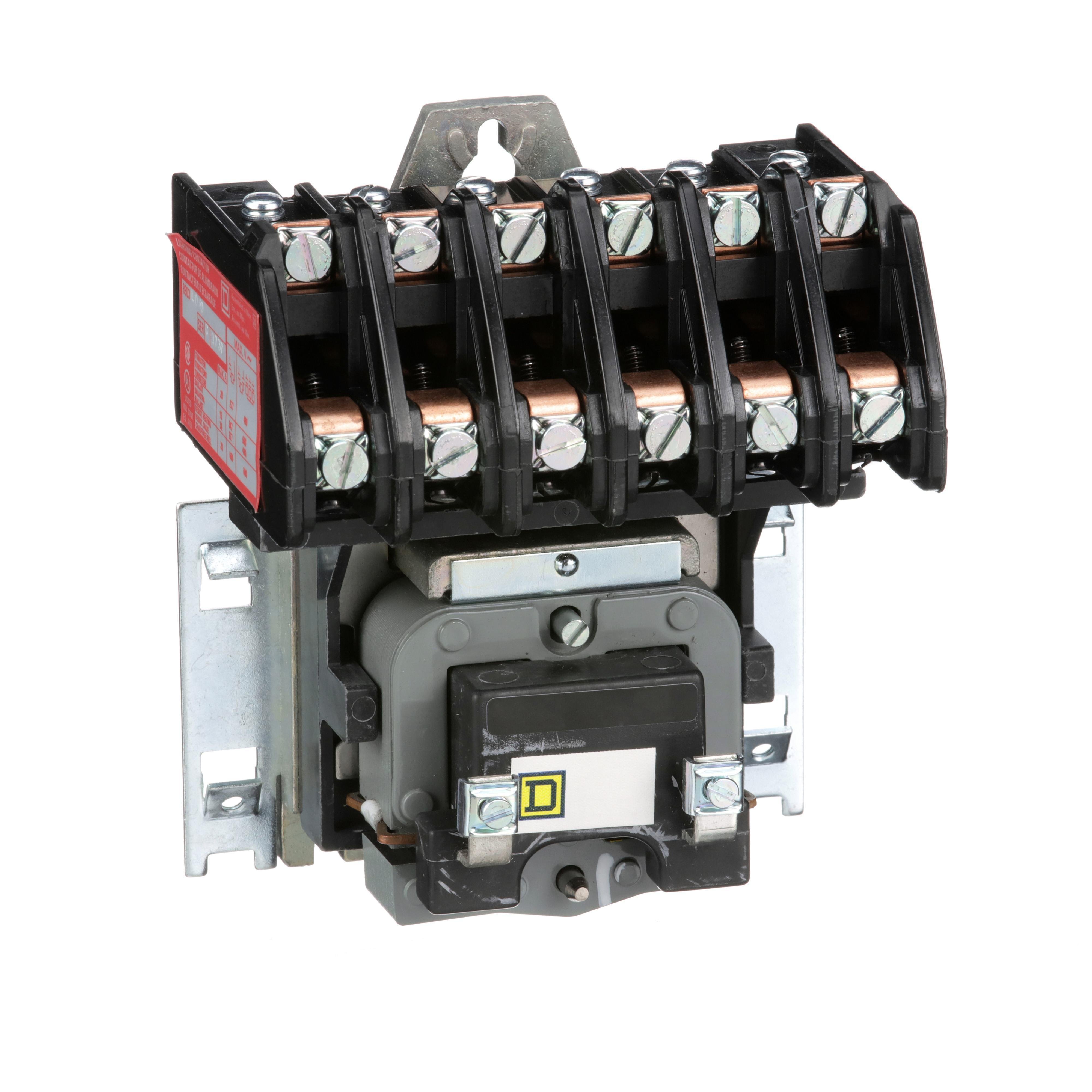

Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA] Picture of 8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Square D

8903LO60V04 - Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Item Code: 548530
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LO60V04

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 4.25 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

3.26

Width

5.94

Length

6.74

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903LO60V04/8903LO60V04.spin

AD All Features

Rugged design

AD Alternative Part Number

8053763

AD Application

Lighting Management and Electrical Heating Control Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Instruction/Installation Manual

AD Document Caption 4

Owners/User Manual

AD EAN

0785901455899

AD Gtin

00785901455899

AD IDEA Index ID

8053763

AD Invoice Description

CONTACTOR LTG 277VAC 30A 6NO 6 30VA OPEN

AD Item Features 01

Rugged Design

AD Item Features 02

Field Convertible

AD Item Features 03

Silent Operation

AD Keywords

8903LO60V04 Type L Electrically Held Multi-Pole Lighting Contactor, 277 V AC V Coil, 30 A, 6NO Contact, 6 Poles ; Schneider Electric ; Square D ; 8903LO60V04 ; 8903LO60V04 ; 785901455899 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.2600

AD Package Weight UOM

LB

AD Package Width

5.9400

AD Package Width UOM

IN

AD Part Number Keywords

8903LO60V04 ; 8053763 ; 785901455899 ; 78590145589 ; 00785901455899 ; 0785901455899

AD Video Links

https://www.youtube.com/embed/cPMJNL-eQdk

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

30

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

6

Spec 11 Attribute

Operating Cycles

Spec 11 Attribute UOM

CPM

Spec 11 Attribute Value

4000

Spec 12 Attribute

Operating Temperature

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

0 To 40

Spec 13 Attribute

Series

Spec 13 Attribute Value

8903

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type L Electrically Held Multi-Pole

Spec 15 Attribute

Wattage

Spec 15 Attribute UOM

KW

Spec 15 Attribute Value

6.9/7.9/13.1/15.9/19.9

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

277

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

6NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

A

Spec 5 Attribute Value

20/30

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

108 mm x 127 mm x 79 mm

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Open

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

30
