Square D

8903LXG40V02 - Contactor, Type L, multipole lighting, mechanically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

Category Lighting Contactors

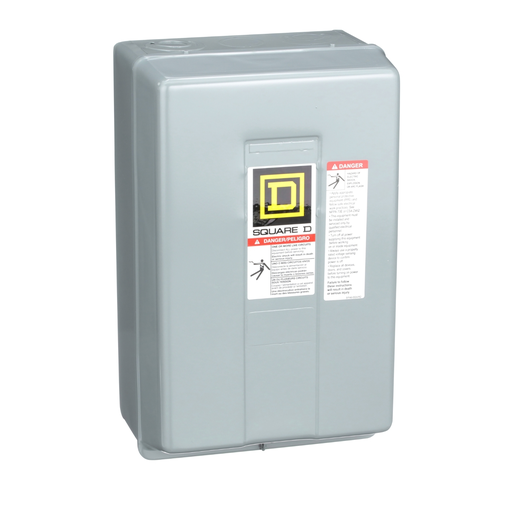

Picture of 8903LXG40V02 - Contactor, Type L, multipole lighting, mechanically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1
Square D

8903LXG40V02 - Contactor, Type L, multipole lighting, mechanically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

Item Code: 17259
Category Lighting Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LXG40V02

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coils and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

10.82lb

Height

9.9mm

Width

8.23mm

Length

13.57mm

Depth

153mm

AD All Features

Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control

AD Application

Lighting Management, Electrical Heating Control Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

CONTACTOR LTG TYPE LX MECHANICALLY HELD

AD Item Features 01

Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control

AD Item Features 02

Field-convertible contacts with N.O. and N.C. indicators

AD Item Features 03

Thousands of possible contact configurations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.9000

AD Package Height UOM

IN

AD Package Length

13.5700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1321.4500

AD Package Volume UOM

cu-in

AD Package Weight

10.8200

AD Package Weight UOM

LB

AD Package Width

8.2300

AD Package Width UOM

IN

Brand

Square D

Category

Lighting Contactors

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

30

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Surface

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

4

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

CPM

Spec 13 Attribute Value

1000

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

0 To 40

Spec 15 Attribute

Series

Spec 15 Attribute Value

8903

Spec 16 Attribute

Type

Spec 16 Attribute Value

Type LX Mechanically Held

Spec 17 Attribute

Wattage

Spec 17 Attribute UOM

KW

Spec 17 Attribute Value

6.9/7.9/13.1/15.9/19.9

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

4NO

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

30 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

7.81 in W x 6.03 in D x 12.69 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Painted

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Material

Spec 9 Attribute Value

Sheet Steel
