Square D

8903LXO60V04 - Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Category Miscellaneous

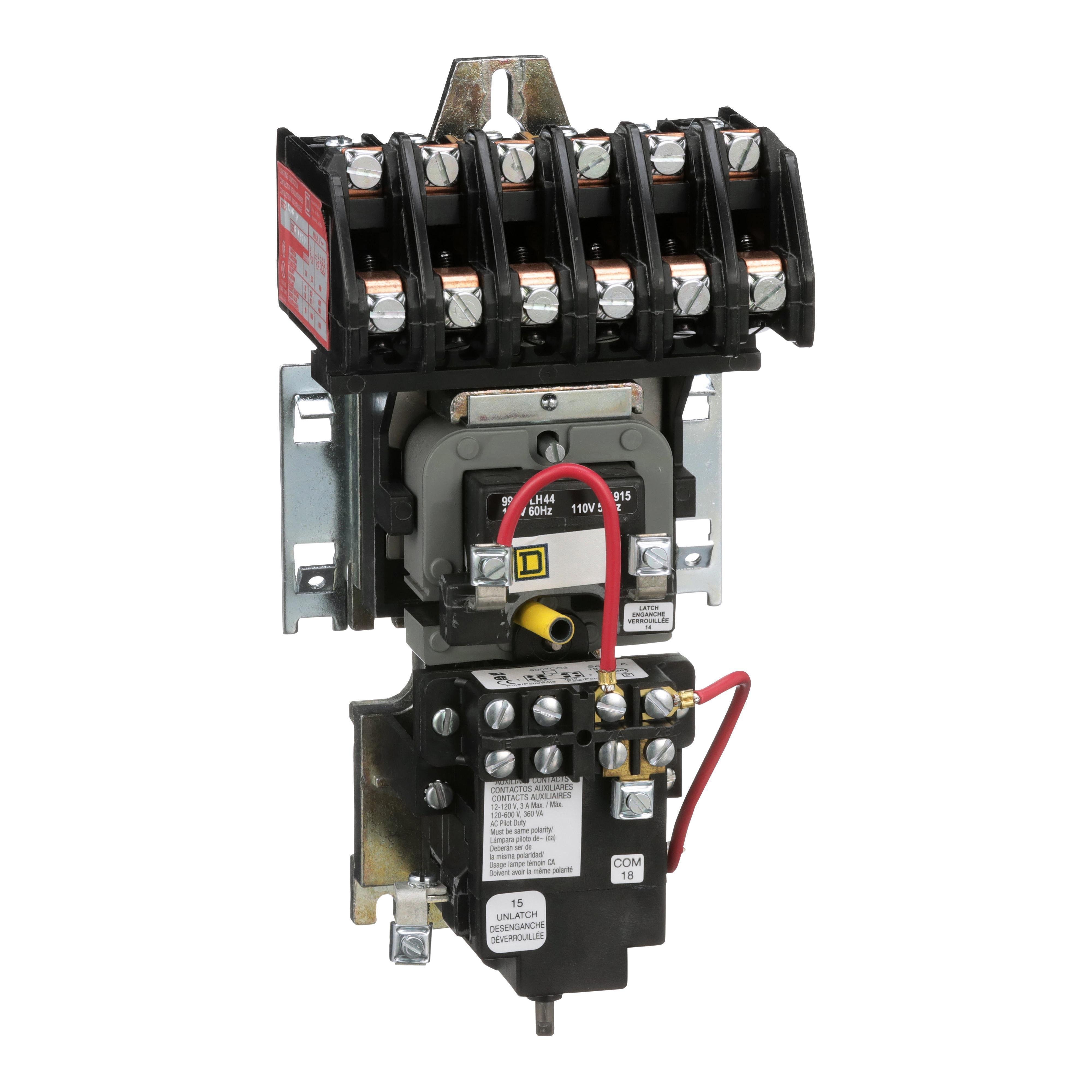

Picture of 8903LXO60V04 - Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]
Square D

8903LXO60V04 - Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, open style [TAA]

Item Code: 522383
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903LXO60V04

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 277 VAC 60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 4.25 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

5.04

Height

4.5

Width

7.13

Length

10.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903LXO60V01/8903LXO60V01.spin

AD All Features

Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control

AD Alternative Part Number

7997967

AD Application

Lighting Management, Electrical Heating Control

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901057376

AD Gtin

00785901057376

AD IDEA Index ID

7997967

AD Invoice Description

CONTACTOR LTG 277 VAC AT 60 HZ 6NO 6 30A

AD Item Features 01

Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control

AD Item Features 02

Field-convertible contacts with N.O. and N.C. indicators

AD Item Features 03

Thousands of possible contact configurations

AD Keywords

8903LXO60V04 Mechanically Held Type LX Lighting Contactor, 277 V AC at 60 Hz V Coil, 6NO Contact, 6 Poles ; Schneider Electric ; Square D ; 8903LXO60V04 ; 8903LXO60V04 ; 785901057376 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

10.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

340.2000

AD Package Volume UOM

cu-in

AD Package Weight

5.0400

AD Package Weight UOM

LB

AD Package Width

7.1300

AD Package Width UOM

IN

AD Part Number Keywords

8903LXO60V04 ; 7997967 ; 785901057376 ; 78590105737 ; 00785901057376 ; 0785901057376

AD Video Links

https://www.youtube.com/embed/cPMJNL-eQdk

Brand

Square D

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute Value

277 V AC at 60 Hz

Spec 10 Attribute

Series

Spec 10 Attribute Value

8903

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw clamp

Spec 12 Attribute

Type

Spec 12 Attribute Value

Mechanically Held Type LX

Spec 13 Attribute

Wattage

Spec 13 Attribute Value

6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V

Spec 2 Attribute

Contact Configuration

Spec 2 Attribute Value

6NO

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

30

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.25 in W x 3.27 in D x 8.82 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

6

Spec 8 Attribute

Operating Cycles

Spec 8 Attribute UOM

CPM

Spec 8 Attribute Value

1000

Spec 9 Attribute

Operating Temperature

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

0 To 40
