Square D

8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Category Lighting Contactors

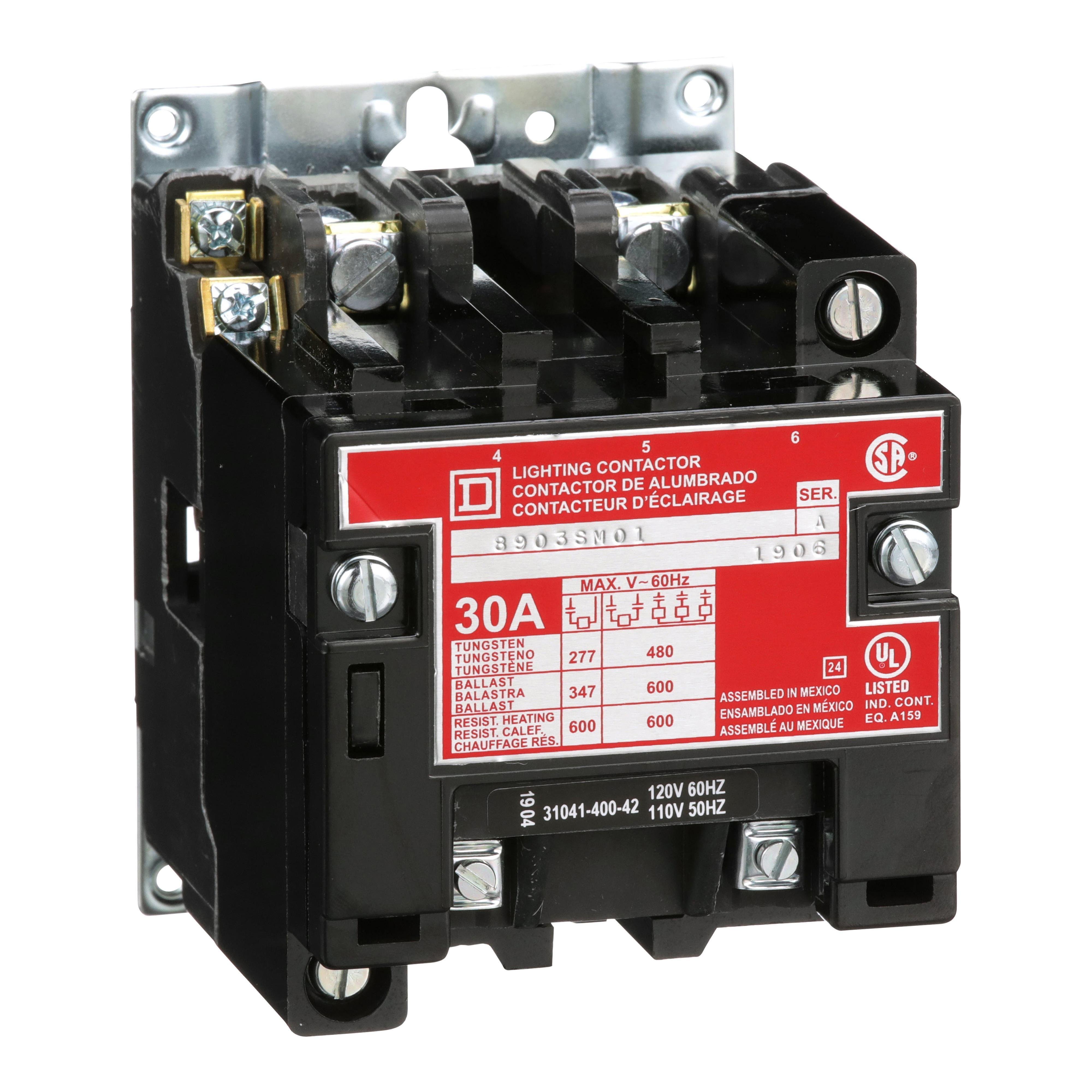

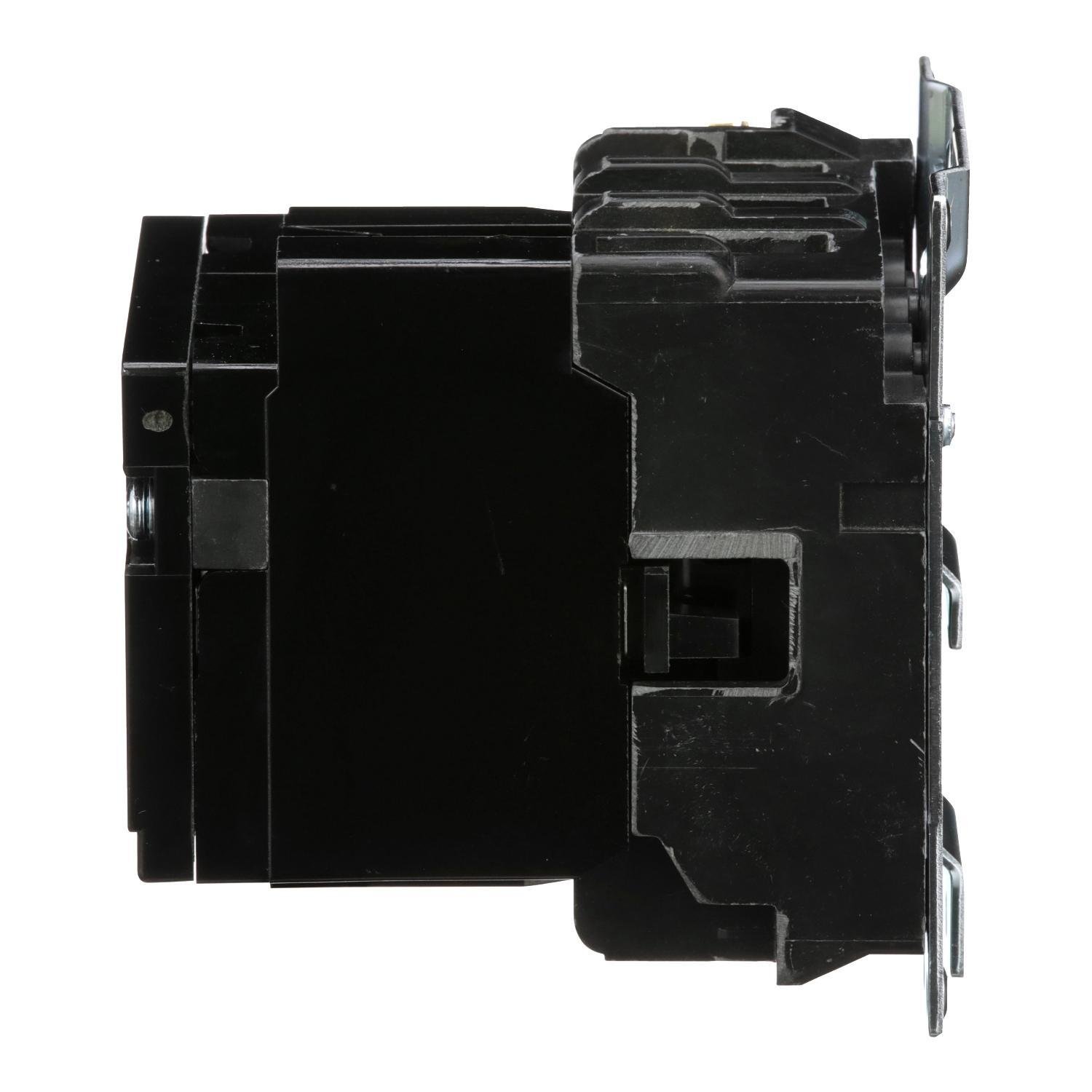

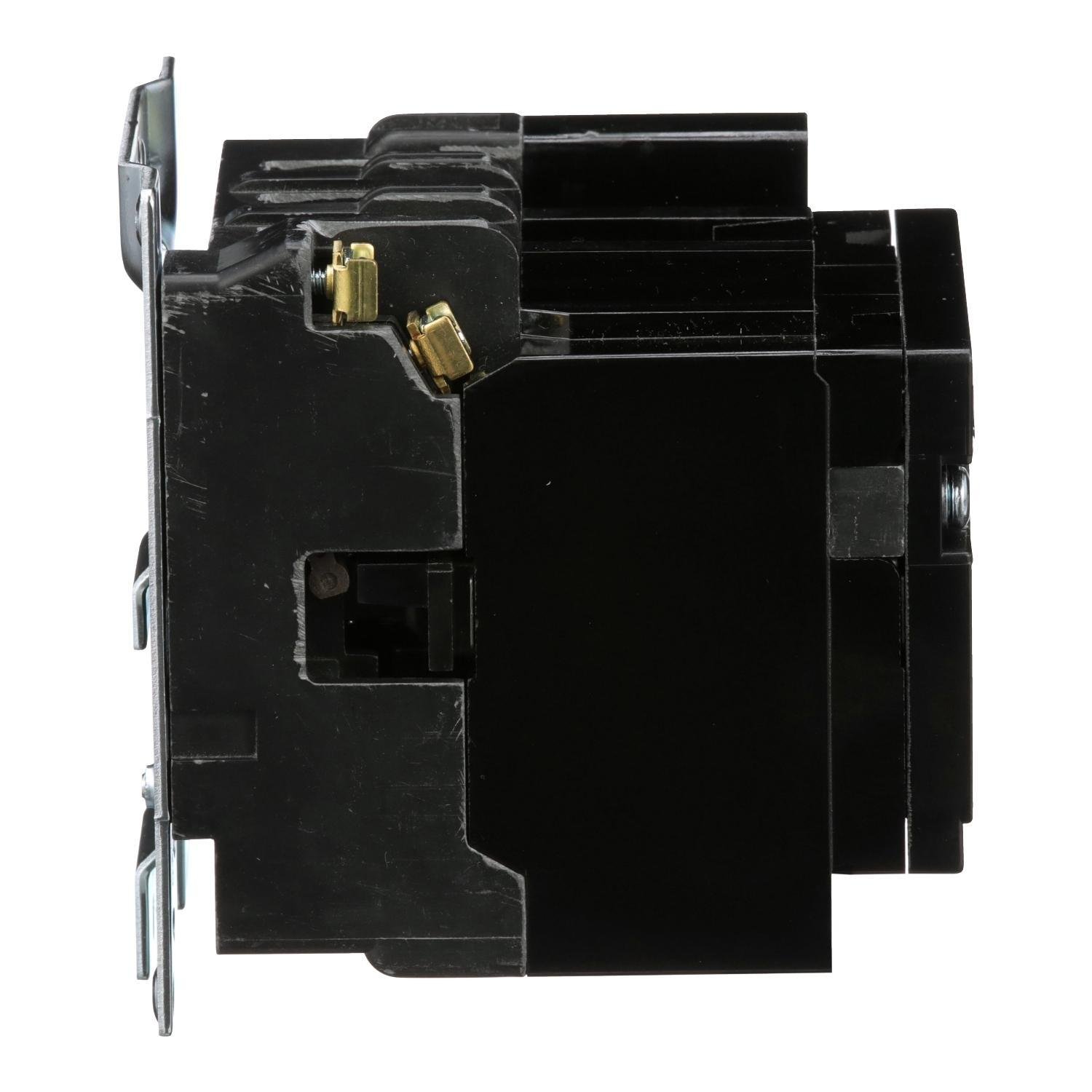

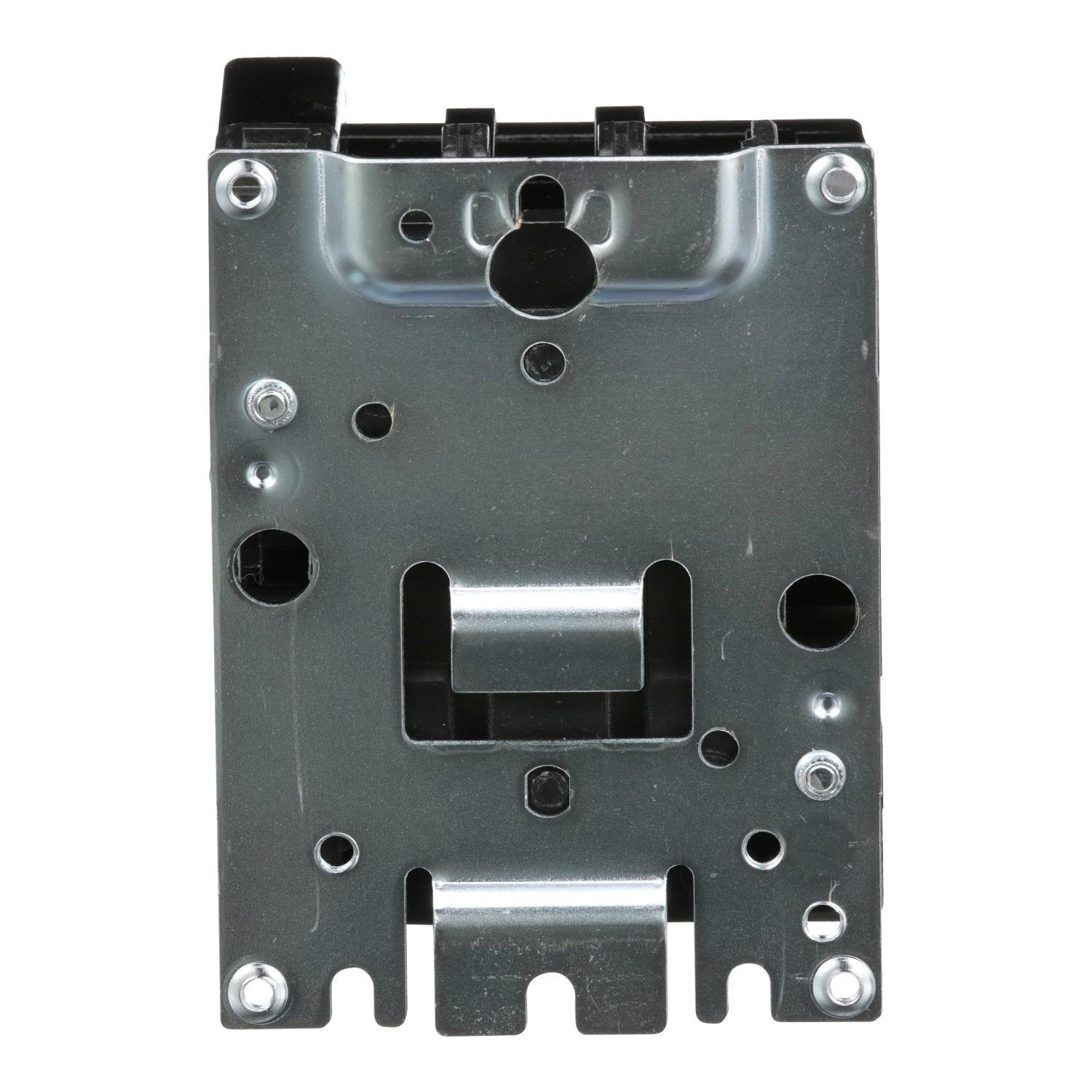

Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Square D

8903SMO1V02 - Contactor, Type S, multipole lighting, electrically held, 30A, 2 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Item Code: 643243
Category Lighting Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903SMO1V02

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 2 pole device has 2 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 3.50 inches tall, 3.22 inches wide and 4.22 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

3.01

Width

5.85

Length

7.92

AD All Features

Customizable with hundreds of combinations of contactors, starters and accessories

AD Application

For one stop shopping, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, the contactors can also be used for resistance heating loads applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONTACTOR LTG 110/120VAC 30A 2 50/60HZ

AD Item Features 01

Customizable with hundreds of combinations of contactors, starters and accessories

AD Item Features 02

Robust design and reliable build for long mechanical life and electrical endurance

AD Item Features 03

Serviceable by replacing contacts and coils rather than replacing the entire product

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.0100

AD Package Weight UOM

LB

AD Package Width

5.8500

AD Package Width UOM

IN

Brand

Square D

Category

Lighting Contactors

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

10000

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Series

Spec 12 Attribute Value

8903

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type S Electrically Held Multi-Pole

Spec 14 Attribute

Wattage

Spec 14 Attribute UOM

KW

Spec 14 Attribute Value

10.3/11.9/19.7/23.9/30

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug/Screw Clamp

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

30

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

107 mm x 82 mm x 89 mm

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Maximum Load Current

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

30

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
