Square D

8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Category Miscellaneous

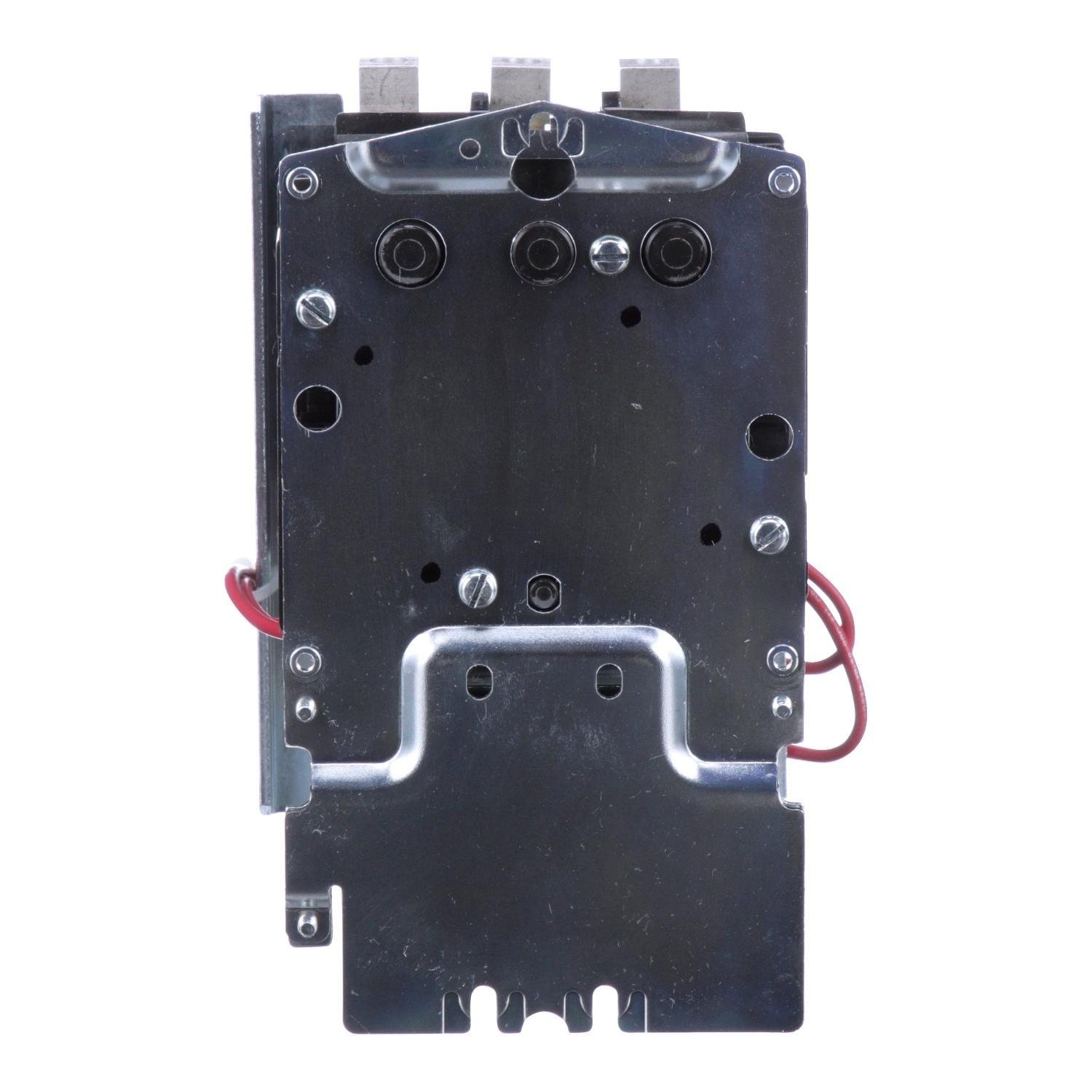

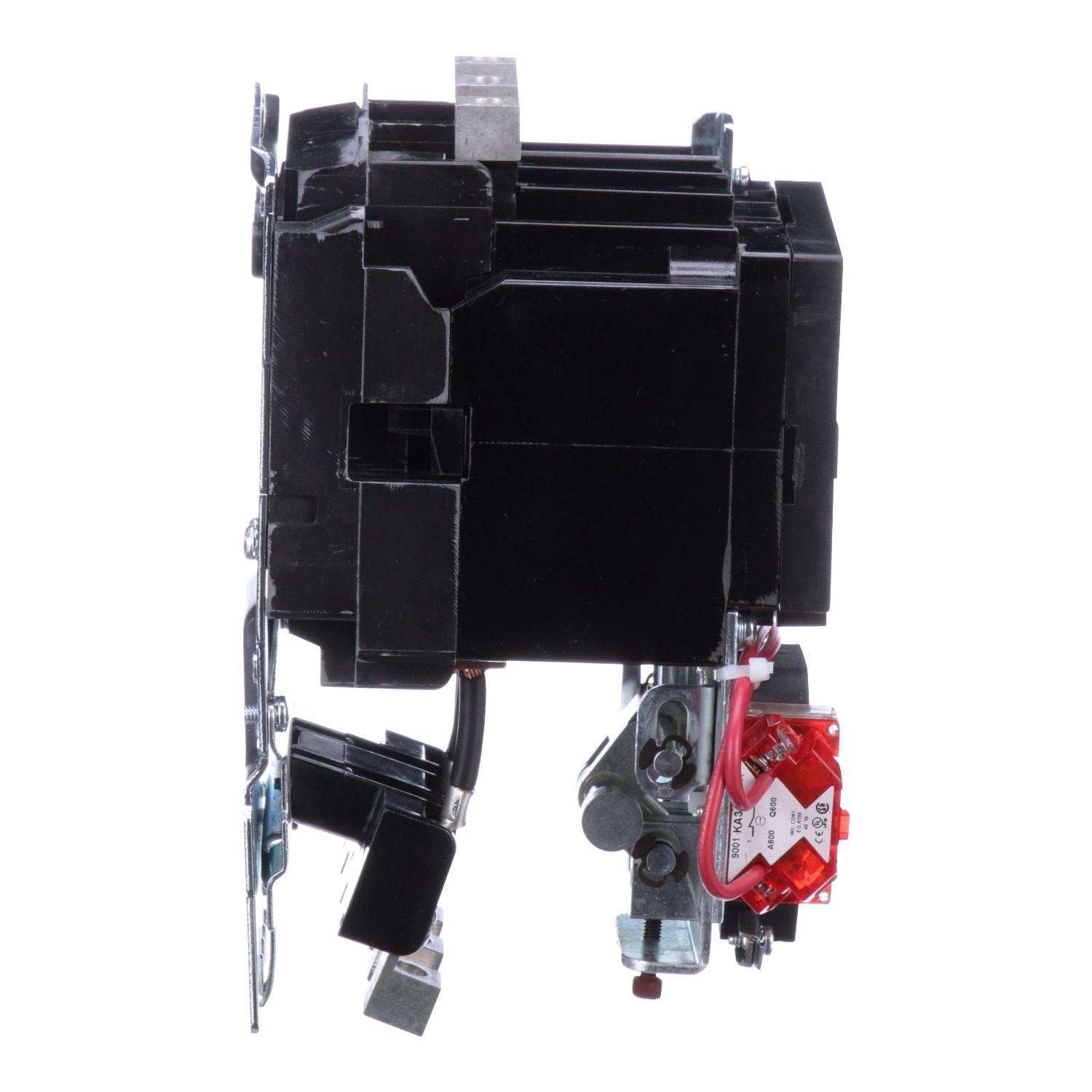

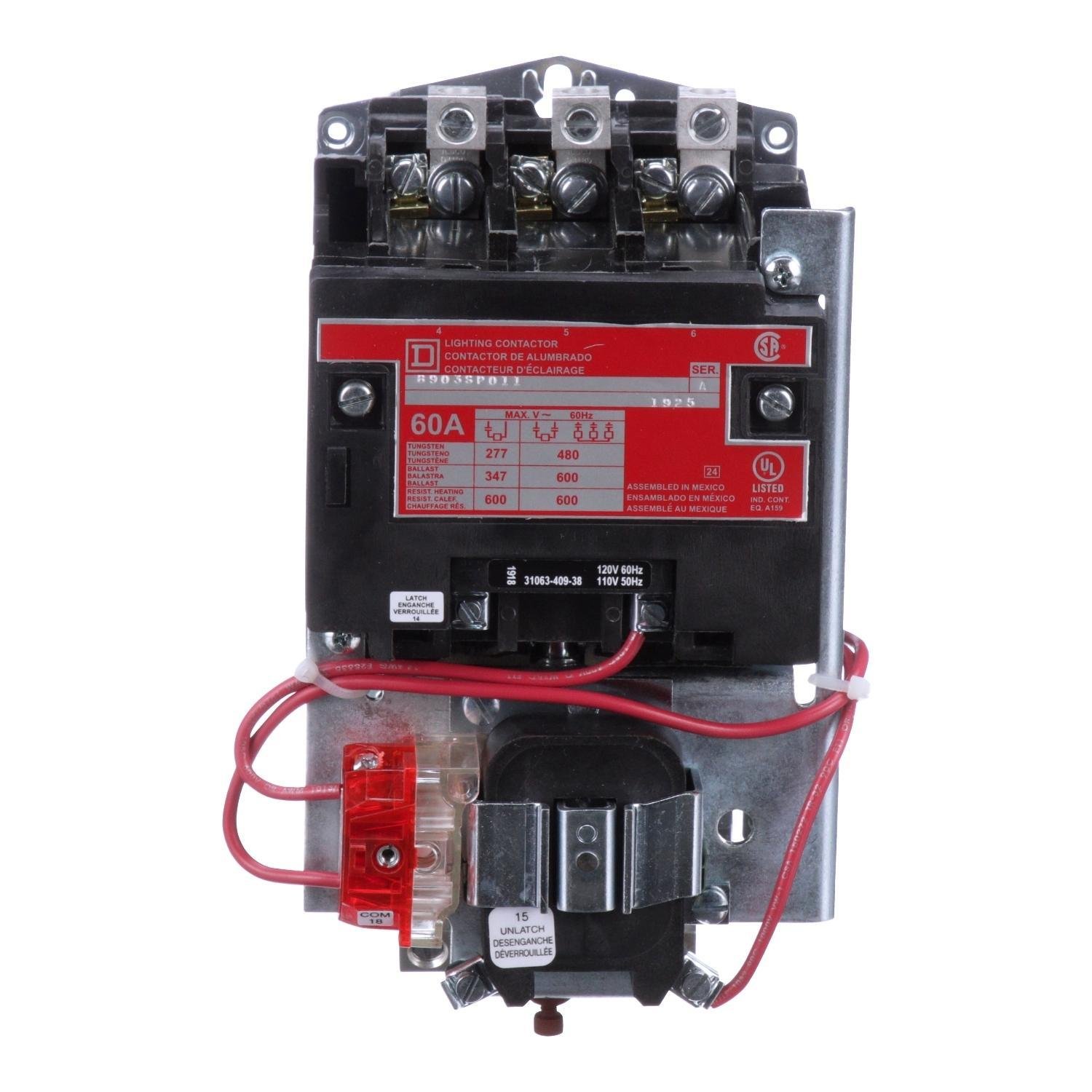

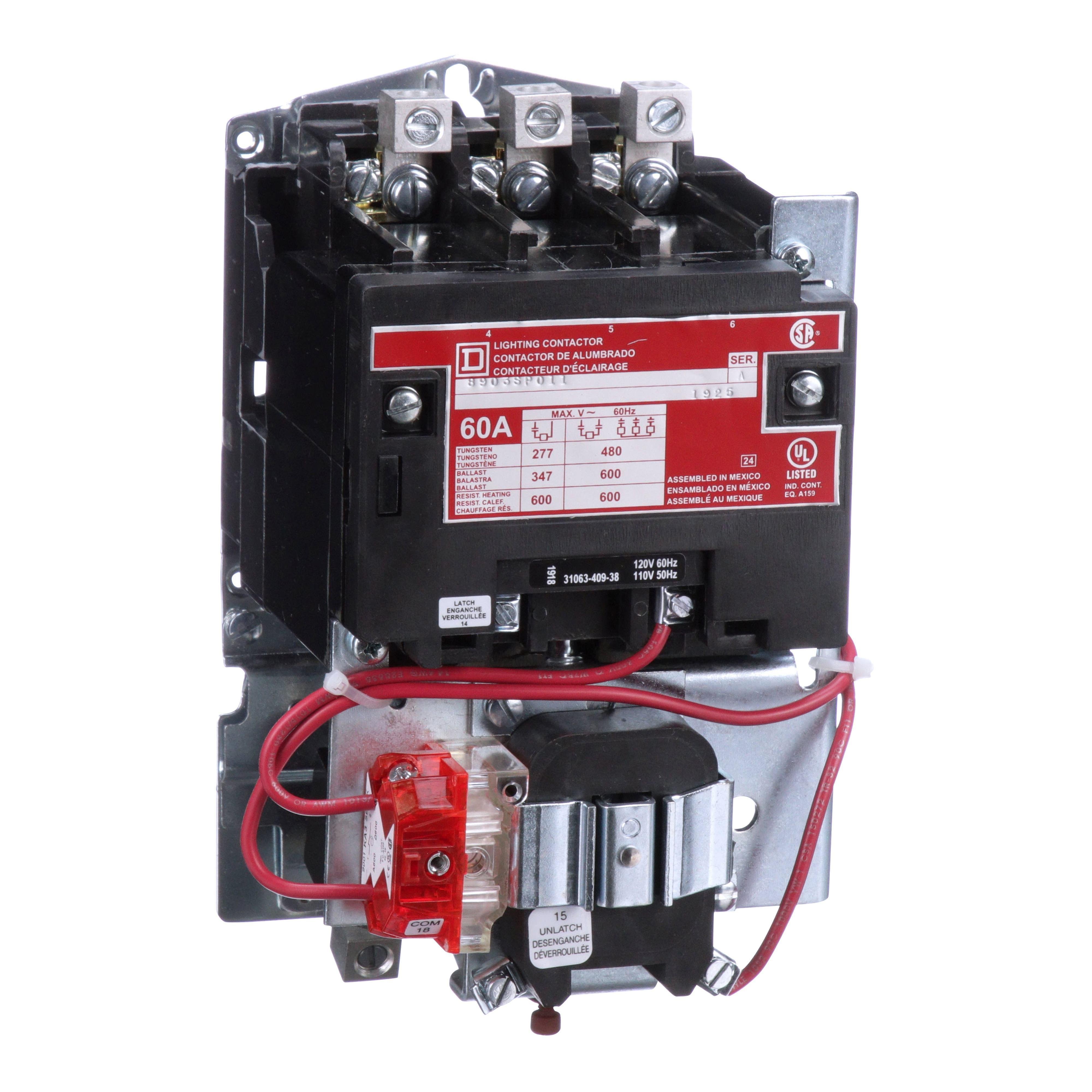

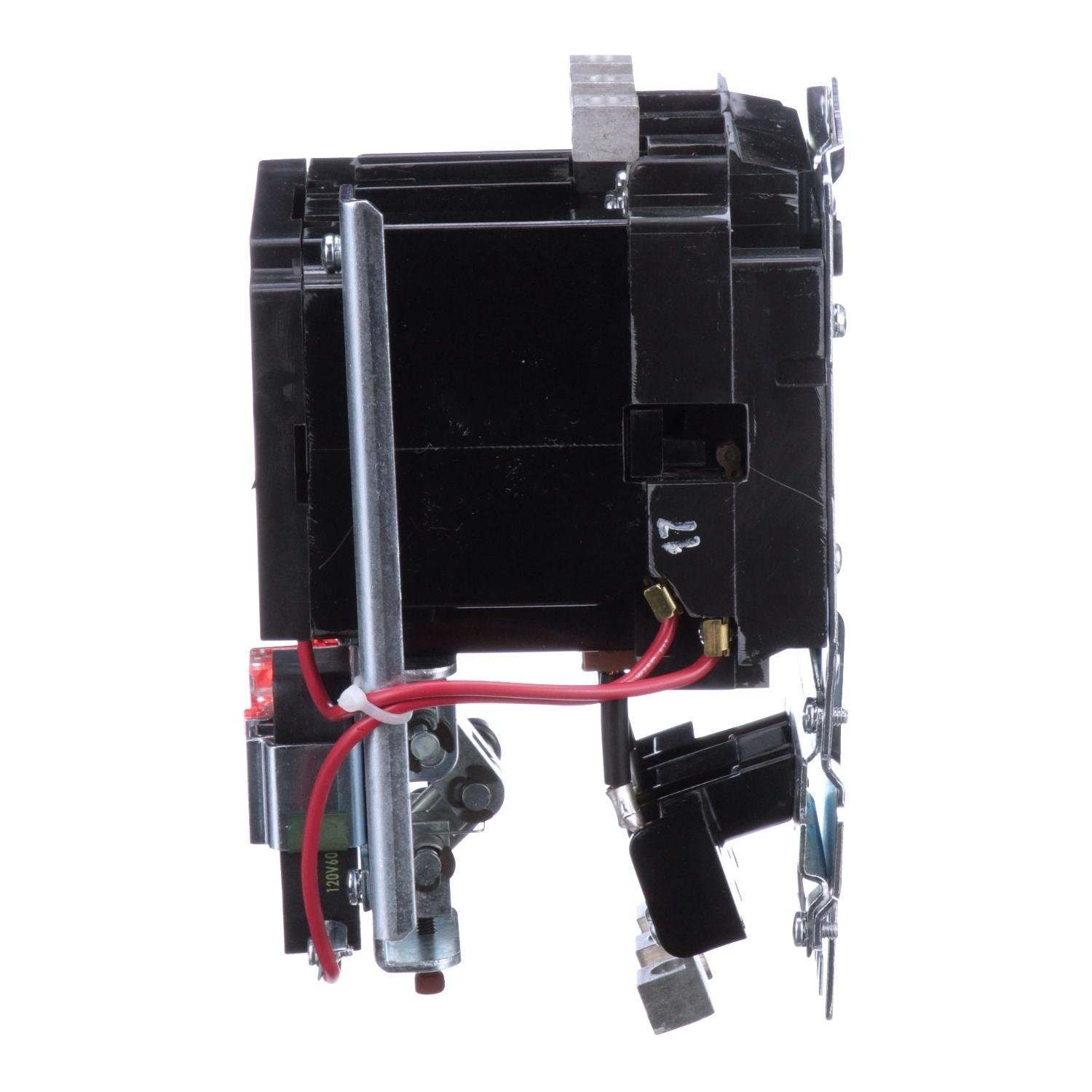

Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Square D

8903SPO11V02 - Contactor, Type S, multipole lighting, mechanically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Item Code: 527334
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903SPO11V02

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 60 amperes. This device 2 pole device has 2 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 7.81 inches tall, 4.61 inches wide and 5.23 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

8.78

Width

8.22

Length

12.09

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903SPO11V02/8903SPO11V02.spin

AD All Features

Customizable with hundreds of combinations of contactors, starters and accessories

AD Alternative Part Number

8021711

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Technical Bulletin

AD EAN

0785901102489

AD Gtin

00785901102489

AD IDEA Index ID

8021711

AD Invoice Description

CONTACTOR LTG 110/120VAC 60A 3 50/60HZ

AD Item Features 01

Customizable with hundreds of combinations of contactors, starters and accessories

AD Item Features 02

Robust design and reliable build for long mechanical life and electrical endurance

AD Item Features 03

Serviceable by replacing contacts and coils rather than replacing the entire product

AD Keywords

8903SPO11V02 Type S Mechanically Held Multi-Pole Lighting Contactor, 110/120 V AC V Coil, 60 A, 3 Poles ; Schneider Electric ; Square D ; 8903SPO11V02 ; 8903SPO11V02 ; 785901102489 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

8.7800

AD Package Weight UOM

LB

AD Package Width

8.2200

AD Package Width UOM

IN

AD Part Number Keywords

8903SPO11V02 ; 8021711 ; 785901102489 ; 78590110248 ; 00785901102489 ; 0785901102489

Brand

Square D

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

1000

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Series

Spec 12 Attribute Value

8903S

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type S Mechanically Held Multi-Pole

Spec 14 Attribute

Wattage

Spec 14 Attribute UOM

KW

Spec 14 Attribute Value

20.7/23.9/39.4/47.8/60

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug/Screw Clamp

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

60

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

117 mm x 133 mm x 198 mm

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Maximum Load Current

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
