Square D

8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1

Category Lighting Contactors

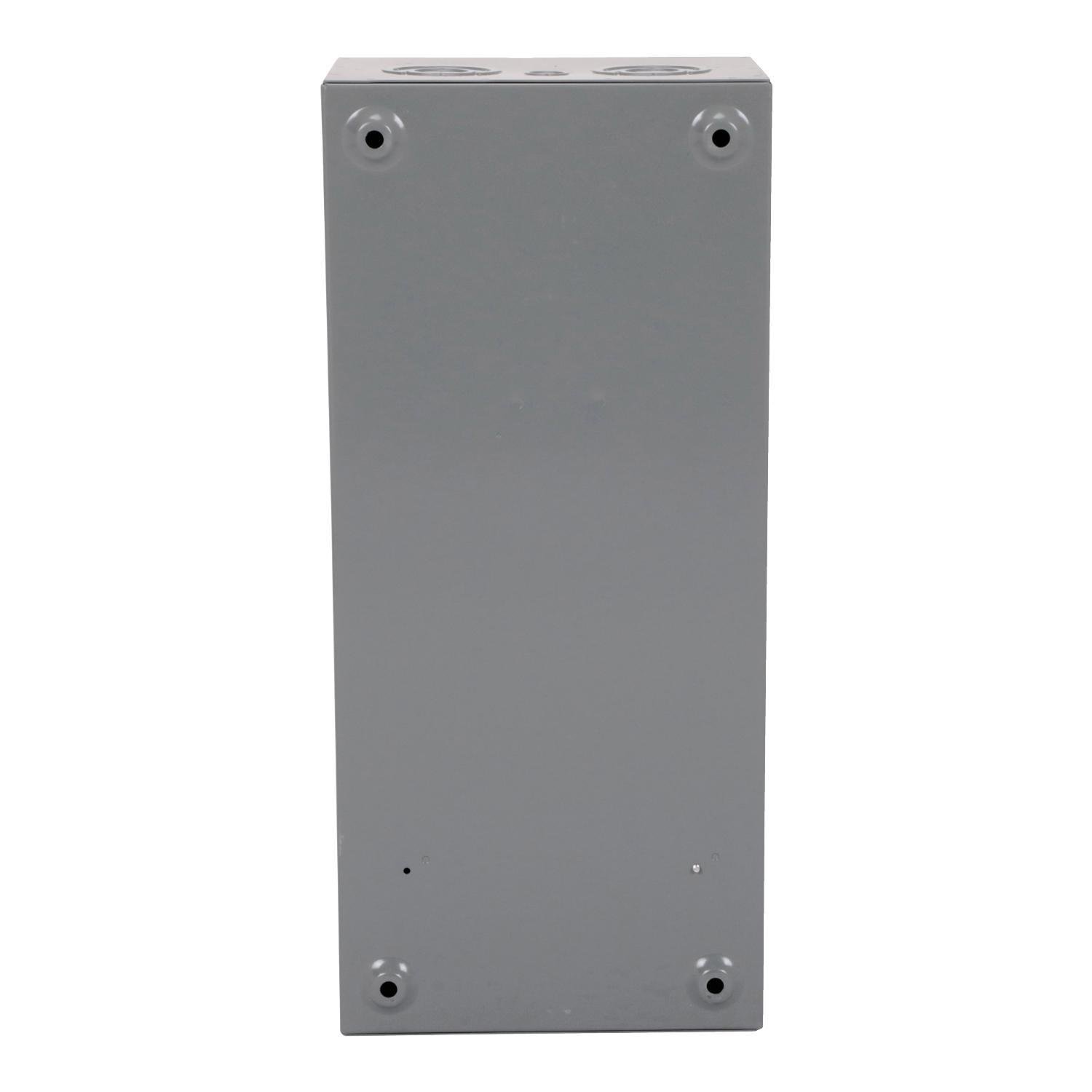

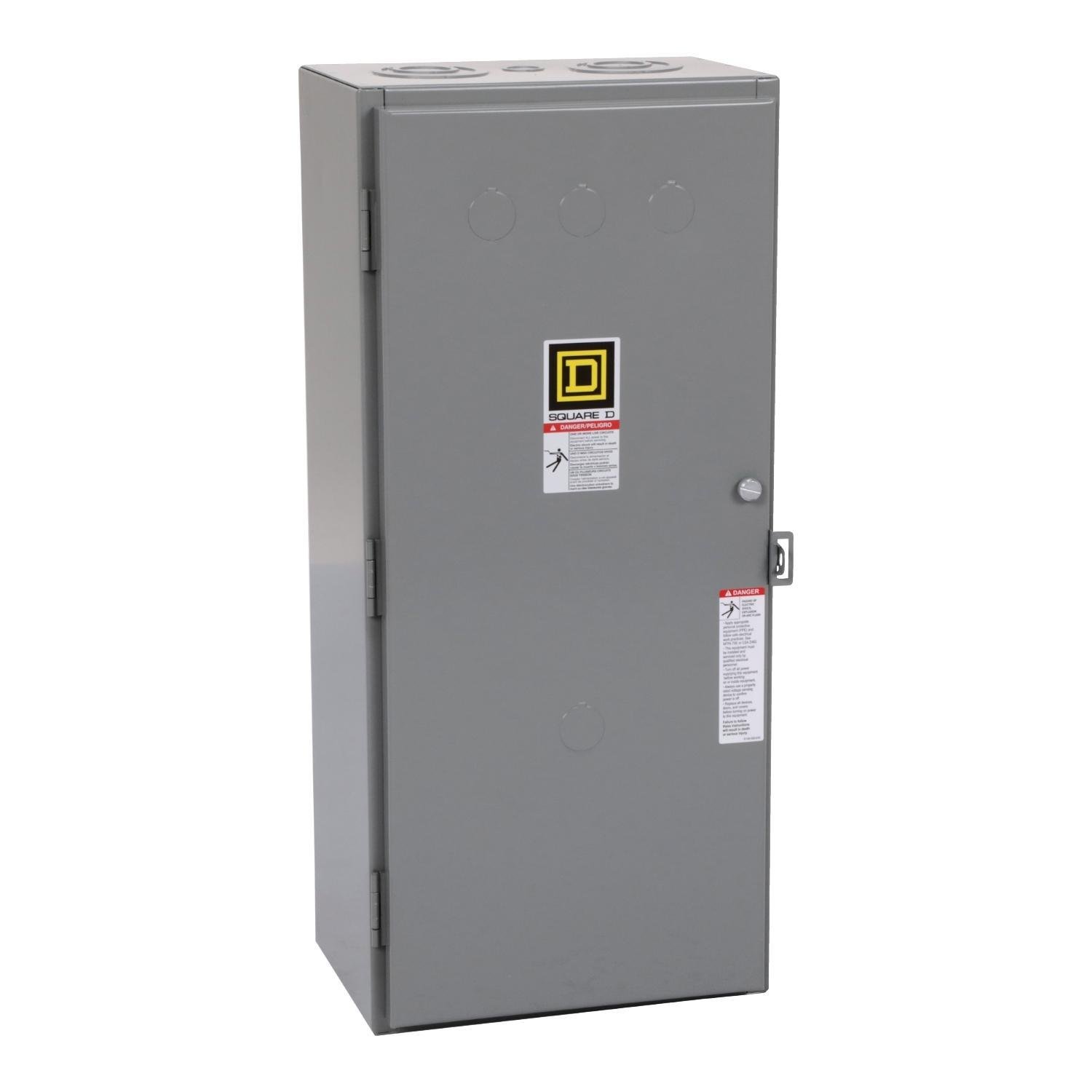

Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Square D

8903SQG2V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1

Item Code: 32510
Category Lighting Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903SQG2V02

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 25.15 inches tall, 11.25 inches wide and 8.99 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

34.41lb

Height

639mm

Width

11.78mm

Length

25.27mm

Depth

228mm

AD All Features

Customizable with hundreds of combinations of contactors, starters and accessories

AD Application

For one stop shopping, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, the contactors can also be used for resistance heating loads applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

CONTACTOR LTG 110/120VAC 100A 3 50/60HZ

AD Item Features 01

Customizable with hundreds of combinations of contactors, starters and accessories

AD Item Features 02

Robust design and reliable build for long mechanical life and electrical endurance

AD Item Features 03

Serviceable by replacing contacts and coils rather than replacing the entire product

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

25.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

34.4100

AD Package Weight UOM

LB

AD Package Width

11.7800

AD Package Width UOM

IN

Brand

Square D

Category

Lighting Contactors

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Operating Cycles

Spec 12 Attribute UOM

CPM

Spec 12 Attribute Value

3000

Spec 13 Attribute

Operating Temperature

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

0 To 40

Spec 14 Attribute

Series

Spec 14 Attribute Value

8903

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type S Electrically Held Multi-Pole

Spec 16 Attribute

Wattage

Spec 16 Attribute UOM

KW

Spec 16 Attribute Value

34.6/39.8/65.8/79.8/99

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug/Screw Clamp

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

100

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

228 mm x 286 mm x 639 mm

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Painted

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Material

Spec 8 Attribute Value

Sheet Steel

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

100
