Square D

8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1

Category Lighting Contactors

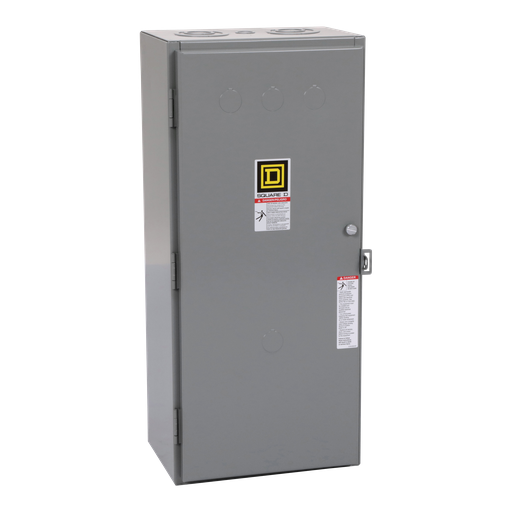

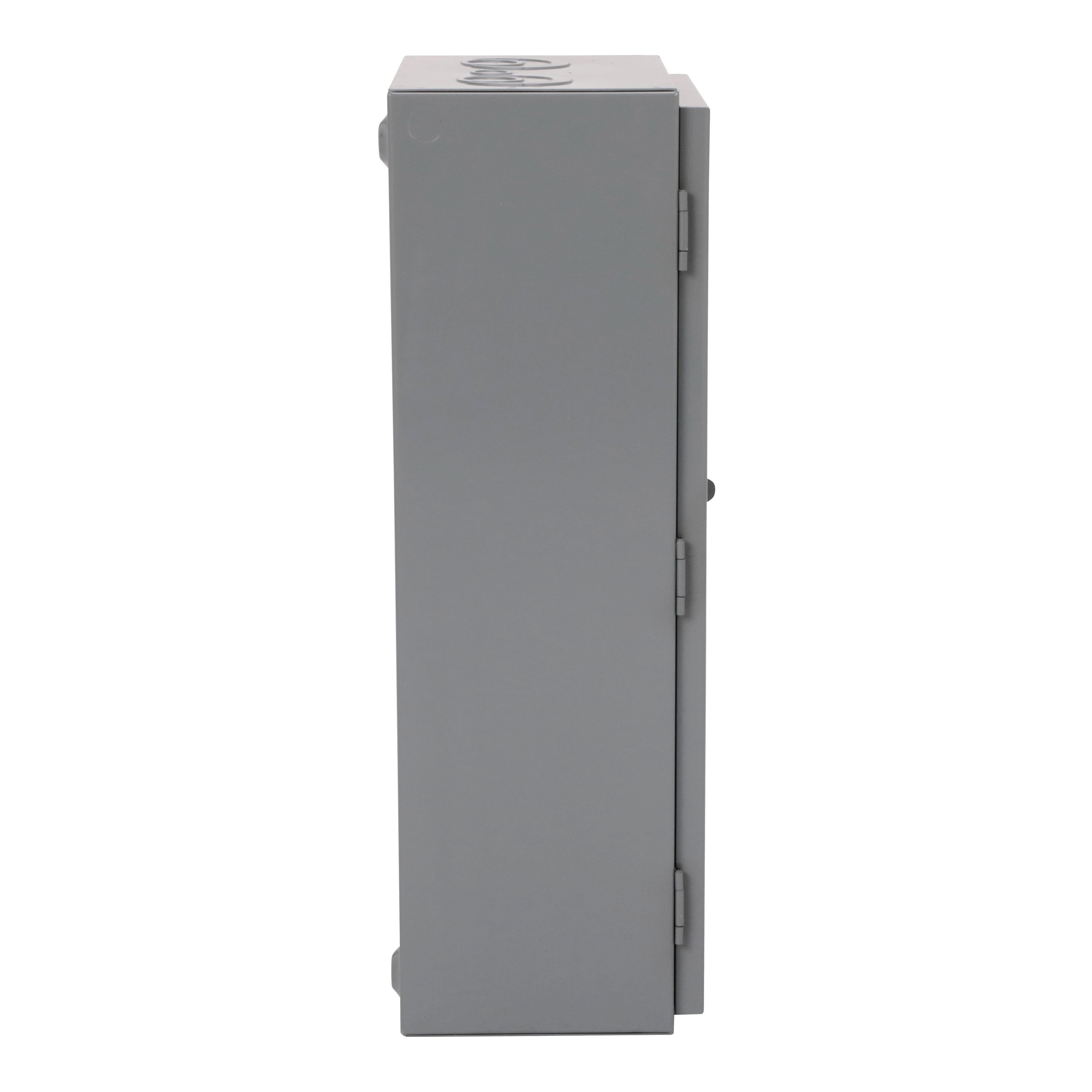

Picture of 8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1
Picture of 8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1 Picture of 8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1
Square D

8903SQG3V02 - Contactor, Type S, multipole lighting, electrically held, 100A, 4 pole, 110/120VAC 50/60Hz coil, NEMA 1

Item Code: 622699
Category Lighting Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903SQG3V02

Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This 4 pole device has 4 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 25.15 inches tall, 11.25 inches wide and 8.99 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

9.73lb

Height

639mm

Width

11.15mm

Length

8.89mm

Depth

228mm

AD All Features

Factory wired controls and clearly marked termination points

AD Application

For 1-stop shopping for OEM, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance and contactors can also be used for resistance heating loads

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

CONTACTOR LTG 110/120VAC 4 50/60HZ 100A

AD Item Features 01

Factory wired controls and clearly marked termination points

AD Item Features 02

NEMA 1 General Purpose Enclosure

AD Item Features 03

600 VAC system voltage

AD Item Features 04

Lug electrical connection

AD Item Features 05

Without Indicator

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

9.7300

AD Package Weight UOM

LB

AD Package Width

11.1500

AD Package Width UOM

IN

Brand

Square D

Category

Lighting Contactors

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

3000

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Series

Spec 12 Attribute Value

8903S

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Electrically Held Type S

Spec 15 Attribute

Wattage

Spec 15 Attribute Value

34.6 kW at 200 V/39.8 kW at 230 V/65.8 kW at 380 V/79.8 kW at 460 V/99 kW at 575 V

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

100

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Painted

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

4
