Square D

8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Category Miscellaneous

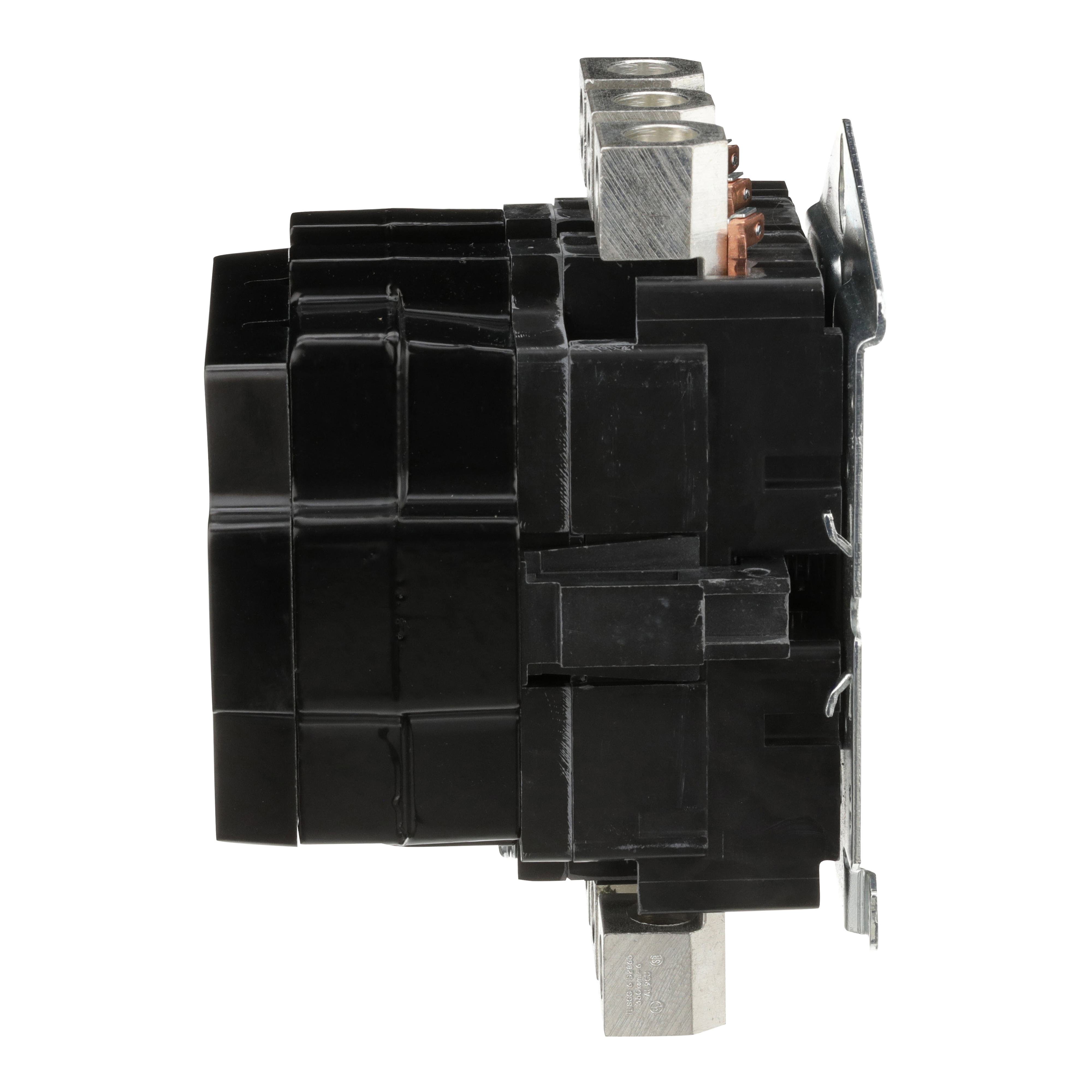

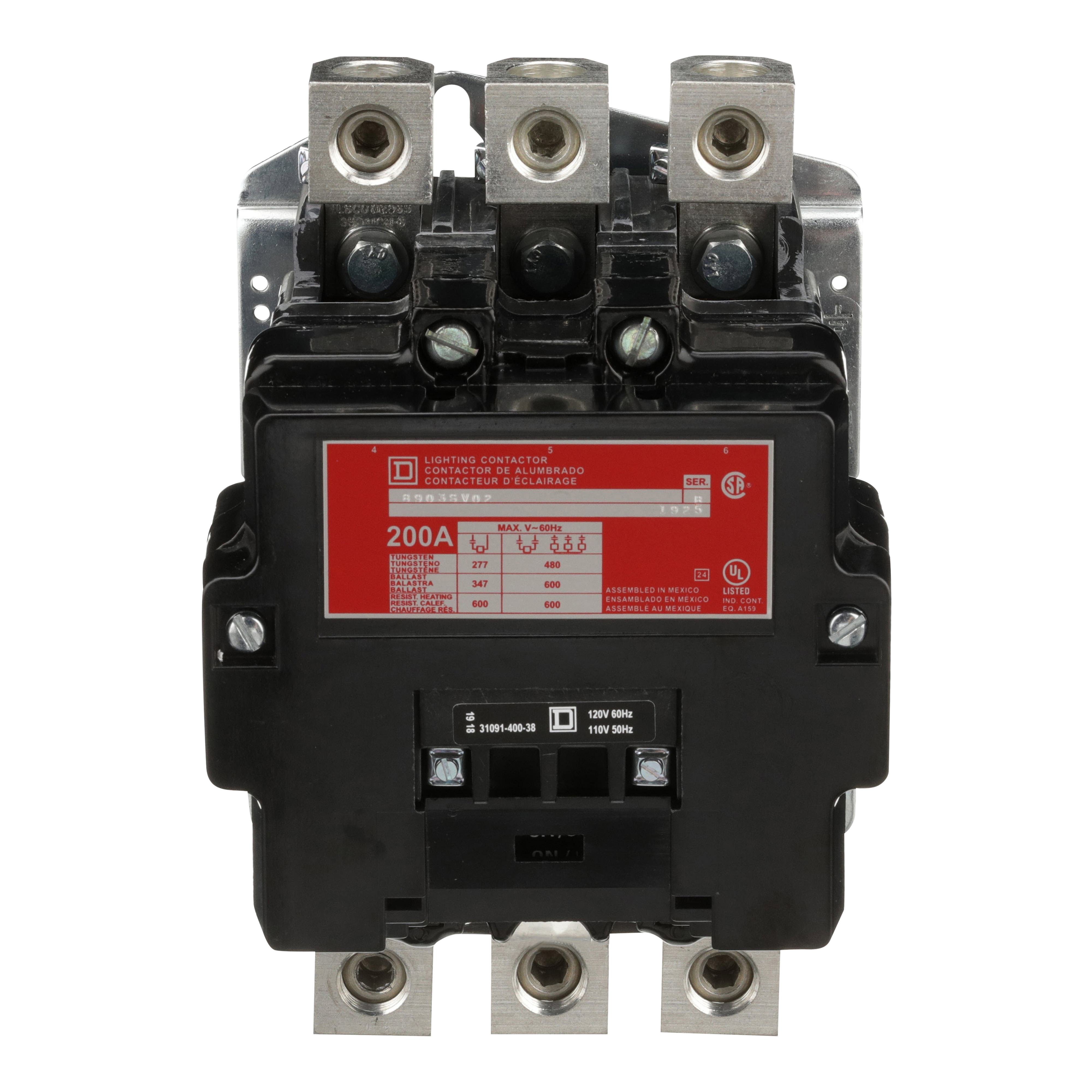

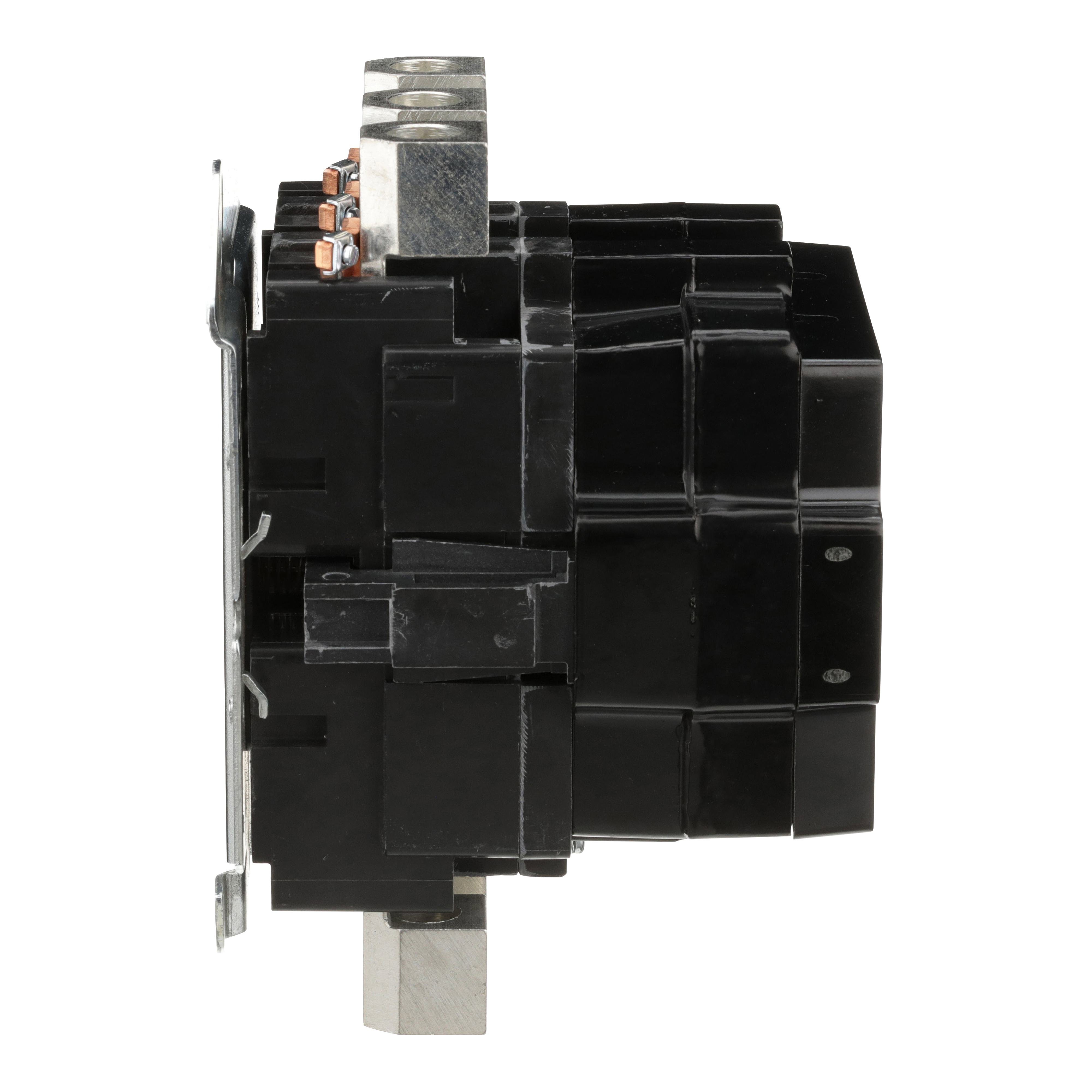

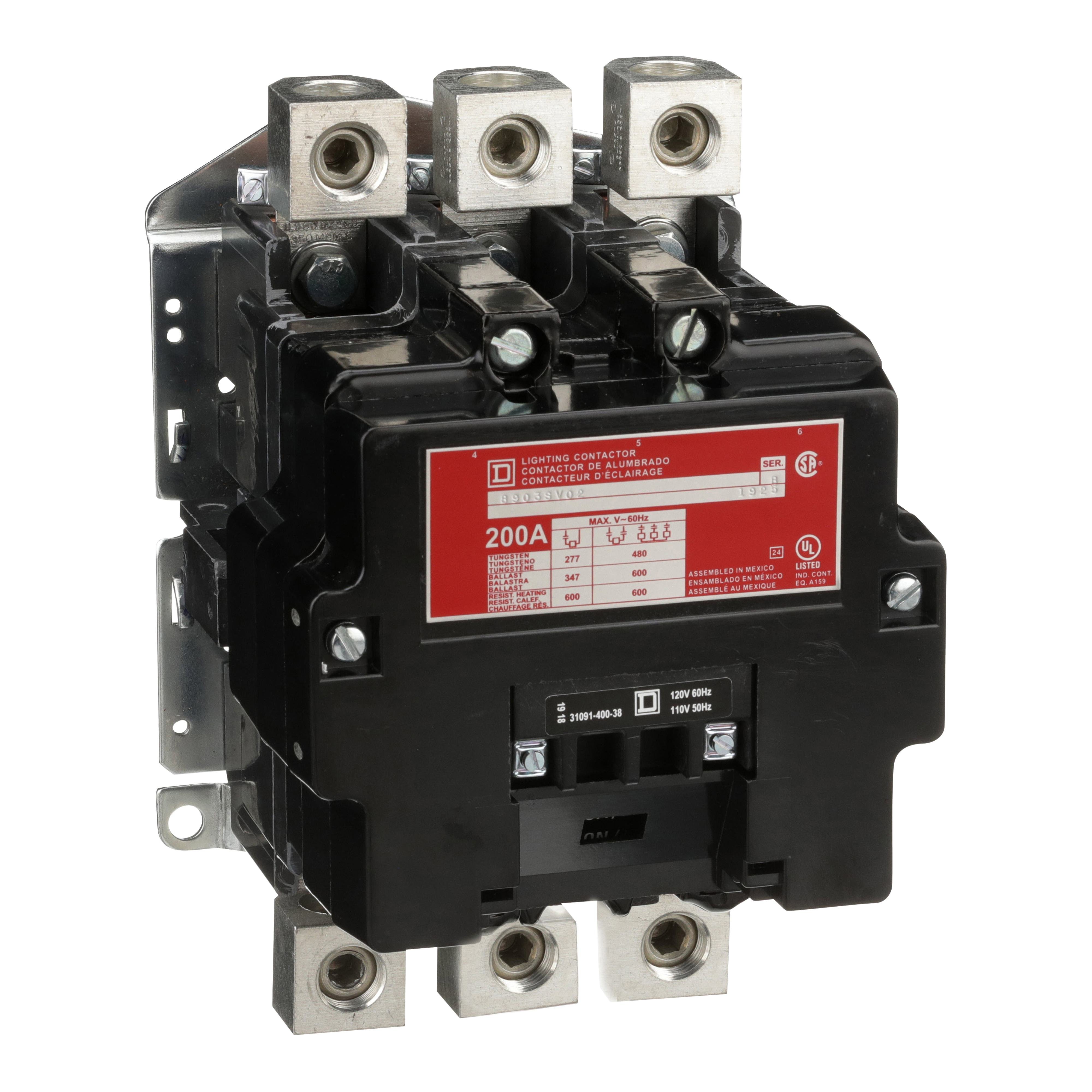

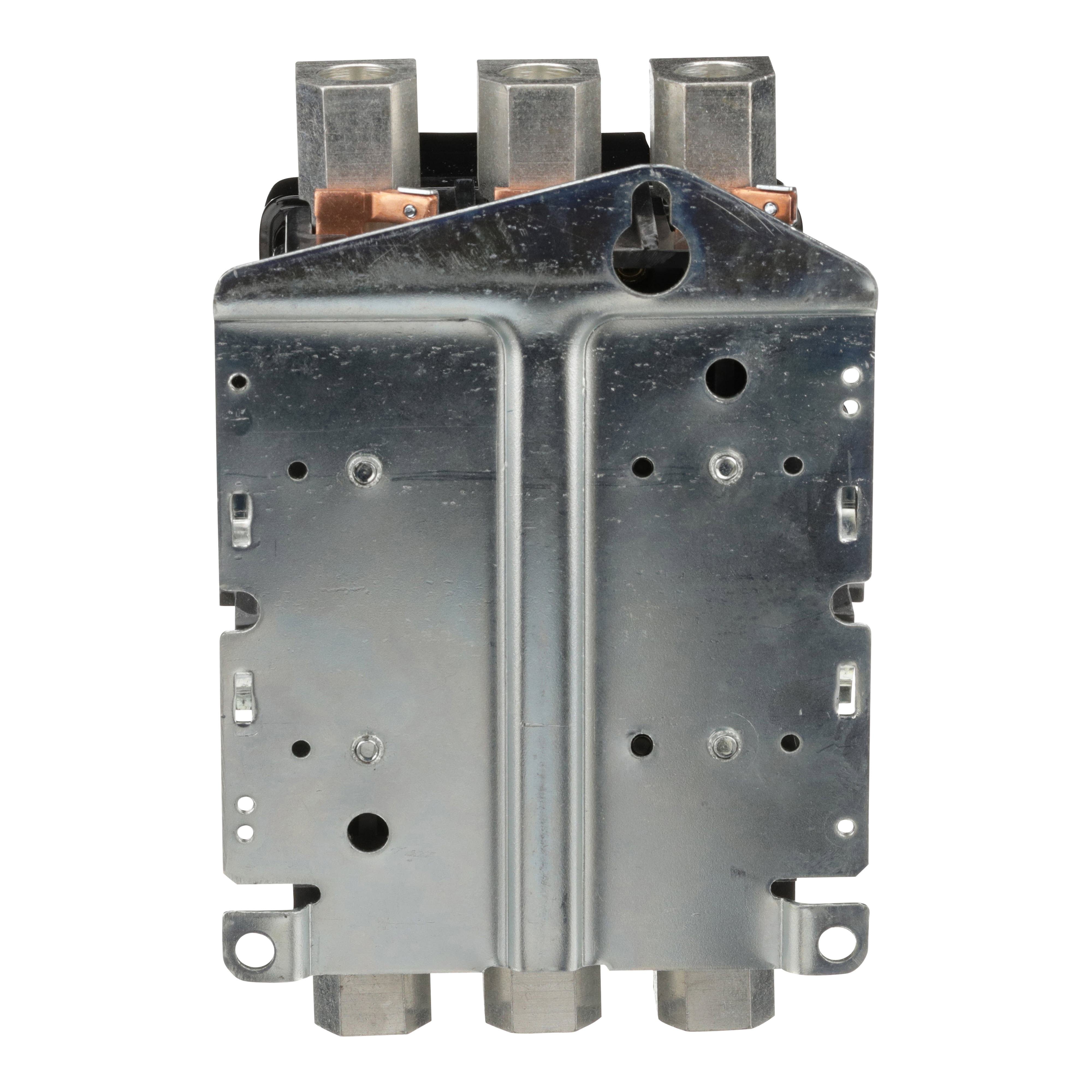

Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA] Picture of 8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]
Square D

8903SVO2V02 - Contactor, Type S, multipole lighting, electrically held, 200A, 3 pole, 110/120VAC 50/60Hz coil, open style [TAA]

Item Code: 40719
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8903SVO2V02

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 200 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 9.14 inches tall, 6.00 inches wide and 6.50 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Weight

17.58

Width

10.8

Length

14.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8903SVO2V02/8903SVO2V02.spin

AD All Features

Customizable with hundreds of combinations of contactors, starters and accessories

AD Alternative Part Number

8114794

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Technical Bulletin

AD EAN

0785901626022

AD Gtin

00785901626022

AD IDEA Index ID

8114794

AD Invoice Description

CONTACTOR LTG 110/120VAC 200A 3 50/60HZ

AD Item Features 01

Customizable with hundreds of combinations of contactors, starters and accessories

AD Item Features 02

Robust design and reliable build for long mechanical life and electrical endurance

AD Item Features 03

Serviceable by replacing contacts and coils rather than replacing the entire product

AD Keywords

8903SVO2V02 Type S Electrically Held Multi-Pole Lighting Contactor, 110/120 V AC V Coil, 200 A, 3 Poles ; Schneider Electric ; Square D ; 8903SVO2V02 ; 8903SVO2V02 ; 785901626022 ; Lighting Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

14.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.5800

AD Package Weight UOM

LB

AD Package Width

10.8000

AD Package Width UOM

IN

AD Part Number Keywords

8903SVO2V02 ; 8114794 ; 785901626022 ; 78590162602 ; 00785901626022 ; 0785901626022

Brand

Square D

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

110/120

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

CPM

Spec 10 Attribute Value

3000

Spec 11 Attribute

Operating Temperature

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Series

Spec 12 Attribute Value

8903S

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type S Electrically Held Multi-Pole

Spec 14 Attribute

Wattage

Spec 14 Attribute UOM

KW

Spec 14 Attribute Value

69.2/79.6/131.6/159.3/199

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug/Screw Clamp

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

200

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

152 mm x 165 mm x 232 mm

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Maximum Load Current

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

200

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
