Square D

8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open

Category Miscellaneous

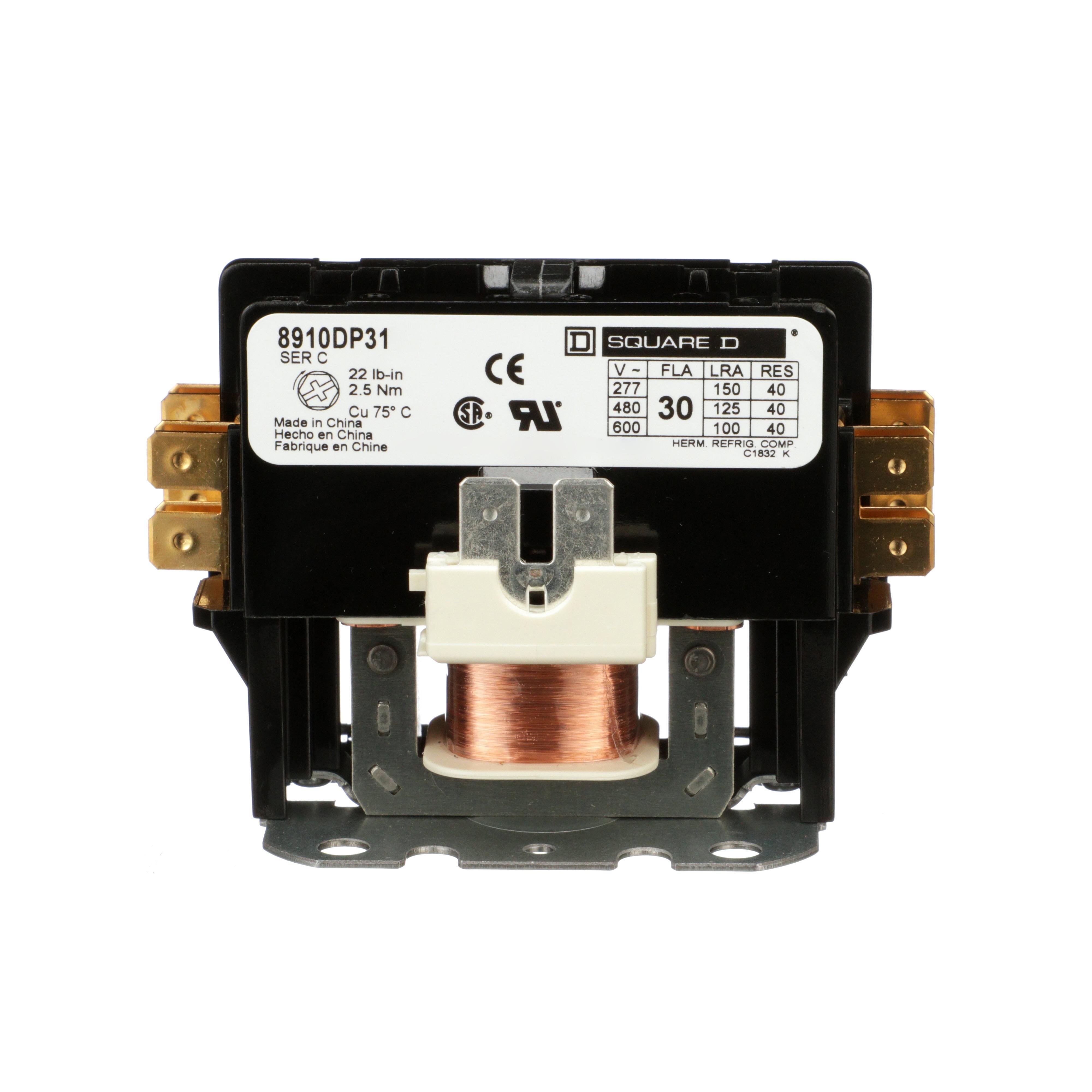

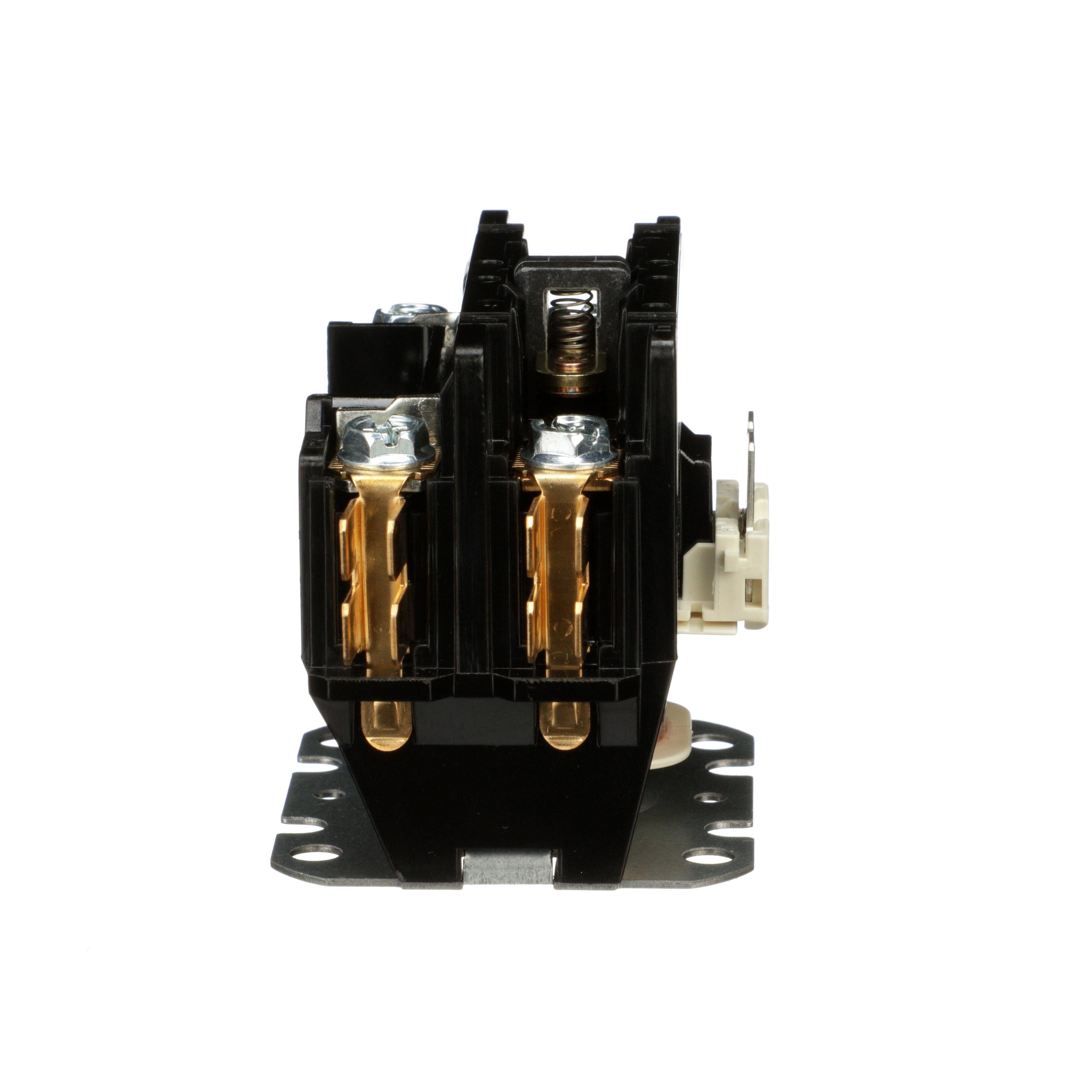

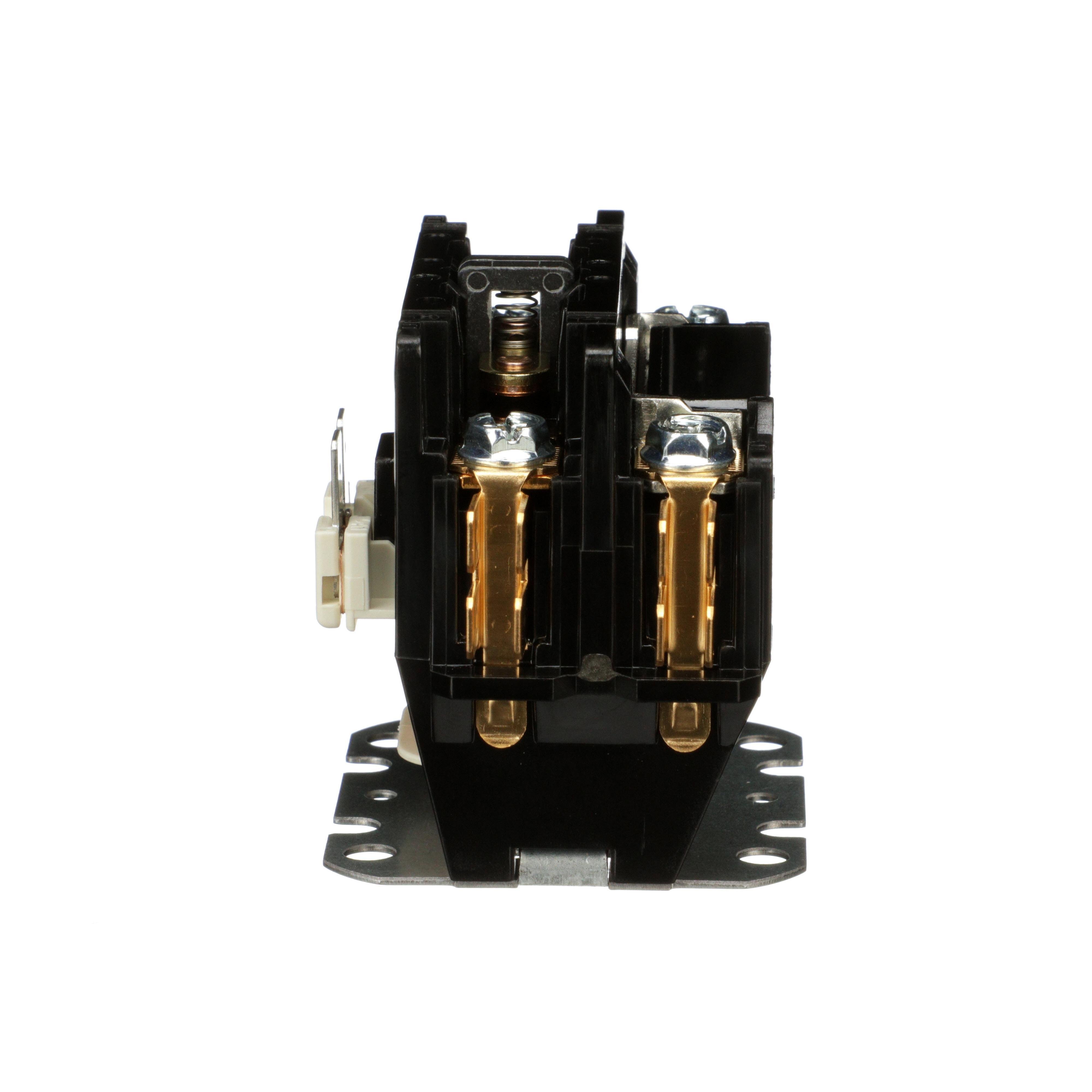

Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open
Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open
Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open
Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open
Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open Picture of 8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open
Square D

8910DP31V02 - Contactor, Definite Purpose, 30A, 1 pole, 110/120VAC 50/60Hz coil, open

Item Code: 558709
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DP31V02

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.

Specifications

Weight

0.51

Height

2.5

Width

2.28

Length

3.47

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8910DP31V02/8910DP31V02.spin

AD All Features

Electrical systems protection from overloads and short circuits

AD Alternative Part Number

8084495

AD Application

Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901909378

AD Gtin

00785901909378

AD IDEA Index ID

8084495

AD Invoice Description

CONTACTOR DEFINITE PRP 1-PH 110/120VAC 1

AD Item Features 01

Electrical systems protection from overloads and short circuits

AD Item Features 02

Quick connect terminals and binder head screws for easy wiring

AD Item Features 03

Compact design and exclusive DIN mounting option

AD Keywords

8910DP31V02 8910 1 Pole Definite Purpose Contactor, 110/120 V AC V Coil, 30 A, 1NO Contact, 1 Poles ; Square D ; 8910DP31V02 ; 8084495 ; 785901909378 ; Definite Purpose Contactors AC

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.5000

AD Package Height UOM

IN

AD Package Length

3.4700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5100

AD Package Weight UOM

LB

AD Package Width

2.2800

AD Package Width UOM

IN

AD Part Number Keywords

8910DP31V02 ; 8084495 ; 785901909378 ; 78590190937 ; 00785901909378 ; 0785901909378

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

2 hp at 115 VAC/3 hp at 230 VAC

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

8910

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Quick-Connect

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Type DP

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Binding head screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Maximum Load Current

Spec 8 Attribute UOM

A

Spec 8 Attribute Value

30

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel
