Square D™

8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open

Category Miscellaneous

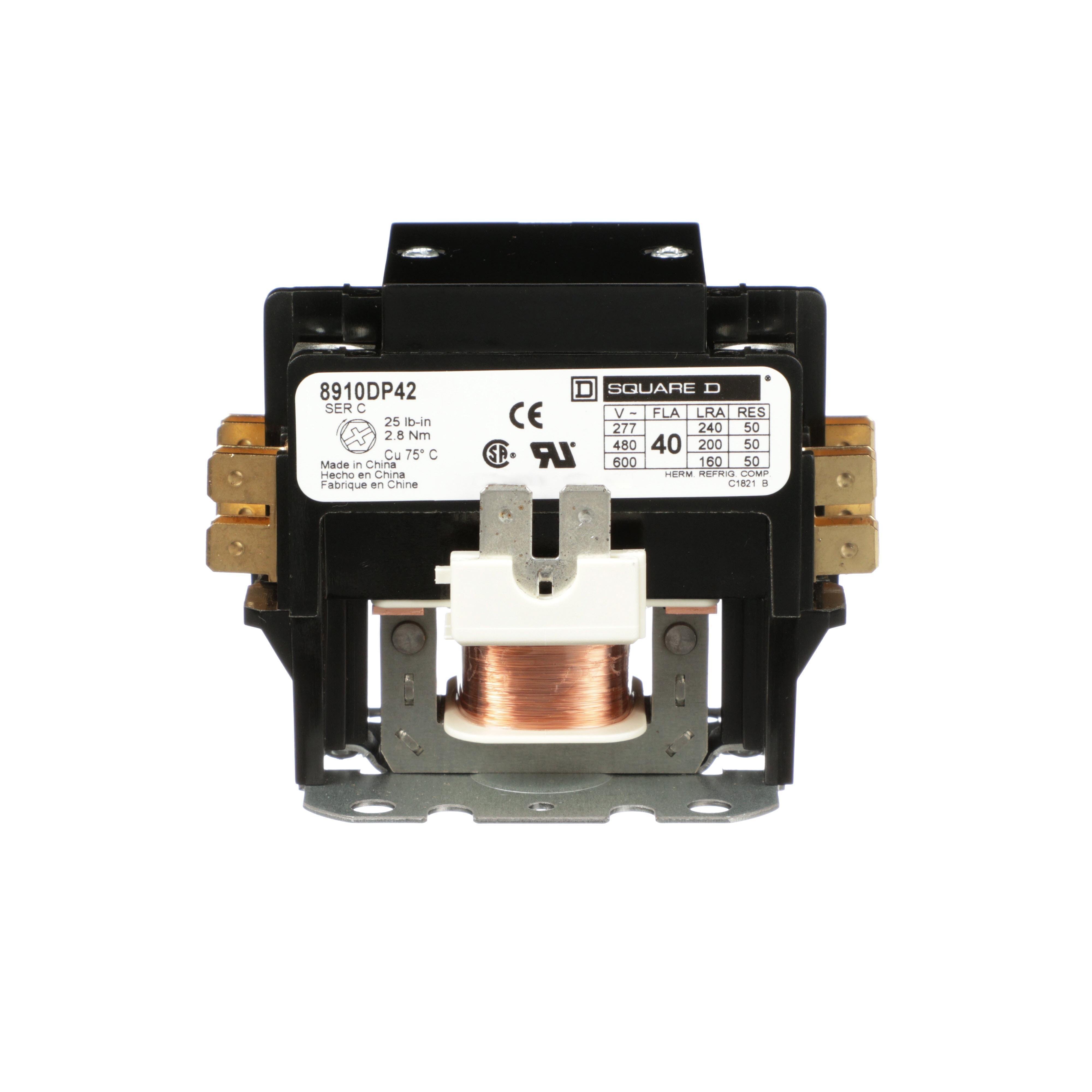

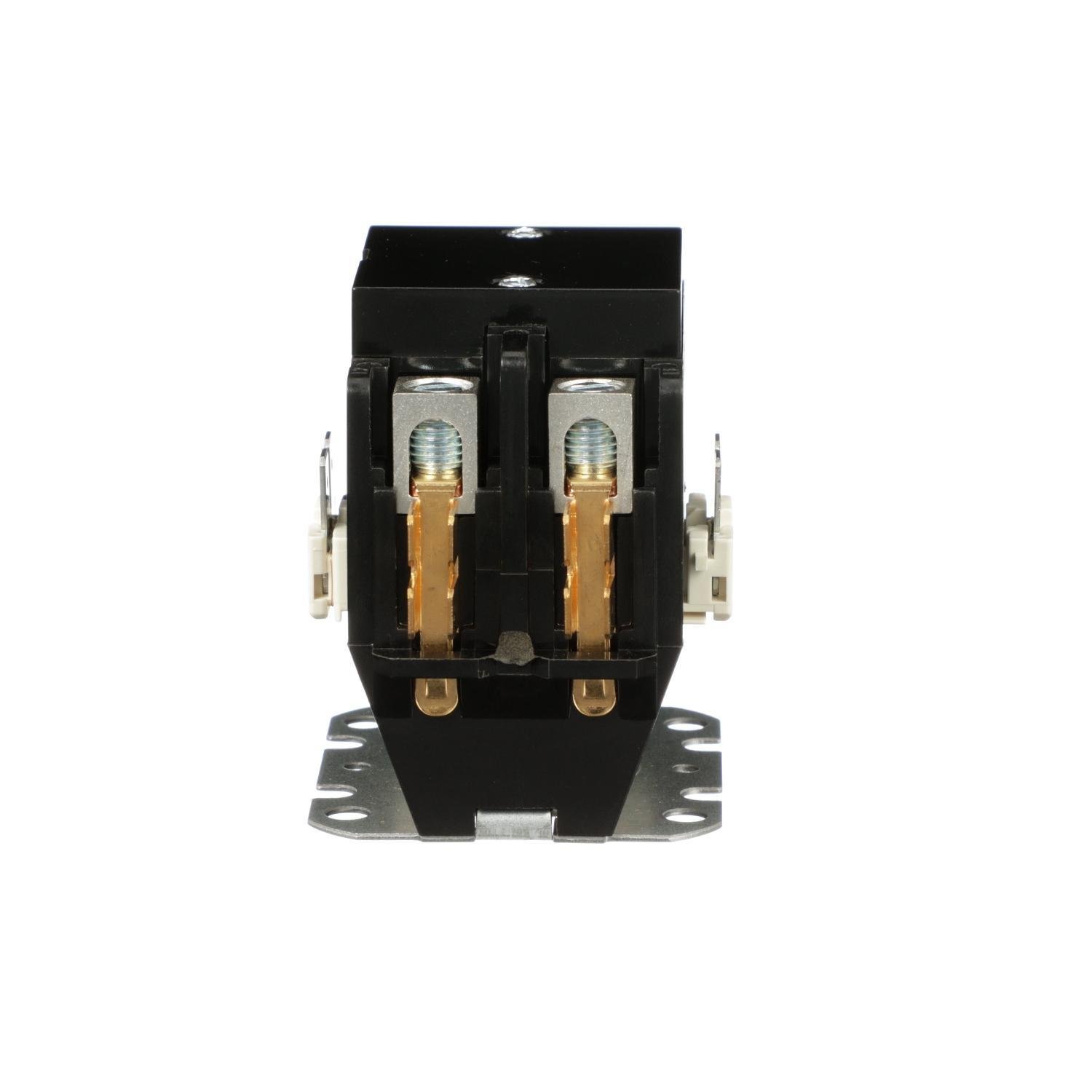

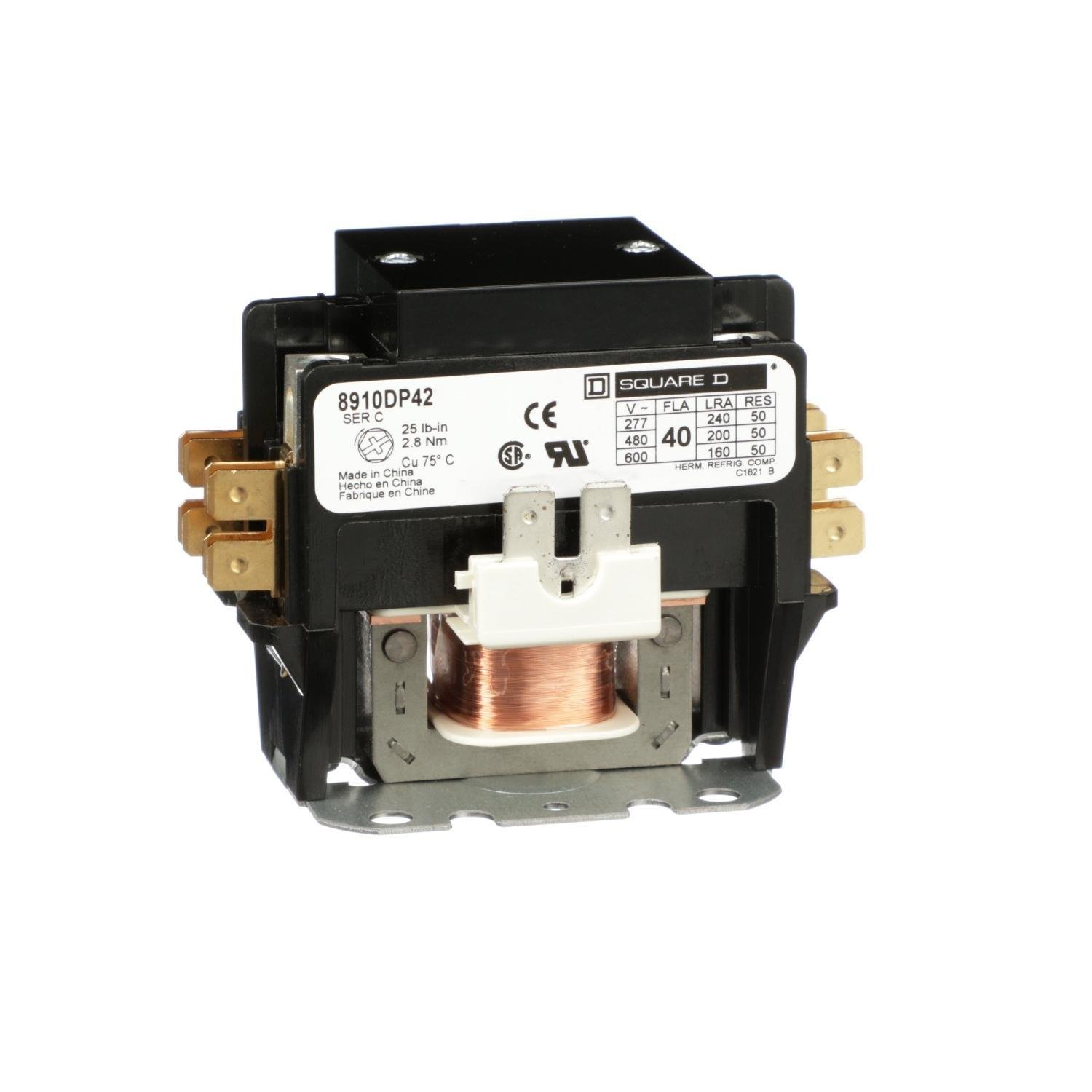

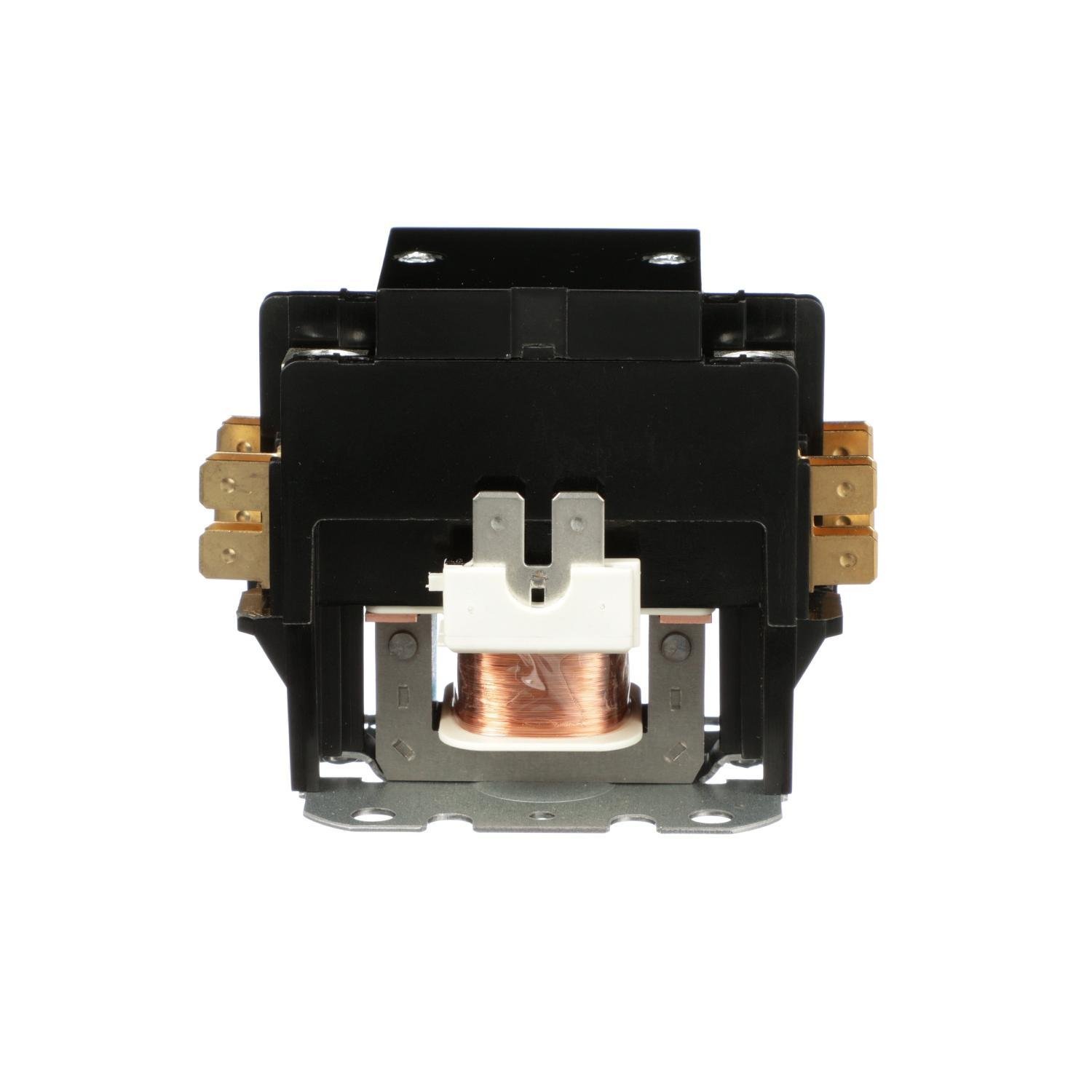

Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open
Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open
Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open
Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open
Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open Picture of 8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open
Square D™

8910DP42V14 - Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open

Item Code: 1032615
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DP42V14

Document
Document
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Specifications

Weight

0.57

Height

2.3

Width

2.58

Length

3.37

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8910DP42V14/8910DP42V14.spin

AD All Features

Electrical systems protection from overloads and short circuits

AD Alternative Part Number

8152123

AD Application

Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901024200

AD Gtin

00785901024200

AD IDEA Index ID

8152123

AD Invoice Description

CONTACTOR DEFINITE PRP 1-PH ELECTRO-MECH

AD Item Features 01

Electrical systems protection from overloads and short circuits

AD Item Features 02

Quick connect terminals and binder head screws for easy wiring

AD Item Features 03

Compact design and exclusive DIN mounting option

AD Keywords

8910DP42V14 Type DP 1-Phase Electromechanical Definite Purpose Contactor, 24 V AC V Coil, 40 A, 2NO Contact, 2 Poles ; Schneider Electric ; Square D ; 8910DP42V14 ; 8910DP42V14 ; 785901024200 ; Definite Purpose Contactors AC

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.3000

AD Package Height UOM

IN

AD Package Length

3.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20.3300

AD Package Volume UOM

cu-in

AD Package Weight

0.5700

AD Package Weight UOM

LB

AD Package Width

2.5800

AD Package Width UOM

IN

AD Part Number Keywords

8910DP42V14 ; 8152123 ; 785901024200 ; 78590102420 ; 00785901024200 ; 0785901024200

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

2 hp at 115 VAC/5 hp at 230 VAC

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

40

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

DIN Track/Panel

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

2

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles

Spec 13 Attribute Value

500000 cycles Mechanical/100000 cycles Electrical

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg F

Spec 14 Attribute Value

32 To 149

Spec 15 Attribute

Series

Spec 15 Attribute Value

8910

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Quick-Connect

Spec 17 Attribute

Type

Spec 17 Attribute Value

Type DP 1-Phase Electromechanical

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Binding head screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Non-reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

2.16 in W x 2.22 in D x 3.29 in H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Open

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
