Square D

8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open

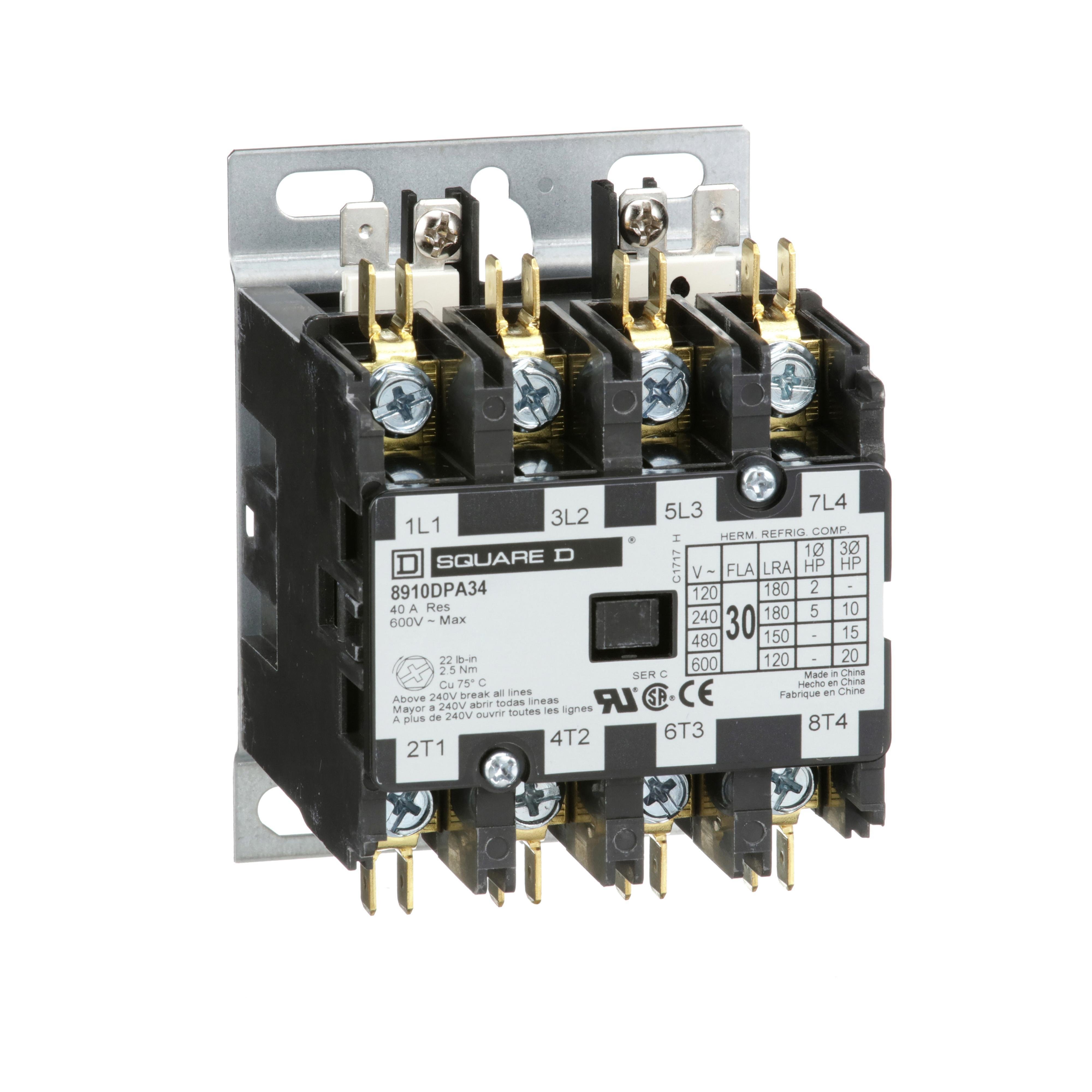

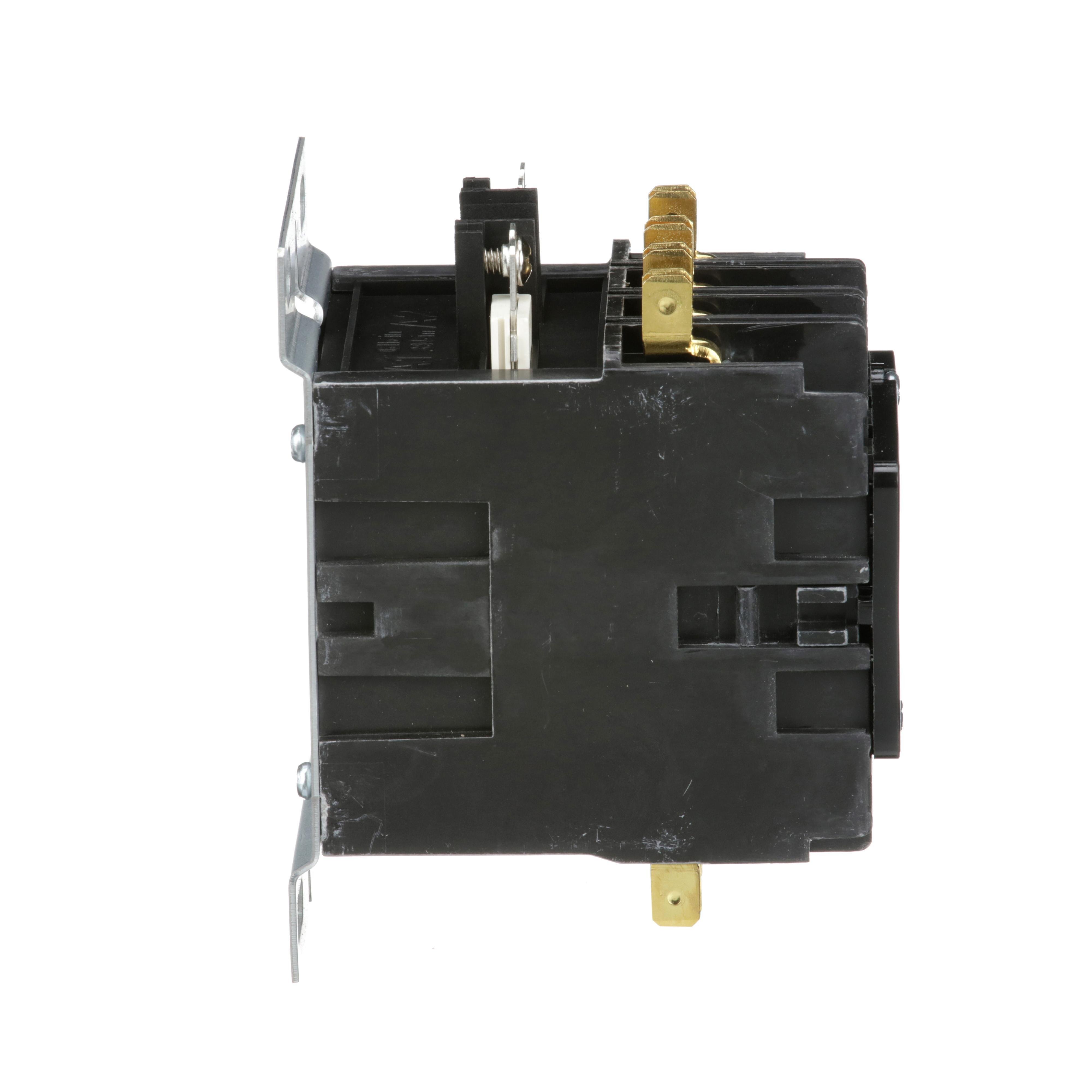

Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open

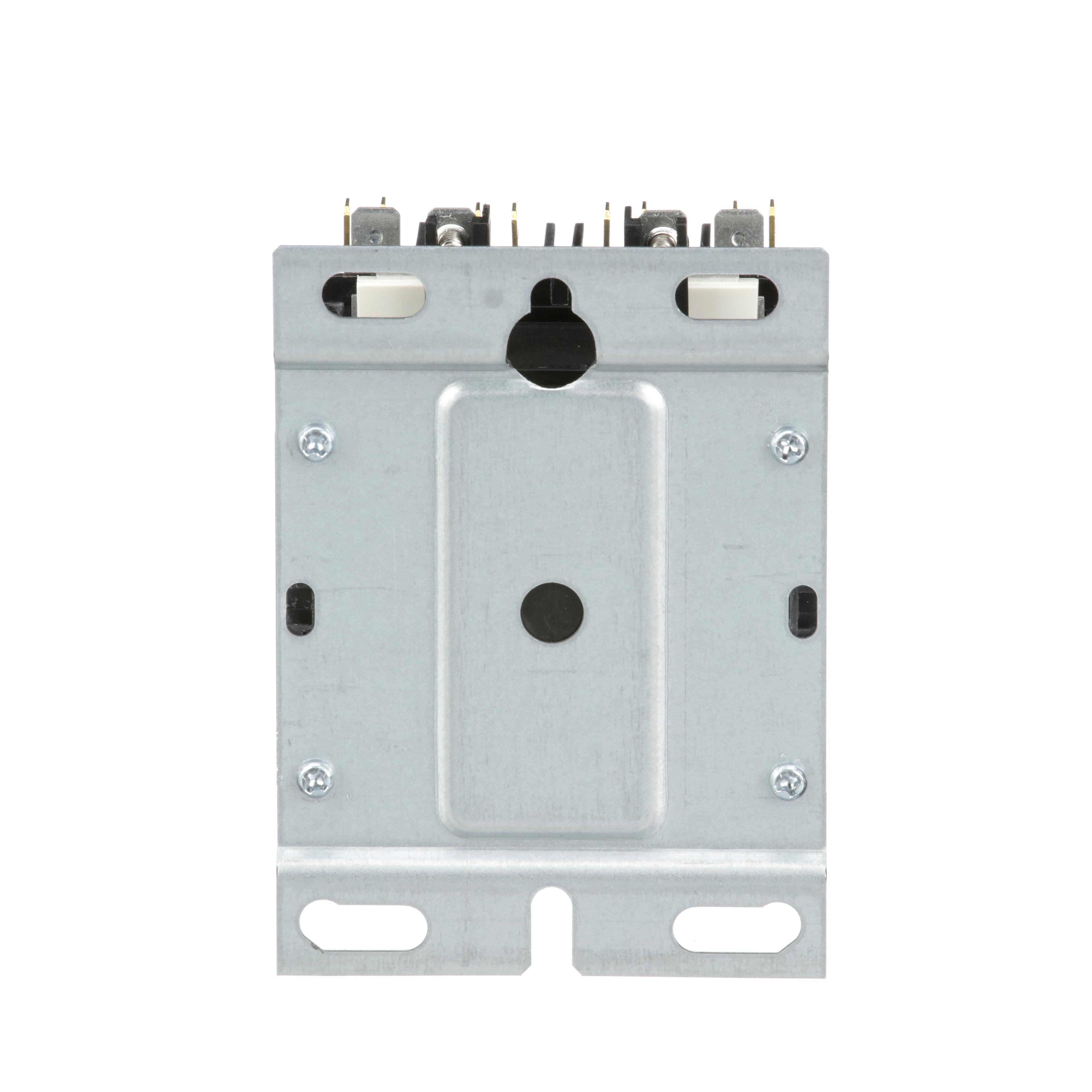

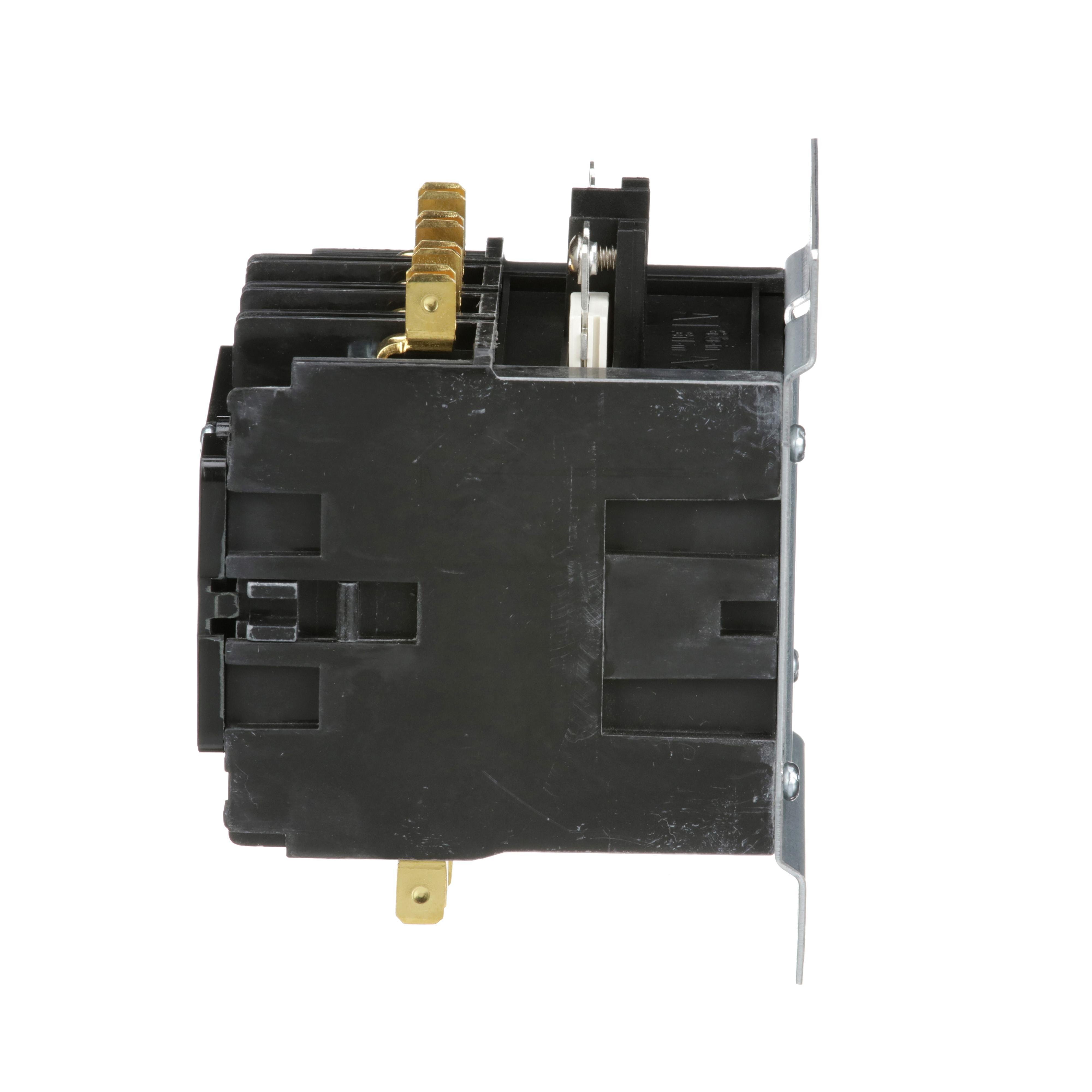

Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open Picture of 8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
Square D

8910DPA34V09 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open

Item Code: 541030
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DPA34V09

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Specifications

Weight

1.24lb

Height

3.4mm

Width

2.87mm

Length

3.86mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8910DPA34V04/8910DPA34V04.spin

AD All Features

Electrical systems protection from overloads and short circuits

AD Alternative Part Number

8006723

AD Application

Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901073499

AD Gtin

00785901073499

AD IDEA Index ID

8006723

AD Invoice Description

CONTACTOR DEFINITE PRP 3-PH ELECTRO-MECH

AD Item Features 01

Electrical systems protection from overloads and short circuits

AD Item Features 02

Quick connect terminals and binder head screws for easy wiring

AD Item Features 03

Compact design and exclusive DIN mounting option

AD Keywords

8910DPA34V09 8910 3-Phase Electromechanical Type DPA Definite Purpose Contactor, 208/220/240 V AC V Coil, 30 A, 4NO Contact, 4 Poles ; Square D ; 8910DPA34V09 ; 8006723 ; 785901073499 ; Definite Purpose Contactors AC

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.4000

AD Package Height UOM

IN

AD Package Length

3.8600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.2400

AD Package Weight UOM

LB

AD Package Width

2.8700

AD Package Width UOM

IN

AD Part Number Keywords

8910DPA34V09 ; 8006723 ; 785901073499 ; 78590107349 ; 00785901073499 ; 0785901073499

AD Video Links

https://www.youtube.com/watch?v=w8gfg57CotU

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

30

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Panel

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

4

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles

Spec 13 Attribute Value

500000

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

0 To 65

Spec 15 Attribute

Series

Spec 15 Attribute Value

8910

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Quick-Connect

Spec 17 Attribute

Type

Spec 17 Attribute Value

3-Phase Electromechanical Type DPA

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

208/220/240

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Binding head screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

4NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Non-reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

3.17 in W x 3.11 in D x 4 in H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Open

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
