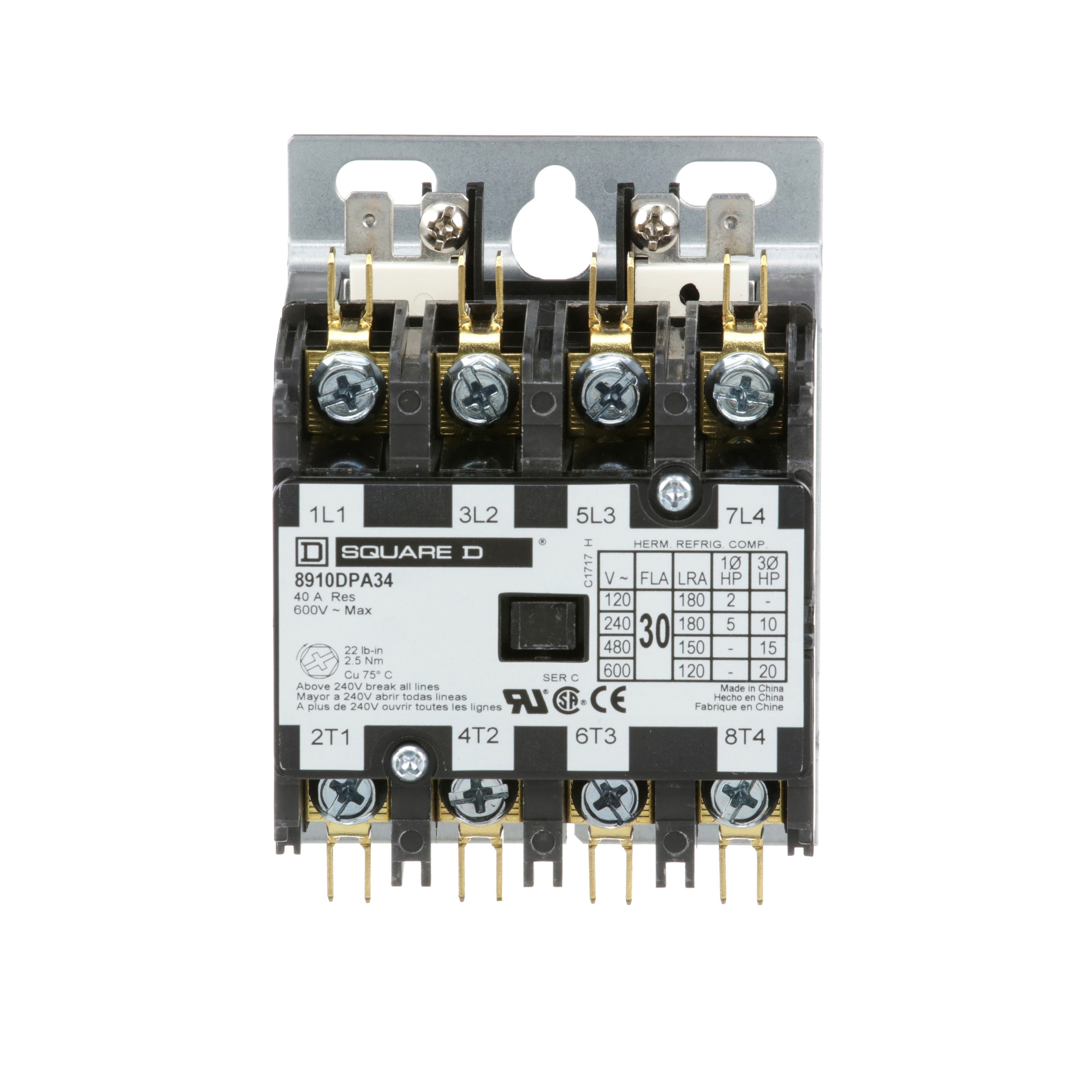

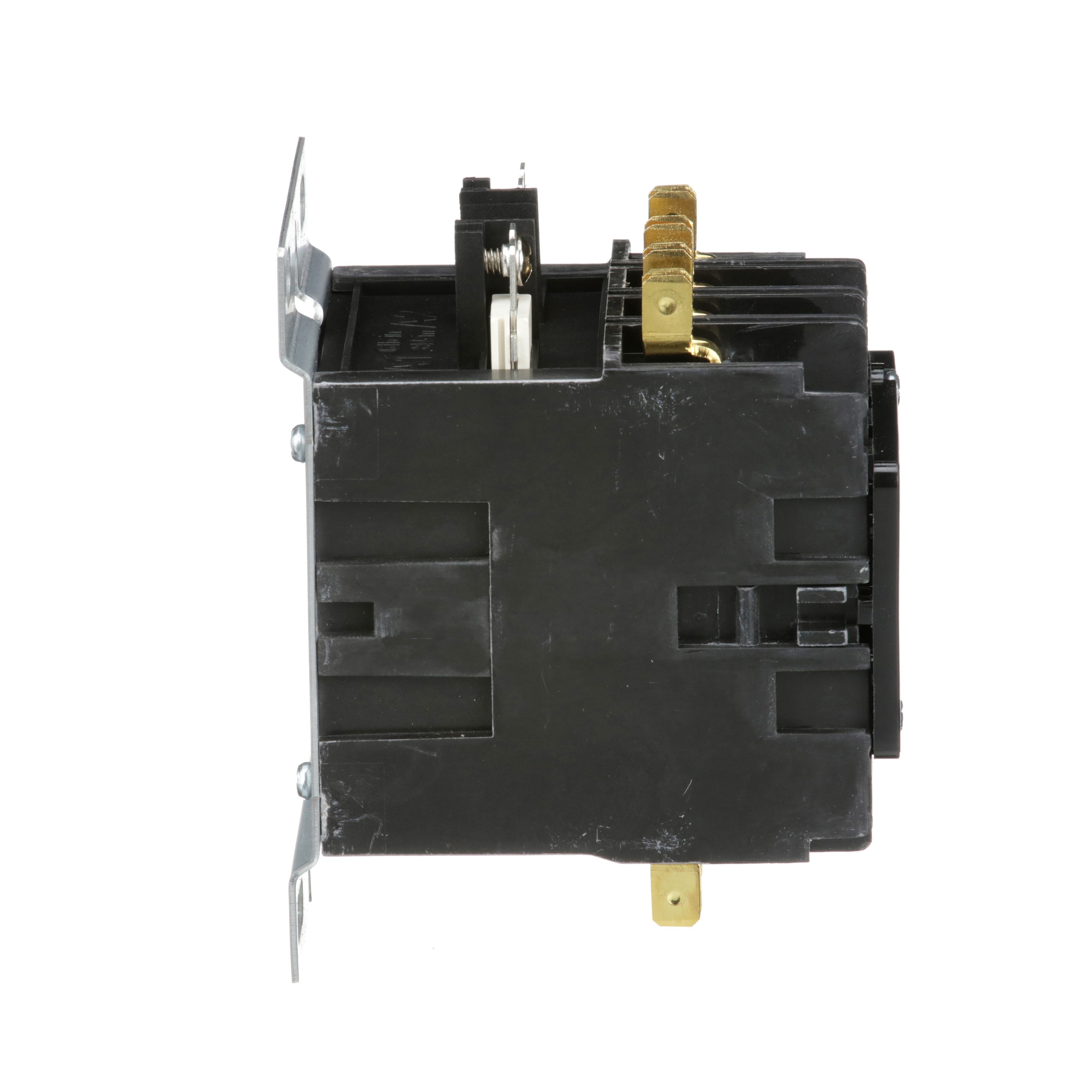

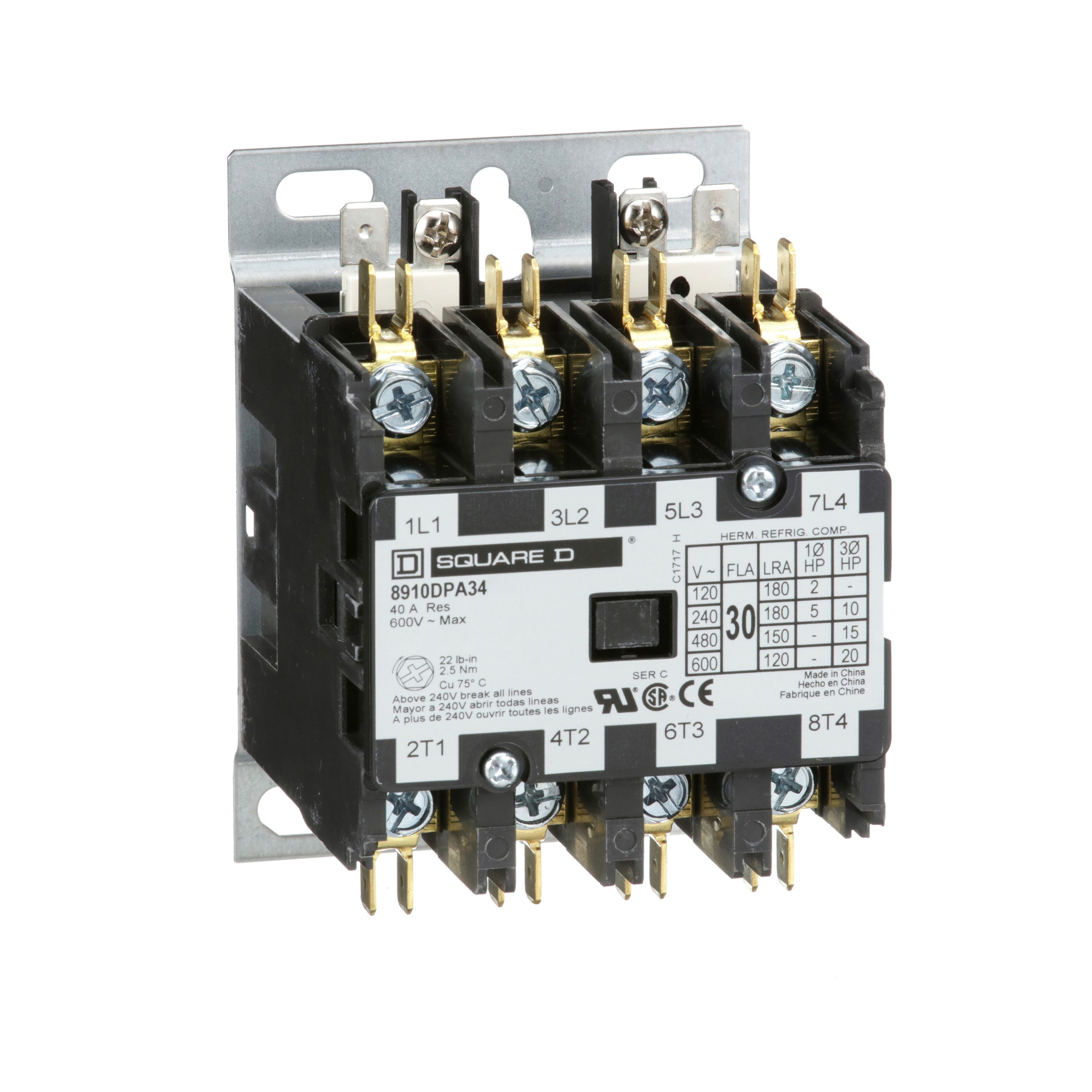

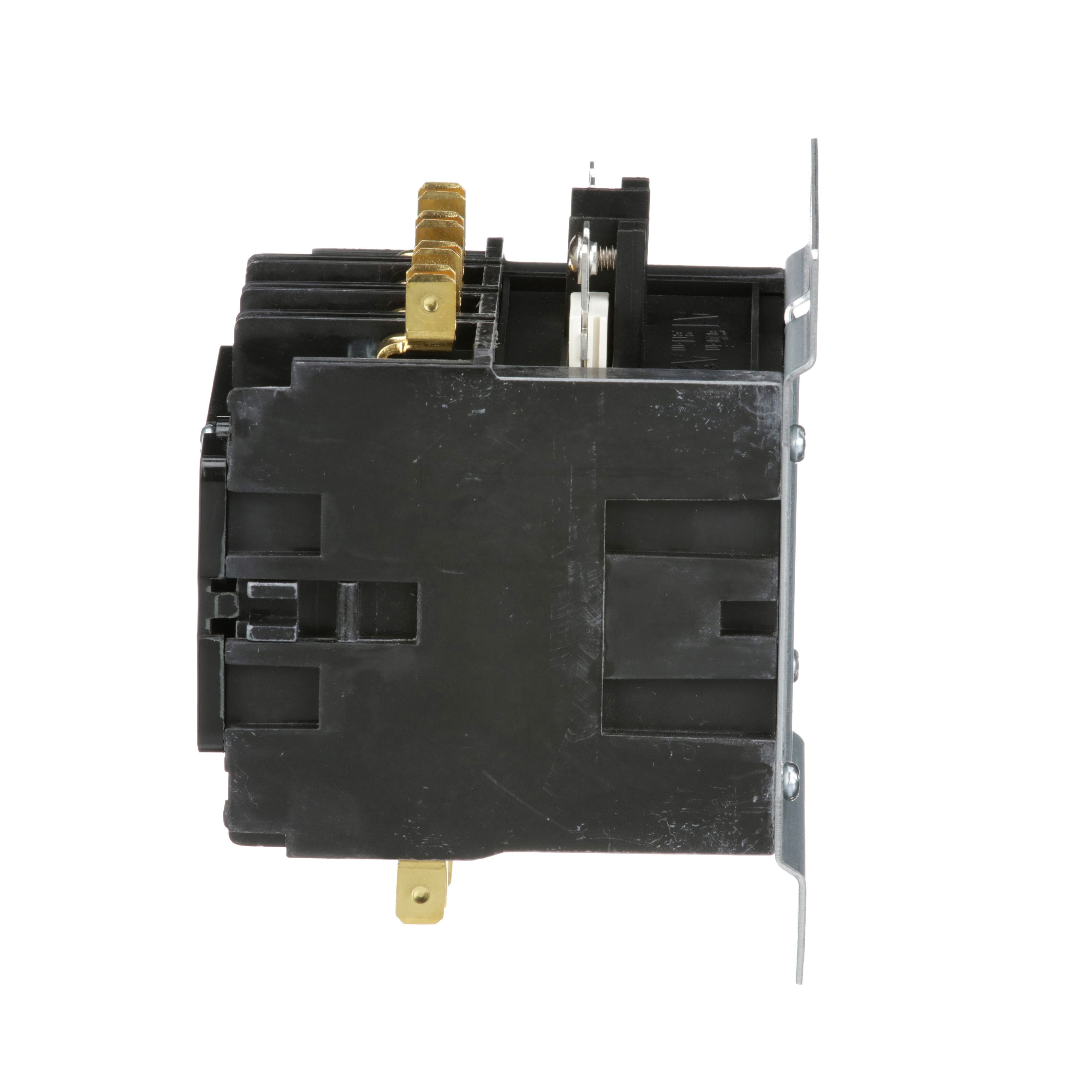

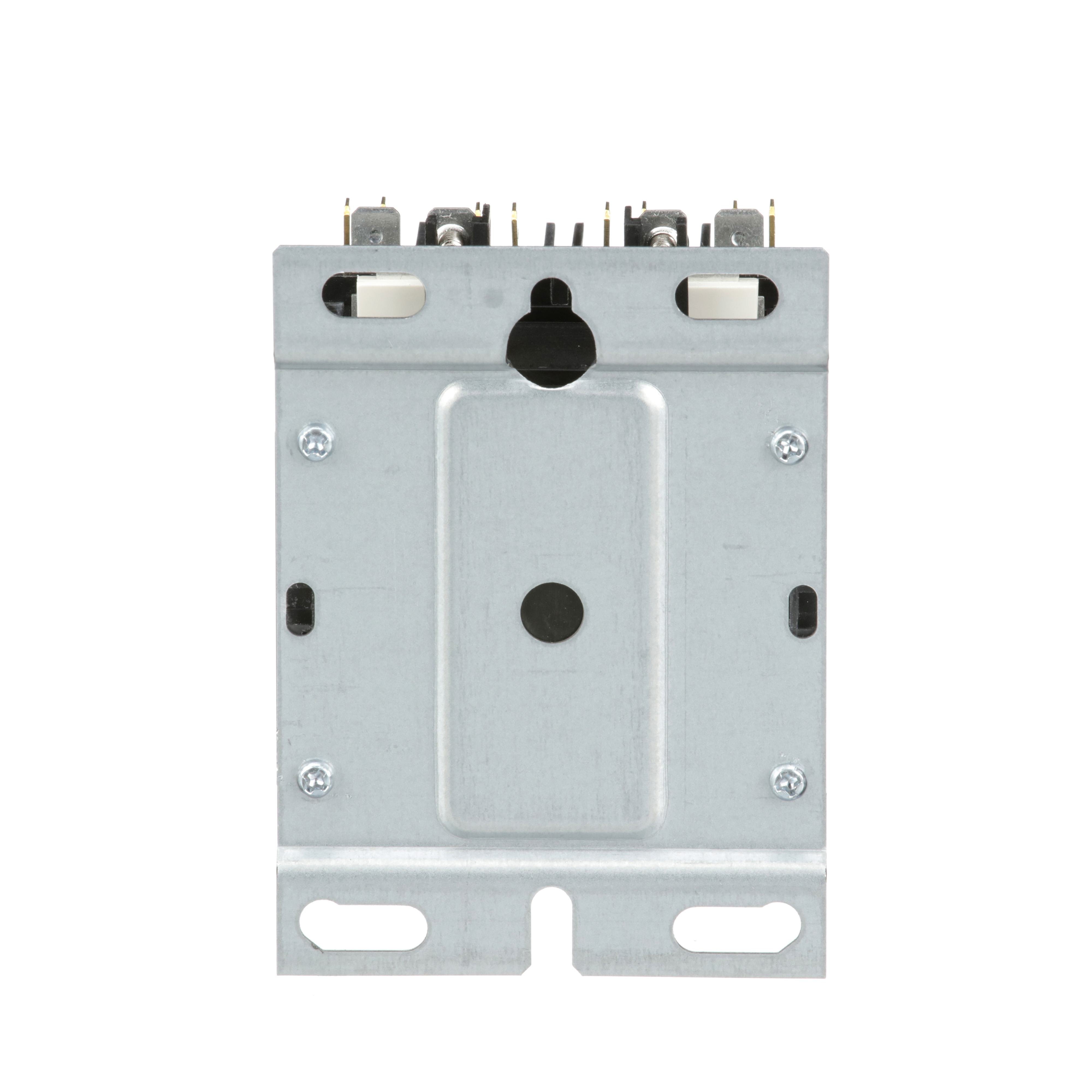

Picture of 8910DPA34V14 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 24/24VAC 50/60Hz coil, open

8910DPA34V14 - Contactor, Definite Purpose, 30A, 4 pole, 20HP at 575VAC, 3 phase, 24/24VAC 50/60Hz coil, open

Item Code: 32519

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 8910DPA34V14

Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Specifications

Weight

1.31

Width

4.06

Length

3.17

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8910DPA34V04/8910DPA34V04.spin

AD All Features

Electrical systems protection from overloads and short circuits

AD Alternative Part Number

8006732

AD Application

Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901073512

AD Gtin

00785901073512

AD IDEA Index ID

8006732

AD Invoice Description

CONTACTOR DEFINITE PRP 3-PH TYPE DPA 30A

AD Item Features 01

Electrical systems protection from overloads and short circuits

AD Item Features 02

Quick connect terminals and binder head screws for easy wiring

AD Item Features 03

Compact design and exclusive DIN mounting option

AD Keywords

8910DPA34V14 3-Phase Type DPA Definite Purpose Contactor, 24 V AC V Coil, 30 A, 4NO Contact, 4 Poles ; Schneider Electric ; Square D ; 8910DPA34V14 ; 8910DPA34V14 ; 785901073512 ; Definite Purpose Contactors AC

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

3.1700

AD Package Length UOM

AD Package Quantity

AD Package Weight

1.3100

AD Package Weight UOM

AD Package Width

4.0600

AD Package Width UOM

AD Part Number Keywords

8910DPA34V14 ; 8006732 ; 785901073512 ; 78590107351 ; 00785901073512 ; 0785901073512

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

Spec 12 Attribute

Operating Cycles

Spec 12 Attribute UOM

CPM

Spec 12 Attribute Value

500

Spec 13 Attribute

Operating Temperature

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

32 To 149

Spec 14 Attribute

Series

Spec 14 Attribute Value

8910

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Quick-Connect

Spec 16 Attribute

Type

Spec 16 Attribute Value

3-Phase Type DPA

Spec 17 Attribute

Wattage

Spec 17 Attribute Value

1.5 kW at 115 V/3.7 kW at 230 V/7.5 kW at 230 V/11 kW at 460/575 V

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Binding head screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

4NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

2.75 in W x 3 in D x 3.77 in H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Open

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

Spec 9 Attribute Value
