Square D

8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open

Category Definite Purpose Contactors

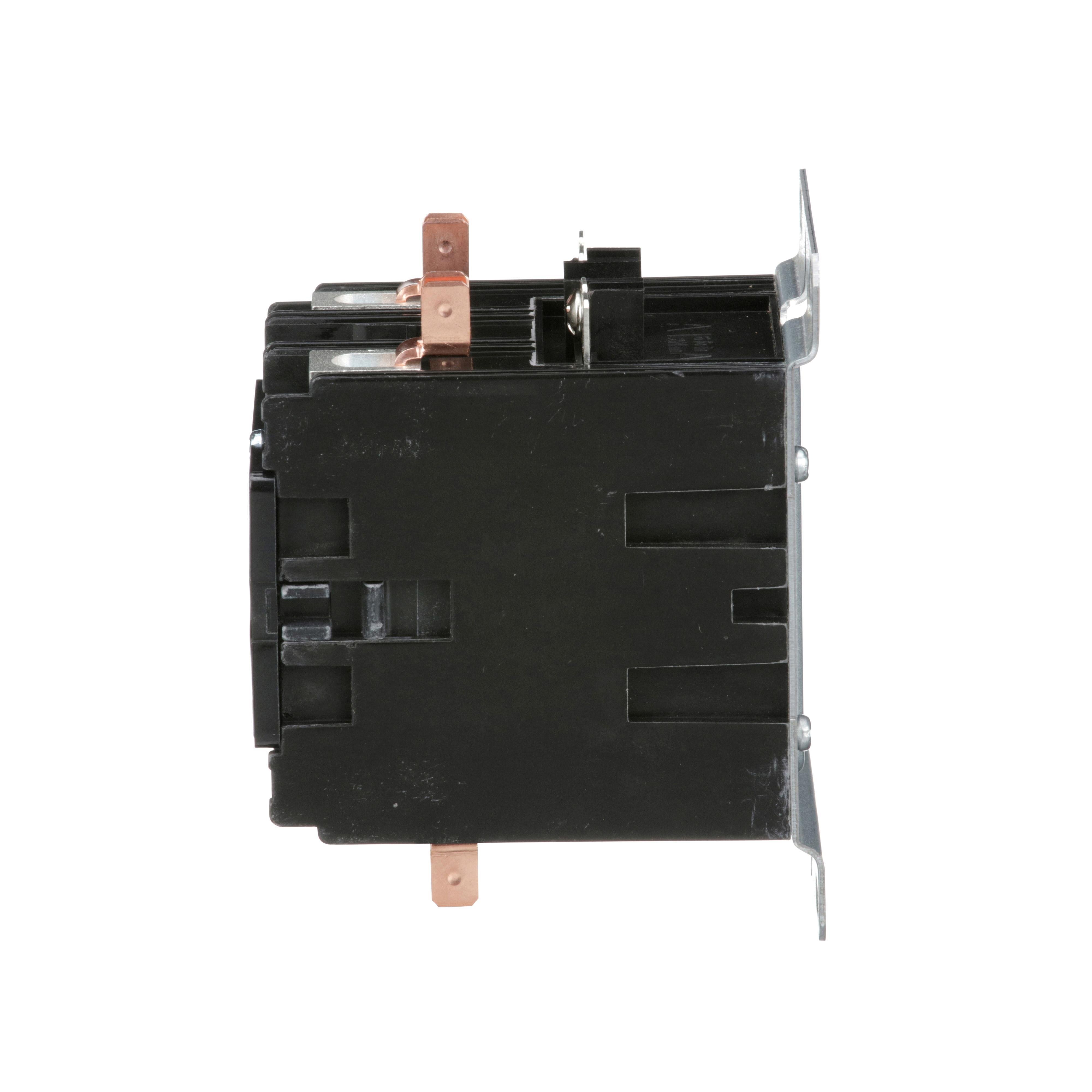

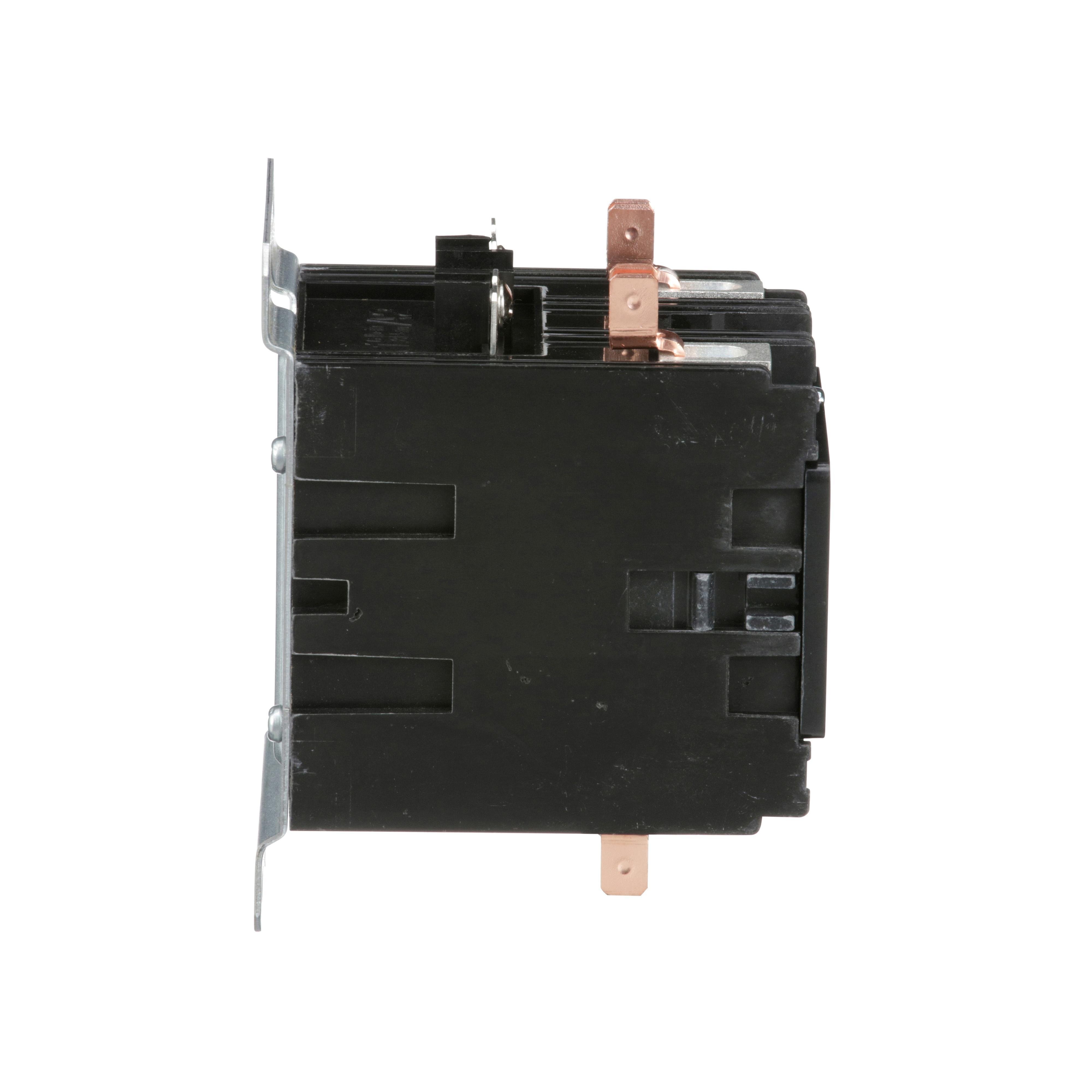

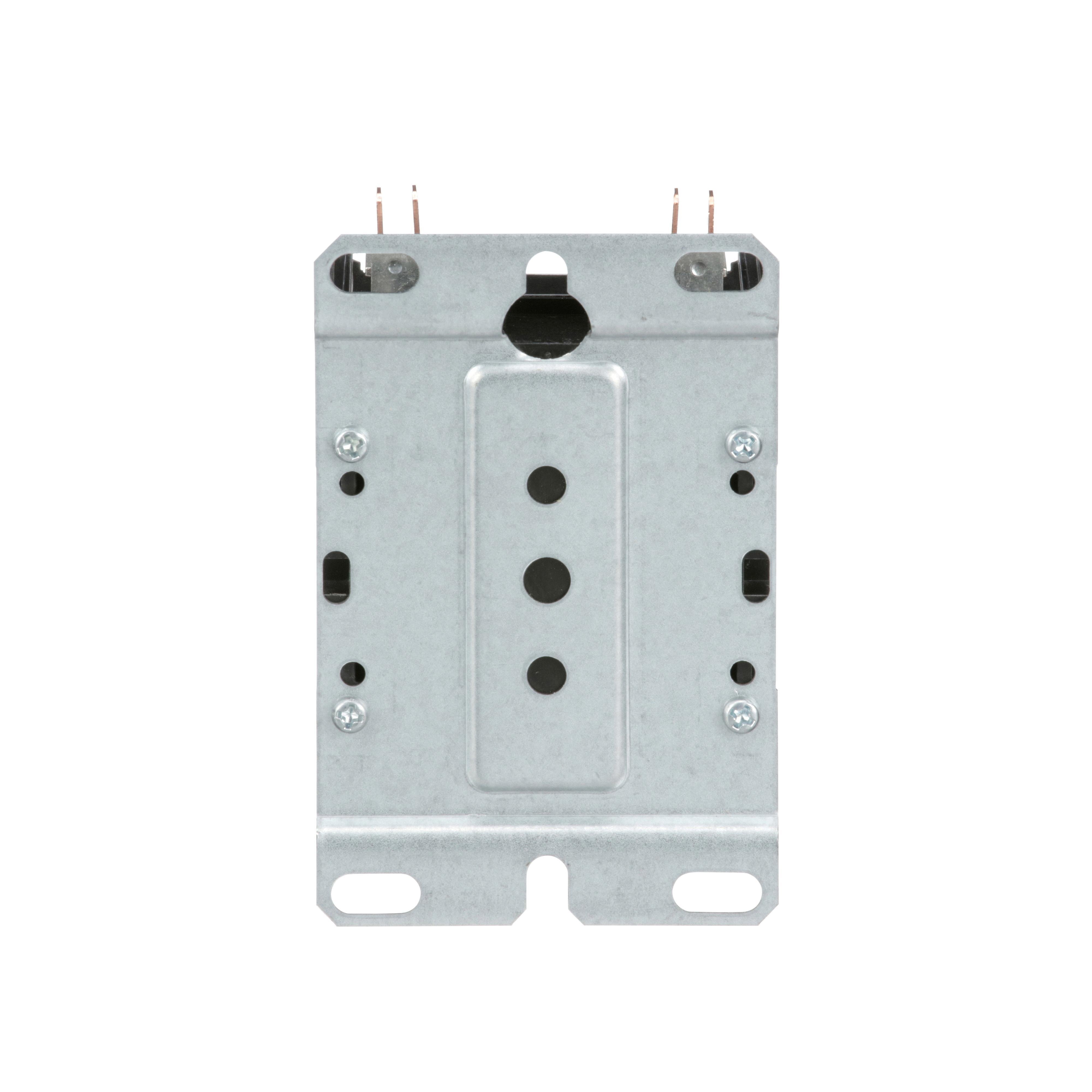

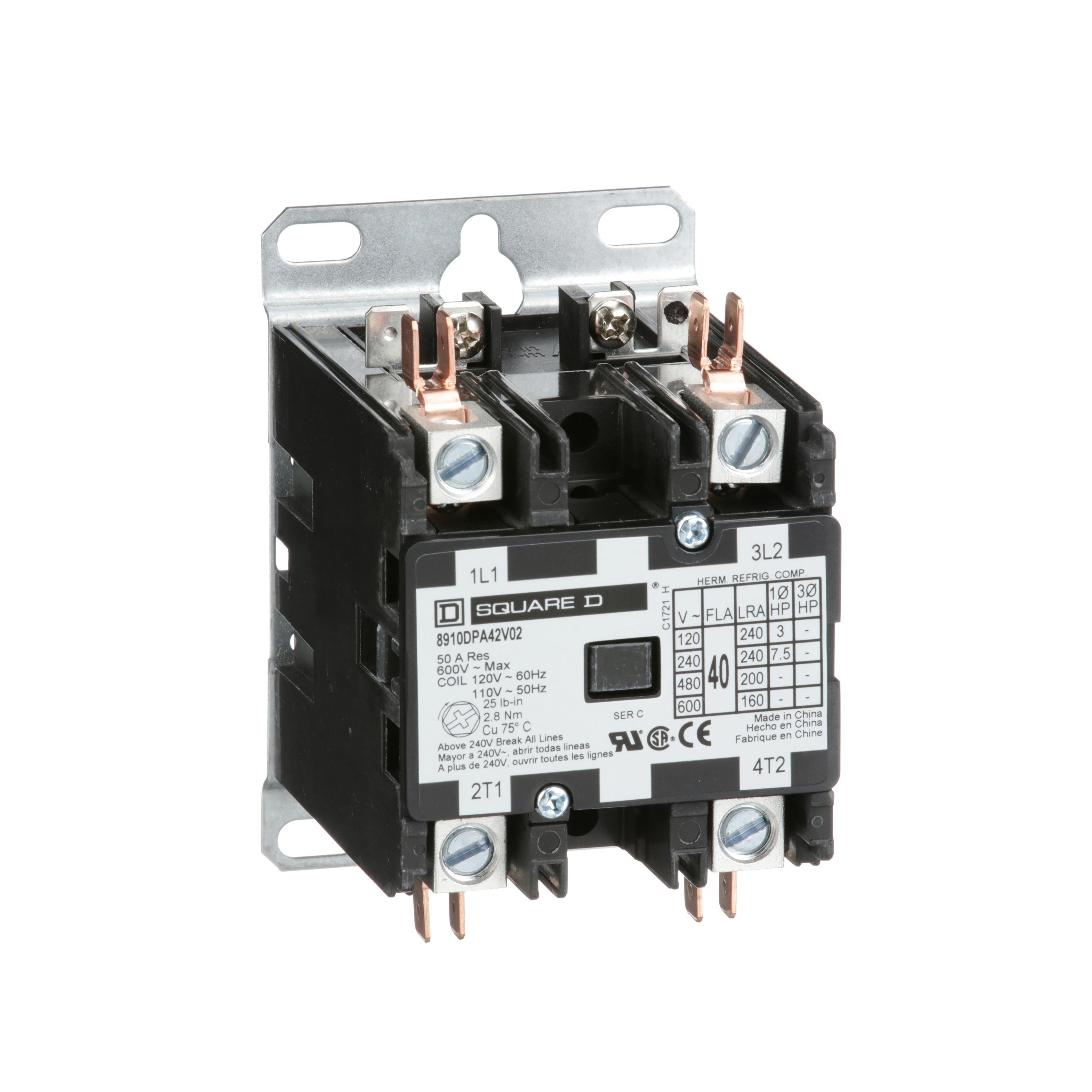

Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open
Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open
Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open
Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open
Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open Picture of 8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open
Square D

8910DPA42V02 - Contactor, Definite Purpose, 40A, 2 pole, 7.5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open

Item Code: 17283
Category Definite Purpose Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DPA42V02

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Specifications

Weight

1.01lb

Height

3.2mm

Width

3.08mm

Length

3.98mm

AD All Features

Electrical systems protection from overloads and short circuits

AD Application

Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

CONTACTOR PRP DEFINITE 1-PH ELECTRO-MECH

AD Item Features 01

Electrical systems protection from overloads and short circuits

AD Item Features 02

Quick connect terminals and binder head screws for easy wiring

AD Item Features 03

Compact design and exclusive DIN mounting option

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.2000

AD Package Height UOM

IN

AD Package Length

3.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0100

AD Package Weight UOM

LB

AD Package Width

3.0800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=w8gfg57CotU

Brand

Square D

Category

Definite Purpose Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

3 hp at 115 VAC/7.5 hp at 230 VAC

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

40

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

DIN Track/Panel

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

2

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles

Spec 13 Attribute Value

500000 cycles Mechanical/200000 cycles Electrical

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg F

Spec 14 Attribute Value

32 To 149

Spec 15 Attribute

Series

Spec 15 Attribute Value

8910

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Quick-Connect

Spec 17 Attribute

Type

Spec 17 Attribute Value

Type DPA 1-Phase Electromechanical

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Binding head screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Non-reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

2.5 in W x 3.12 in D x 4 in H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Open

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
