Square D

8910DPA43V02 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open

Category Definite Purpose Contactors

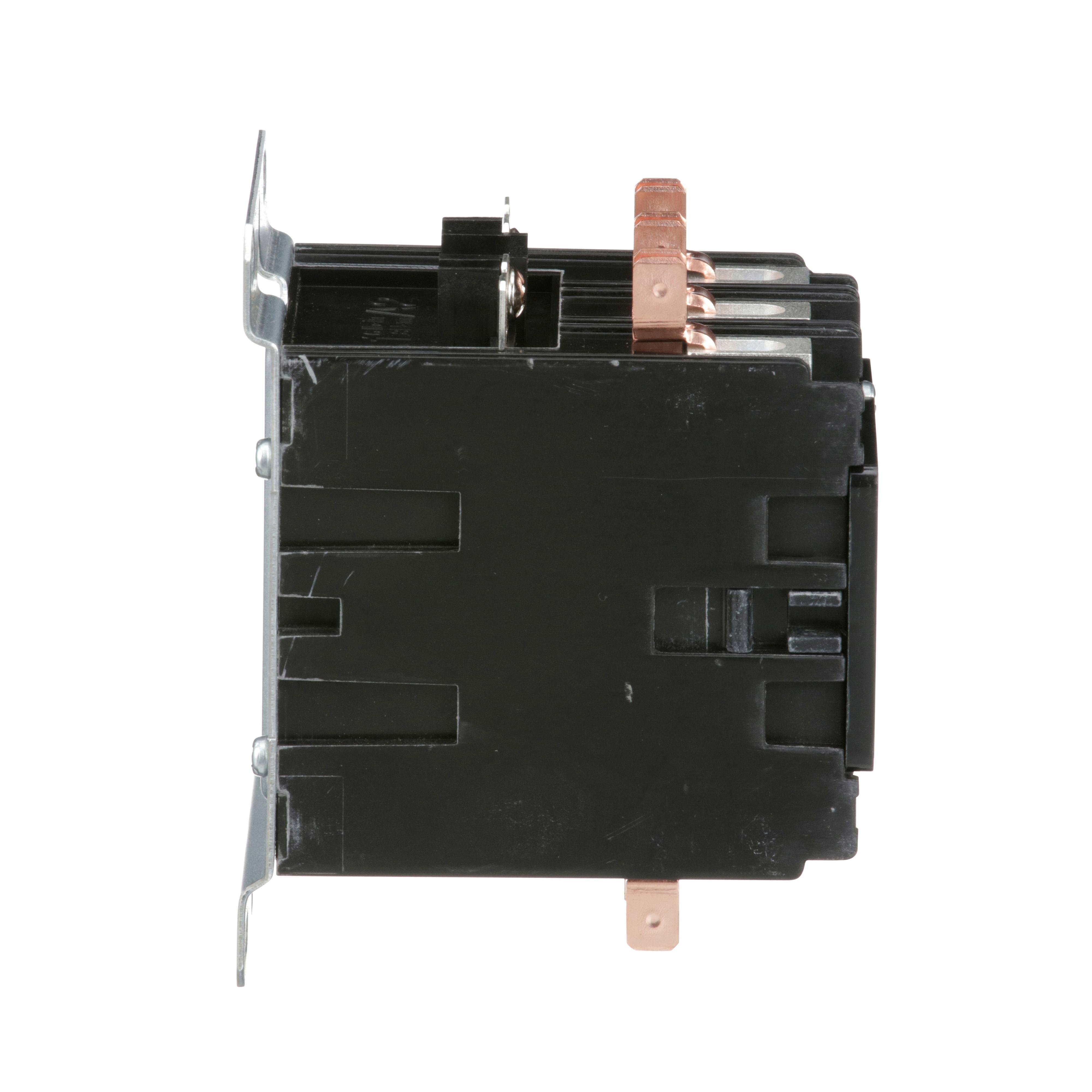

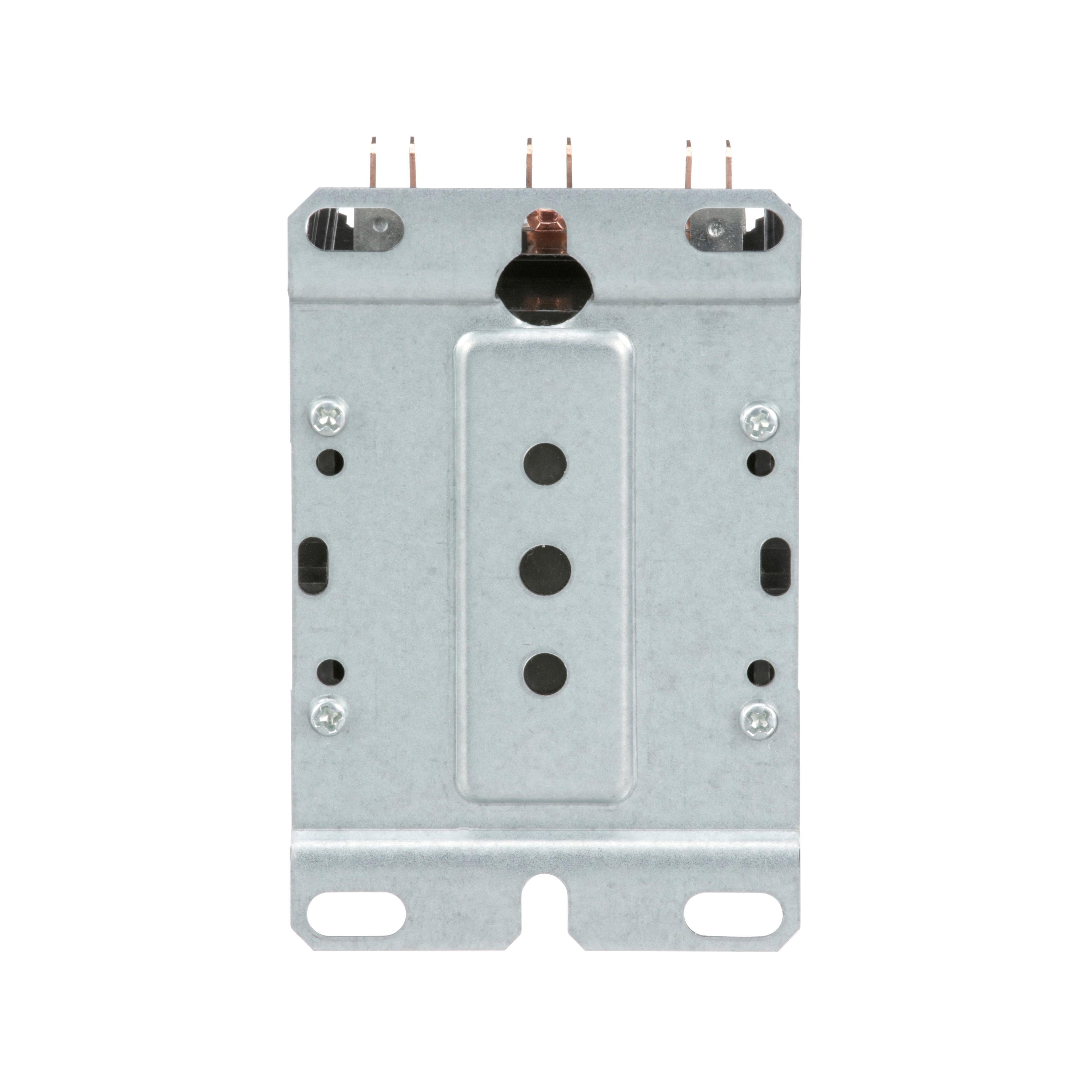

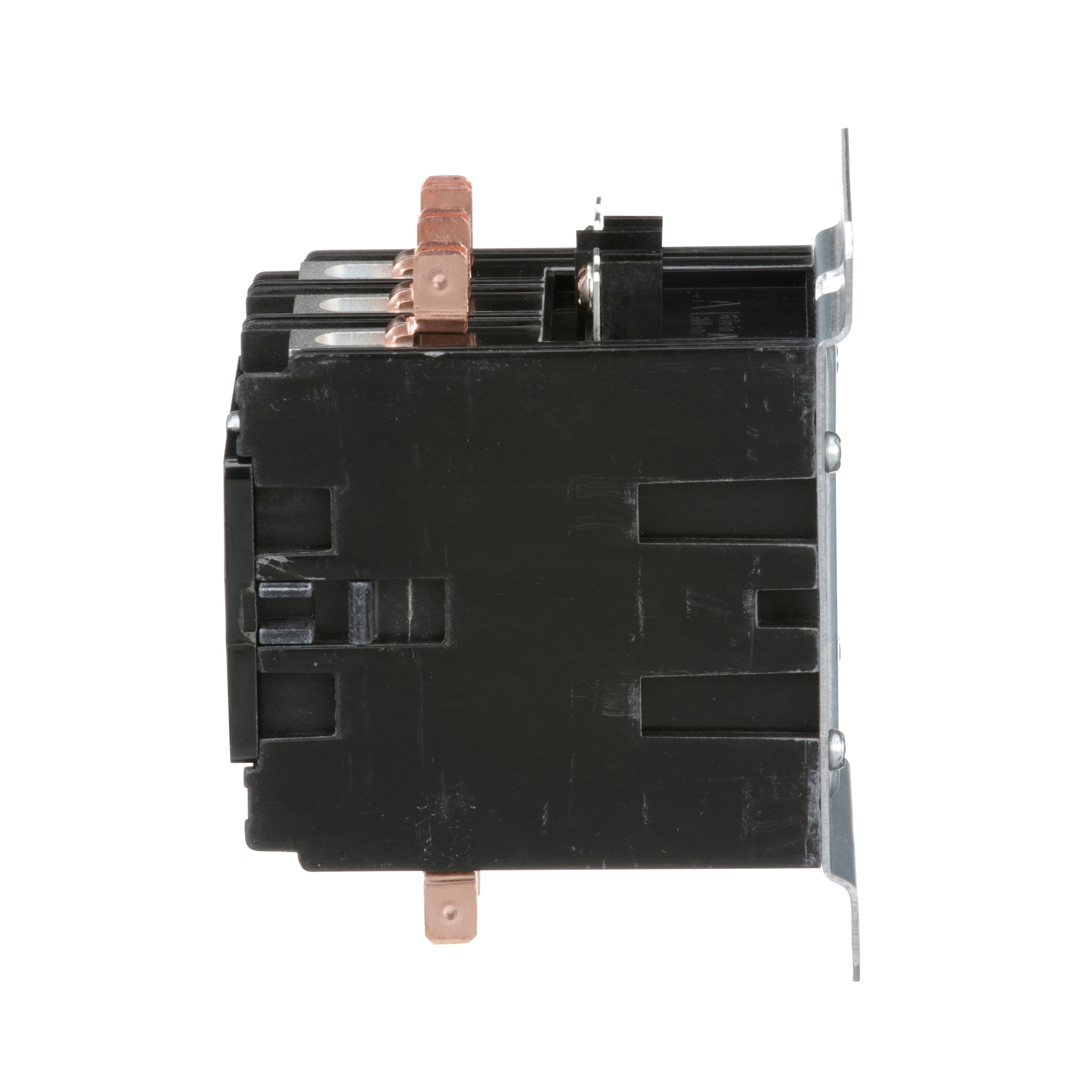

Picture of 8910DPA43V02 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
Square D

8910DPA43V02 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open

Item Code: 17285
Category Definite Purpose Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DPA43V02

RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Specifications

Weight

1.05lb

Height

2.6mm

Width

3.07mm

Length

4.26mm

Depth

76mm

Brand

Square D

Category

Definite Purpose Contactors

Coil Power Rating

3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC

Coil Voltage

110/120 V AC

Connection Type

Box Lug/Quick-Connect

Contact Configuration

3NO

Contact Rating

600 V AC

Contact Type

Non-reversing

Dimensions

60.2 mm H x 76 mm W x 82.5 mm D

Enclosure Type

Open

Frequency Rating

50/60 Hz

Maximum Load Current

40 A

Mounting Type

Panel

Number Of Poles

3

Operating Cycles

500000 cycles

Operating Temperature

0 to 65 deg c

Series

8910DPA

Terminal Type

Box Lug/Quick-Connect

Type

Electro-Mechanical
