Square D

8910DPA43V06 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 440/480VAC 50/60Hz coil, open

Category Definite Purpose Contactors

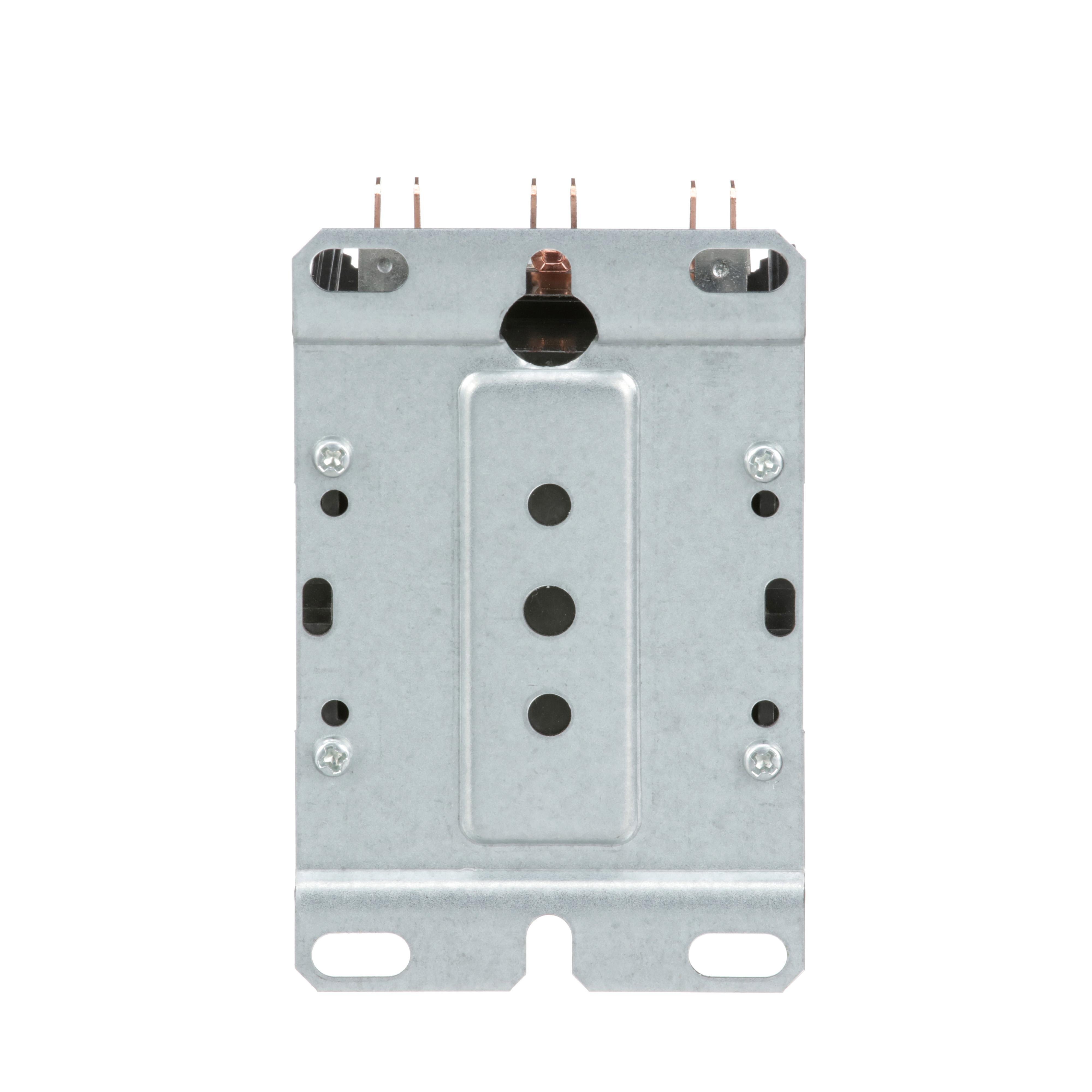

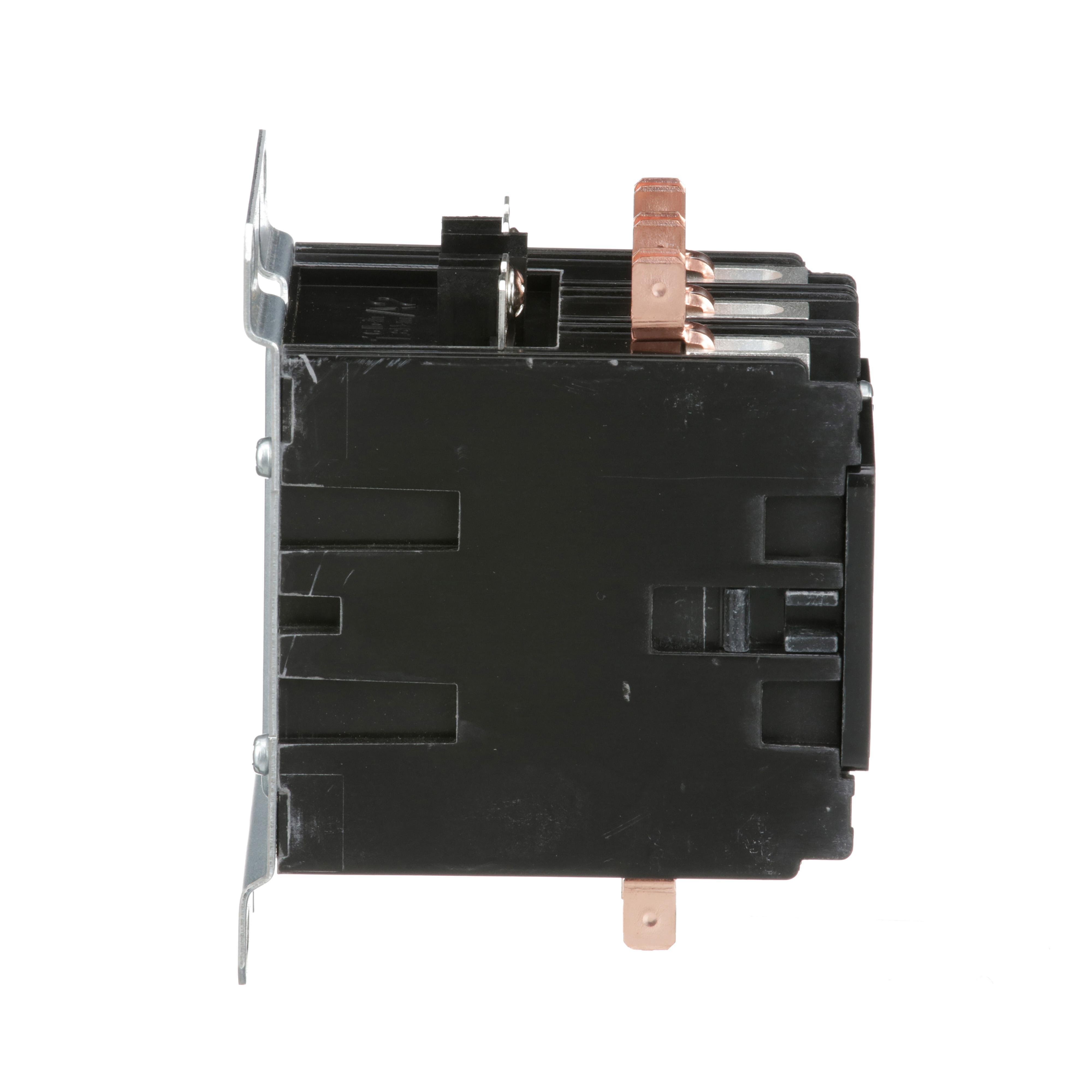

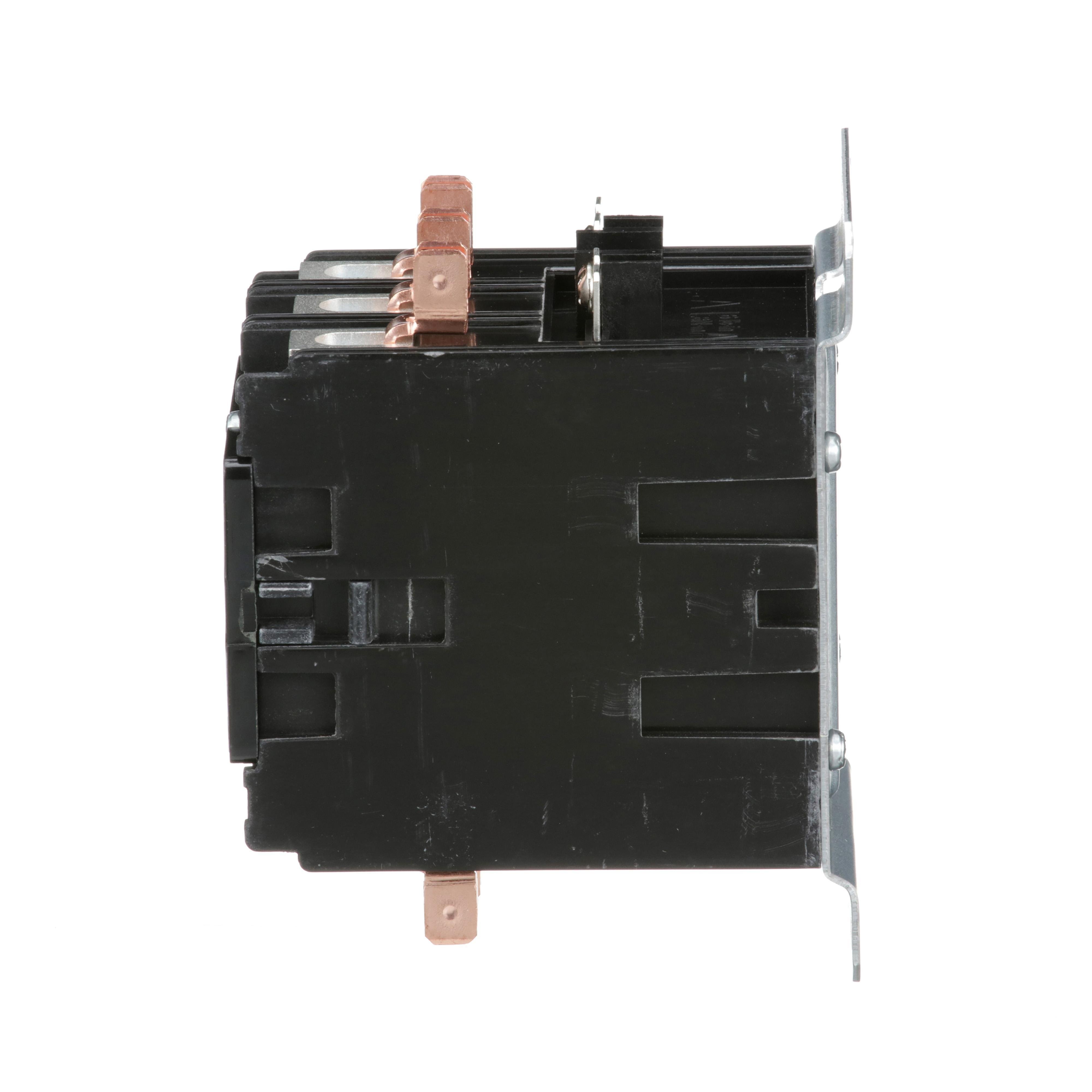

Picture of 8910DPA43V06 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 440/480VAC 50/60Hz coil, open
Square D

8910DPA43V06 - Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 440/480VAC 50/60Hz coil, open

Item Code: 630774
Category Definite Purpose Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8910DPA43V06

RoHS
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Specifications

Weight

1.02

Height

3.2

Width

3.86

Length

2.48

Brand

Square D

Category

Definite Purpose Contactors

Coil Power Rating

3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC

Coil Voltage

440/480 V AC

Connection Type

Binding head screw

Contact Configuration

3NO

Contact Rating

600 V AC

Contact Type

Non-reversing

Dimensions

2.5 in W x 3.12 in D x 4 in H

Enclosure Type

Open

Frequency Rating

50/60 Hz

Maximum Load Current

40 A

Mounting Type

DIN Track/Panel

Number Of Poles

3

Operating Cycles

500000 cycles Mechanical/200000 cycles Electrical cycles

Operating Temperature

32 to 149 deg F

Series

8910

Terminal Type

Quick-Connect

Type

3-Phase Electromechanical Type DPA
