Square D

8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1

Category Definite Purpose Starters

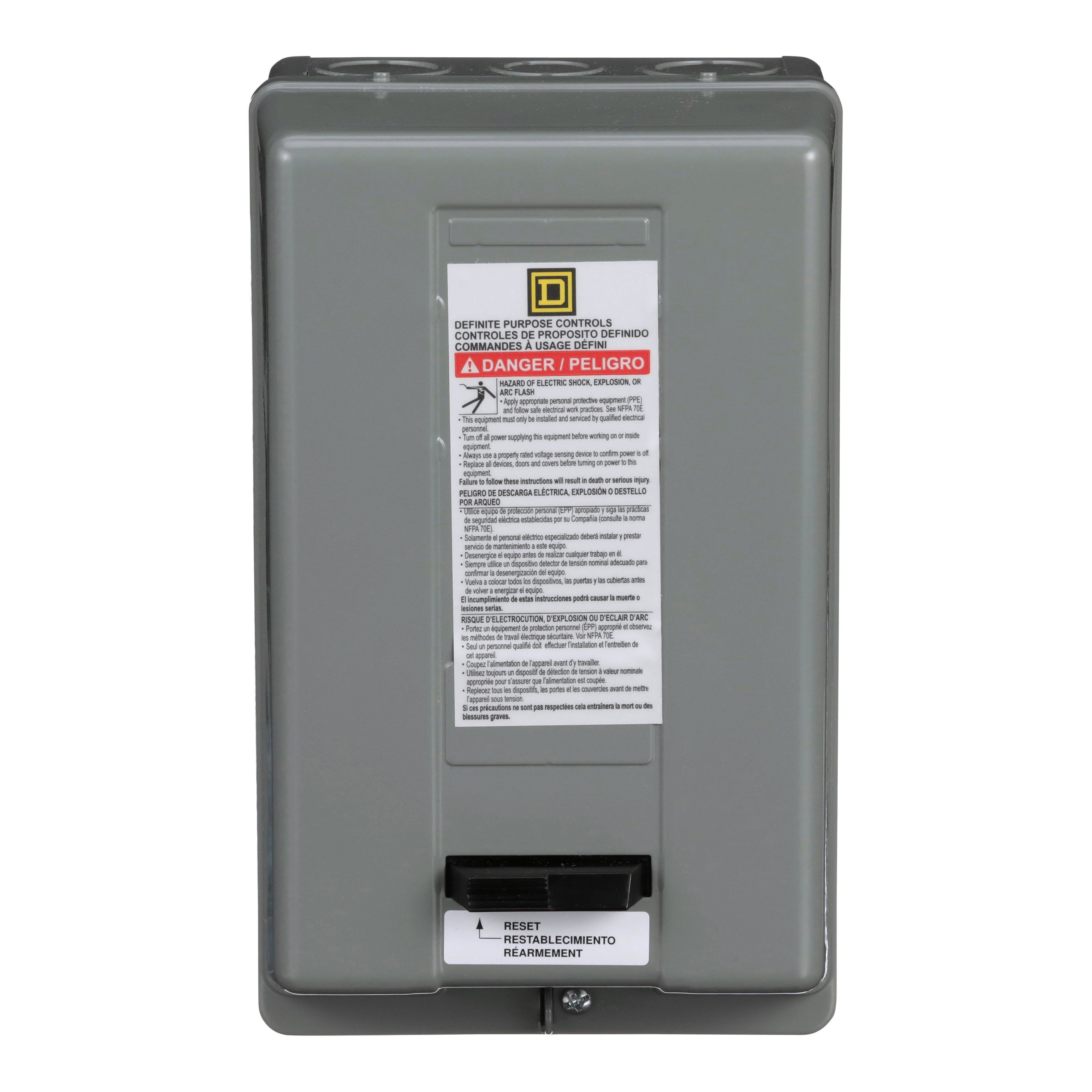

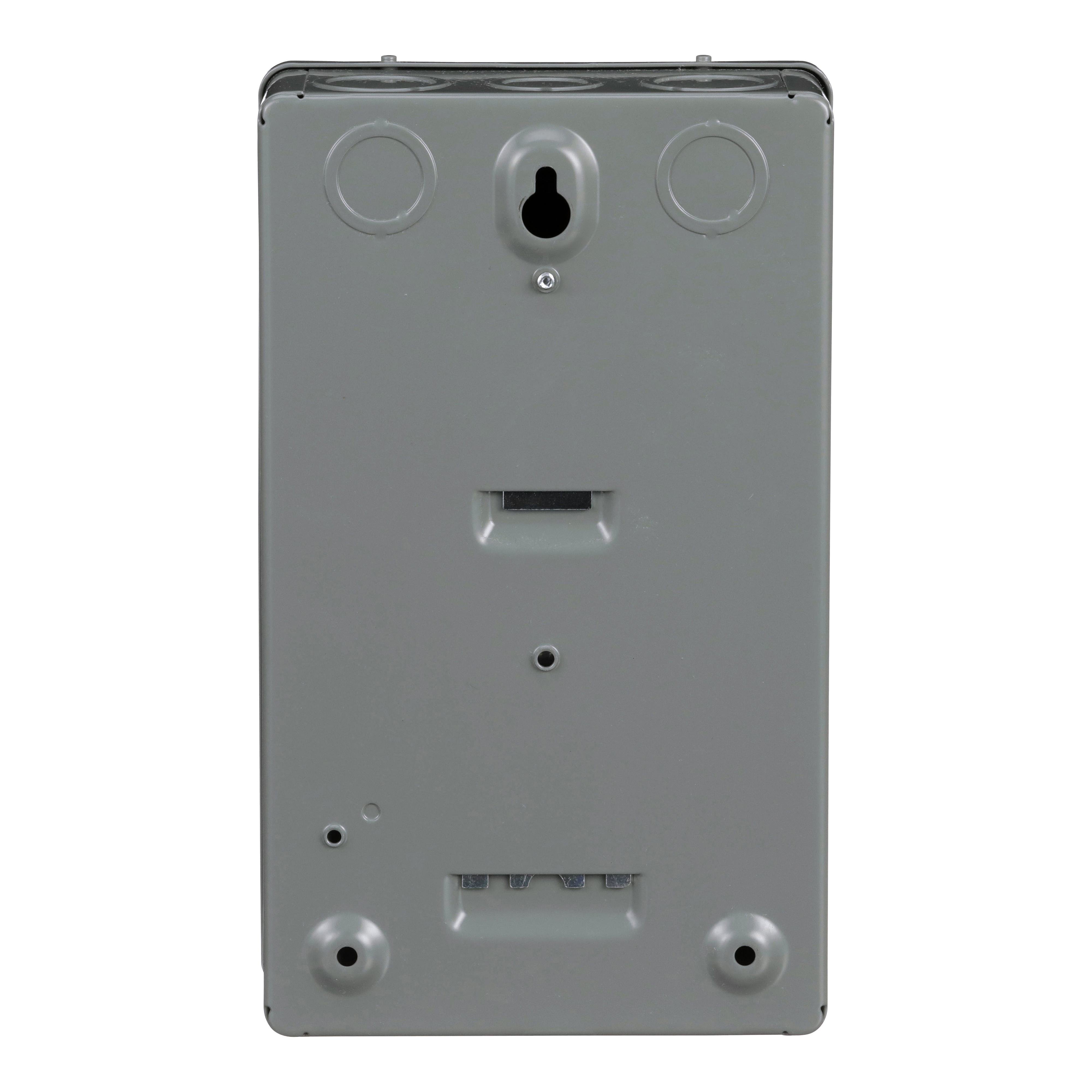

Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1 Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1 Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1 Picture of 8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Square D

8911DPSG42V09 - Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1

Item Code: 637412
Category Definite Purpose Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSG42V09

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

5.82

Width

6.93

Length

11.19

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Application

General Purpose, Indoor, Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

STARTER PRP DEFINITE TYPE DPS 2 NEMA 1

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

11.1900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.8200

AD Package Weight UOM

LB

AD Package Width

6.9300

AD Package Width UOM

IN

Brand

Square D

Category

Definite Purpose Starters

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Thermal Melting Alloy

Spec 12 Attribute

Series

Spec 12 Attribute Value

8911

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type DPS

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

40

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute Value

220 V AC at 50 Hz, 208, 240 V AC at 60 Hz

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

6 in W x 10 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute Value

3 hp at 115 VAC, 7-1/2 hp at 230 VAC

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
