Square D

8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options

Category Miscellaneous

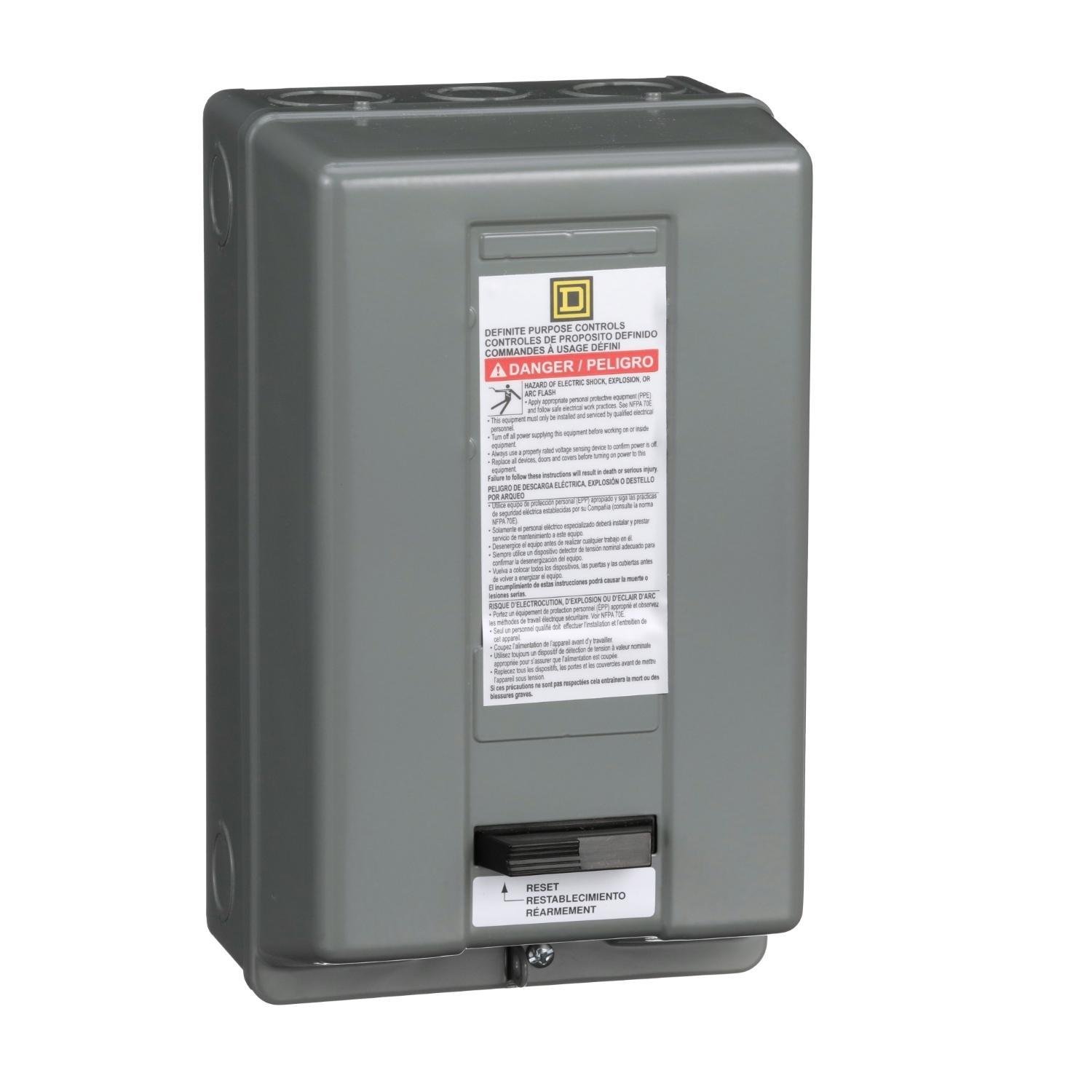

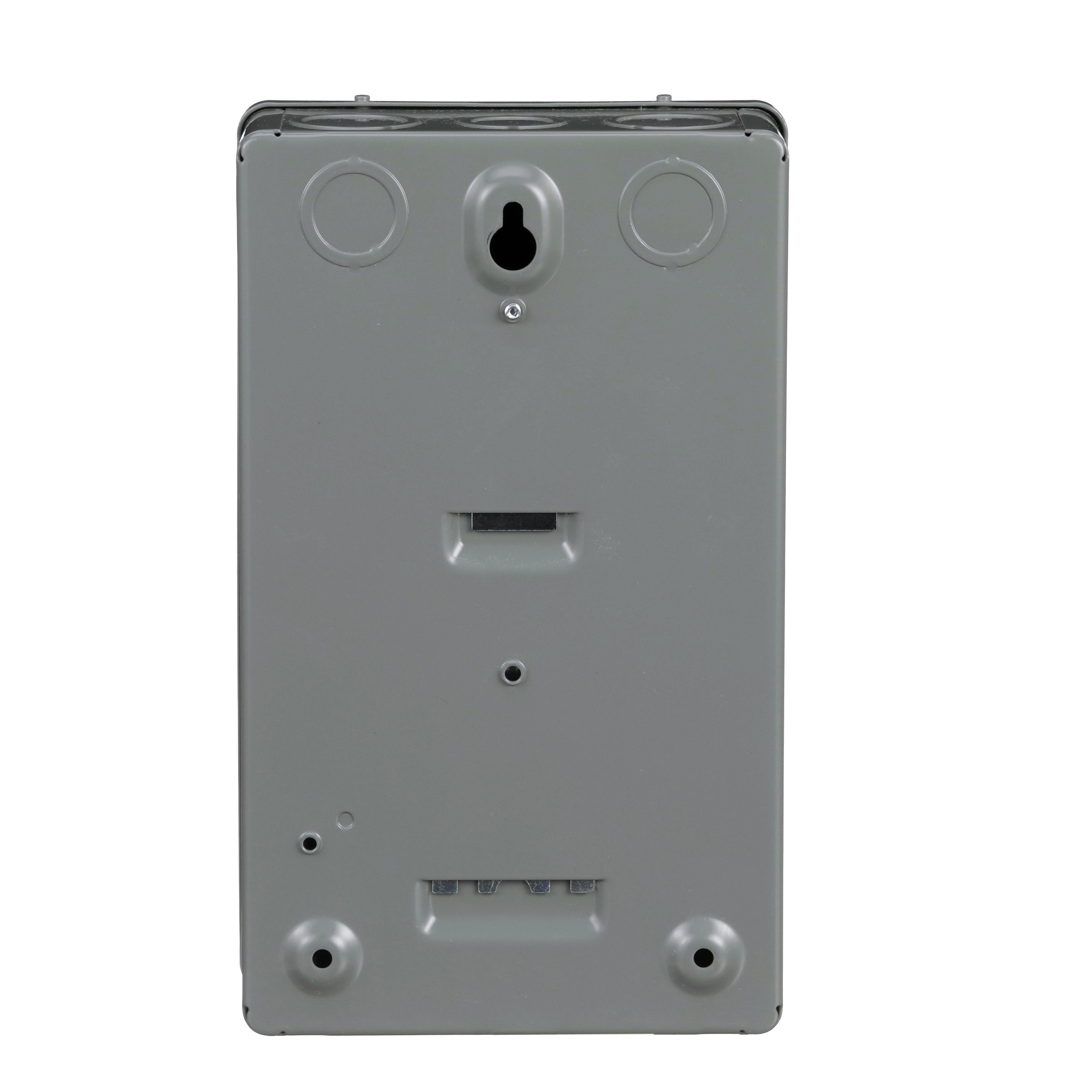

Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options

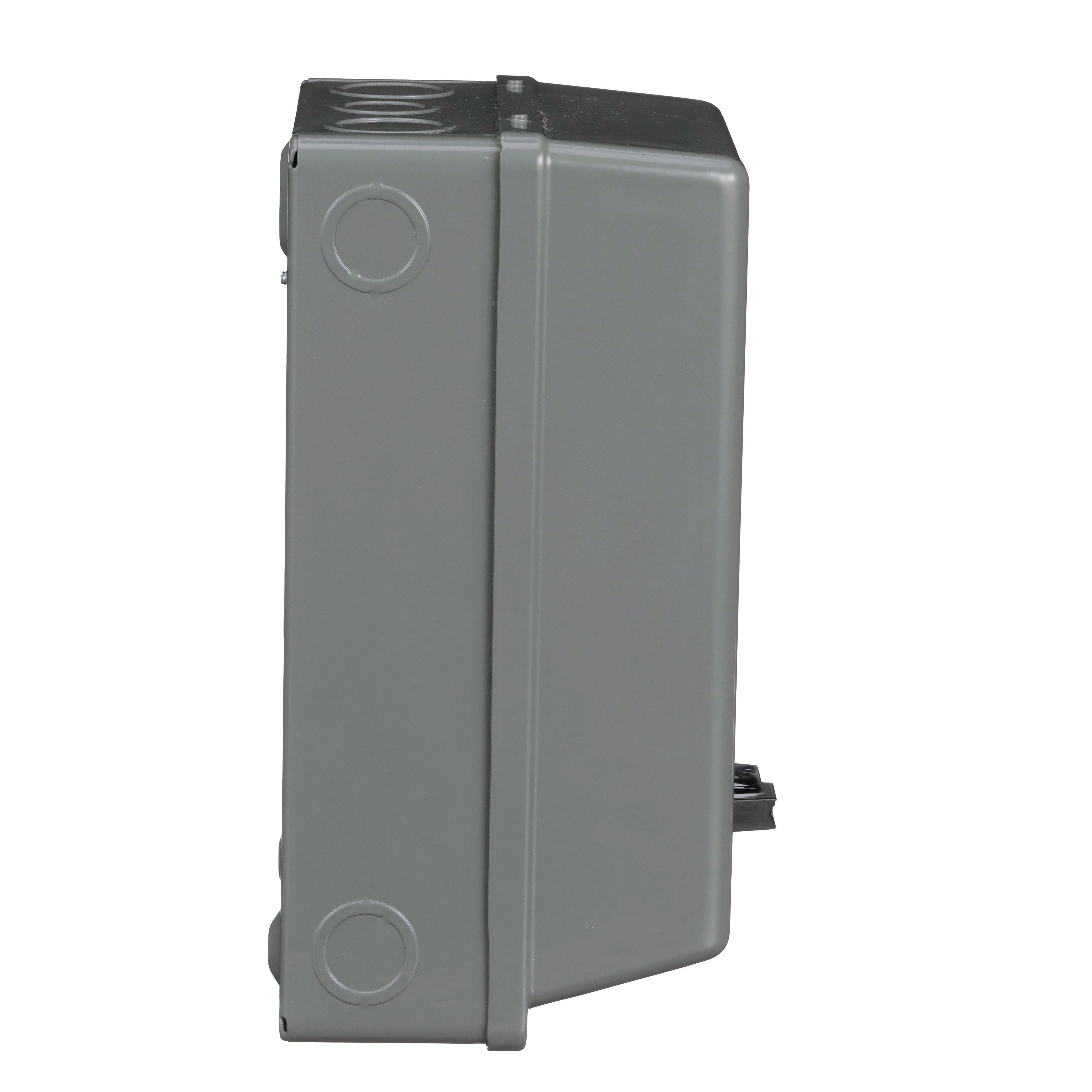

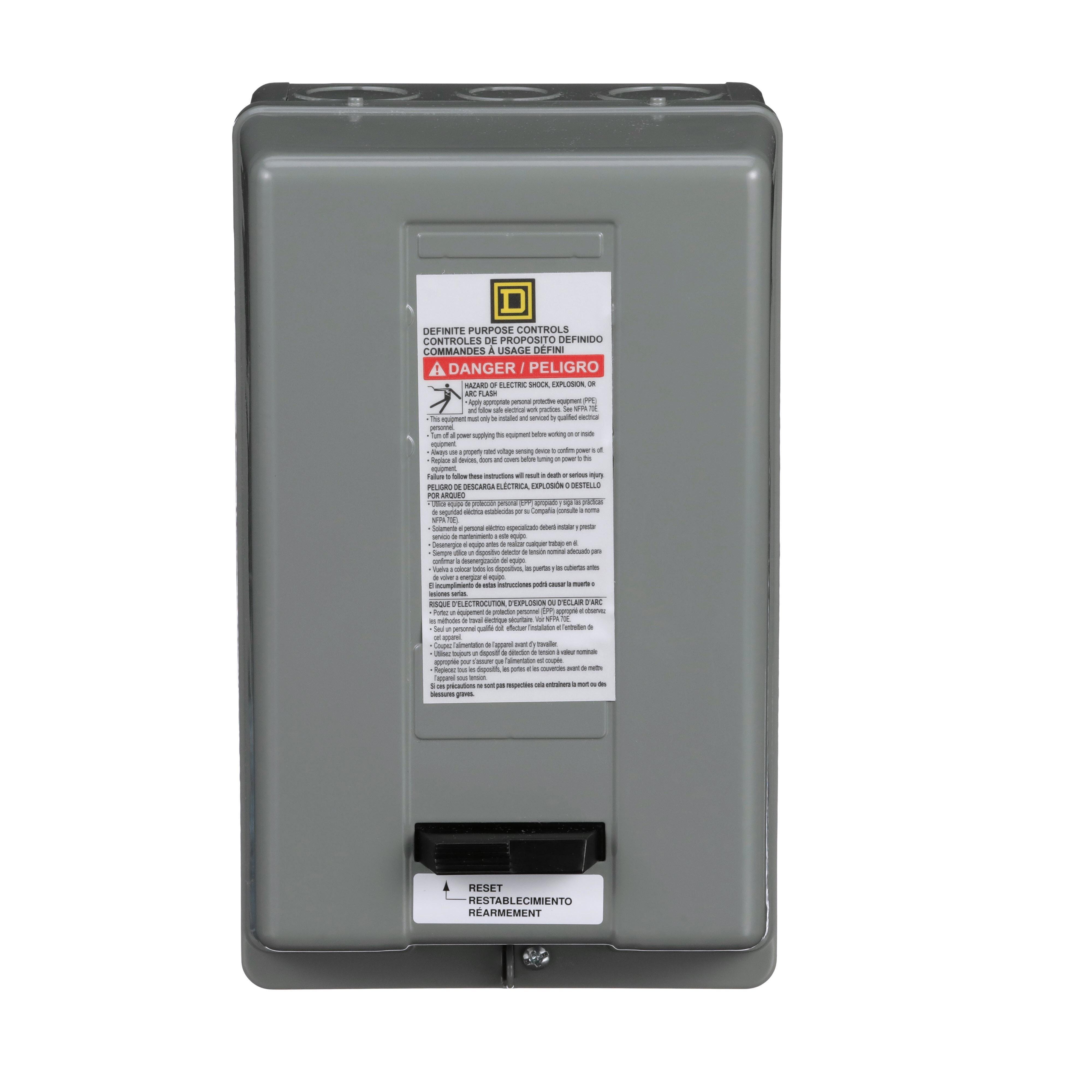

Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options
Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options
Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options
Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options Picture of 8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options
Square D

8911DPSG43V02 - Starter, Definite Purpose, nonreversing, 40A, 3 pole, 3 phase, 120VAC coil, melting alloy overload, NEMA 1, +options

Item Code: 1212533
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSG43V02

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

5.75

Width

6.93

Length

11.09

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8911DPSG13V02/8911DPSG13V02.spin

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Alternative Part Number

8151827

AD Application

General Purpose, Indoor, Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901342762

AD Gtin

00785901342762

AD IDEA Index ID

8151827

AD Invoice Description

STARTER PRP DEFINITE 3 NEMA 1 600VAC 40A

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Keywords

8911DPSG43V02 Type DPS Definite Purpose Starter, 110 V AC at 50 Hz, 120 V AC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 8911DPSG43V02 ; 8911DPSG43V02 ; 785901342762 ; Definite Purpose Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

11.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.7500

AD Package Weight UOM

LB

AD Package Width

6.9300

AD Package Width UOM

IN

AD Part Number Keywords

8911DPSG43V02 ; 8151827 ; 785901342762 ; 78590134276 ; 00785901342762 ; 0785901342762

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

40

Spec 10 Attribute

Reset Type

Spec 10 Attribute Value

(3) Thermal Melting Alloy

Spec 11 Attribute

Series

Spec 11 Attribute Value

8911

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type DPS

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

110 V AC at 50 Hz, 120 V AC at 60 Hz

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

10 in H x 6 in W

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Material

Spec 6 Attribute Value

Sheet Steel

Spec 7 Attribute

motor power

Spec 7 Attribute Value

3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 230 VAC, 20 hp at 460 VAC, 25 hp at 575 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
