Square D

8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Category Miscellaneous

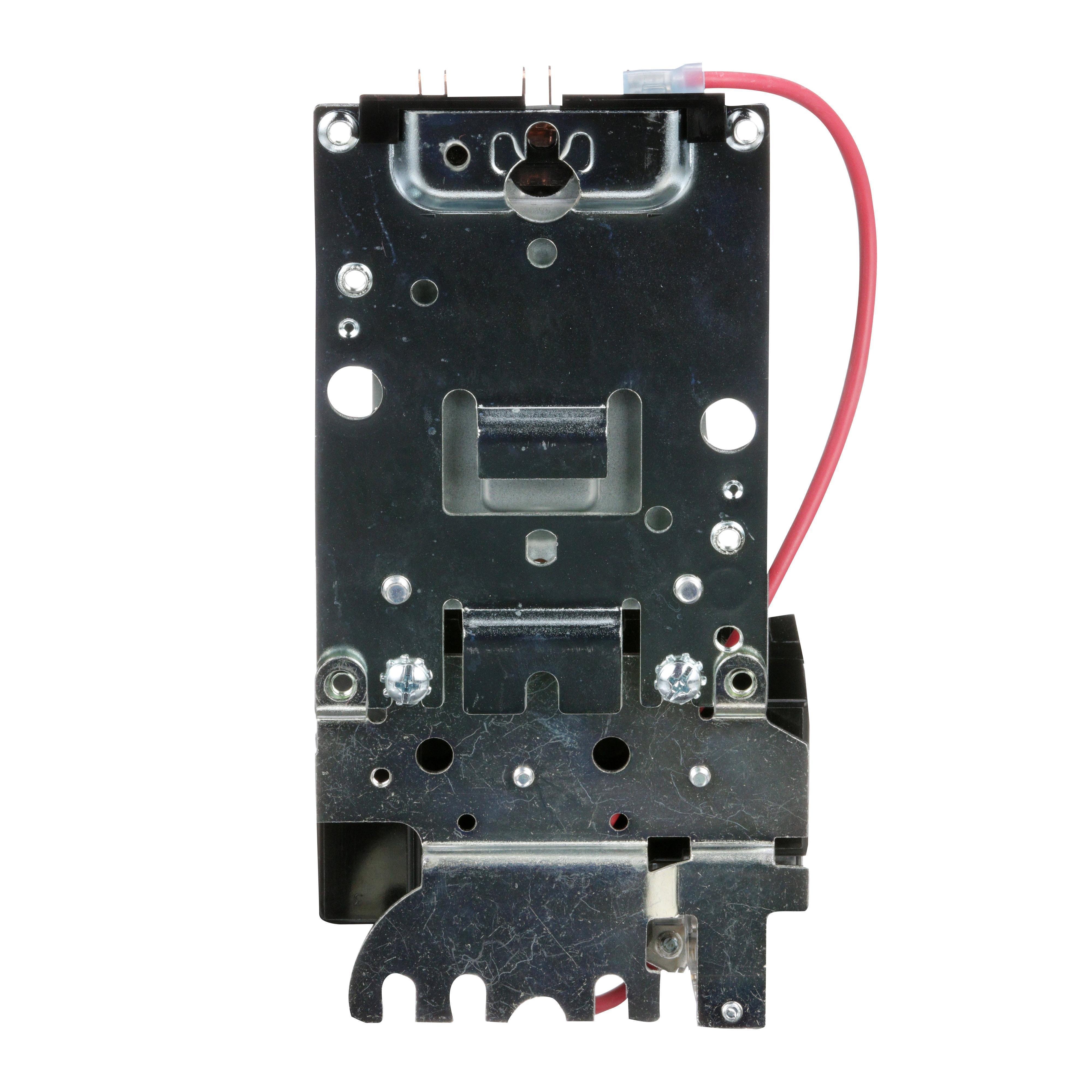

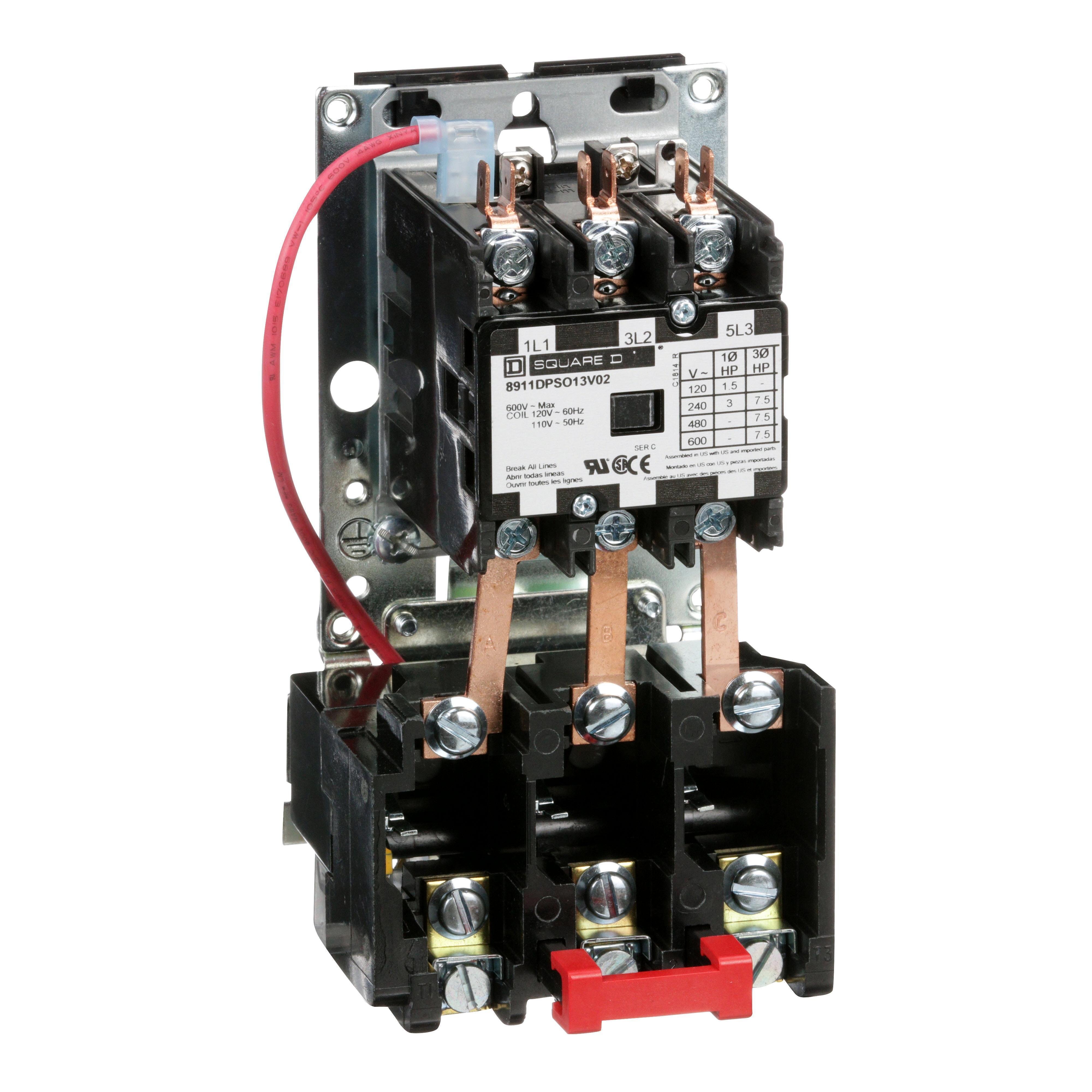

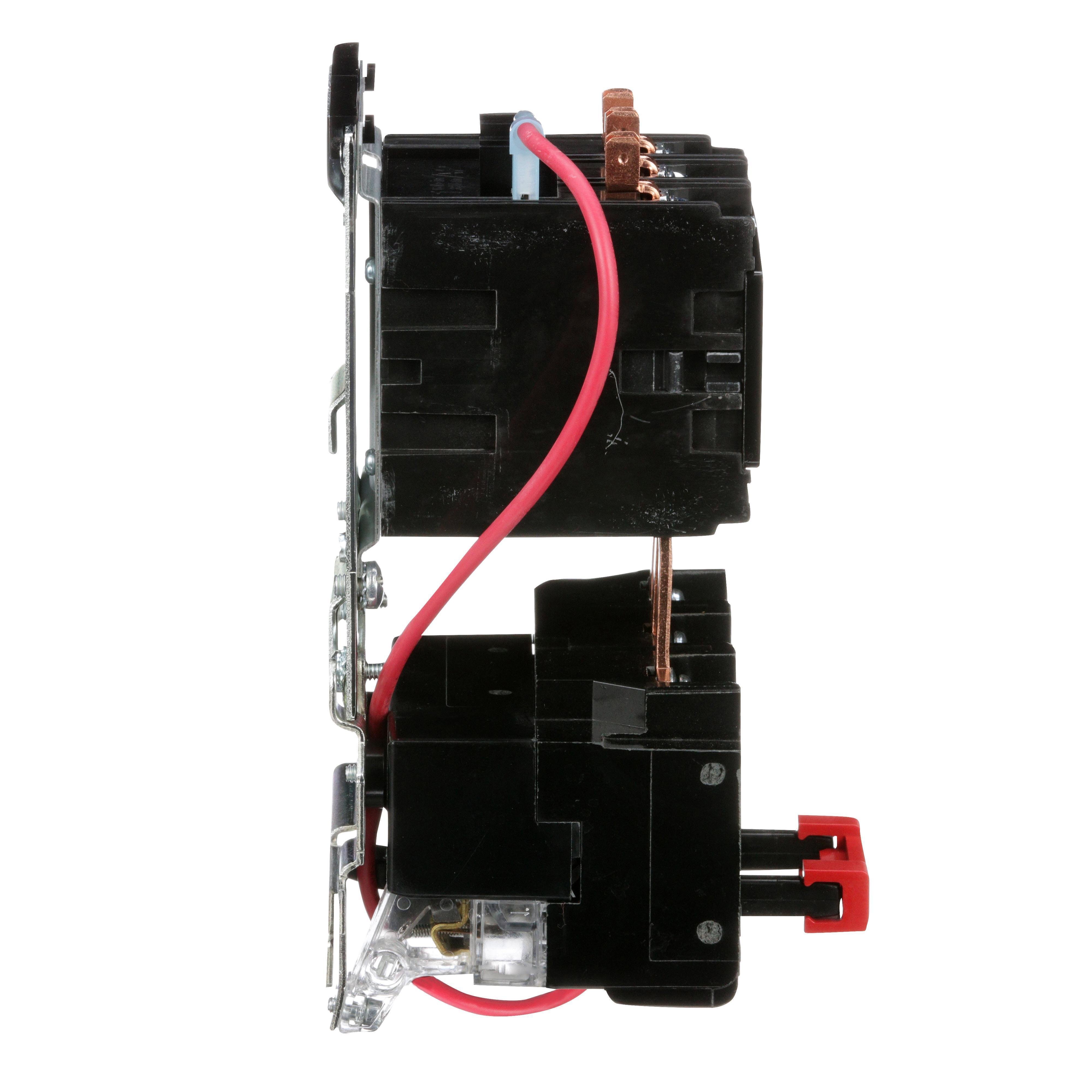

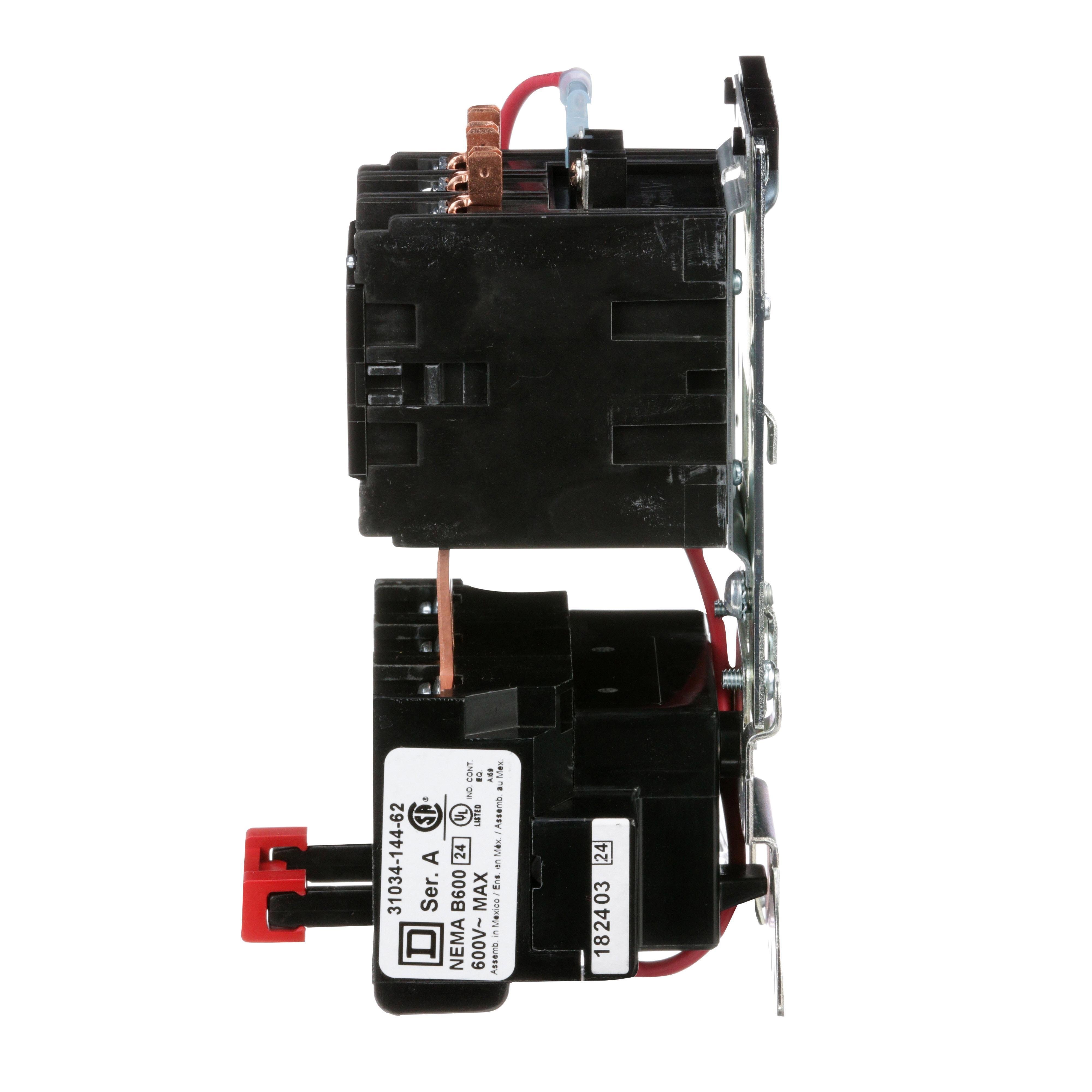

Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open Picture of 8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
Square D

8911DPSO13V02 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Item Code: 585115
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSO13V02

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

2.25

Width

4.75

Length

7.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8911DPSO13V02/8911DPSO13V02.spin

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Alternative Part Number

8033400

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901116752

AD Gtin

00785901116752

AD IDEA Index ID

8033400

AD Invoice Description

STARTER PRP DEFINITE TYPE DPS 110/120VAC

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Item Features 03

Ideal for use with compressors, agricultural equipment, pumps and HVAC equipment

AD Keywords

8911DPSO13V02 Type DPS Definite Purpose Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure ; Schneider Electric ; Square D ; 8911DPSO13V02 ; 8911DPSO13V02 ; 785901116752 ; Definite Purpose Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.2500

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

AD Part Number Keywords

8911DPSO13V02 ; 8033400 ; 785901116752 ; 78590111675 ; 00785901116752 ; 0785901116752

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Series

Spec 10 Attribute Value

8911

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type DPS

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

20

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

110/120

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

Open

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

motor power

Spec 6 Attribute Value

3 hp at 115 VAC, 7-1/2 hp at 460/575 VAC

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Reset Type

Spec 9 Attribute Value

Thermal Melting Alloy
