Square D

8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open

Category Definite Purpose Starters

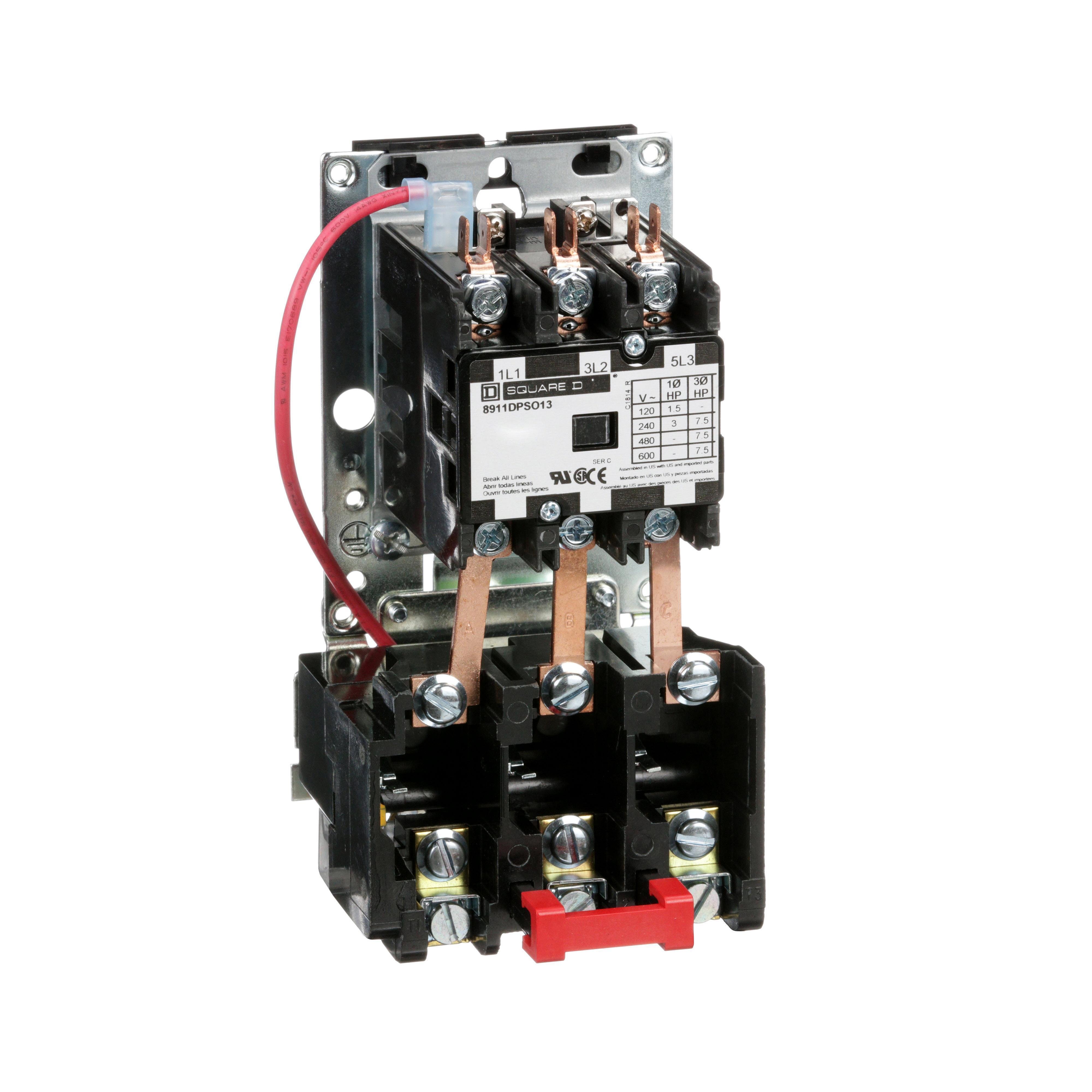

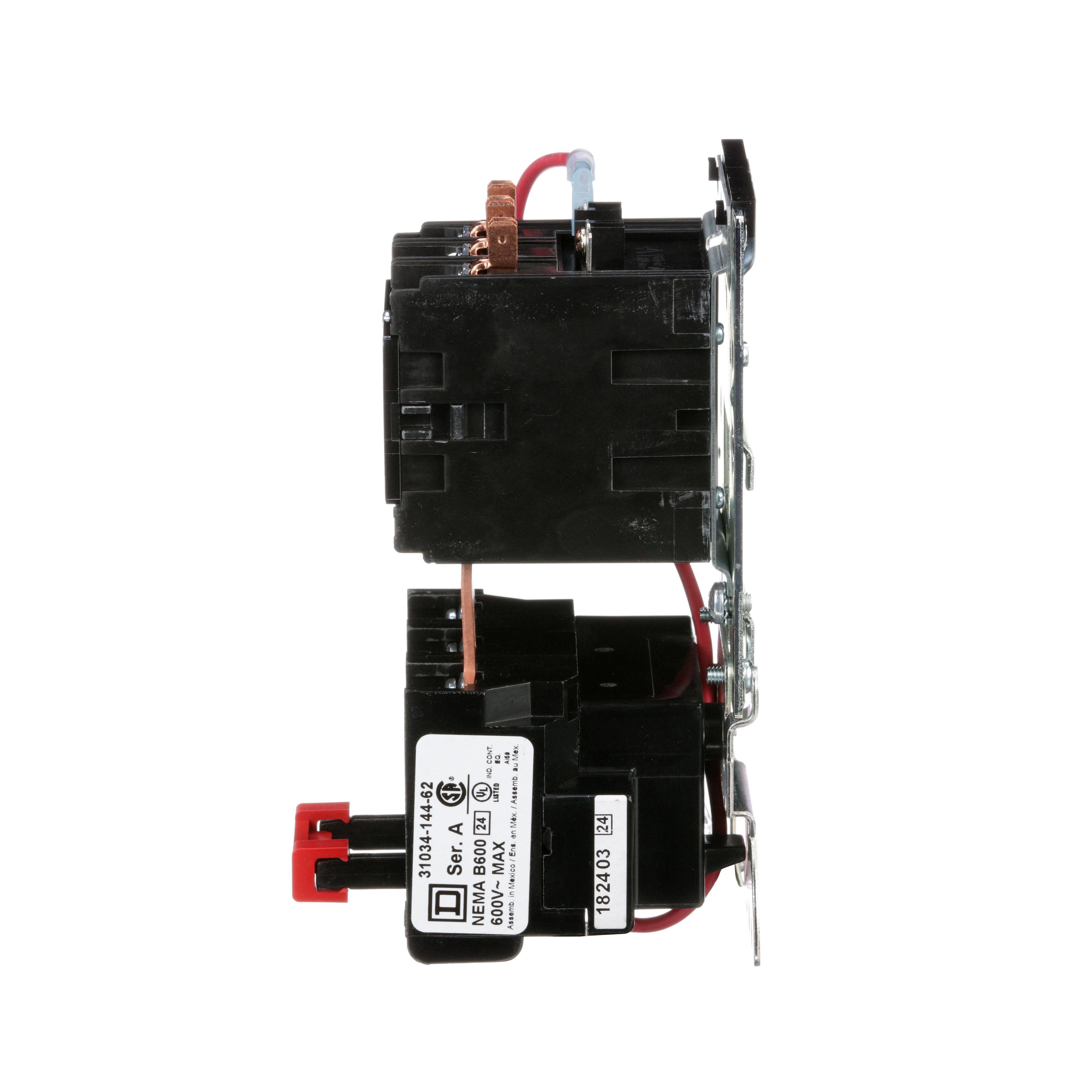

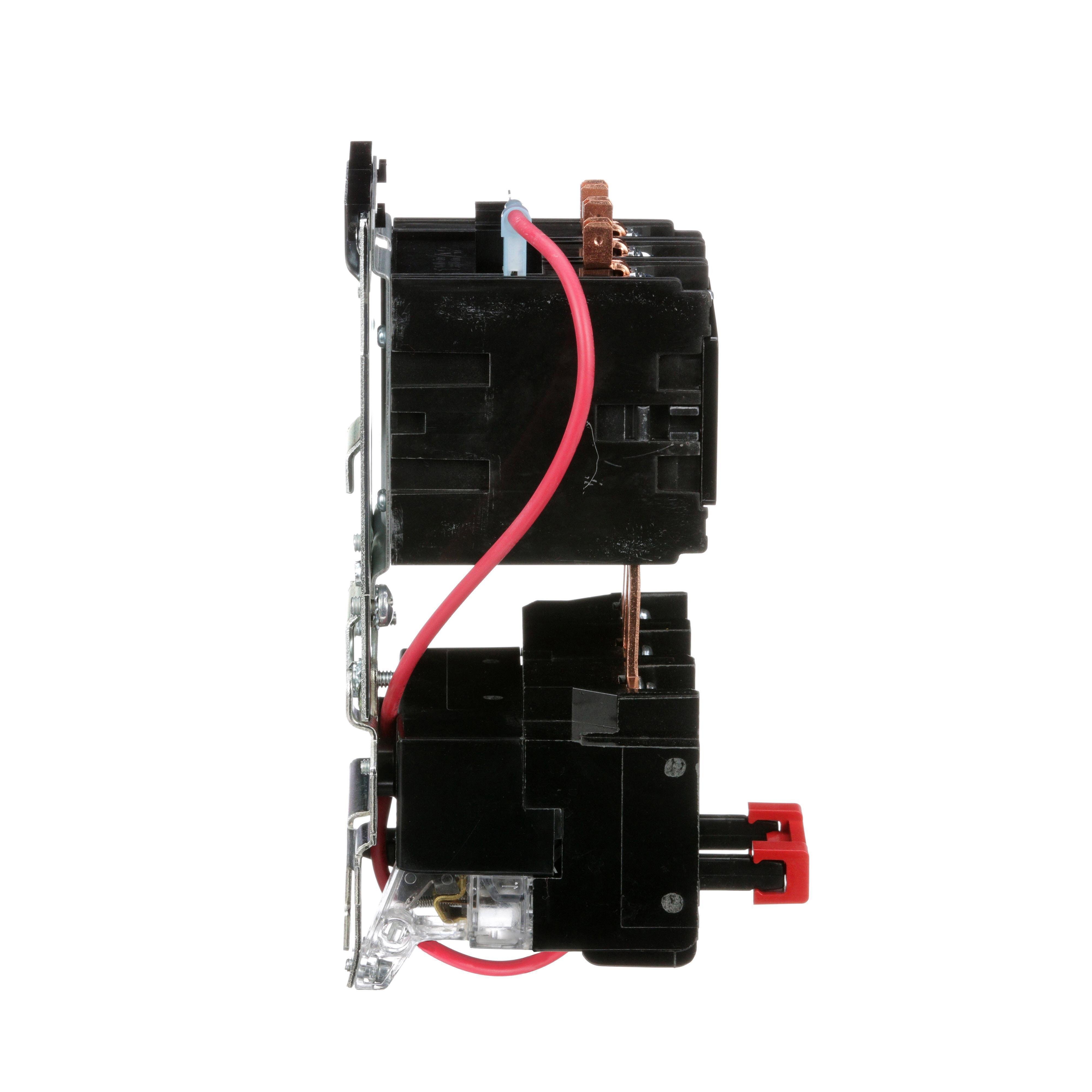

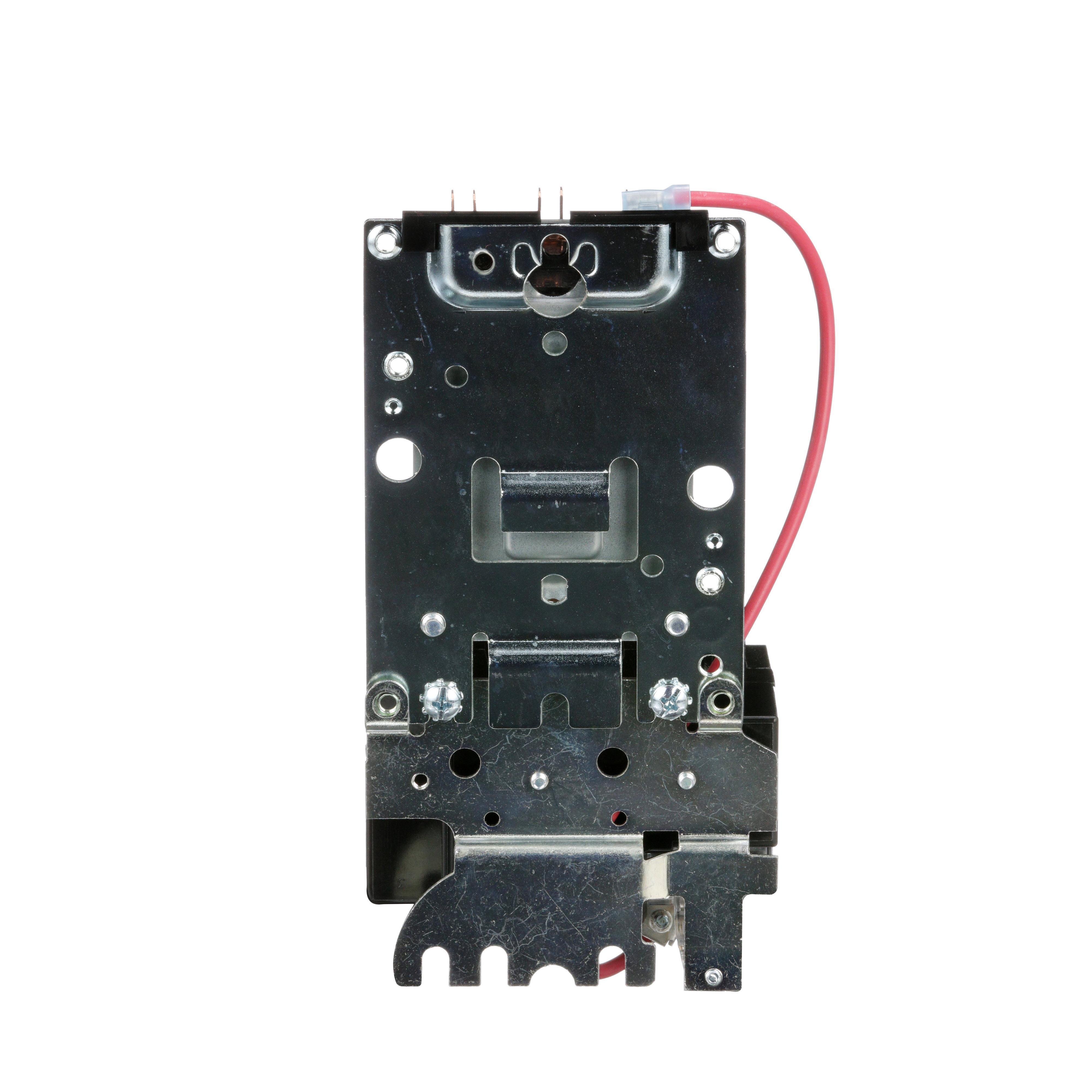

Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open Picture of 8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Square D

8911DPSO13V06 - NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open

Item Code: 593884
Category Definite Purpose Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSO13V06

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. The starter comes nonreplaceable coil is available with a variety of coil voltages as well as auxillary contacts. All definite purpose starters hav melting alloy type overload relay uses Type B thermal units to sense over current conditions. This three pole definite purpose starter has a full load rating of 20 amperes. Starter is supplied with a 440/480 VAC 50/60 Hz coil. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has rating of 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. This definite purpose starter is open style starter. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

2.27

Width

4.66

Length

7.63

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Application

Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

STARTER PRP DEFINITE 3 OPEN 600VAC 20A

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.2700

AD Package Weight UOM

LB

AD Package Width

4.6600

AD Package Width UOM

IN

Brand

Square D

Category

Definite Purpose Starters

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Series

Spec 10 Attribute Value

8911

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type DPS

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

440 V AC at 50 Hz, 480 V AC at 60 Hz

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

7 in H x 3-1/2 in W x 4 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

Open

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

motor power

Spec 6 Attribute Value

1 hp at 115 VAC, 2 hp at 230 VAC, 3 hp at 230 VAC, 5 hp at 460/575 VAC

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Reset Type

Spec 9 Attribute Value

(3) Thermal Melting Alloy
