Square D

8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open

Category Miscellaneous

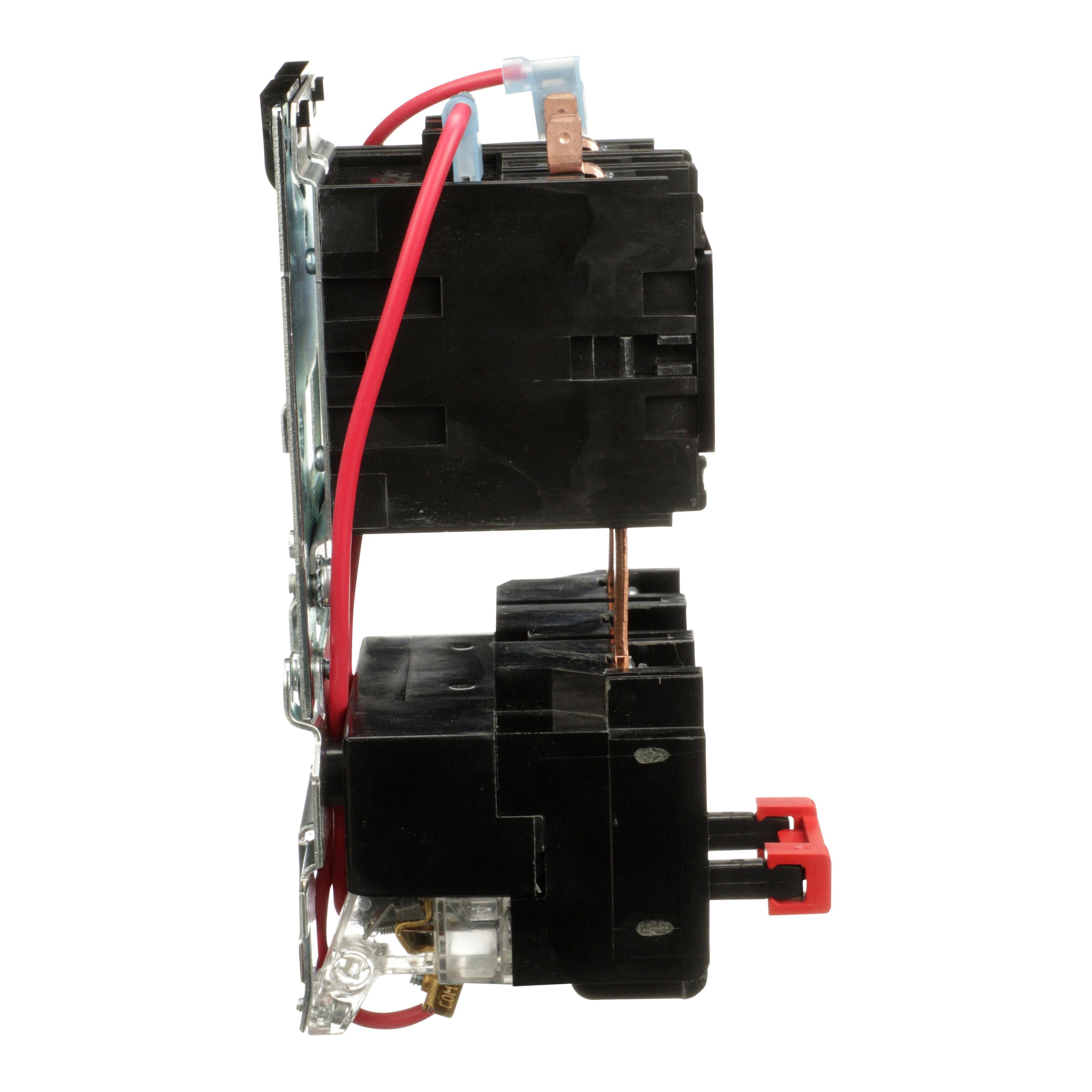

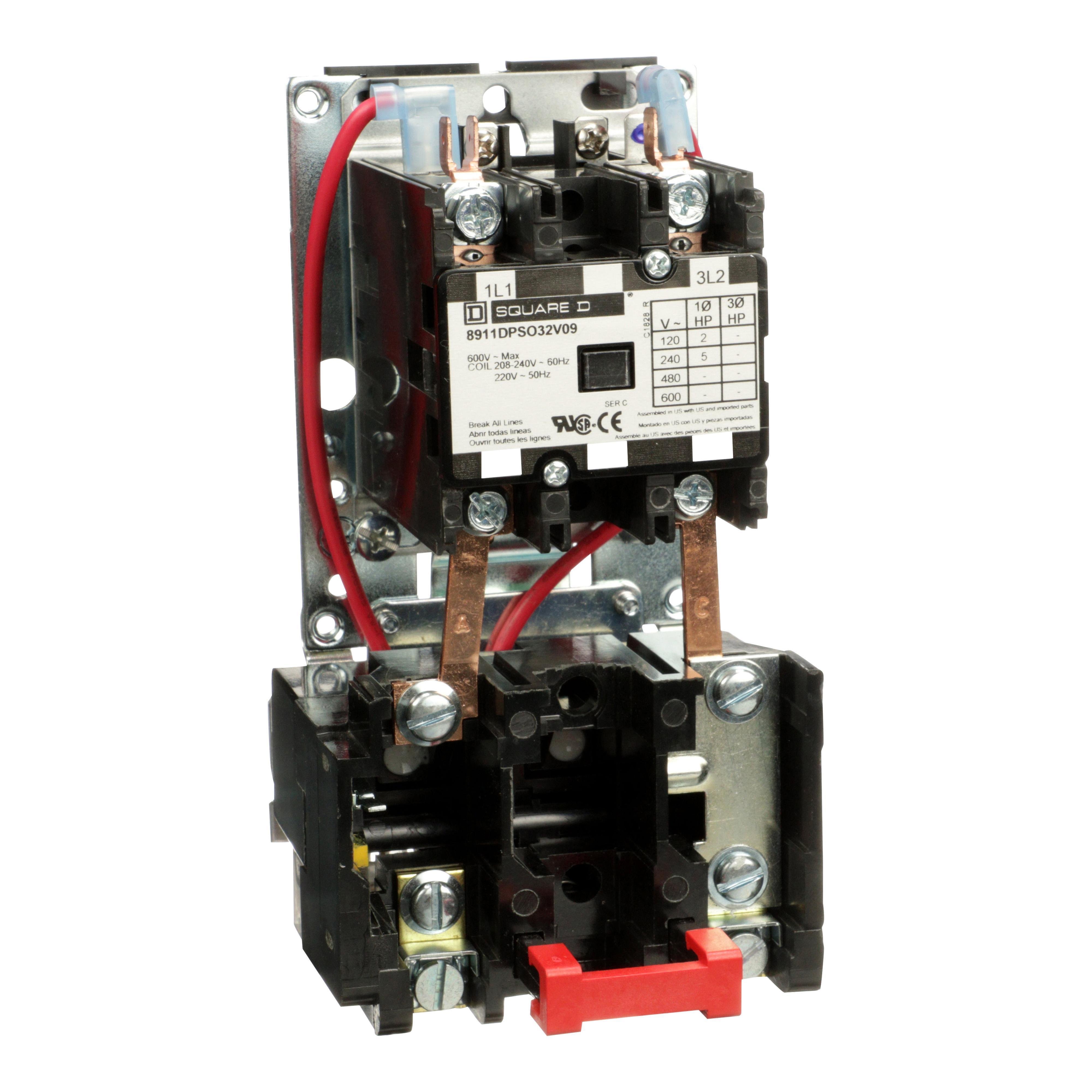

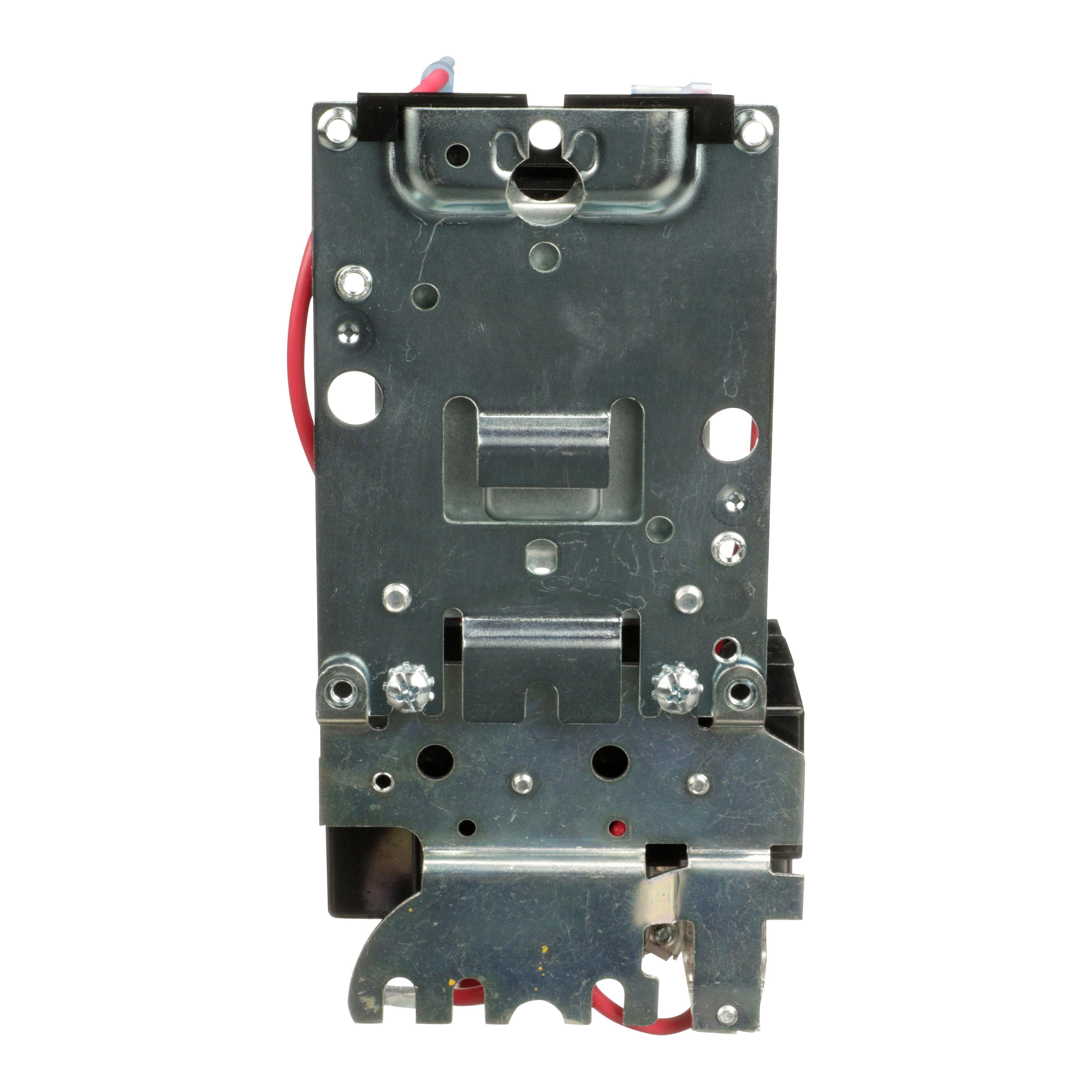

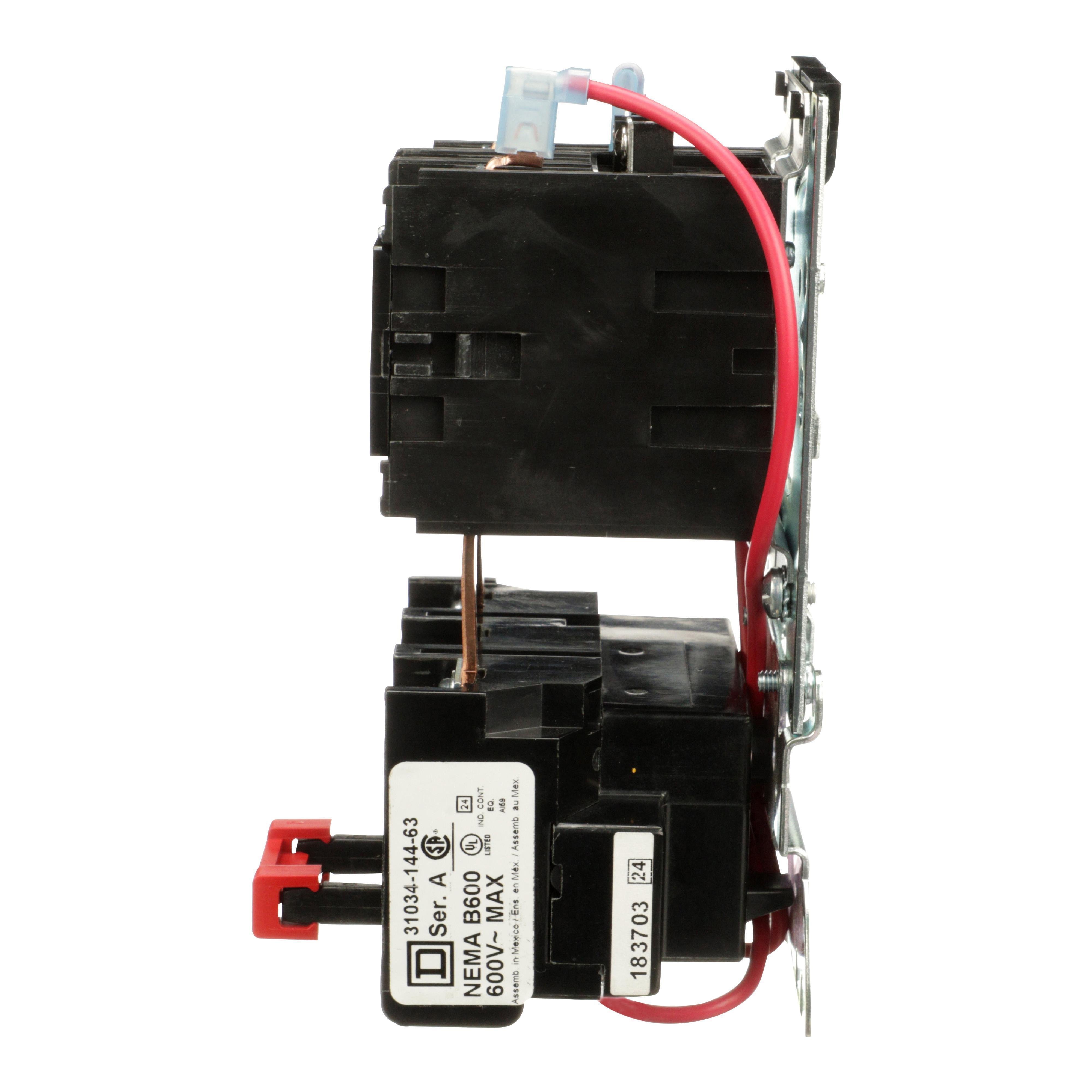

Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open
Square D

8911DPSO32V09 - NEMA starter, Definite Purpose, 30A, 5HP at 240VAC, 1 phase, 2 pole, melting alloy, 208V to 240VAC coil, open

Item Code: 568149
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSO32V09

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

2.19

Width

4.66

Length

7.83

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8911DPSO32V09/8911DPSO32V09.spin

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Alternative Part Number

8152860

AD Application

Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901025160

AD Gtin

00785901025160

AD IDEA Index ID

8152860

AD Invoice Description

STARTER PRP DEFINITE TYPE DPS 2 OPEN 30A

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Keywords

8911DPSO32V09 Type DPS Definite Purpose Starter, 208/220/240 VAC V Coil, Non-Reversing Action, 2 Poles, Open Enclosure ; Schneider Electric ; Square D ; 8911DPSO32V09 ; 8911DPSO32V09 ; 785901025160 ; Definite Purpose Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.1900

AD Package Weight UOM

LB

AD Package Width

4.6600

AD Package Width UOM

IN

AD Part Number Keywords

8911DPSO32V09 ; 8152860 ; 785901025160 ; 78590102516 ; 00785901025160 ; 0785901025160

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Reset Type

Spec 10 Attribute Value

Thermal Melting Alloy

Spec 11 Attribute

Series

Spec 11 Attribute Value

8911

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type DPS

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

208/220/240

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3-1/2 in W x 4 in D x 7 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

motor power

Spec 7 Attribute Value

2 hp at 115 VAC, 5 hp at 230 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
