Square D

8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Category Definite Purpose Starters

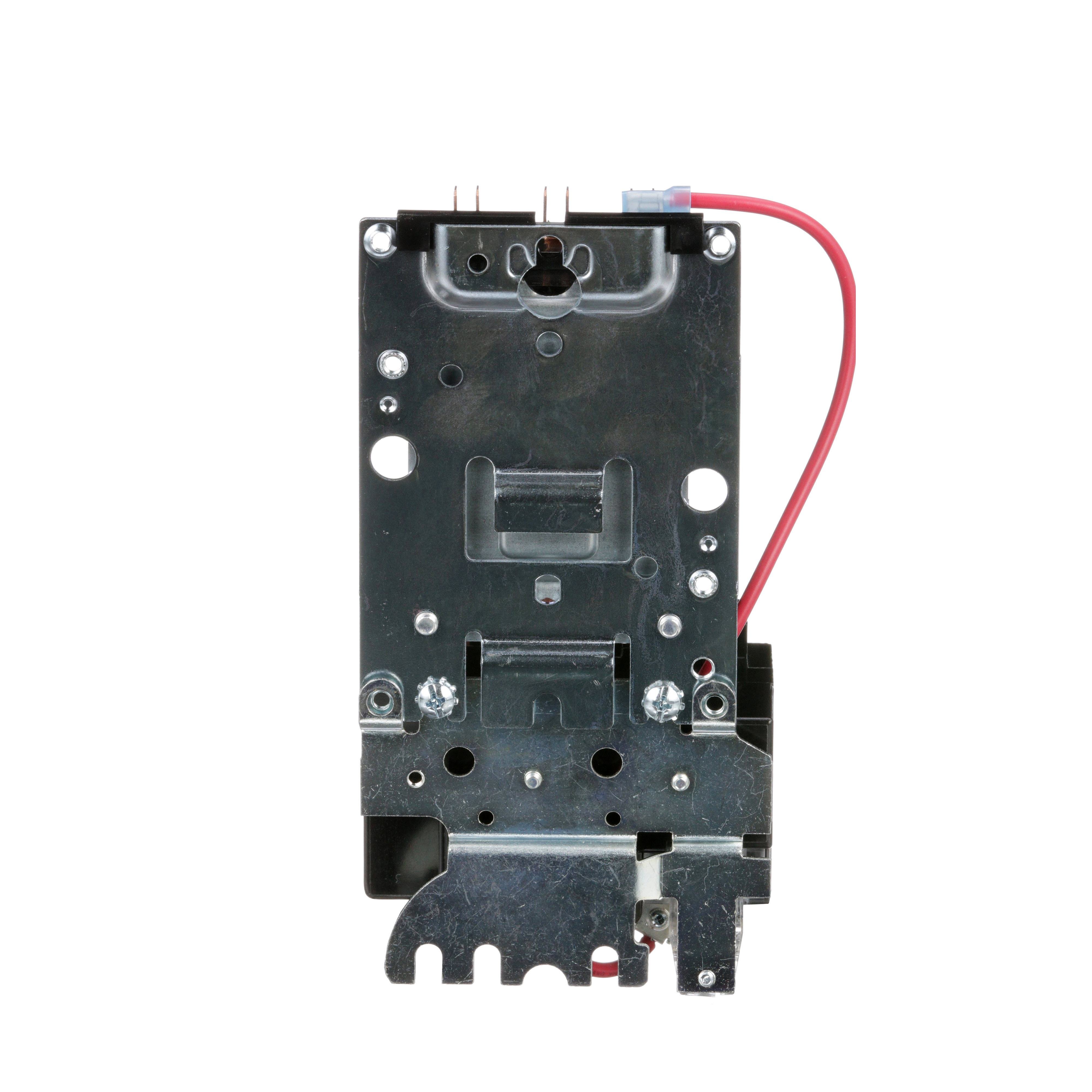

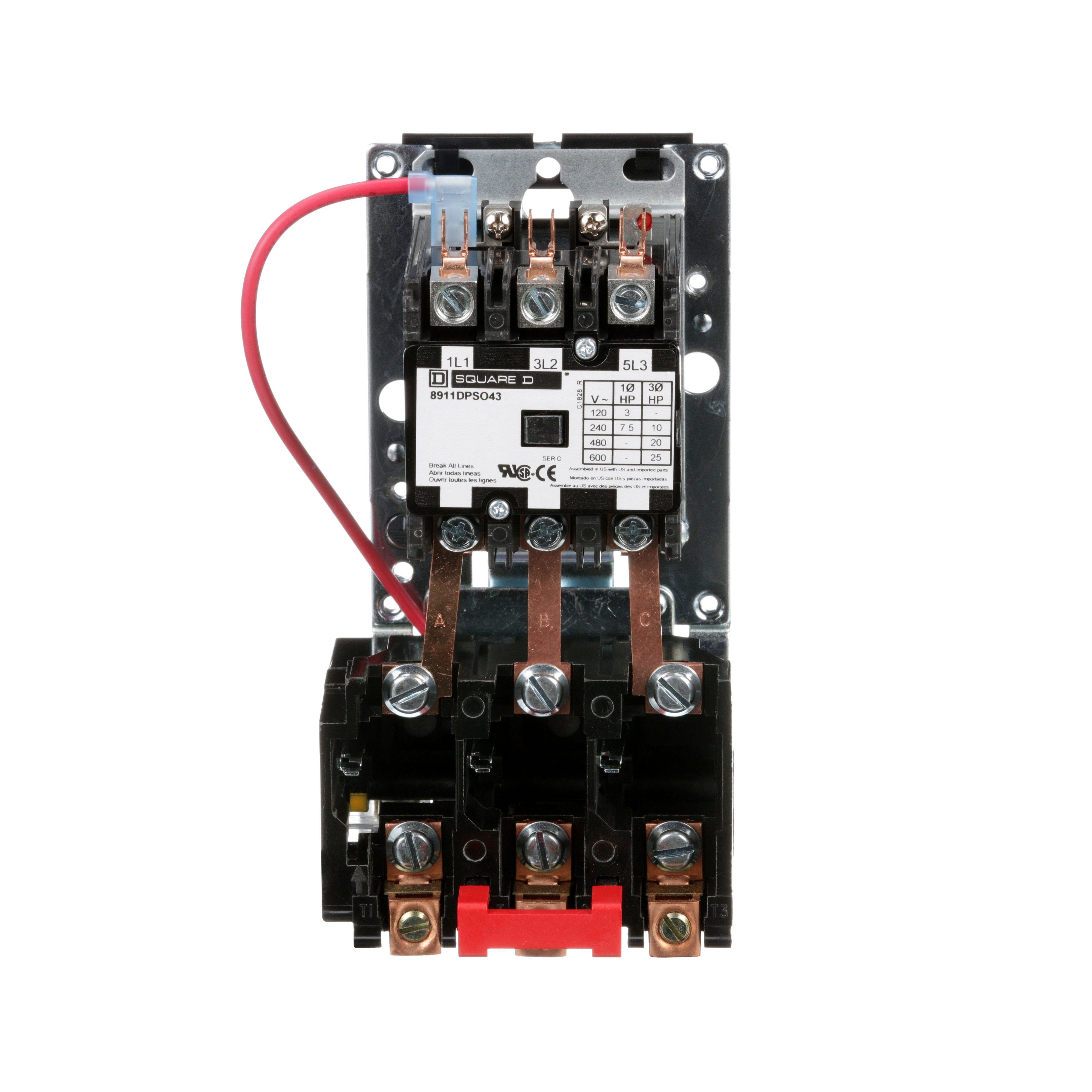

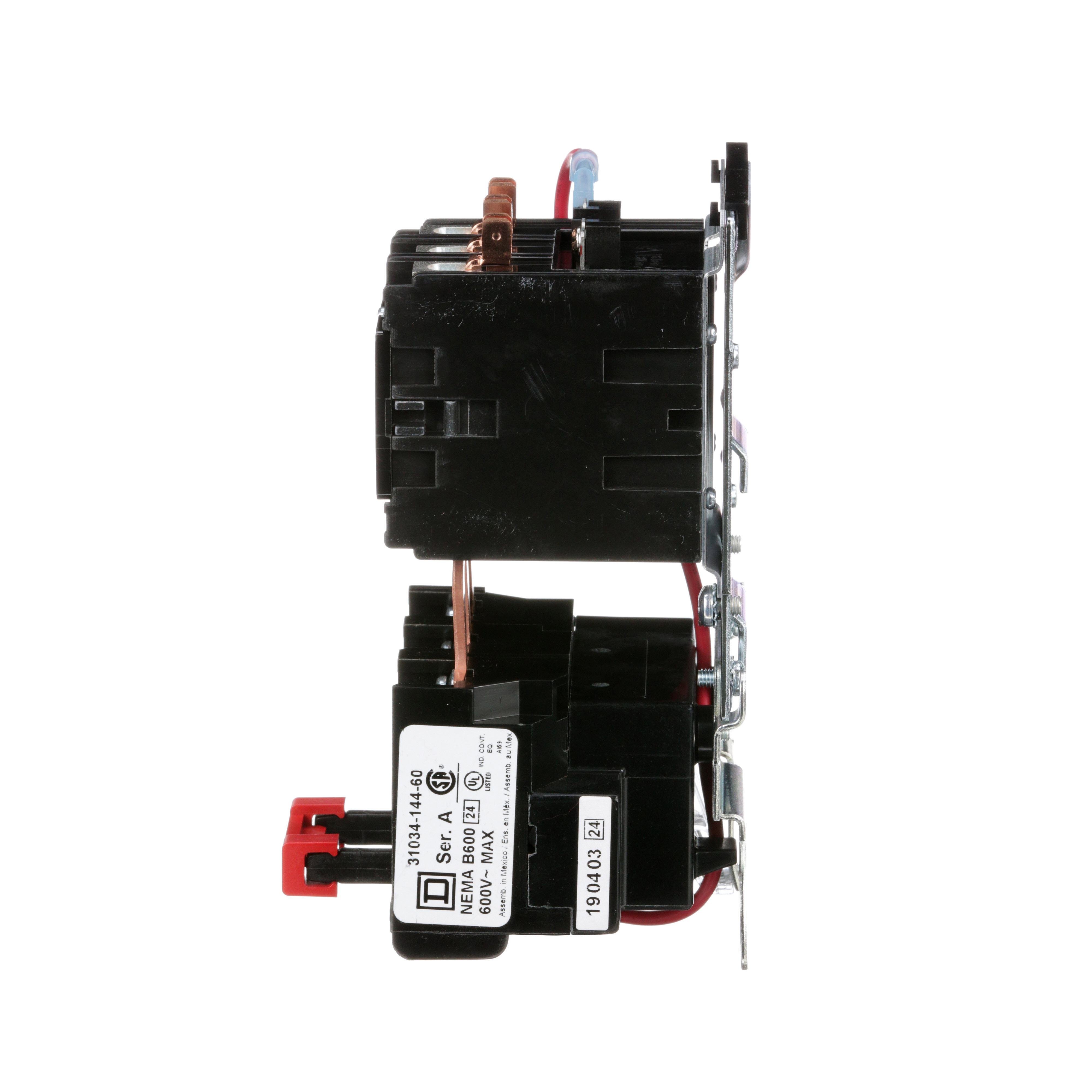

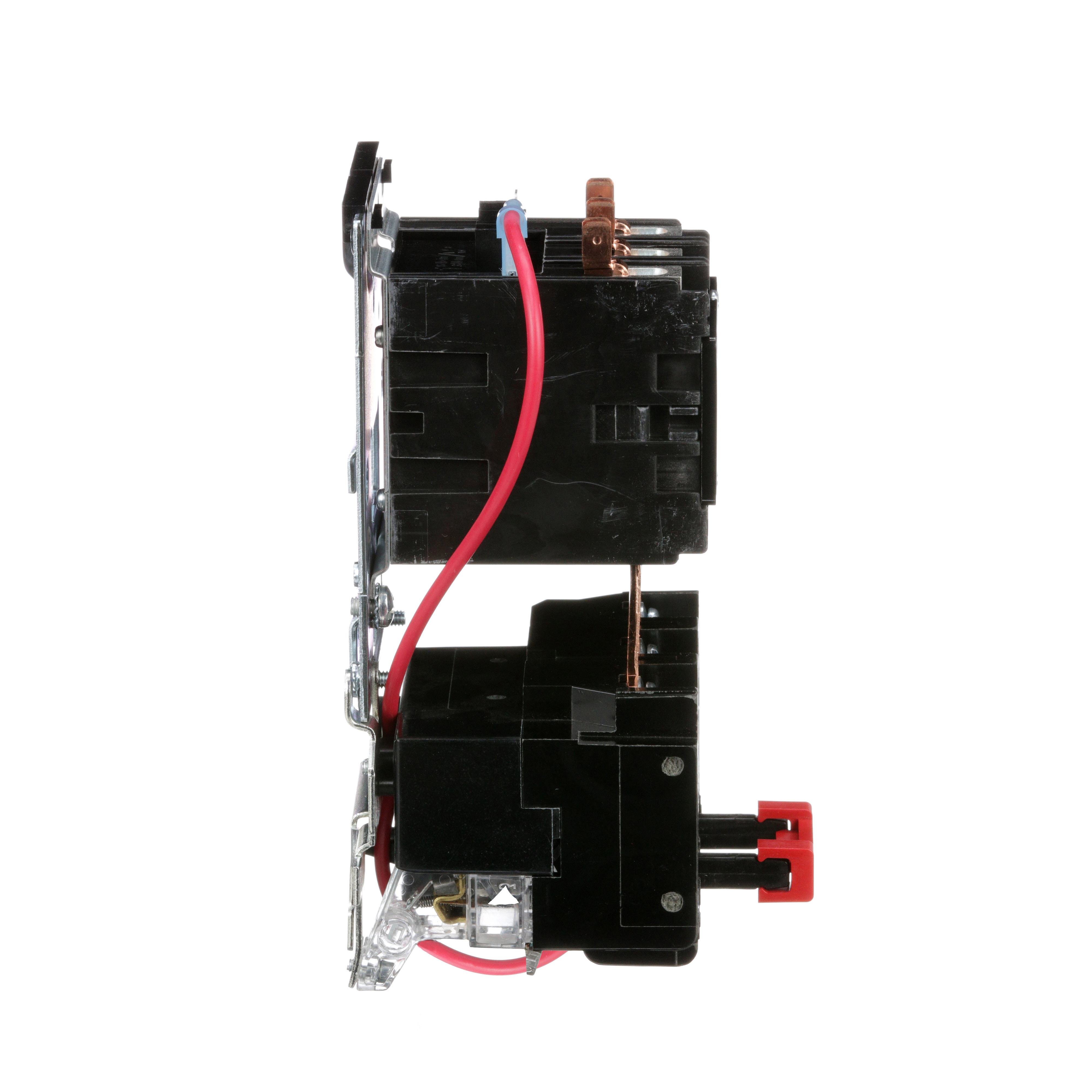

Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Square D

8911DPSO43V09 - NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Item Code: 591634
Category Definite Purpose Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSO43V09

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. Starter is an open device. A variety of enclosure types are available. Starter is 6.73 inches tall, 3.5 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

2.31

Width

4.75

Length

7.83

AD Application

Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

STARTER PRP DEFINITE TYPE DPS 3 OPEN 40A

AD Item Features 01

Combines the requirements of motor overload and short-circuit protection into one package

AD Item Features 02

Offers flexible compatibility with four overload relay types tailored for diverse motor protection needs

AD Item Features 03

Accelerates setup and servicing with door-mounted pilot devices for easy access and quick modifications

AD Item Features 04

Ideal for indoor or outdoor applications (3R/12 enclosures)

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.3100

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

Brand

Square D

Category

Definite Purpose Starters

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Reset Type

Spec 10 Attribute Value

(3) Thermal Melting Alloy

Spec 11 Attribute

Series

Spec 11 Attribute Value

8911

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type DPS

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

40

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

208/220/240

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3-1/2 in W x 4 in D x 7 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

motor power

Spec 7 Attribute Value

3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 230 VAC, 20 hp at 460 VAC, 25 hp at 575 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
