Square D

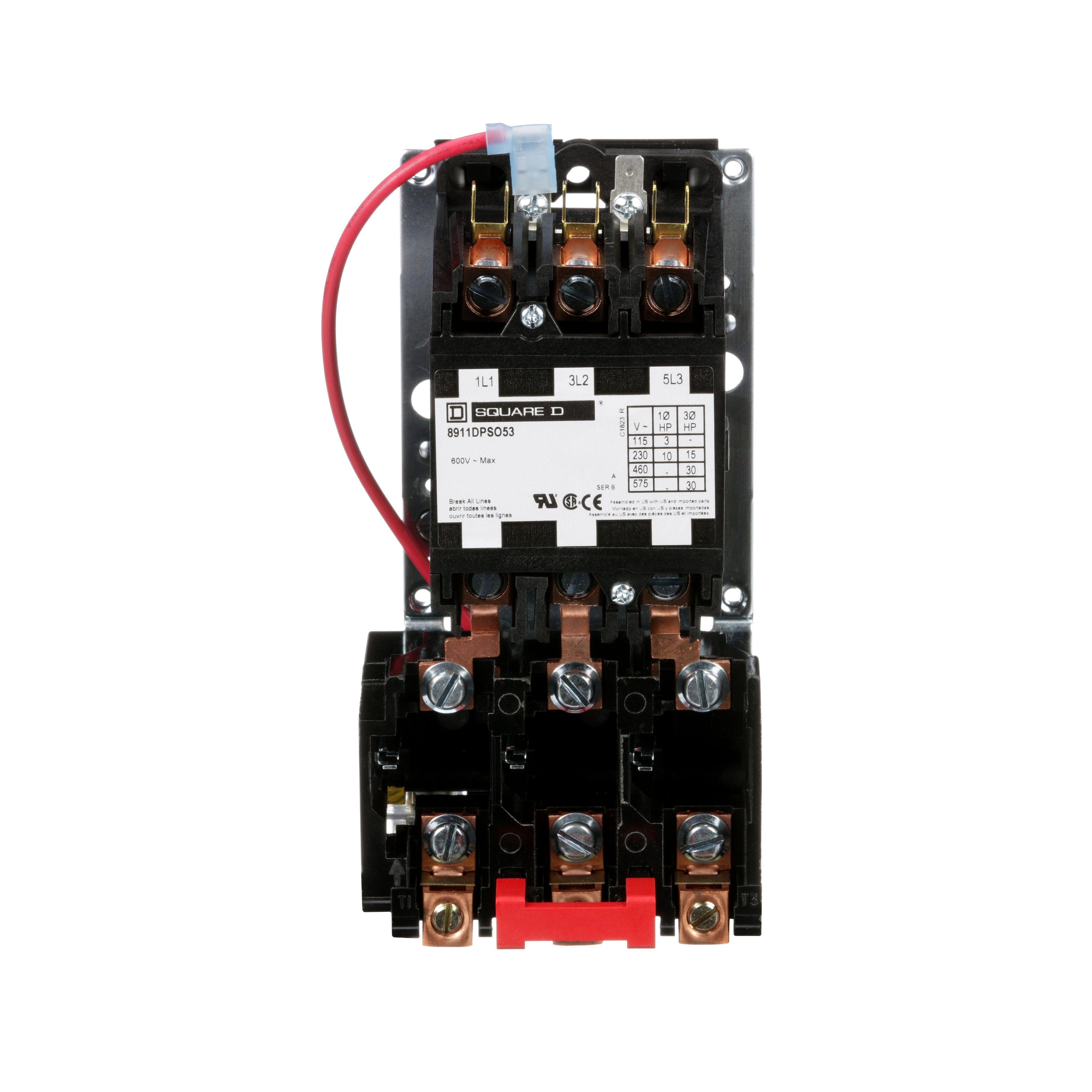

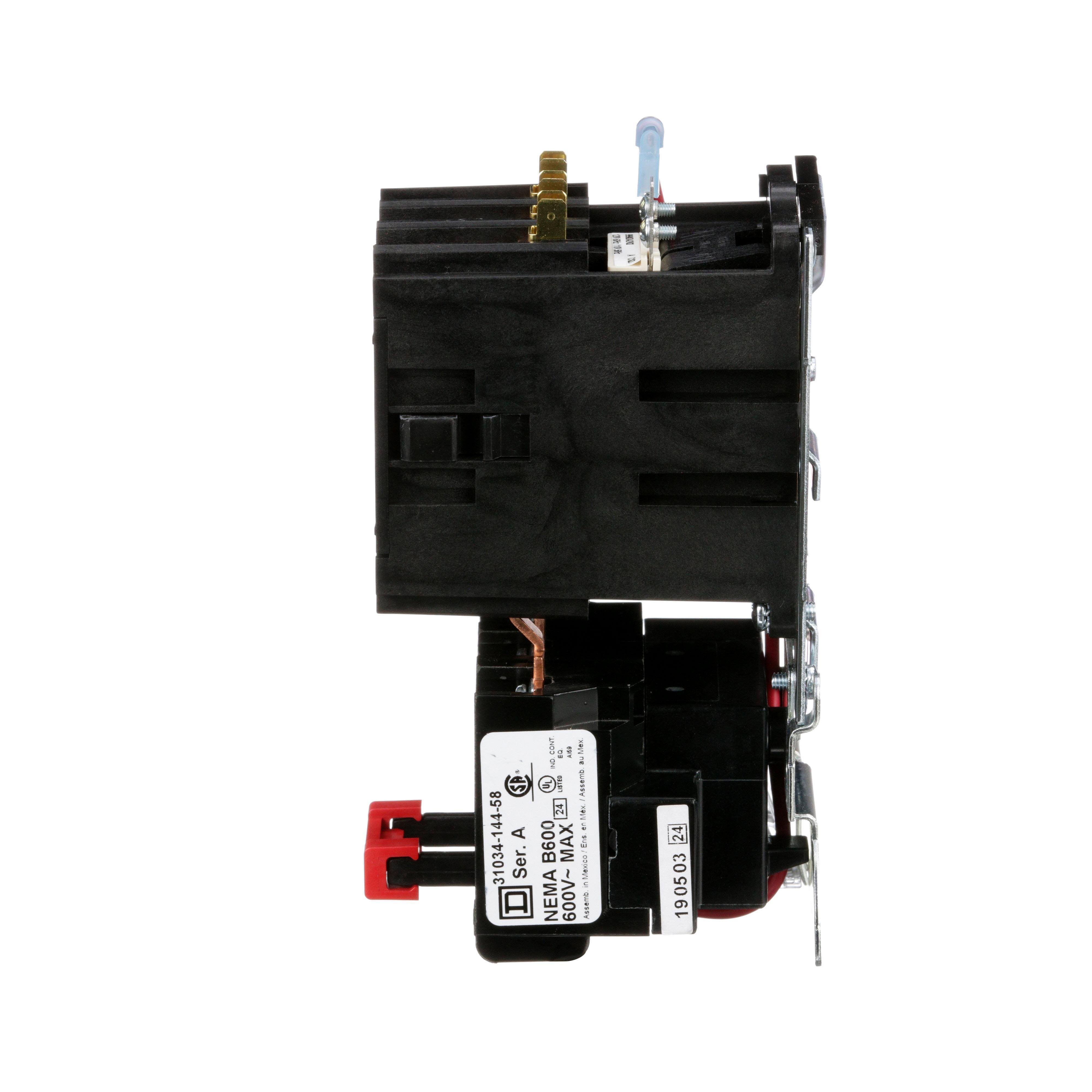

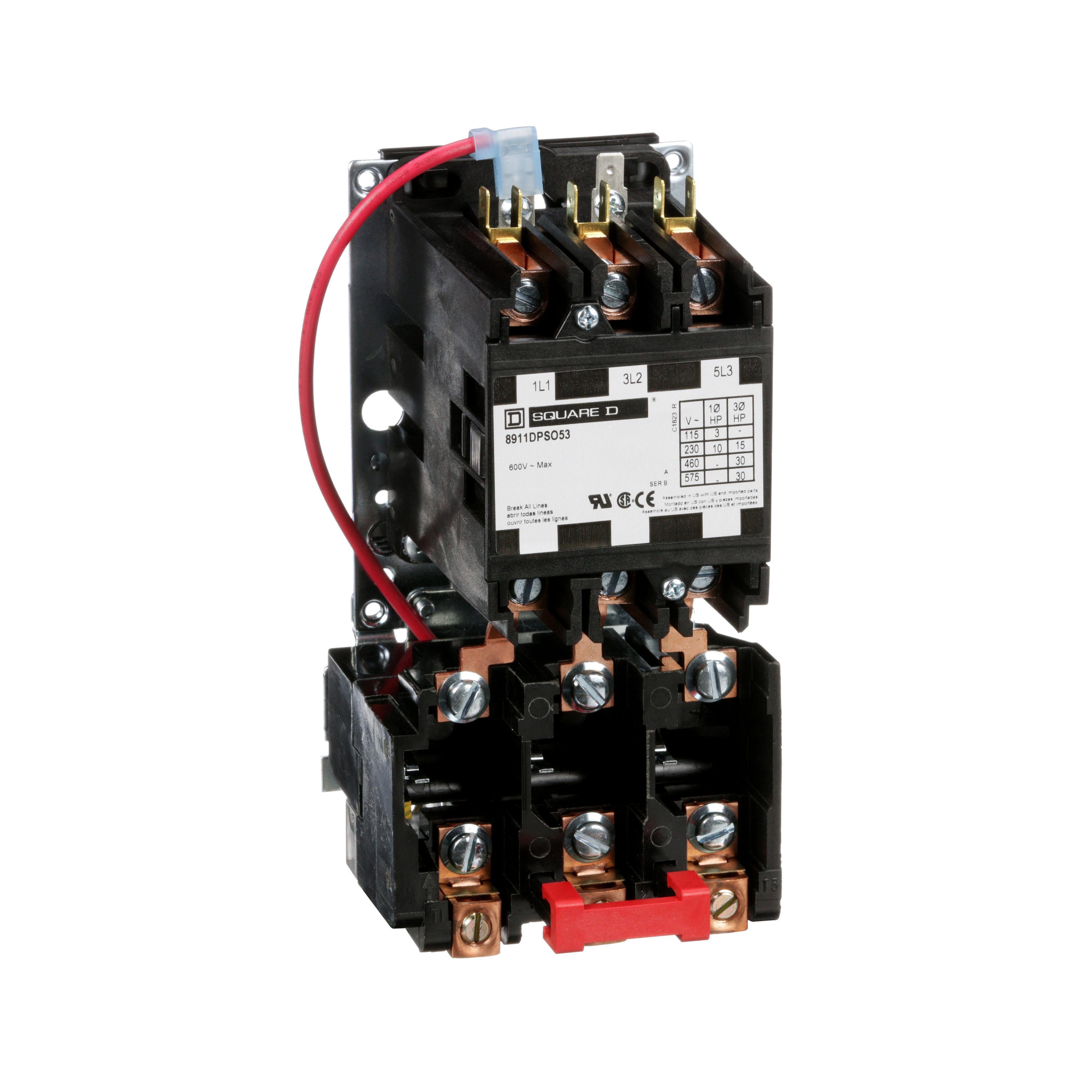

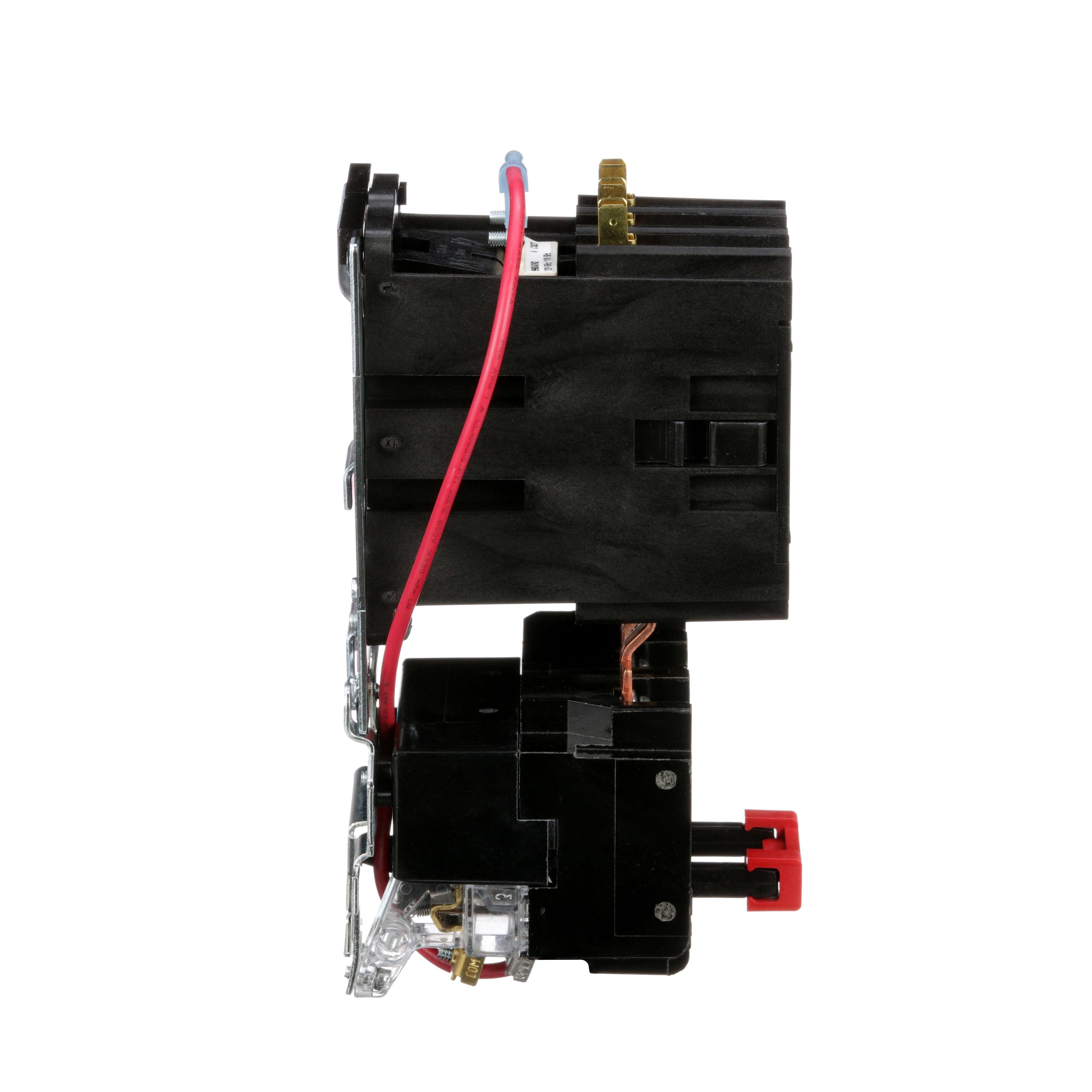

8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Category Miscellaneous
Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open Picture of 8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open
Square D

8911DPSO53V09 - NEMA Starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Item Code: 586144
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8911DPSO53V09

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 50 amperes. This starter has ratings of 3 HP at 115 VAC and 10 HP at 230 VAC single phase. It has a 15 HP at 230 VAC, 30 HP at 460 VAC and at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This definite purpose contactor is an open device without an enclosure. Enclosure is 6.73 inches tall, 3.50 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Weight

2.94

Width

4.75

Length

7.92

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8911DPSO53V09/8911DPSO53V09.spin

AD All Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Alternative Part Number

8152885

AD Application

Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901025207

AD Gtin

00785901025207

AD IDEA Index ID

8152885

AD Invoice Description

STARTER PRP DEFINITE TYPE DPS 3 OPEN 50A

AD Item Features 01

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles

AD Item Features 02

Small and compact design

AD Keywords

8911DPSO53V09 Type DPS Definite Purpose Starter, 220 V AC at 50 Hz/208/240 V AC at 60 Hz V Coil, 3 Poles, Open Enclosure ; Schneider Electric ; Square D ; 8911DPSO53V09 ; 8911DPSO53V09 ; 785901025207 ; Definite Purpose Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.9400

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

AD Part Number Keywords

8911DPSO53V09 ; 8152885 ; 785901025207 ; 78590102520 ; 00785901025207 ; 0785901025207

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Series

Spec 10 Attribute Value

8911

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type DPS

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

220 V AC at 50 Hz/208/240 V AC at 60 Hz

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3-1/2 in W x 4 in D x 7 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

Open

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

motor power

Spec 6 Attribute Value

3 hp at 115 VAC/10 hp at 230 VAC/15 hp at 230 VAC/30 hp at 460/575 VAC

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Reset Type

Spec 9 Attribute Value

(3) Thermal Melting Alloy
