Square D

8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style

Category Miscellaneous

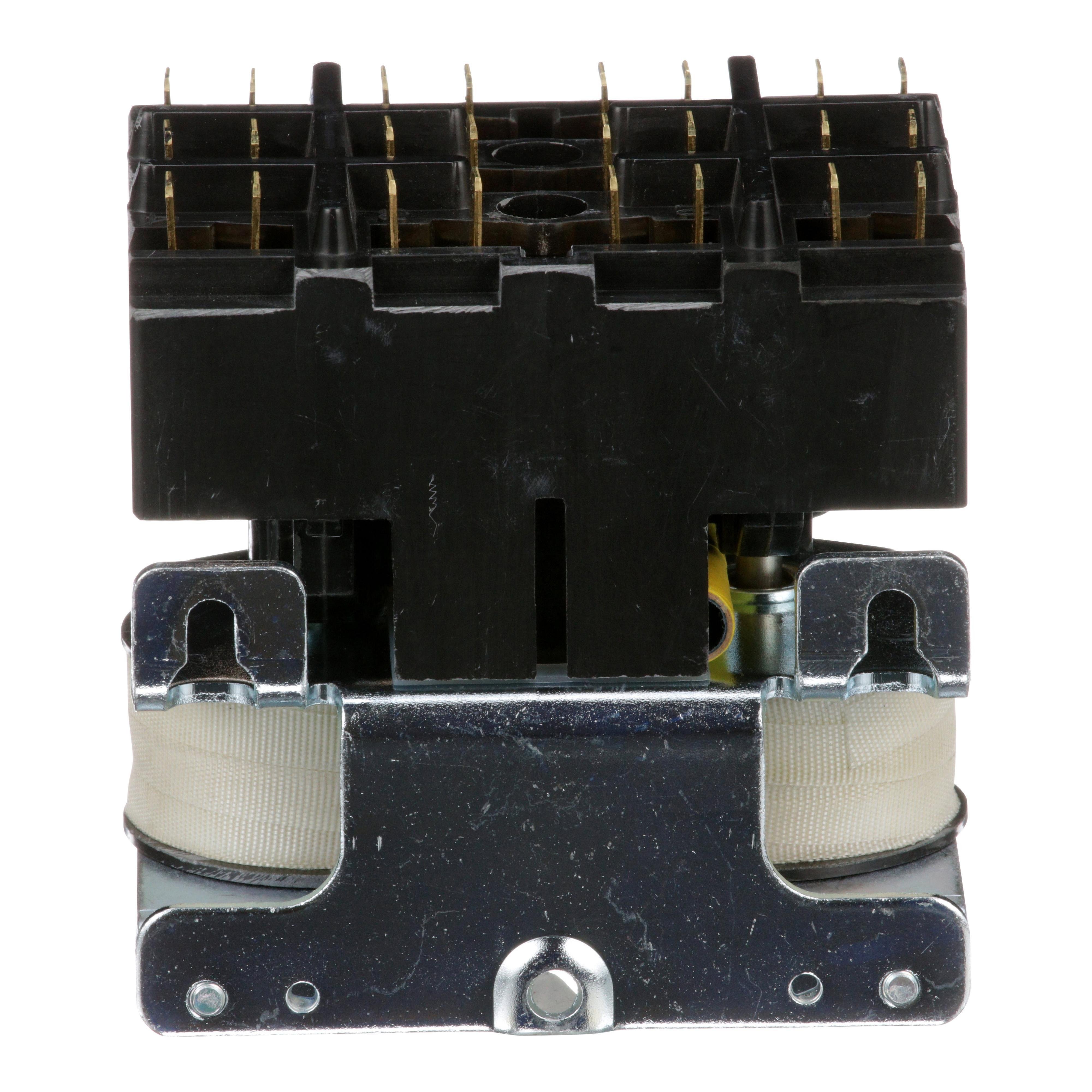

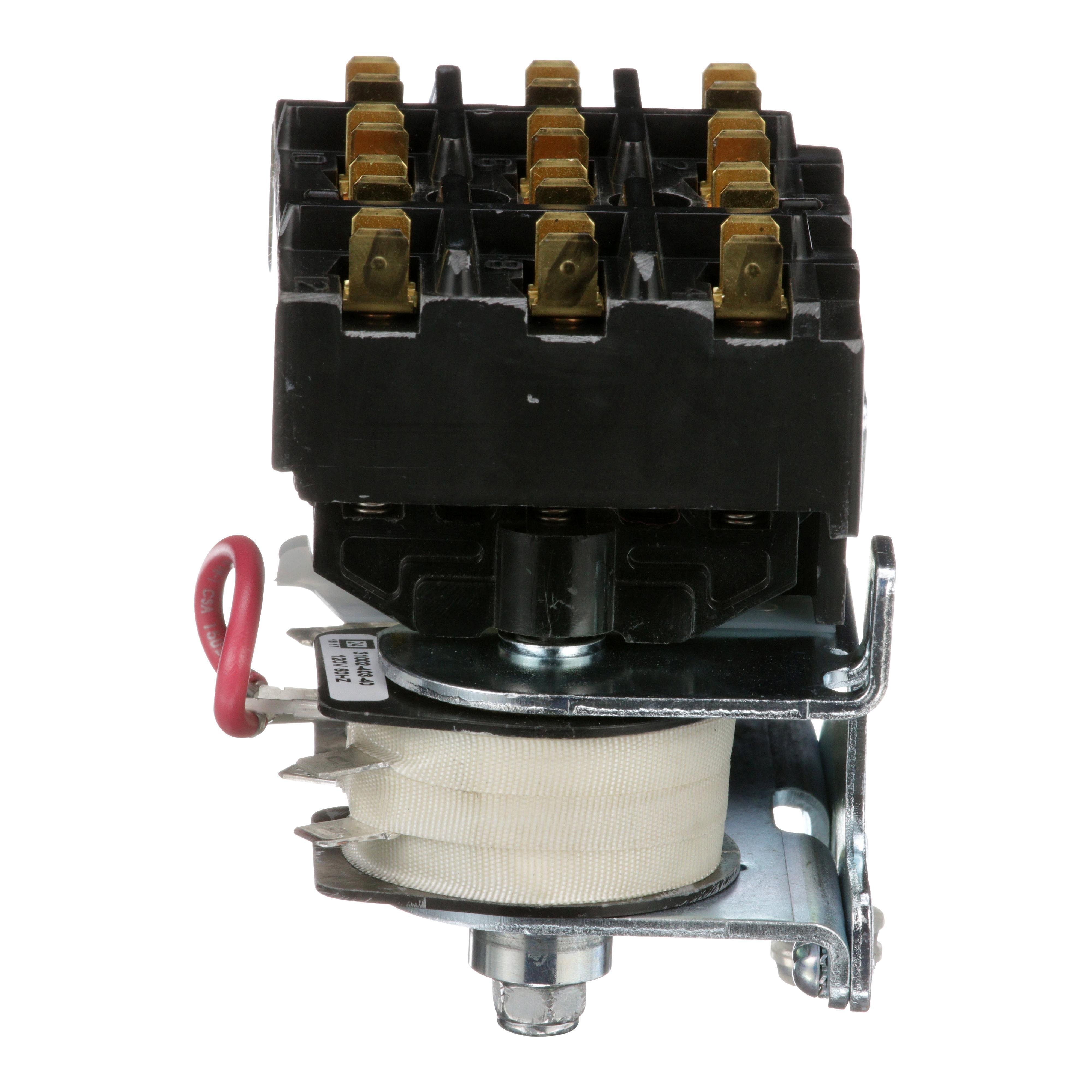

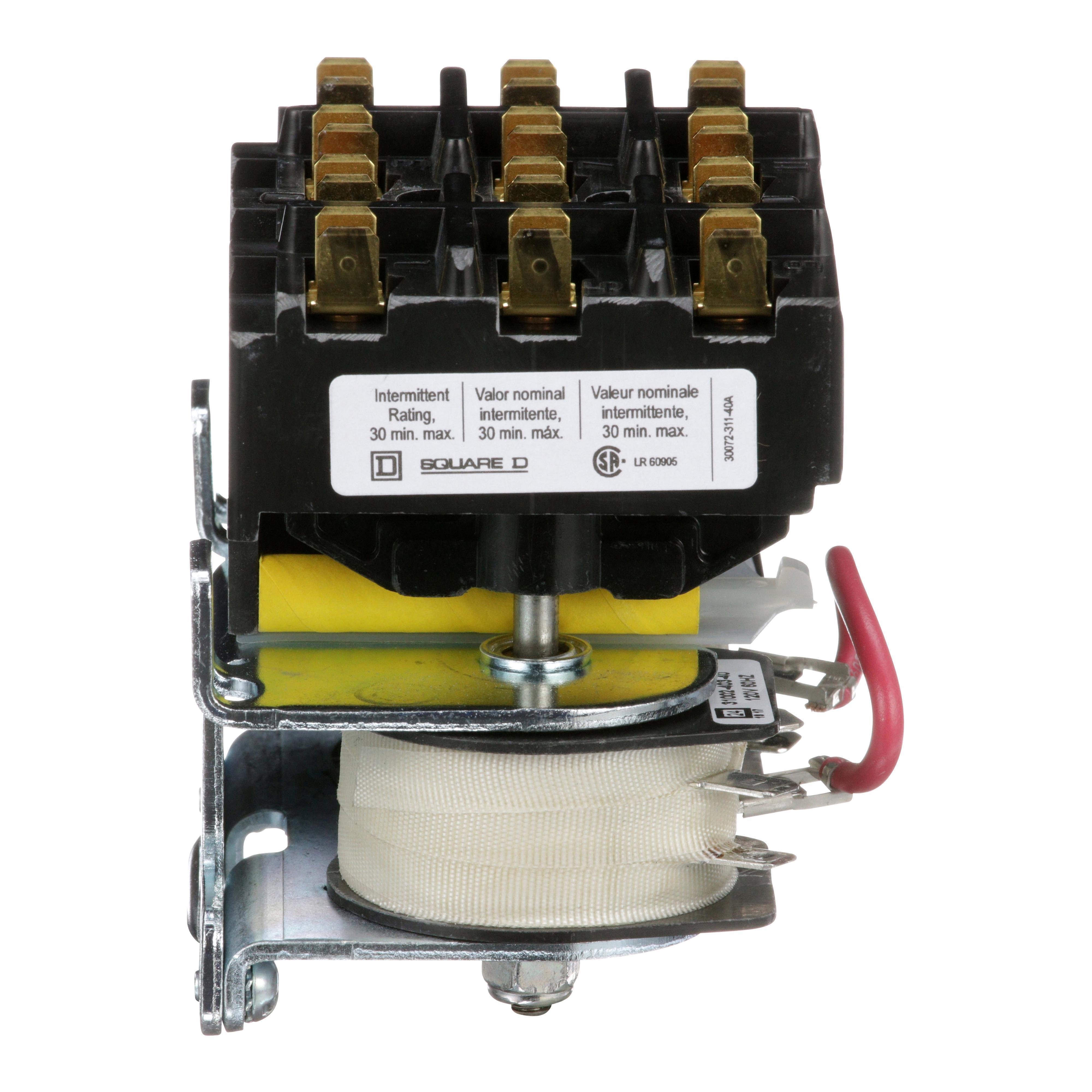

Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style
Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style
Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style
Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style Picture of 8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style
Square D

8965RO10V02 - Contactor, 8965RO, hoist, reversing, 3hp at 480VAC, 3 phase, 120VAC coil, quick connect terminals. open style

Item Code: 540694
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8965RO10V02

Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 1 HP at 115 VAC and 1.5 HP at 230 VAC single phase. Has ratings of 3 HP at 230 VAC, at 460 VAC and at 575 VAC three phase. These contactors must be mounted upright on the vertical plane. The contactors will not operate properly when mounted in any other position. The replaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The power terminals have quick connect terminals. This device is with jumper straps. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.31 inches tall, 3.31 inches wide and 3.03 inches deep. Auxiliary contacts are available for these contactors. 8965RO reversing hoist contactors are UL component recognized and CSA certified.

Specifications

Weight

1.82

Height

3.3

Width

4.75

Length

6.44

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8965RO10V01/8965RO10V01.spin

AD All Features

Operate on line voltages of 85% to 110% of rated voltage

AD Alternative Part Number

8157645

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901032168

AD Gtin

00785901032168

AD IDEA Index ID

8157645

AD Invoice Description

CONTACTOR HST 3-PH 110/120VAC 2NO 3 3HP

AD Item Features 01

Operate on line voltages of 85% to 110% of rated voltage

AD Item Features 02

Coils can be easily replaced

AD Item Features 03

Field installable auxiliary contacts

AD Keywords

8965RO10V02 8965RO 3-Phase Hoist Contactor, 110/120 V AC V Coil, 2NO Contact, 3 Poles ; Square D ; 8965RO10V02 ; 8157645 ; 785901032168 ; Definite Purpose Contactors AC

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.3000

AD Package Height UOM

IN

AD Package Length

6.4400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.8200

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

AD Part Number Keywords

8965RO10V02 ; 8157645 ; 785901032168 ; 78590103216 ; 00785901032168 ; 0785901032168

AD Video Links

https://youtu.be/7miLIVFYBgA

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

HP

Spec 1 Attribute Value

3

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

8965RO

Spec 13 Attribute

Type

Spec 13 Attribute Value

3-Phase

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

110/120

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Quick-Connect

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

600

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

3.31 in W x 3.03 in D x 3.31 in H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Open

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
