Square D

9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1

Category Miscellaneous

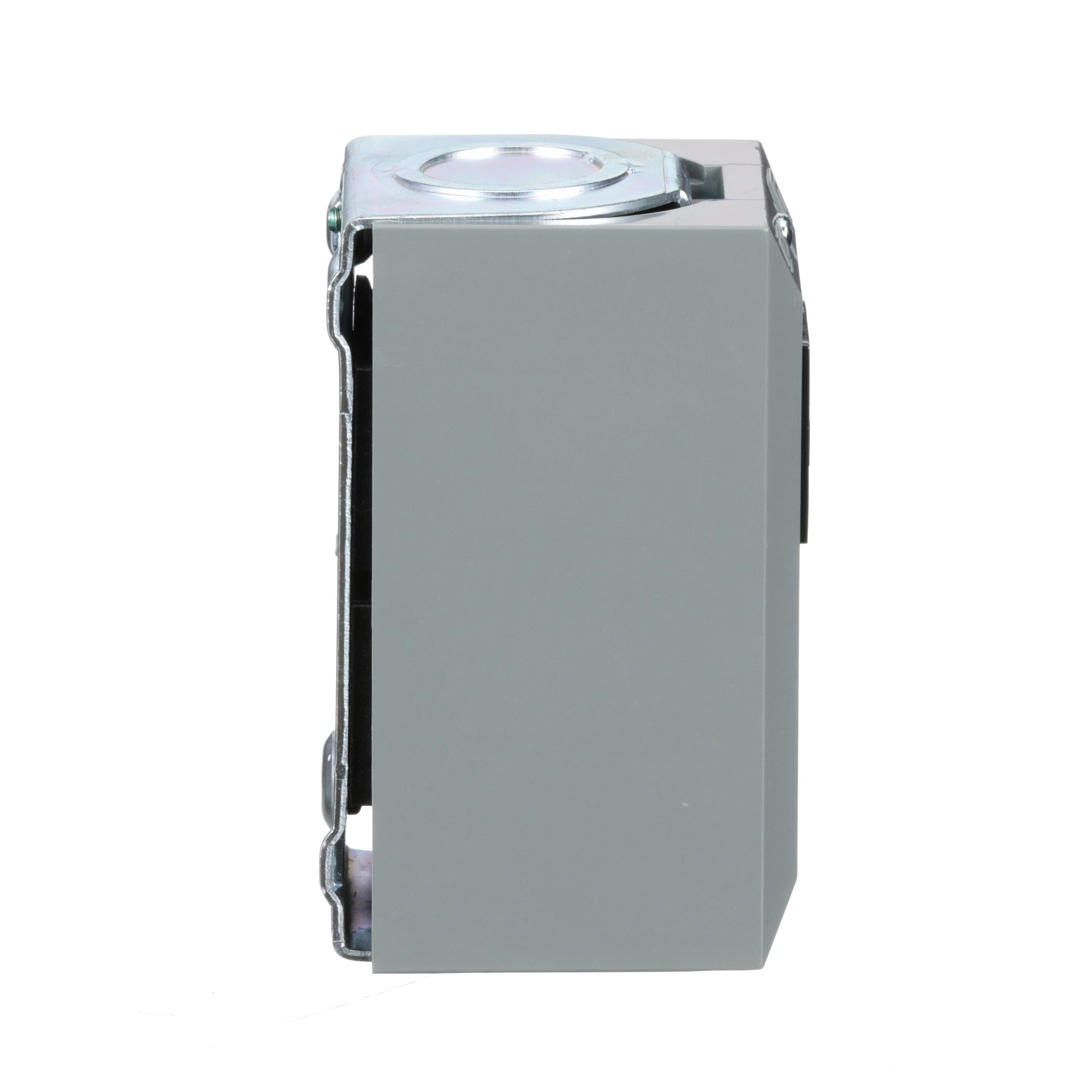

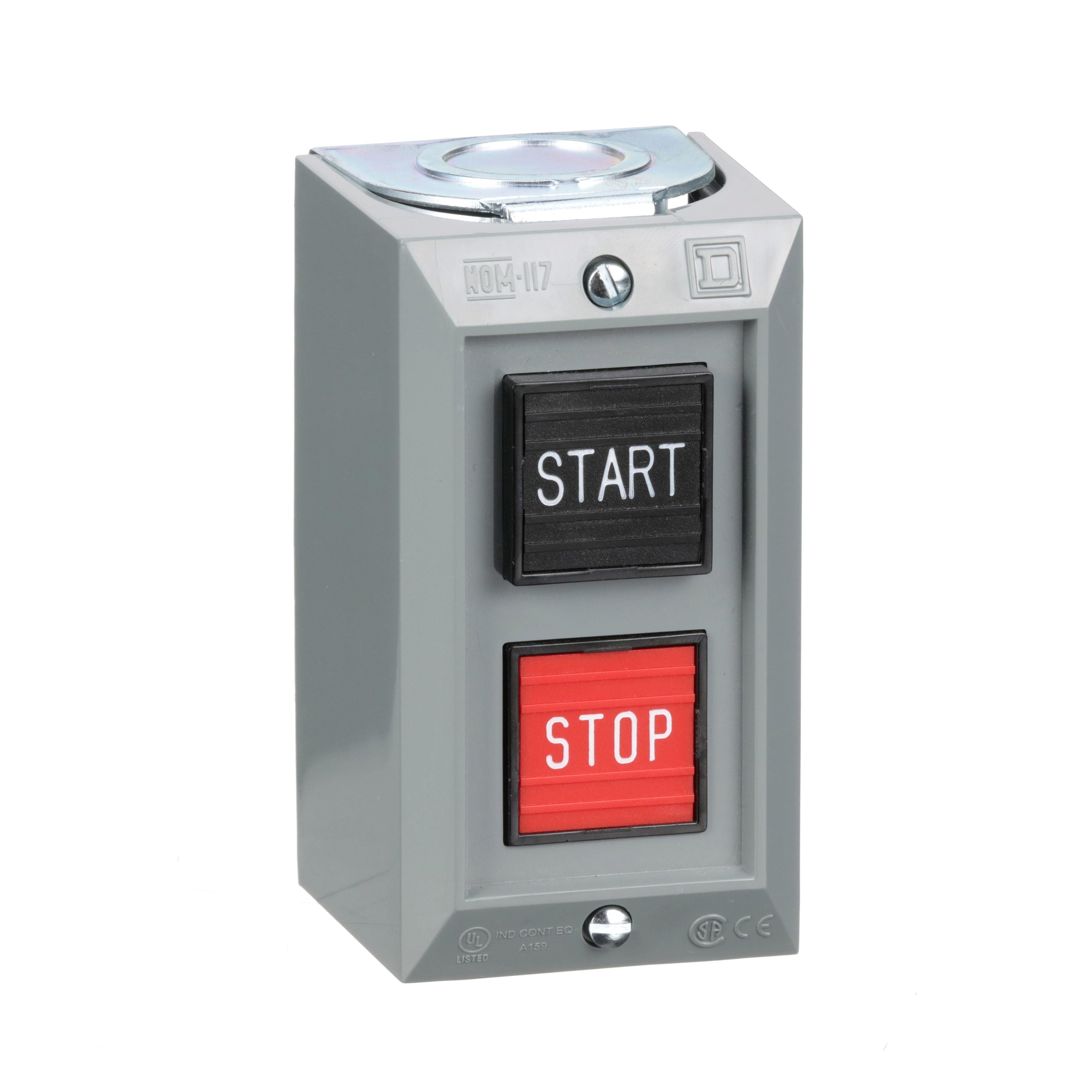

Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1 Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1
Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1 Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1
Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1 Picture of 9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1
Square D

9001BG215 - Complete control station, Harmony 9001B, 2 push buttons START/STOP, interlocked contact, 5A, 600V AC, 2NO, NEMA 1

Item Code: 17333
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BG215

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This control station has maintained contacts. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Weight

0.61

Height

2.2

Width

2.5

Length

3.98

AD All Features

1/2 and 3/4 in knockout

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STATION CTRL PUSHBUTTON 600VAC 5A 2NO

AD Item Features 01

1/2 and 3/4 in knockout

AD Item Features 02

Two projecting pushbuttons

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

3.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20.9000

AD Package Volume UOM

cu-in

AD Package Weight

0.6100

AD Package Weight UOM

LB

AD Package Width

2.5000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Push Button

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

NEMA Rating

Spec 11 Attribute Value

NEMA 1

Spec 12 Attribute

Number of Operators

Spec 12 Attribute Value

2

Spec 13 Attribute

Operator Type

Spec 13 Attribute Value

Push Button

Spec 14 Attribute

Series

Spec 14 Attribute Value

9001B

Spec 15 Attribute

Type

Spec 15 Attribute Value

Complete Interlocked Type BG

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

5

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NO

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

5 A at 600 V AC

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

2.06 in L x 2.53 in W x 2.34 in H

Spec 8 Attribute

Legend

Spec 8 Attribute Value

Start-Stop

Spec 9 Attribute

Material

Spec 9 Attribute Value

Plastic
