Square D

9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1

Category Miscellaneous

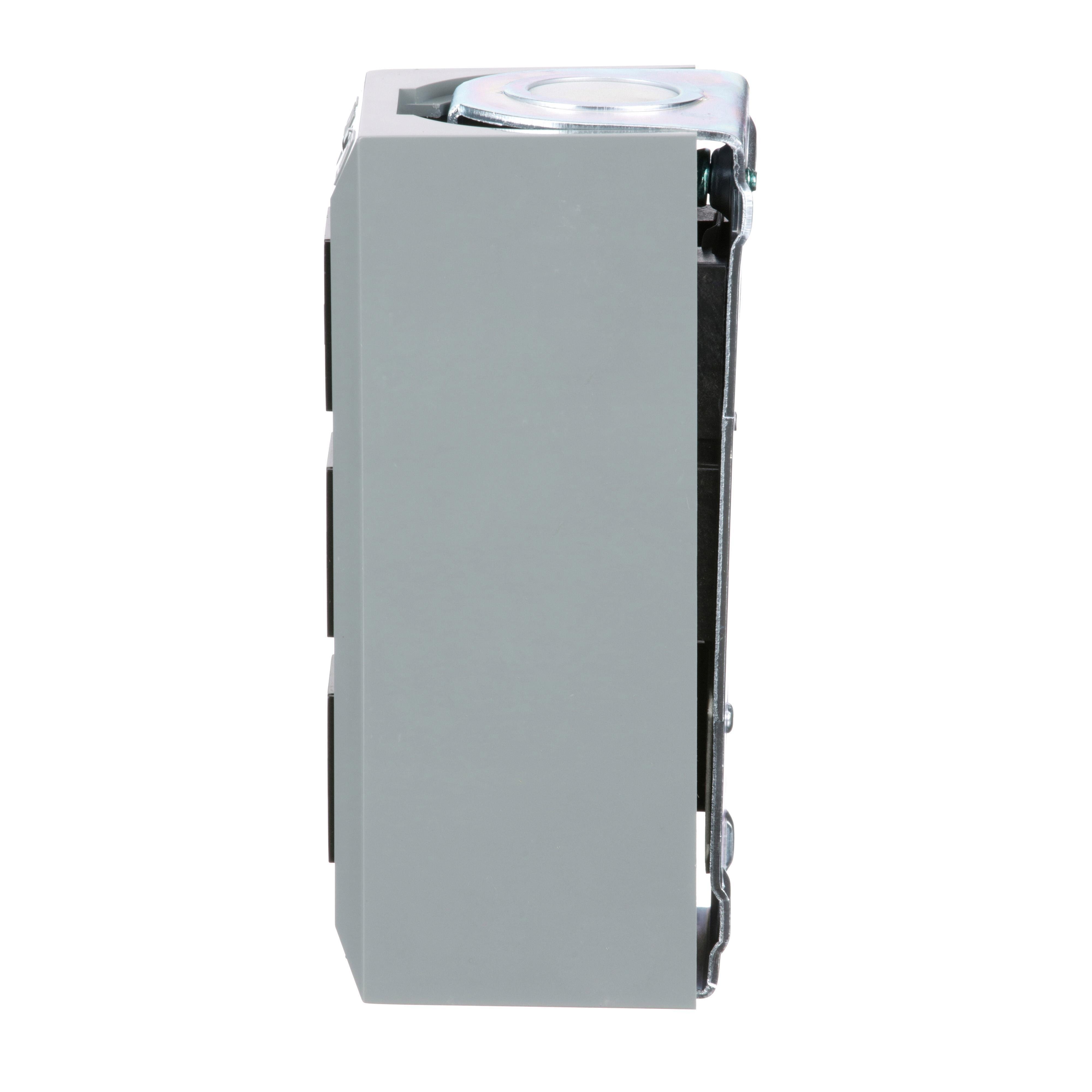

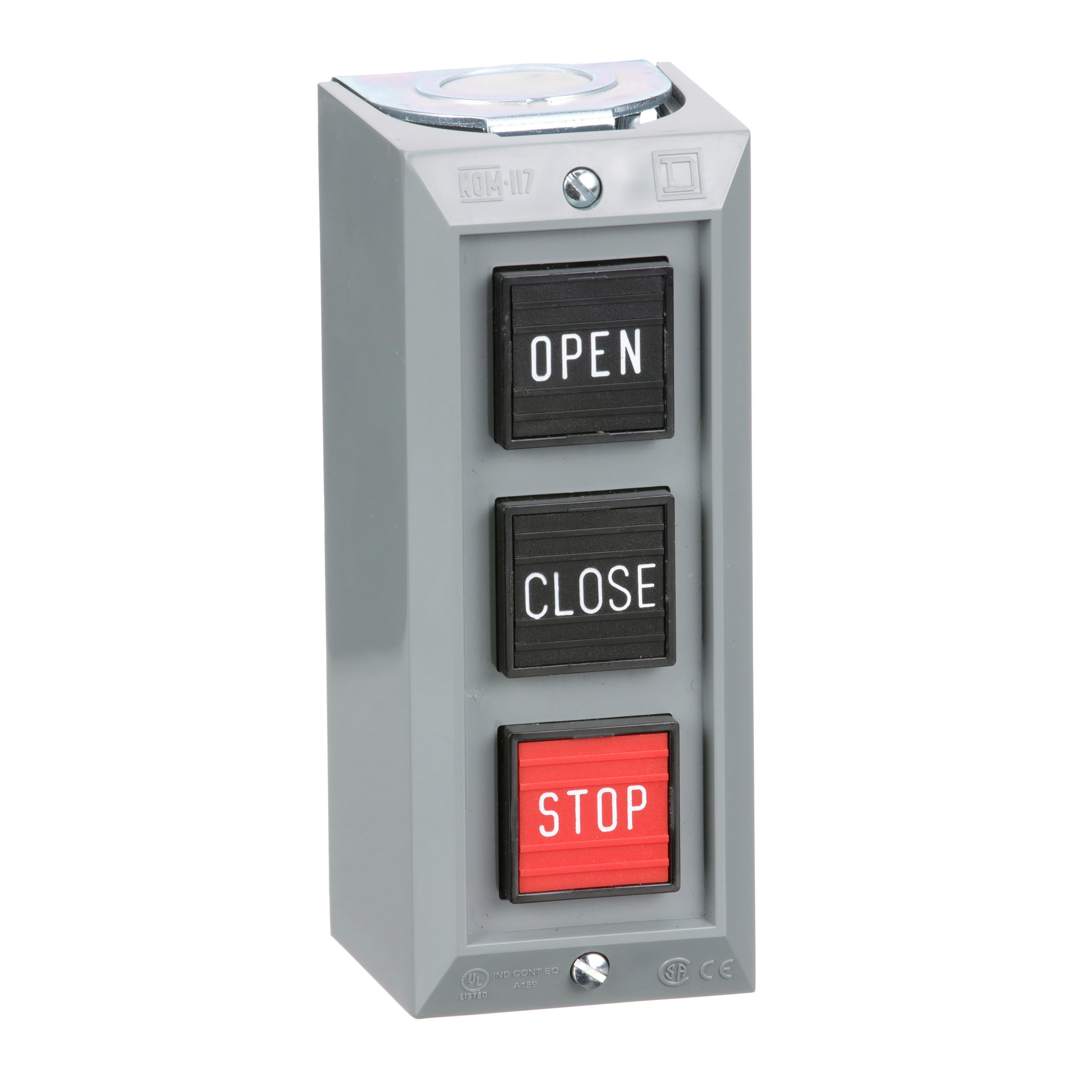

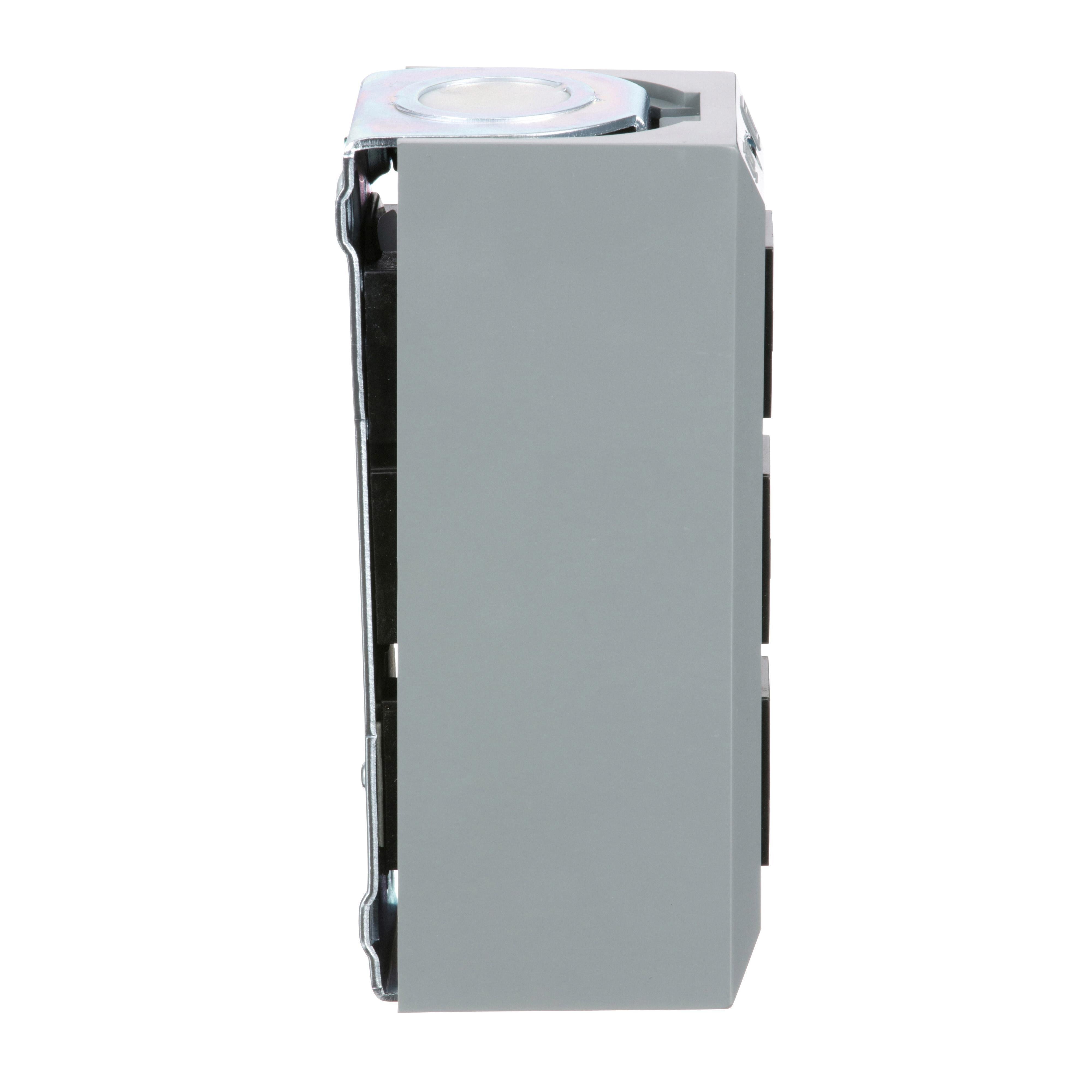

Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1 Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1
Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1 Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1
Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1 Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1
Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1 Picture of 9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1
Square D

9001BG303 - Complete control station, Harmony 9001B, 3 push buttons OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1

Item Code: 17336
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BG303

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a OPEN push button with a normally open and a normally closed contact. It has a CLOSE push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Weight

0.84

Width

2.5

Length

5.15

AD All Features

1/2 and 3/4 in knockout

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

STATION CTRL PUSHBUTTON 600VAC 5A 3 MOM

AD Item Features 01

1/2 and 3/4 in knockout

AD Item Features 02

3 projecting pushbuttons

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.1500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8400

AD Package Weight UOM

LB

AD Package Width

2.5000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 10 Attribute

NEMA Rating

Spec 10 Attribute Value

NEMA 1

Spec 11 Attribute

Number of Operators

Spec 11 Attribute Value

3

Spec 12 Attribute

Operator Type

Spec 12 Attribute Value

Pushbutton

Spec 13 Attribute

Series

Spec 13 Attribute Value

9001B

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type BG Complete

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

2NO-3NC

Spec 4 Attribute

Contact Mode

Spec 4 Attribute Value

Momentary

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

5 A at 600 V AC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

2.06 in L x 2.53 in W x 2.34 in H

Spec 7 Attribute

Legend

Spec 7 Attribute Value

OPEN-CLOSE-STOP

Spec 8 Attribute

Material

Spec 8 Attribute Value

Plastic

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
