Schneider Electric

9001BG316 - Push button, Type B, standard duty control station, 5A, 600VAC, START/JOG/STOP, NEMA 1

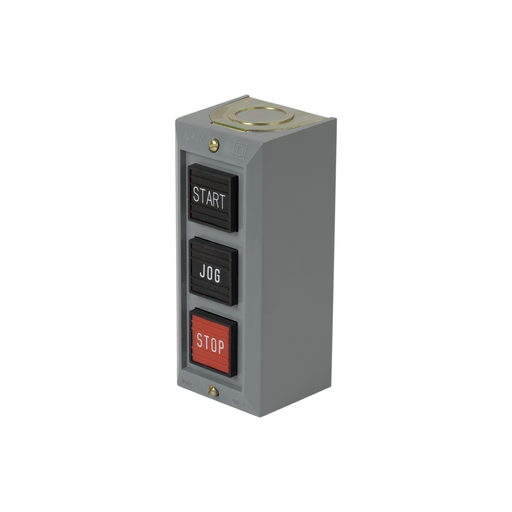

Picture of 9001BG316 - Push button, Type B, standard duty control station, 5A, 600VAC, START/JOG/STOP, NEMA 1
Schneider Electric

9001BG316 - Push button, Type B, standard duty control station, 5A, 600VAC, START/JOG/STOP, NEMA 1

Item Code: 615408
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BG316

RoHS
Owners User Manual
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a START push button with a normally open and a normally closed contact. It has a JOG push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Weight

1lb

Width

4.95mm

Length

31.95mm

Amperage Rating

5 A

Brand

Square D

Color

Gray

Connection Type

Screw clamp

Contact Configuration

2NO-3NC

Contact Mode

Momentary

Legend

START-JOG-STOP

Legend Color

White

Material

Plastic

Mounting Type

Surface

NEMA Rating

NEMA 1

Number of Operators

3

Operating Temperature

-13 to 158 deg f

Operator Type

Push Button

Series

9001BG

Type

Complete

Voltage Rating

600 V AC
