Square D

9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4

Category Miscellaneous

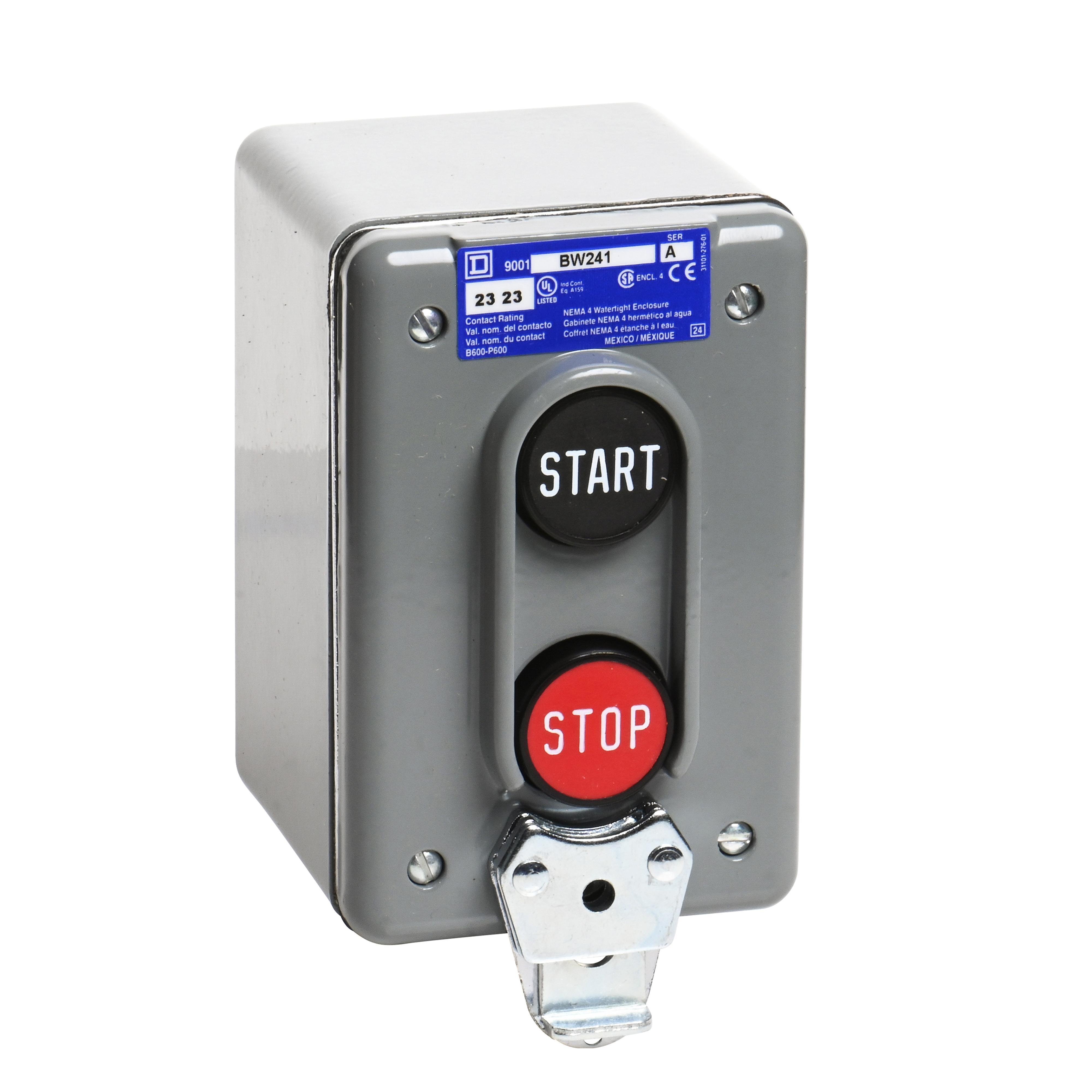

Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4 Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4
Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4 Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4
Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4 Picture of 9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4
Square D

9001BW241 - Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4

Item Code: 17341
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BW241

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two round momentary push buttons. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 4 watertight and dusttight control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Weight

2.31

Height

3.2

Width

6.64

Length

4.36

AD All Features

The contacts have a B600 rating

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STATION CTRL PUSHBUTTON 600VAC 5A 2 MOM

AD Item Features 01

The contacts have a B600 rating

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.2000

AD Package Height UOM

IN

AD Package Length

4.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

94.3400

AD Package Volume UOM

cu-in

AD Package Weight

2.3100

AD Package Weight UOM

LB

AD Package Width

6.6400

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Push Button

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

NEMA Rating

Spec 11 Attribute Value

NEMA 4

Spec 12 Attribute

Number of Operators

Spec 12 Attribute Value

2

Spec 13 Attribute

Series

Spec 13 Attribute Value

9001B

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type BW

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

5

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO-1NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Momentary

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

5 A at 600 V AC

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

2.76 in W x 3.6 in D x 4.25 in H

Spec 8 Attribute

Legend

Spec 8 Attribute Value

START STOP

Spec 9 Attribute

Material

Spec 9 Attribute Value

Die Cast Zinc
