Square D

9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A

Category Control & Pendant Stations & Accessories

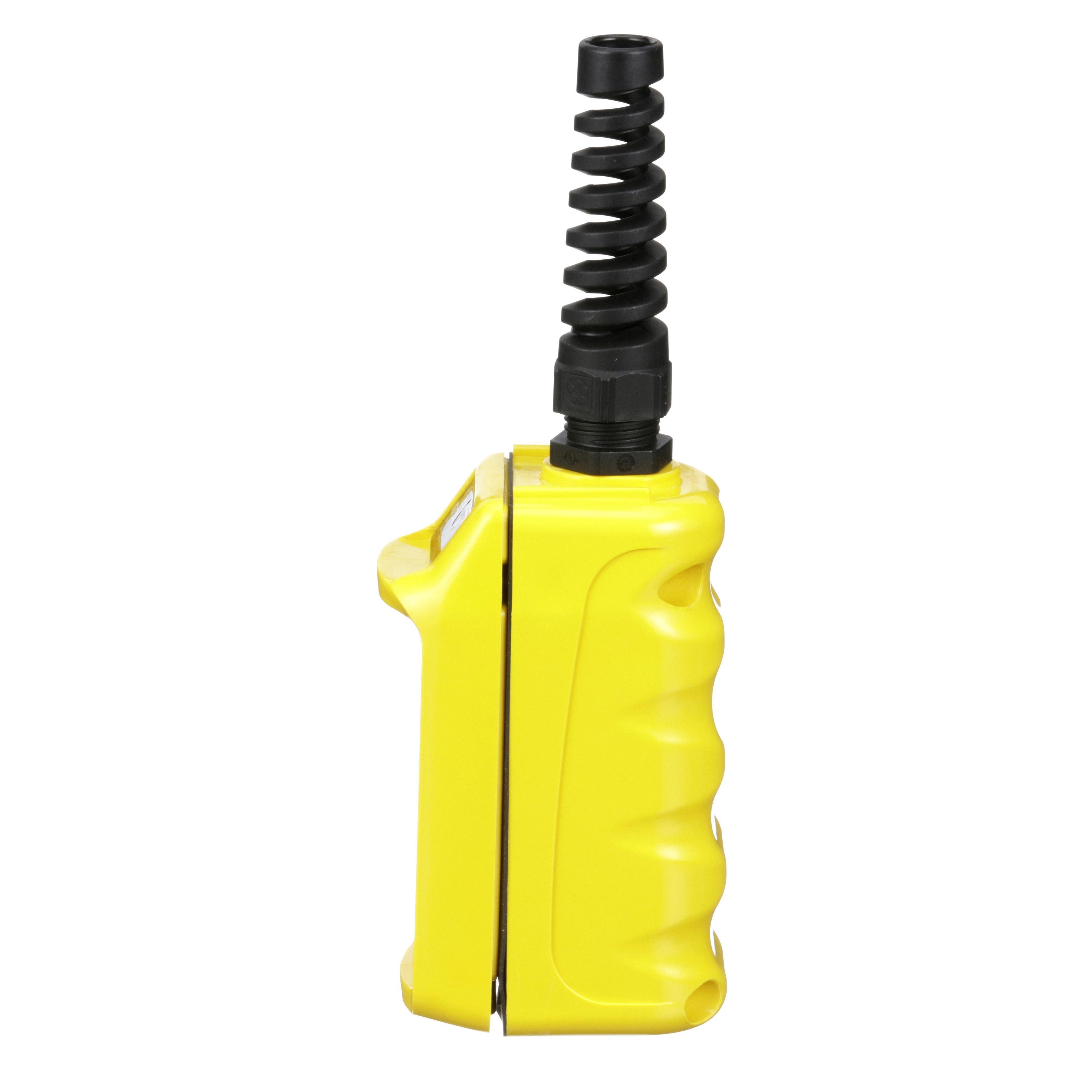

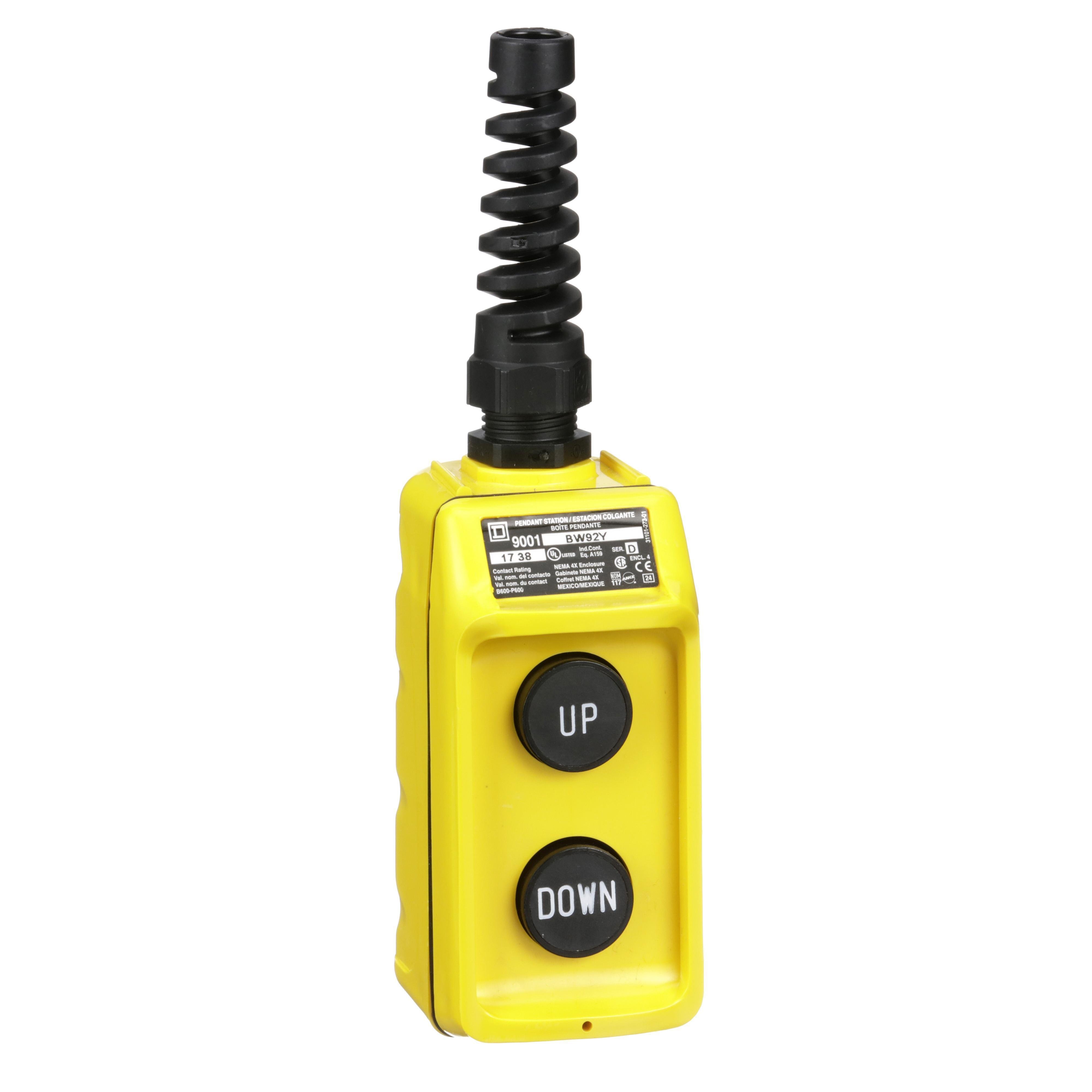

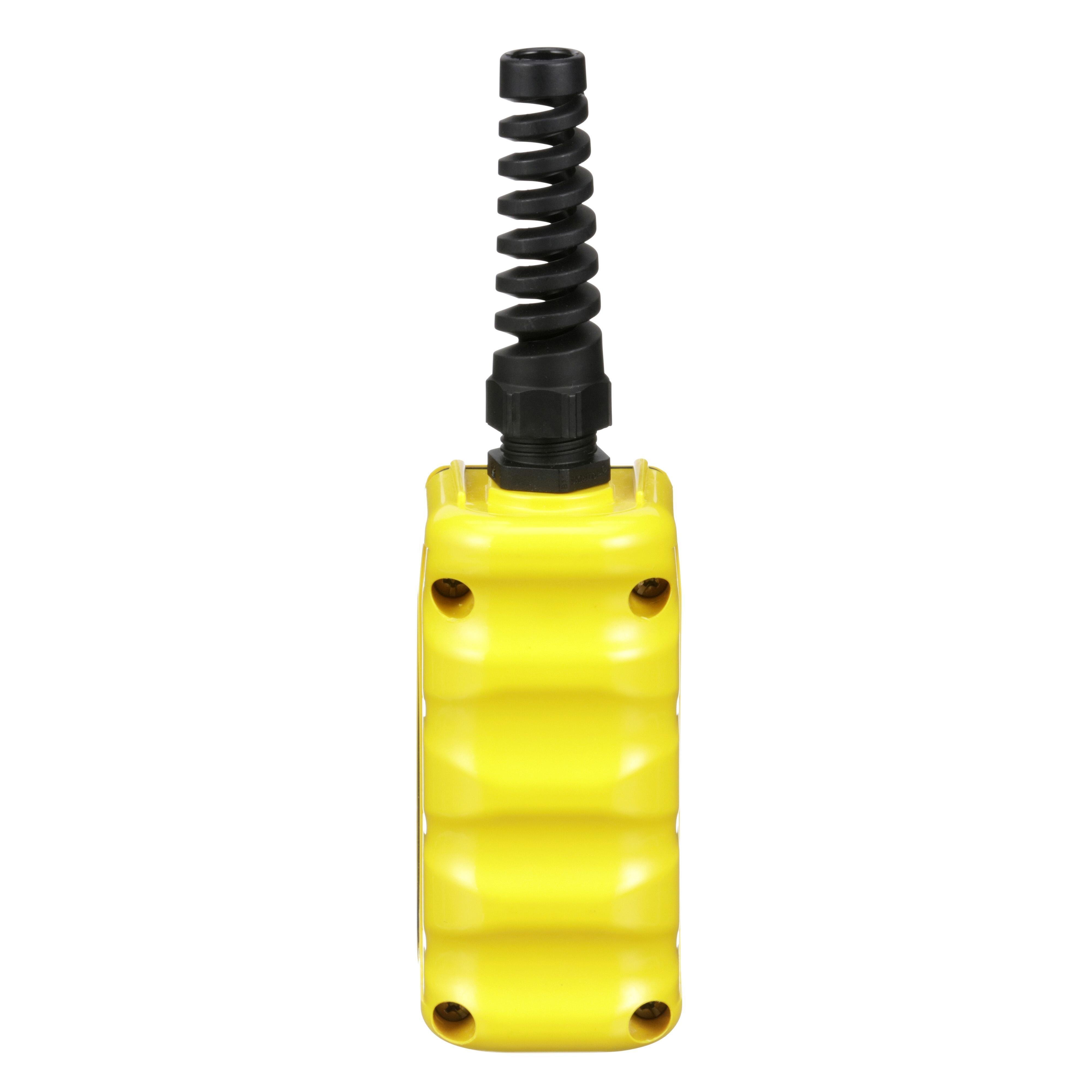

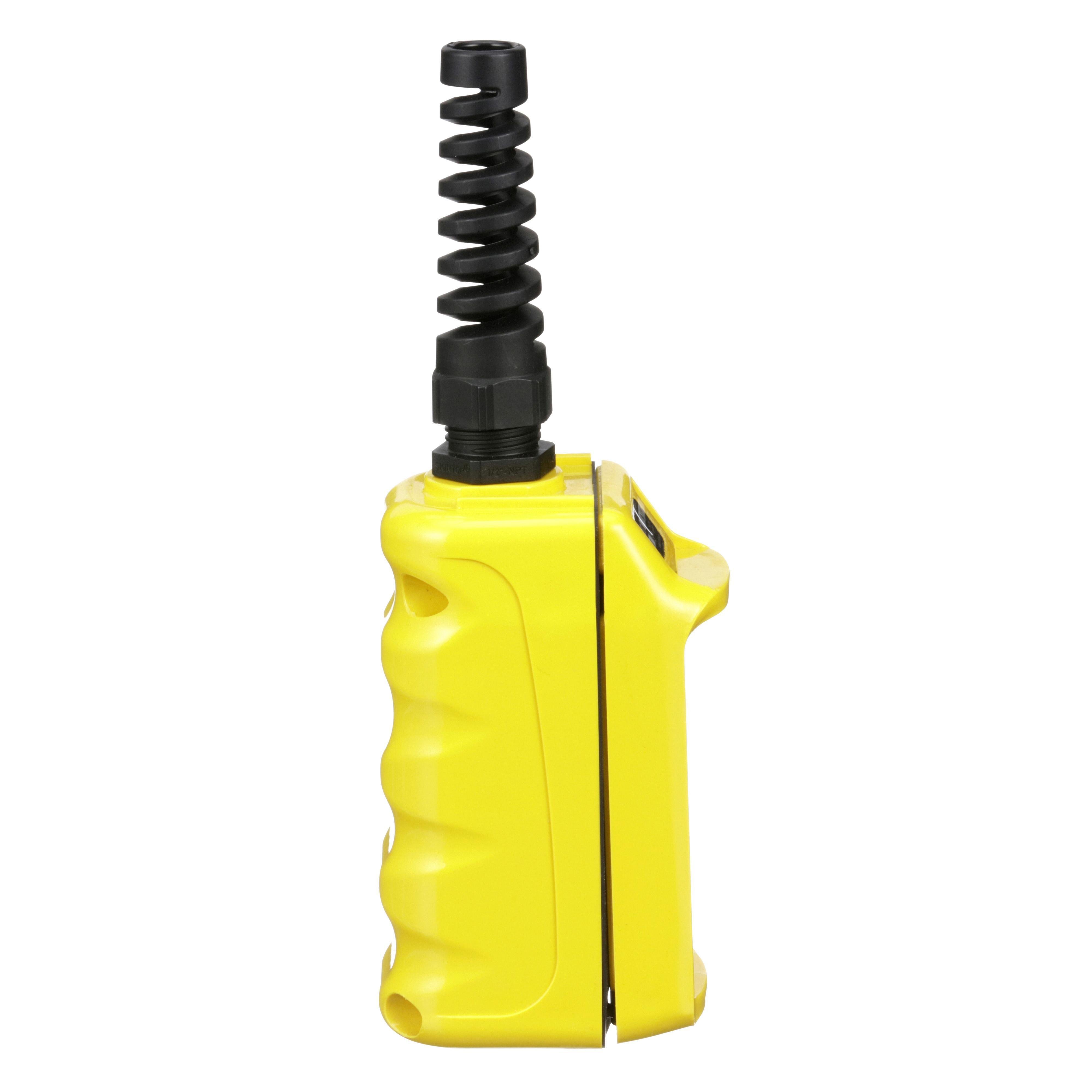

Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A
Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A
Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A
Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A
Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A Picture of 9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A
Square D

9001BW92Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, UP DOWN, yellow enclosure, 600 VAC 5 A

Item Code: 735273
Category Control & Pendant Stations & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BW92Y

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistant and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.

Specifications

Weight

0.69lb

Height

2.6mm

Width

3mm

Length

8.2mm

AD All Features

1/2-14 NPT cable entry

AD Application

Industrial Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STATION CTRL PENDANT 600VAC 5A 1NC-1NO 2

AD Item Features 01

1/2-14 NPT cable entry

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.6000

AD Package Height UOM

IN

AD Package Length

8.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

63.9600

AD Package Volume UOM

cu-in

AD Package Weight

0.6900

AD Package Weight UOM

LB

AD Package Width

3.0000

AD Package Width UOM

IN

Brand

Square D

Category

CONTROL & PENDANT STATIONS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 10 Attribute

NEMA Rating

Spec 10 Attribute Value

NEMA 1/3/3R/4/4X

Spec 11 Attribute

Number of Operators

Spec 11 Attribute Value

2

Spec 12 Attribute

Series

Spec 12 Attribute Value

9001B

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type BW

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Color

Spec 2 Attribute Value

Yellow

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NO-1NC

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

Momentary

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

5 A 600 V AC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

4.25 in H x 2.76 in W x 3.6 in D

Spec 7 Attribute

Legend

Spec 7 Attribute Value

UP-DOWN

Spec 8 Attribute

Material

Spec 8 Attribute Value

Plastic/Polycarbonate

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel
