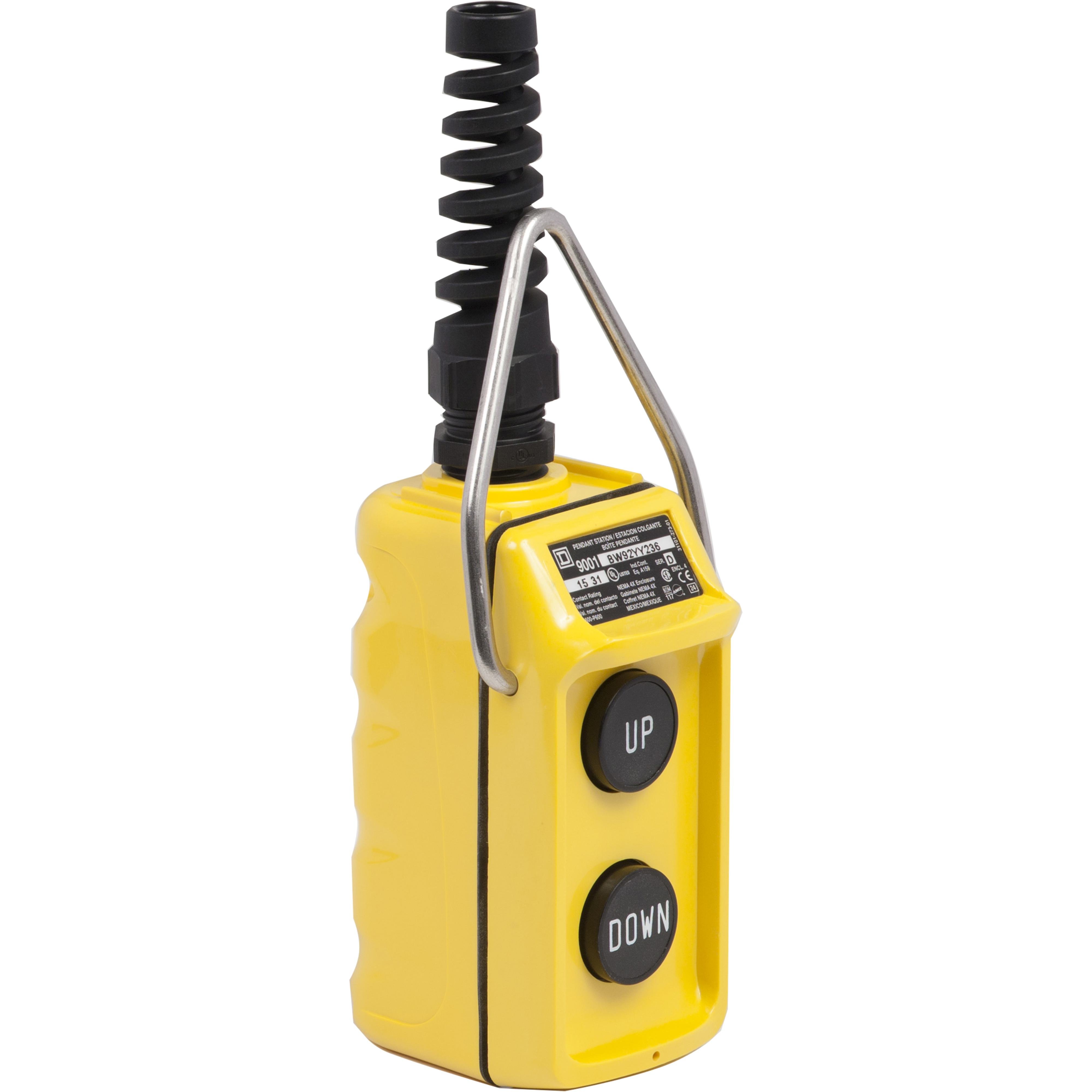

9001BW92YY236 - PENDANT STATION 600VAC 5A T-BW
Description
Specifications
0.79
2.6
3.16
8.11
For simple hoisting over head cranes, building cranes, lifts and jogging applications
Schneider Electric
USA
MX
RoHS
Specification Sheet
Owners/User Manual
00785901939443
STATION CTRL PENDANT 600VAC 5A 2NO 2 YEL
Easy to hold-in one hand with contoured grip
Momentary and maintained contact
High impact thermoplastic enclosure with self-extinguishing flammability (UL94V)
Ergonomic design makes it easy to use
Durable plastic that can work in almost any industrial environment
Pre-Assembled Units
Schneider Electric
2.6000
IN
8.1100
IN
1
64.7400
cu-in
0.7900
LB
3.1600
IN
9001BW92YY236 ; 785901939443 ; 78590193944 ; 00785901939443
Square D
Actuator
Push Button
Mounting Type
Panel/Flush
NEMA Rating
NEMA 1/3/3R/4/4X/13
Number of Operators
2
Operating Temperature
deg C
-25 To 60
Operator Type
Mechanically interlocked
Series
9001BW
Type
Corrosion-Resistant Dusttight/Oiltight/Watertight Ergonomic
Voltage Rating
V AC
600
Amperage Rating
A
5
Bezel/Housing
Polycarbonate/PET Polyester Blend
Color
Yellow
Connection Type
1/2 in NPT/Screw Clamp
Contact Configuration
2NO 2 Form A
Dimensions
4.69 in H x 2.19 in W x 2.94 in D
Legend
UP-DOWN
Material
Die Cast Zinc/High Impact Thermoplastic
